Neutral/Inhibitor Switch Chart

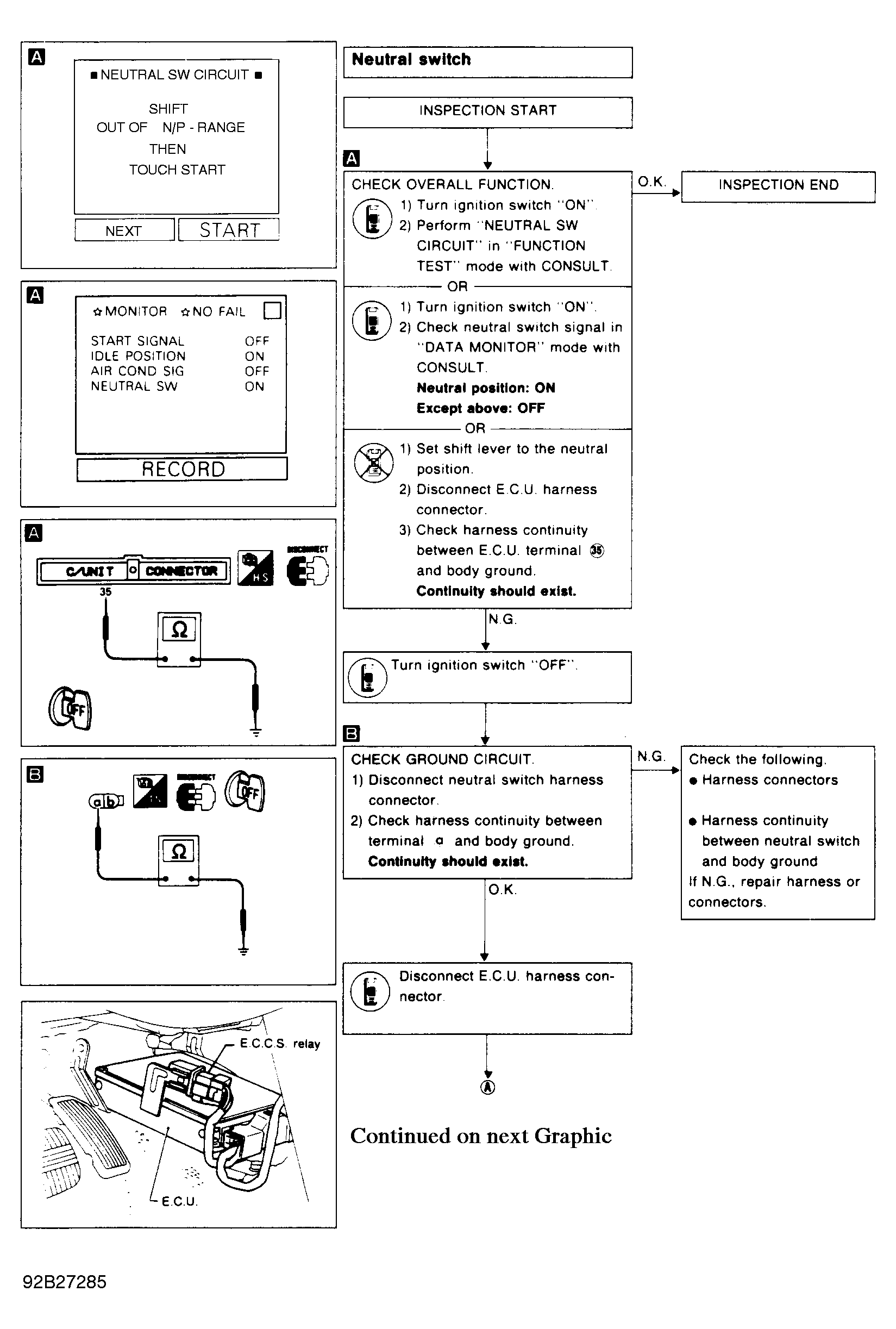

Fig 1: Neutral/Inhibitor Switch Flow Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

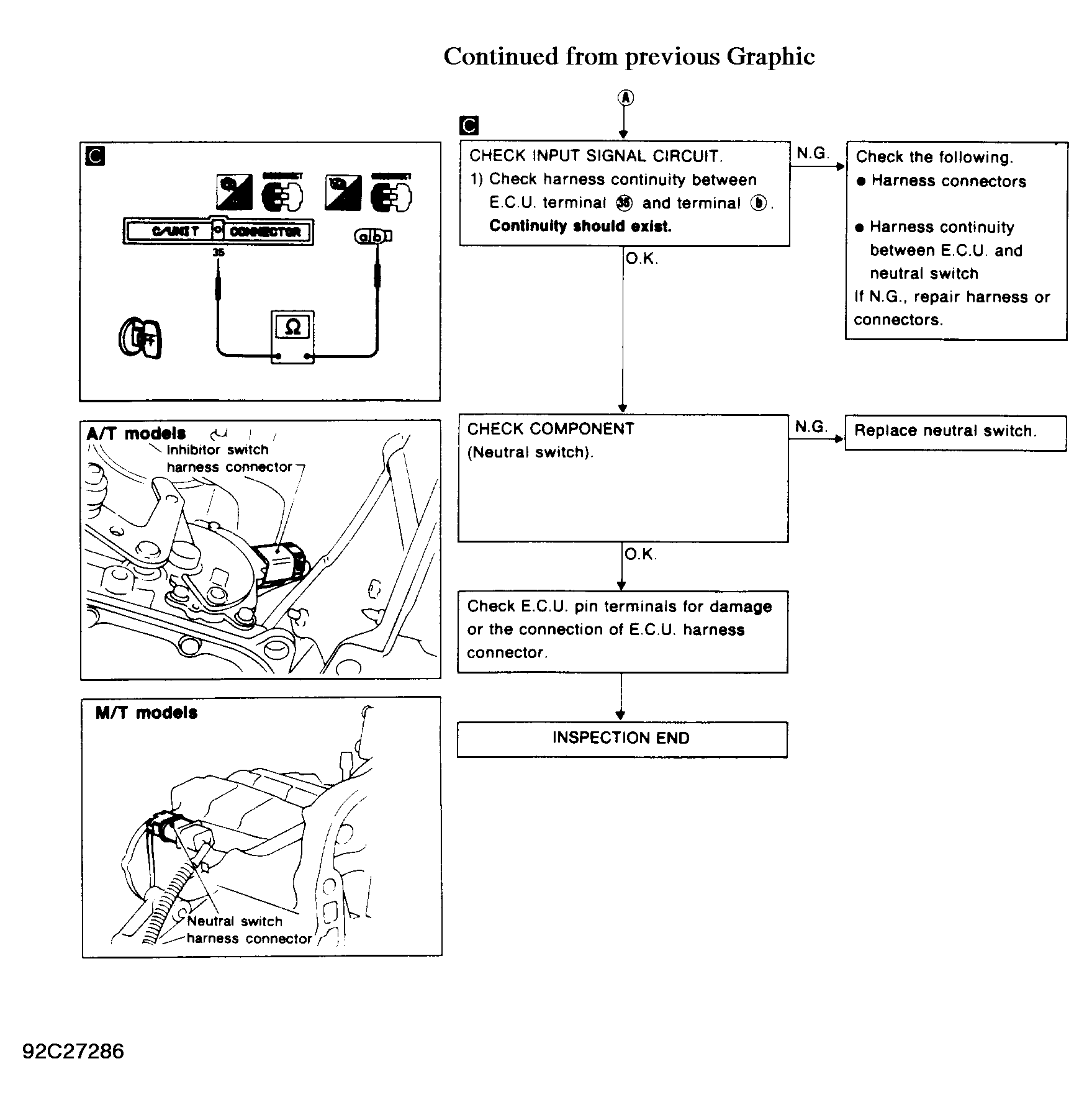

Fig 2: Neutral/Inhibitor Switch Flow Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

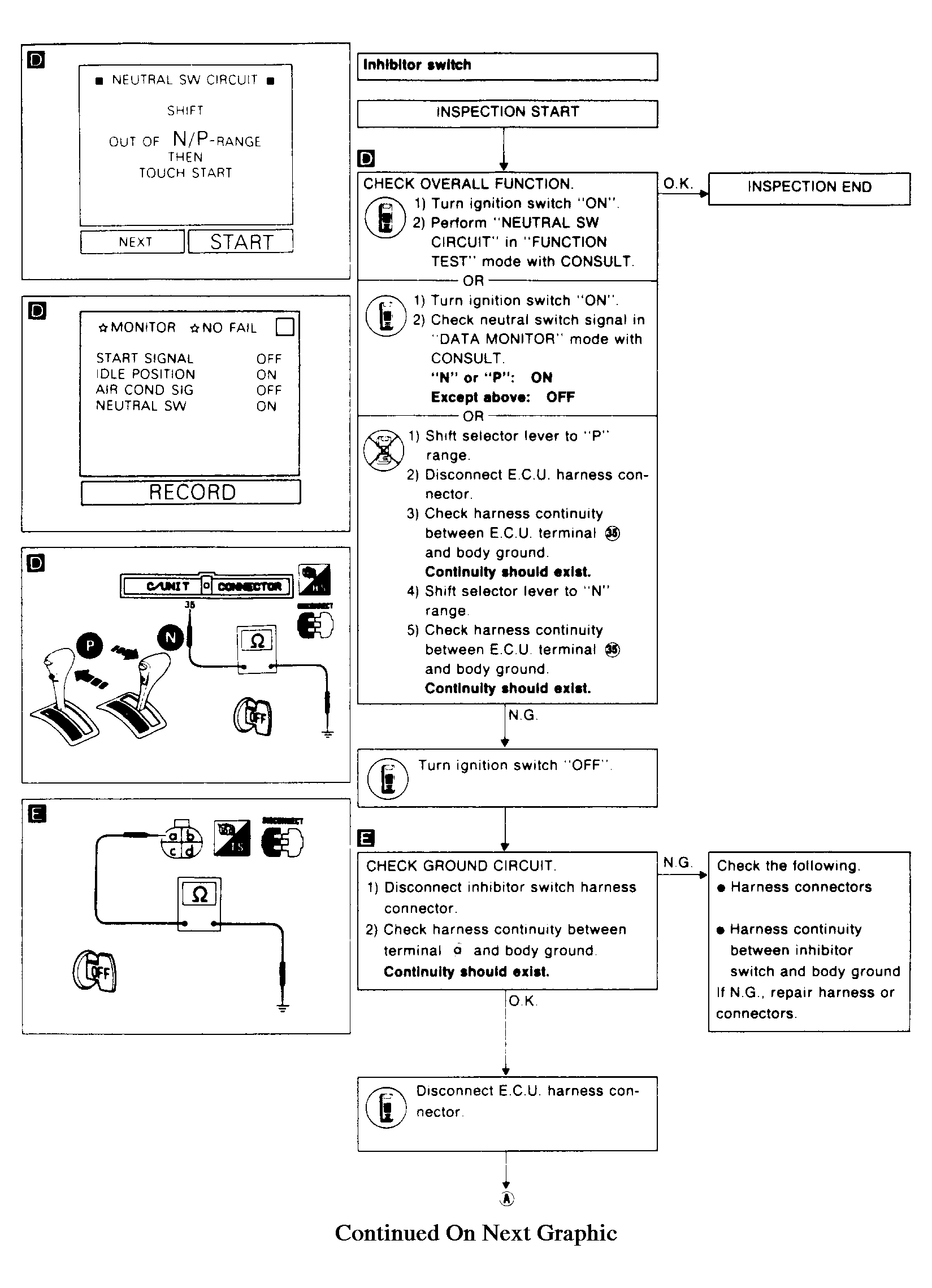

Fig 3: Neutral/Inhibitor Switch Flow Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

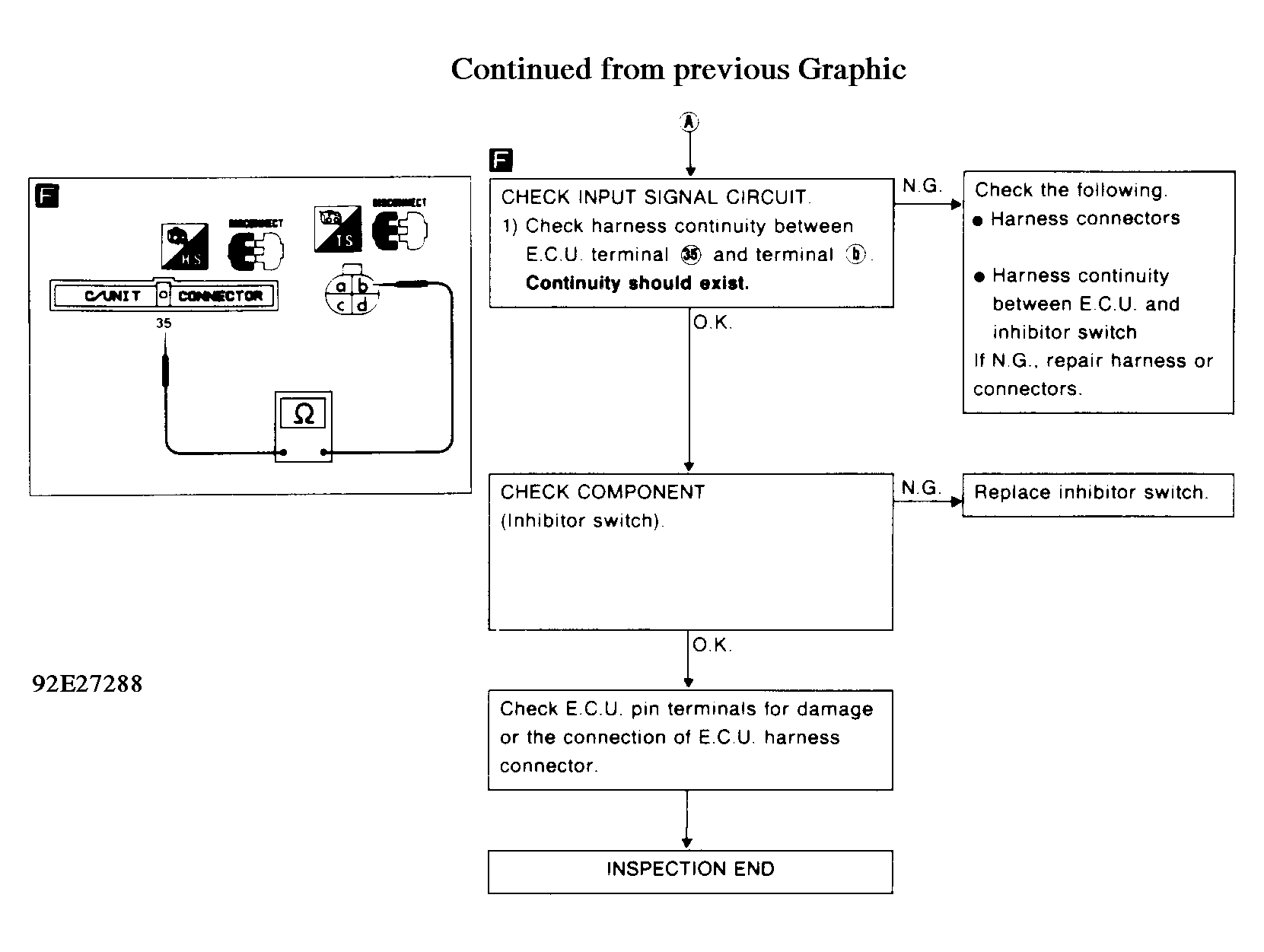

Fig 4: Neutral/Inhibitor Switch Flow Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
