Power Transistor

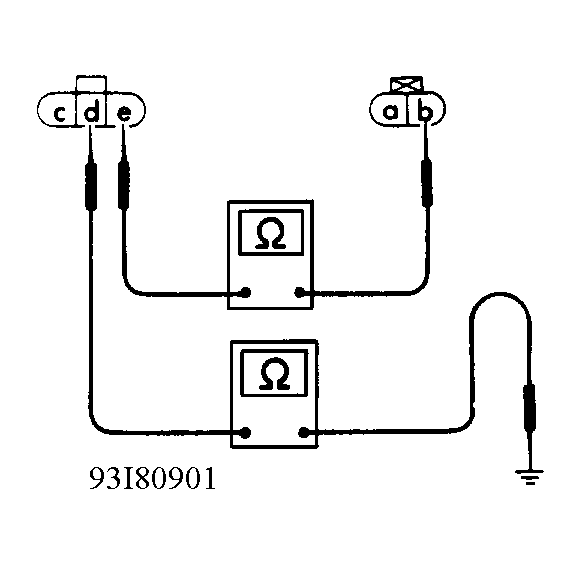

- Disconnect power transistor connector. See Fig 1
. At power transistor connector, check continuity between the following terminals, noting ohmmeter test lead polarity:
- "a" (+) and "b" (-)
- "a" (+) and "c" (-)
- If there is continuity, replace power transistor. If there is no continuity, reverse ohmmeter test lead polarity and check continuity across terminals listed in previous step. If there is no continuity, replace power transistor. If there is continuity, power transistor is okay.
Courtesy of NISSAN MOTOR CO., U.S.A.
