Repair and Diagnosis: Transmission: Clutches: Description

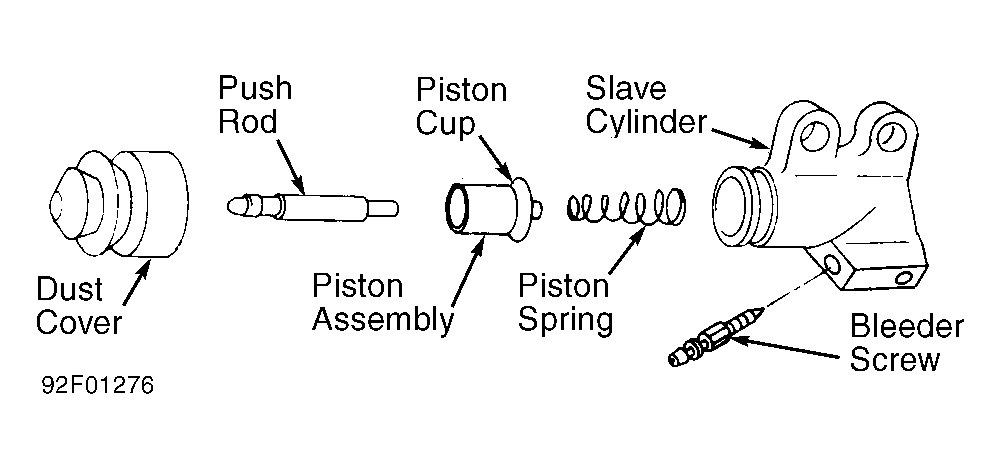

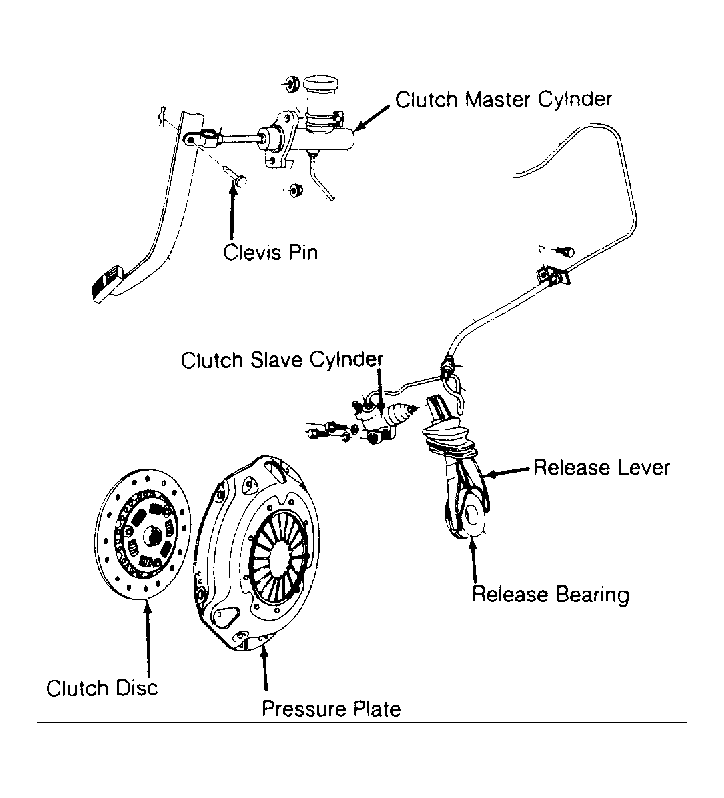

Clutch assembly is a single disc type with a diaphragm spring pressure plate. Maxima and Stanza use a hydraulic control system consisting of a master cylinder, slave cylinder, release lever and release bearing. See Fig 1 . Bleeder screw is located on slave cylinder. See Figure . NX and Sentra use a mechanical control system consisting of clutch cable, release lever and release bearing.
