Crankshaft Position (CKP) Sensor
- CKP sensor is located inside distributor. If a fault is present in CKP sensor, Code 11 may be set in ECM memory. If Code 11 is set, perform appropriate CODE 11 (CKP SENSOR) in appropriate G - TESTS W/ CODES article in the ENGINE PERFORMANCE section below.

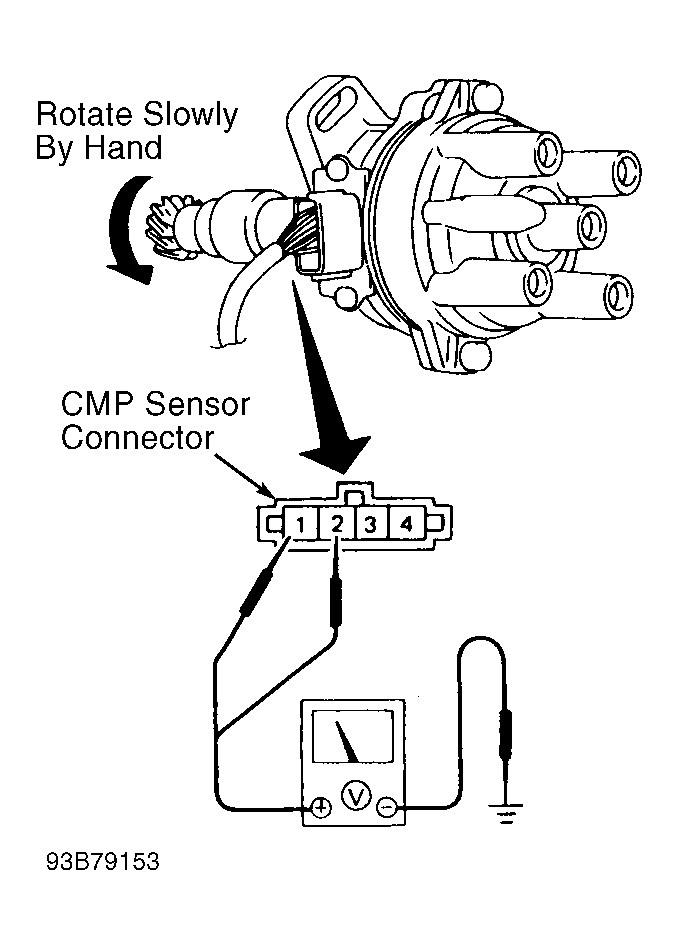

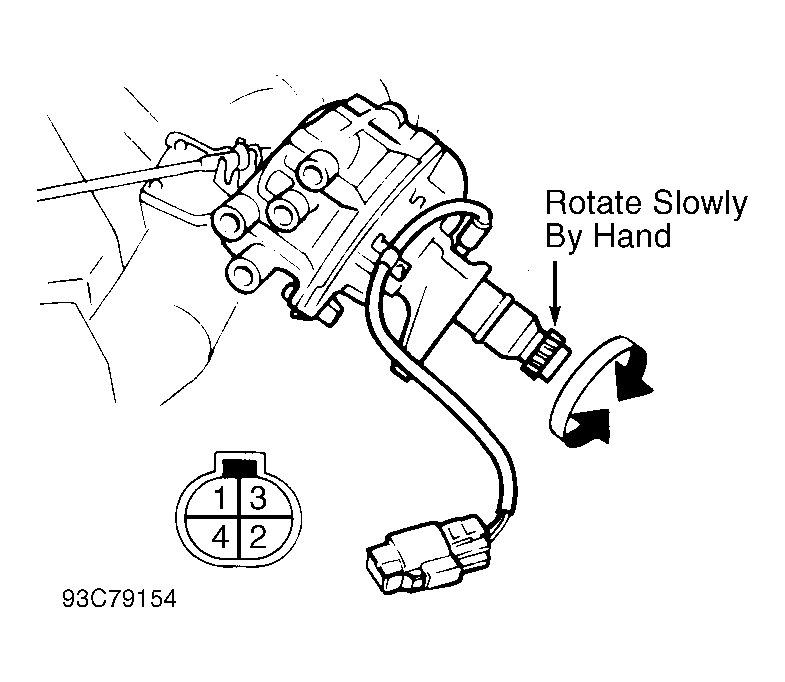

- To test CKP sensor, remove distributor. Leave wiring harness connected. Using a voltmeter, connect negative lead to ground and alternately connect positive lead to 1-degree signal terminal and 120/180-degree signal terminal. See CKP SENSOR INPUT SIGNAL TERMINALS table. See Fig 1 and Fig 2 .
- Measure voltages at both terminals while rotating distributor by hand. Voltage should fluctuate 0-5 volts. If either voltage signal does not fluctuate 0-5 volts, check harness for short or open circuit. If no problems are found, replace CKP sensor.
CKP SENSOR INPUT SIGNAL TERMINALS
| Application | 1-Degree Signal | 120/180-Degree Signal |
|---|---|---|
| 1.6L | Terminal No. 2 | Terminal No. 1 |
| 2.0L | Terminal "D" | Terminal "A" |
