Inhibitor Switch Test (1.6L)

Disconnect and inspect inhibitor switch 4-pin harness connectors for pushed-out, bent, damaged or corroded terminals. Repair connector as necessary. Connector is located side of transaxle. Check continuity between inhibitor switch connector terminals No. 1 and 2. See Fig 1 . Continuity should exist ONLY in Park and Neutral. If continuity exists in any other position, replace inhibitor switch.

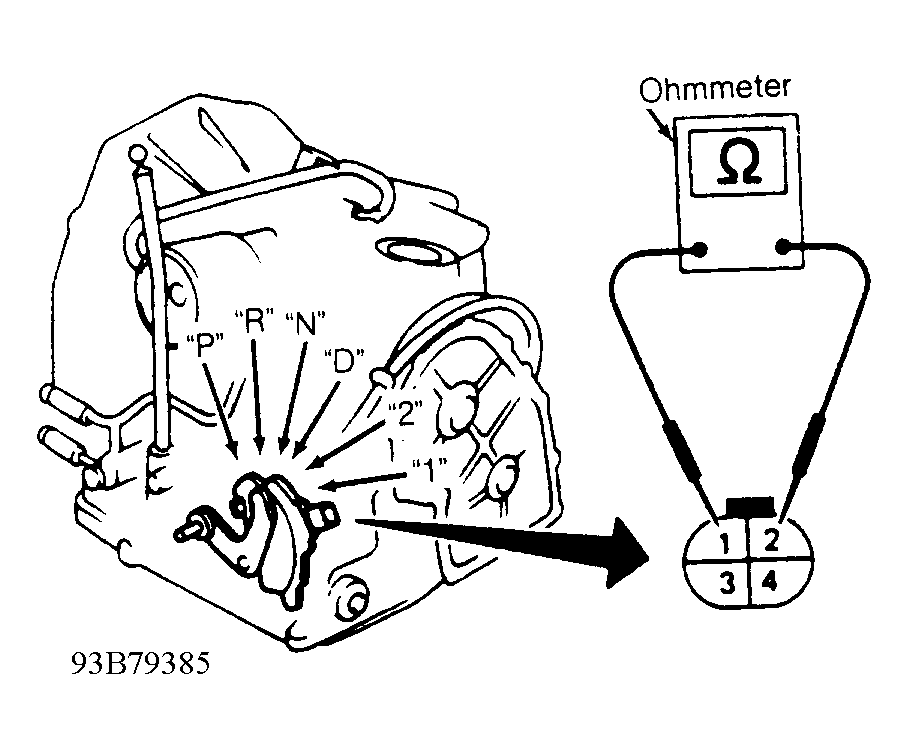

Fig 1: Inhibitor Switch Connector Terminal ID (1.6L)

Courtesy of NISSAN MOTOR CO., U.S.A.
