V6 Ignition Timing: Maxima

  1. Ensure engine is at normal operating temperature. Turn ignition off. Disconnect Throttle Position (TP) sensor. Start engine. Increase engine speed to 2000 RPM, 2 or 3 times, then allow engine to return to idle.

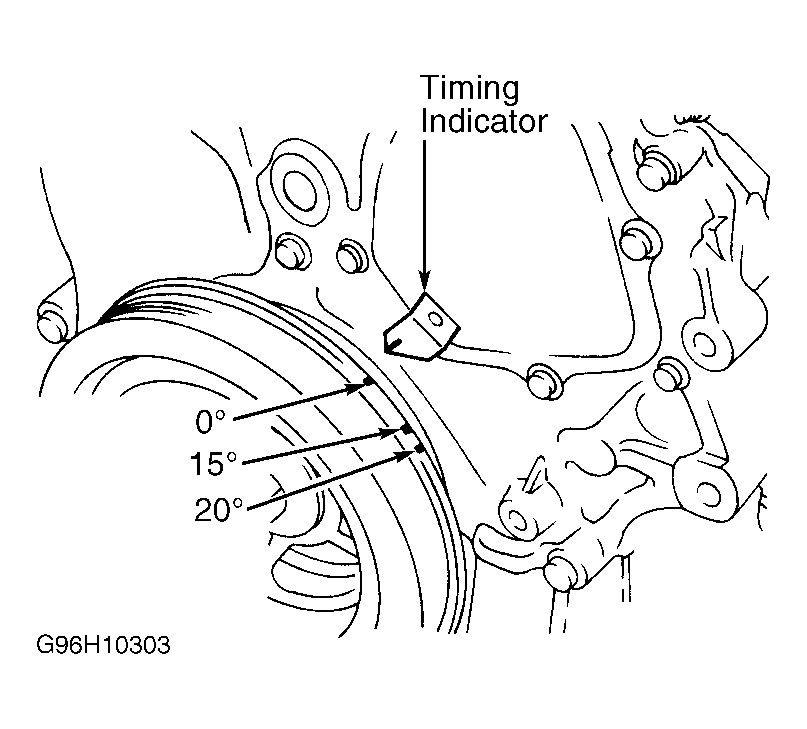

  2. Check ignition timing. See V6 IGNITION TIMING  table. See Figure. If ignition timing is incorrect, loosen hold-down bolt and turn camshaft position sensor to adjust timing. Tighten camshaft position hold-down bolt. Recheck ignition timing.
