Engine Control Harness

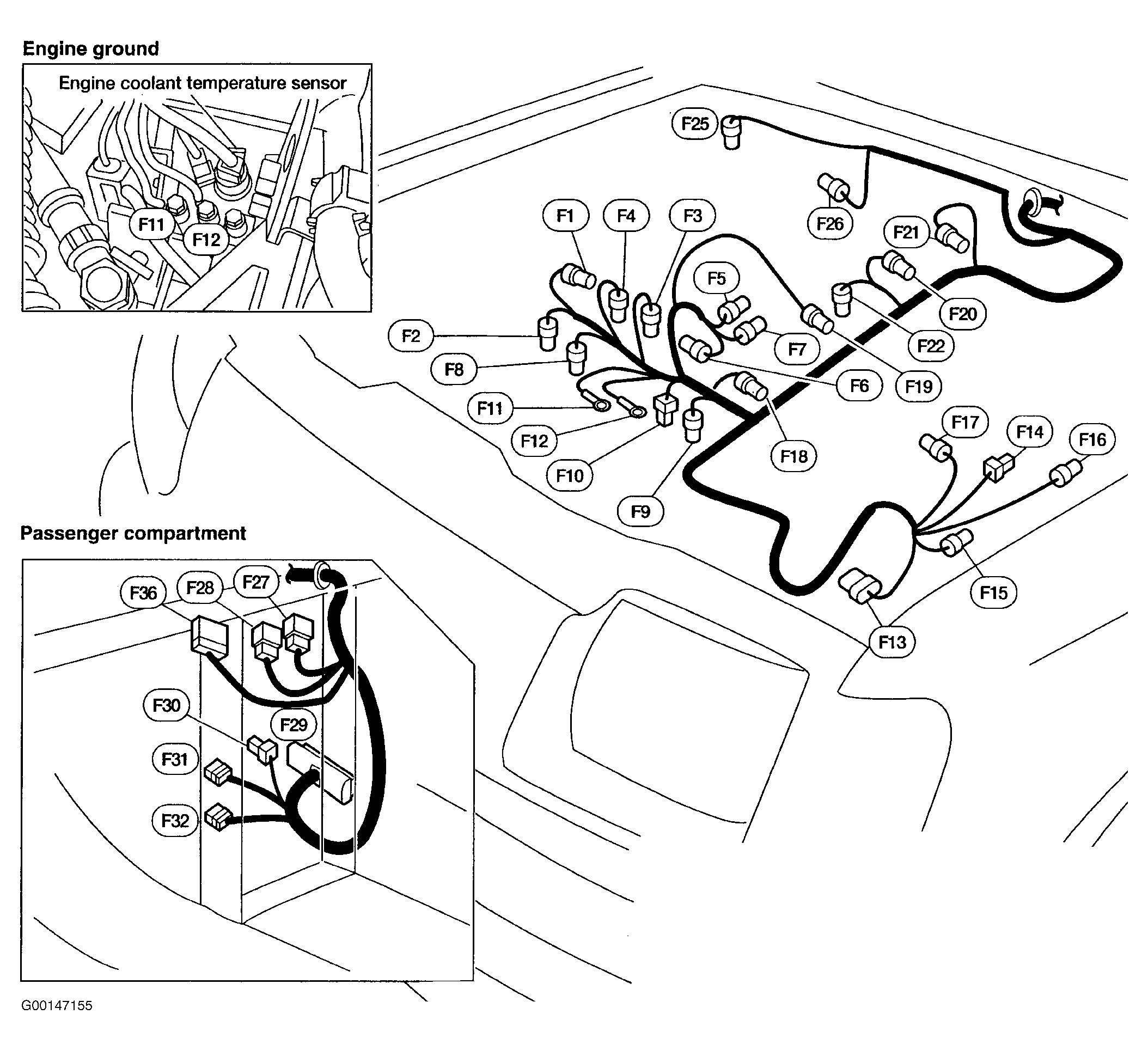

Fig 1: Identifying Engine Control Harness Routing (2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

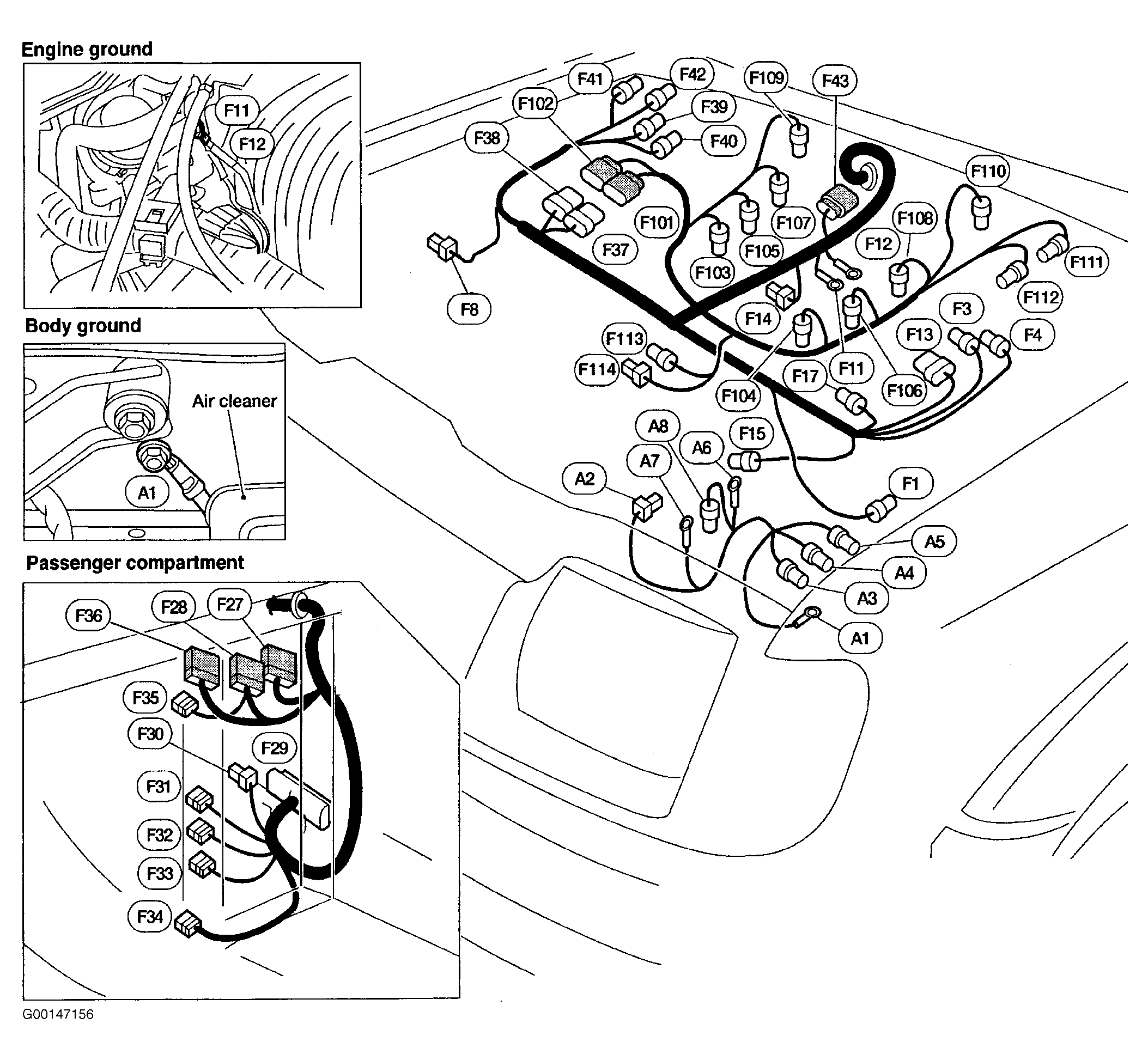

Fig 2: Identifying Engine Control Harness Routing (Frontier 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.

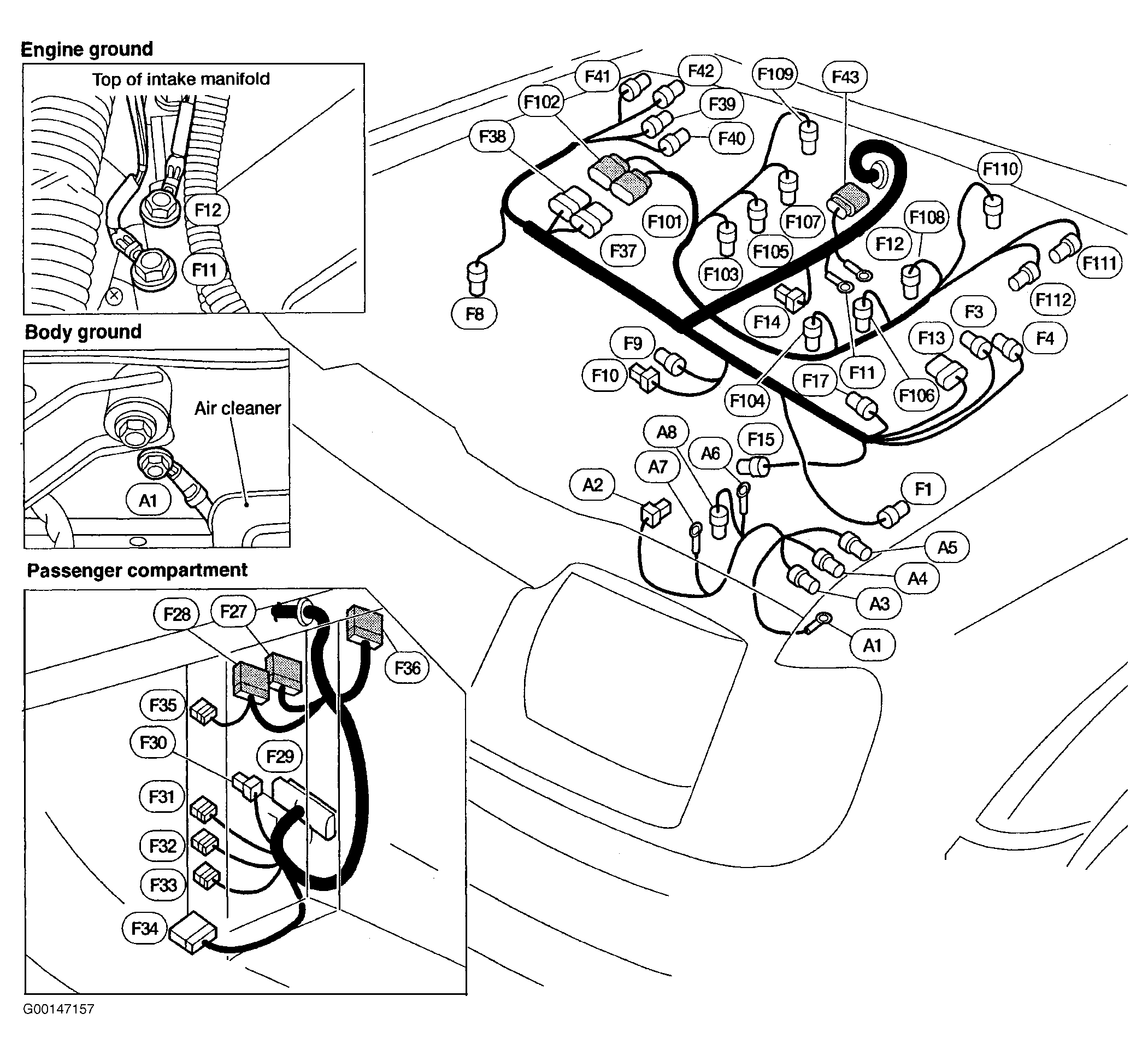

Fig 3: Identifying Engine Control Harness Routing (Xterra 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
