CONSULT-II Inspection Procedure

  1. Turn the ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.

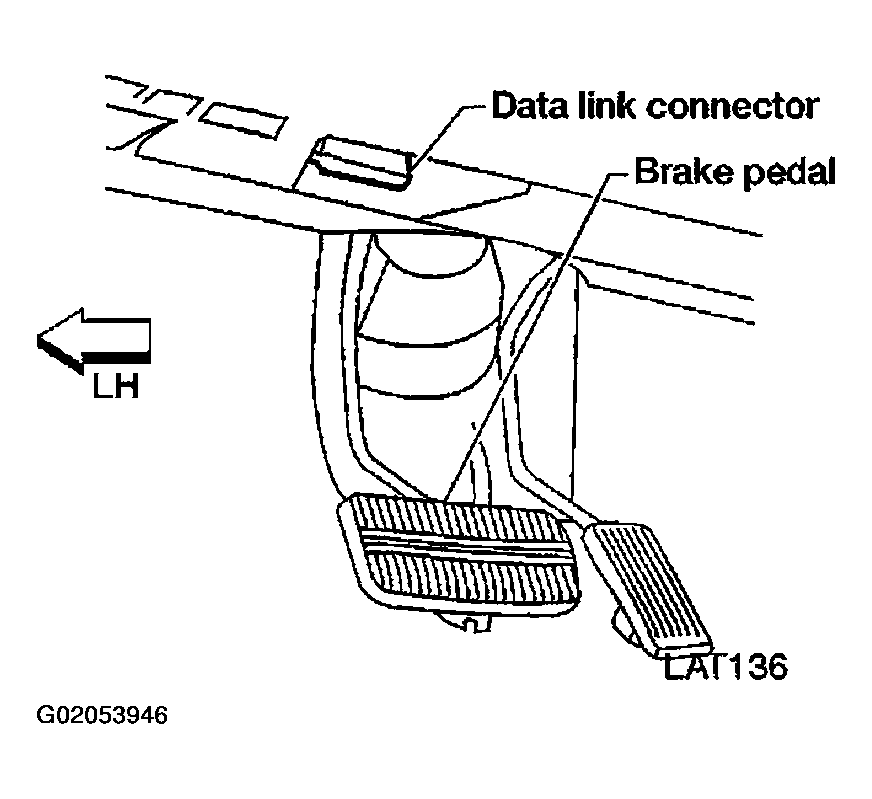

    Fig 1: Locating Data Link Connector (DLC)
    G02053946Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START".

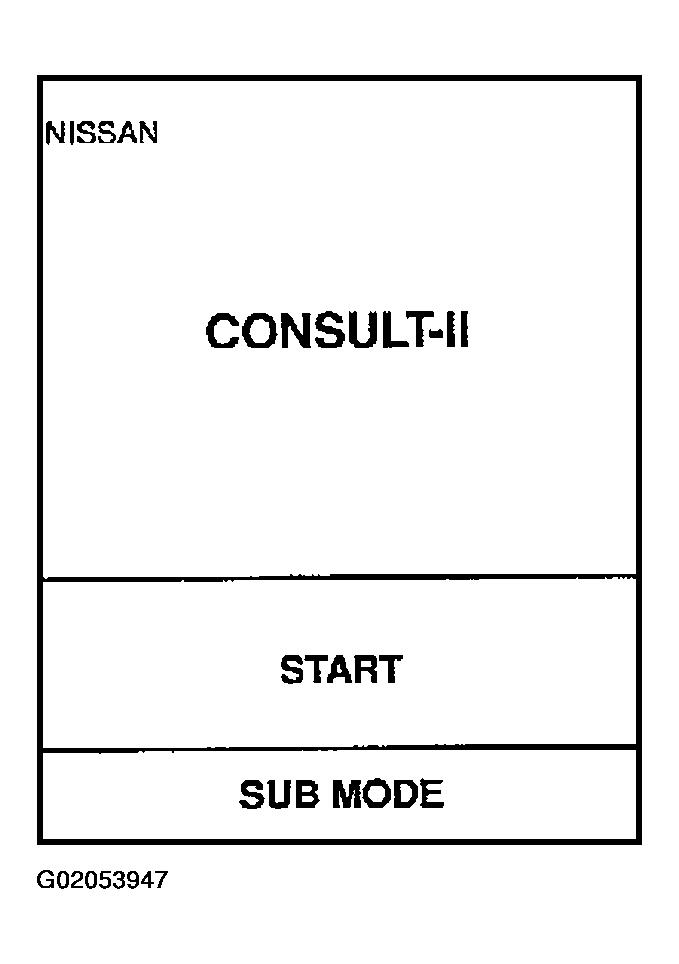

    Fig 2: Tester Display - Start
    G02053947Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE".

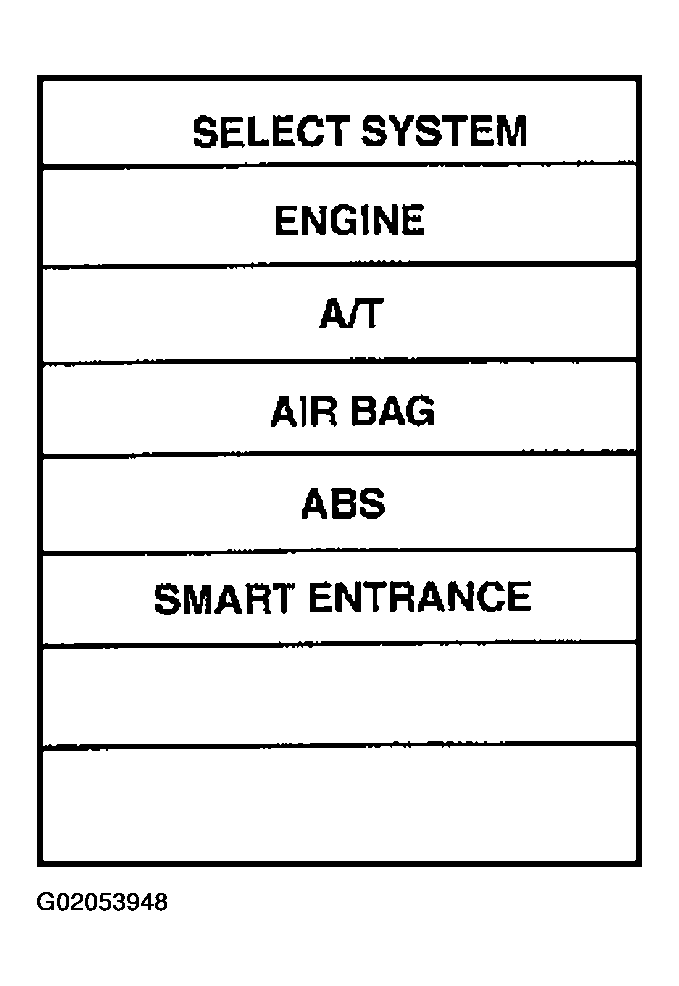

    Fig 3: Tester Display - Smart Entrance
    G02053948Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION". Refer to DIAGNOSTIC ITEMS APPLICATION  .

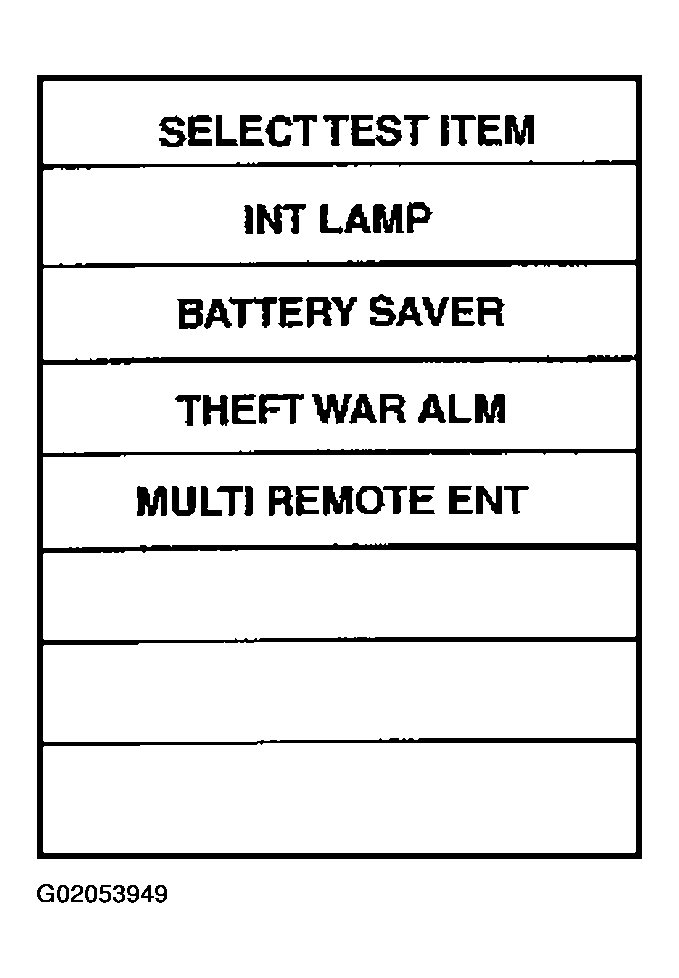

    Fig 4: Tester Display - Diagnostic Items Application
    G02053949Courtesy of NISSAN MOTOR CO., U.S.A.
