Data Monitor Procedure

  1. Turn ignition switch OFF.

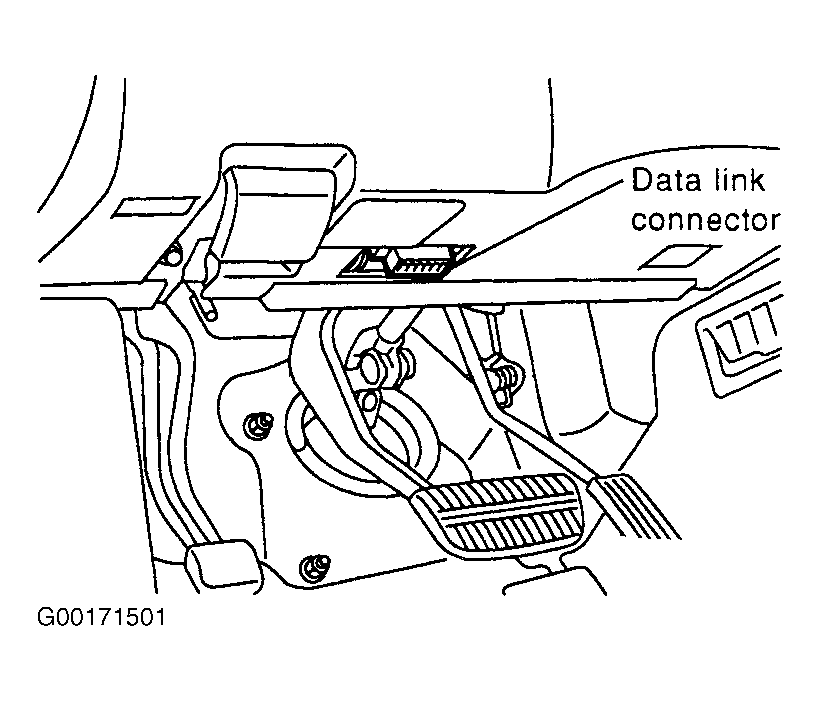

  2. Connect CONSULT-II to data link connector. See Figure .
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.
  5. Touch "ABS".
  6. Touch "DATA MONITOR".
  7. For data monitor mode descriptions, see Fig 1 .

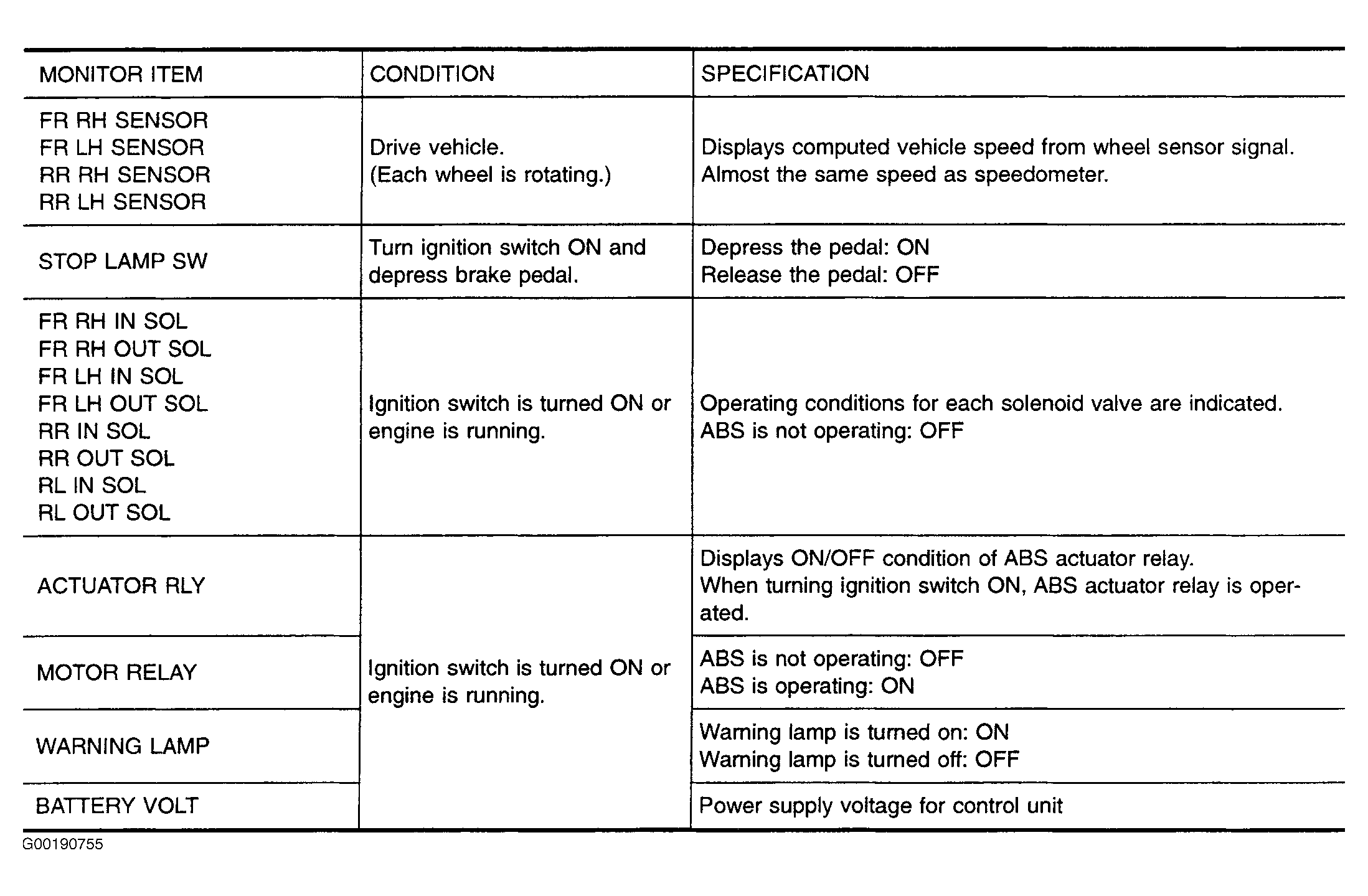

Fig 1: Data Monitoring Mode With CONSULT-II
G00190755Courtesy of NISSAN MOTOR CO., U.S.A.
