Starting System: Starter: Construction

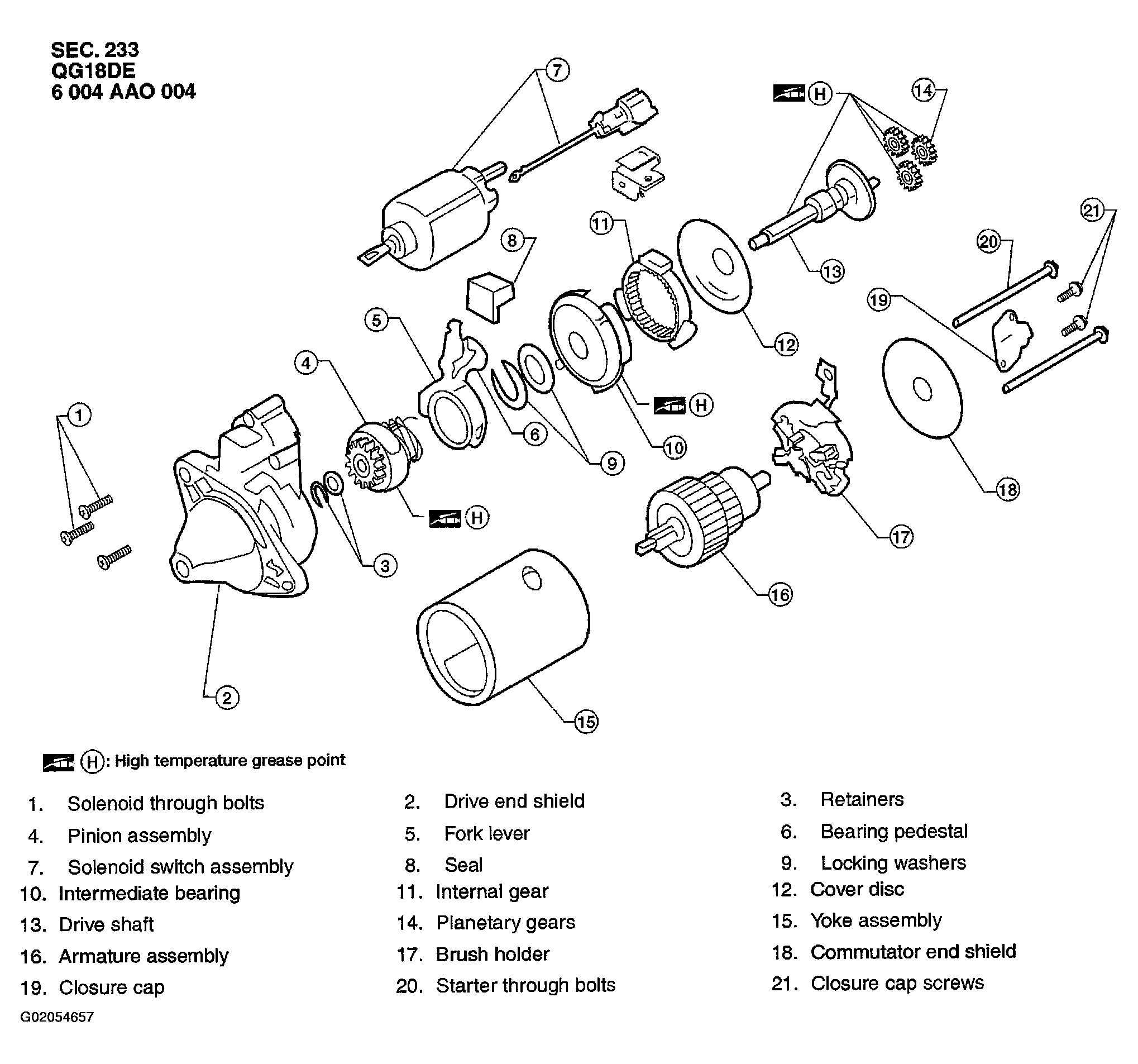

Fig 1: Exploded View Of Starter (QG18DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

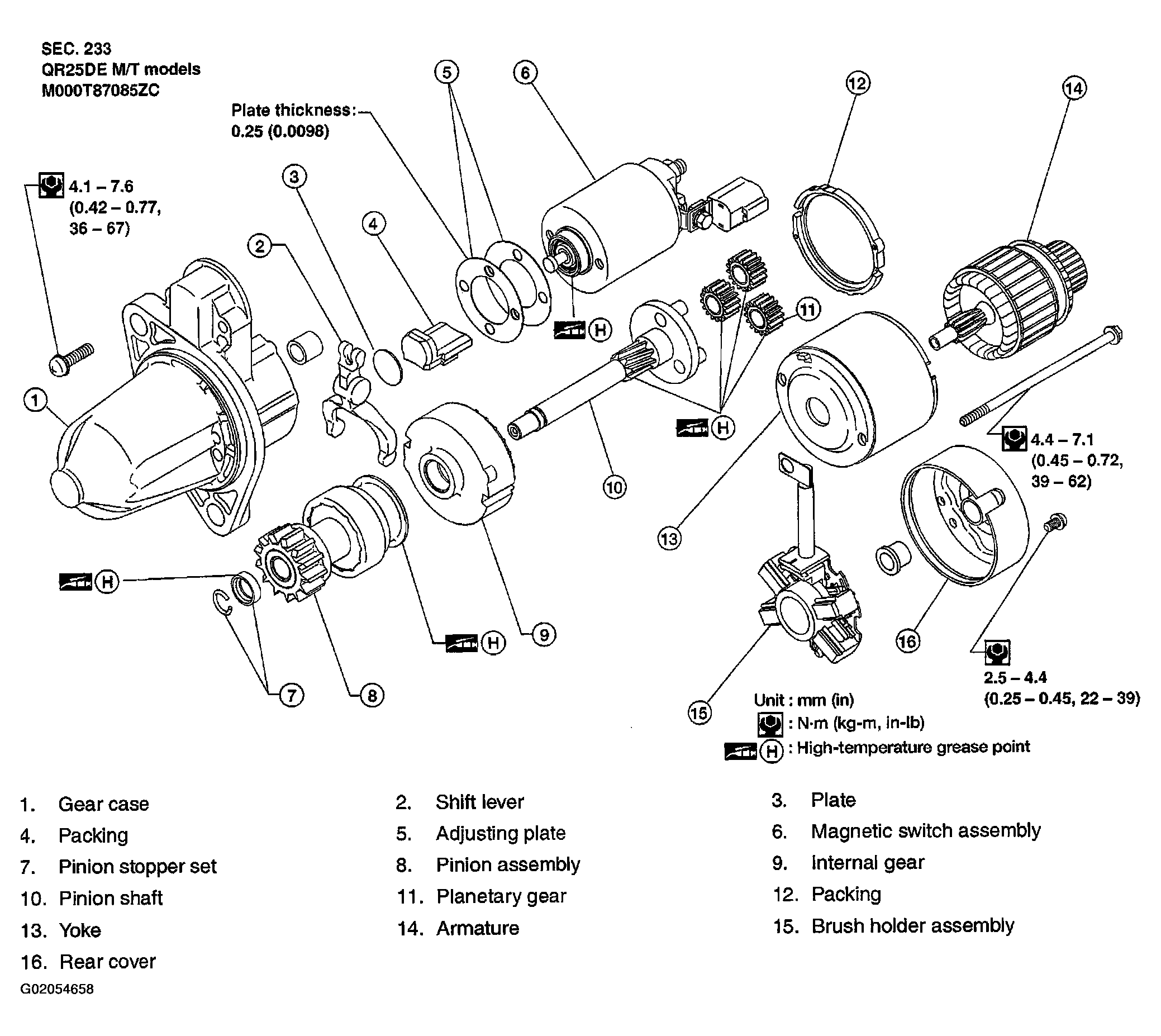

Fig 2: Exploded View Of Starter (QR25DE M/T Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

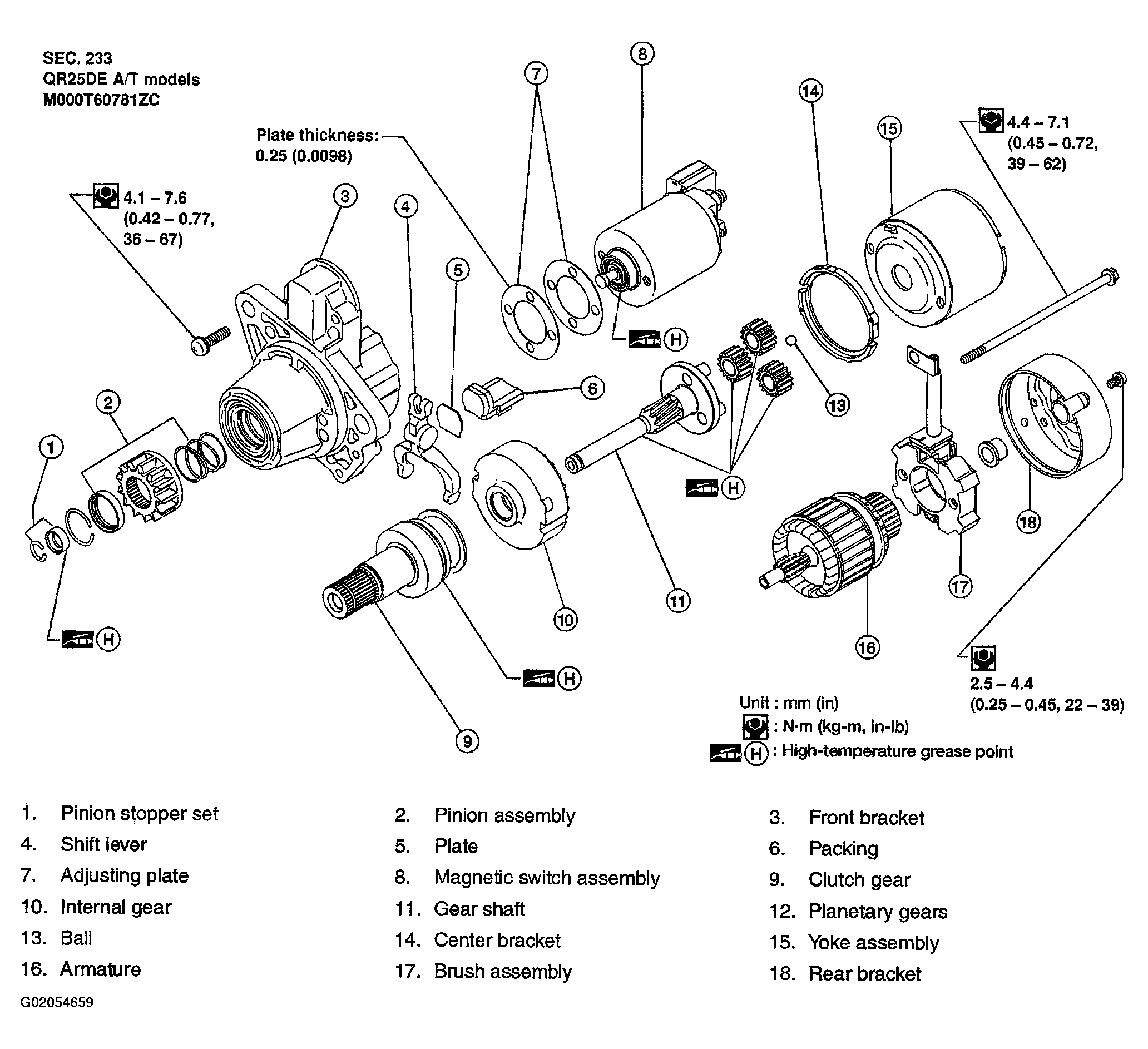

Fig 3: Exploded View Of Starter (QR25DE A/T Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
