Combination Switch Reading Function
The BCM reads combination switch (light, wiper washer, turn signal) status, and controls various electrical components according to the results. The BCM reads information of 20 switches and 5 diagnostic results by combining 5 output terminals (OUTPUT 1-5) and 5 input terminals (INPUT 1-5). See Fig 1 .
The BCM outputs battery voltage from input terminals (INPUT 1-5) all the time. At the same time output terminals (OUTPUT 1-5) activate transistors in turn, and allow current to flow. At this time, if any (1 or more) of the switches are "ON", the input terminals corresponding to these switches detect current flow, and BCM judges switches are "ON".

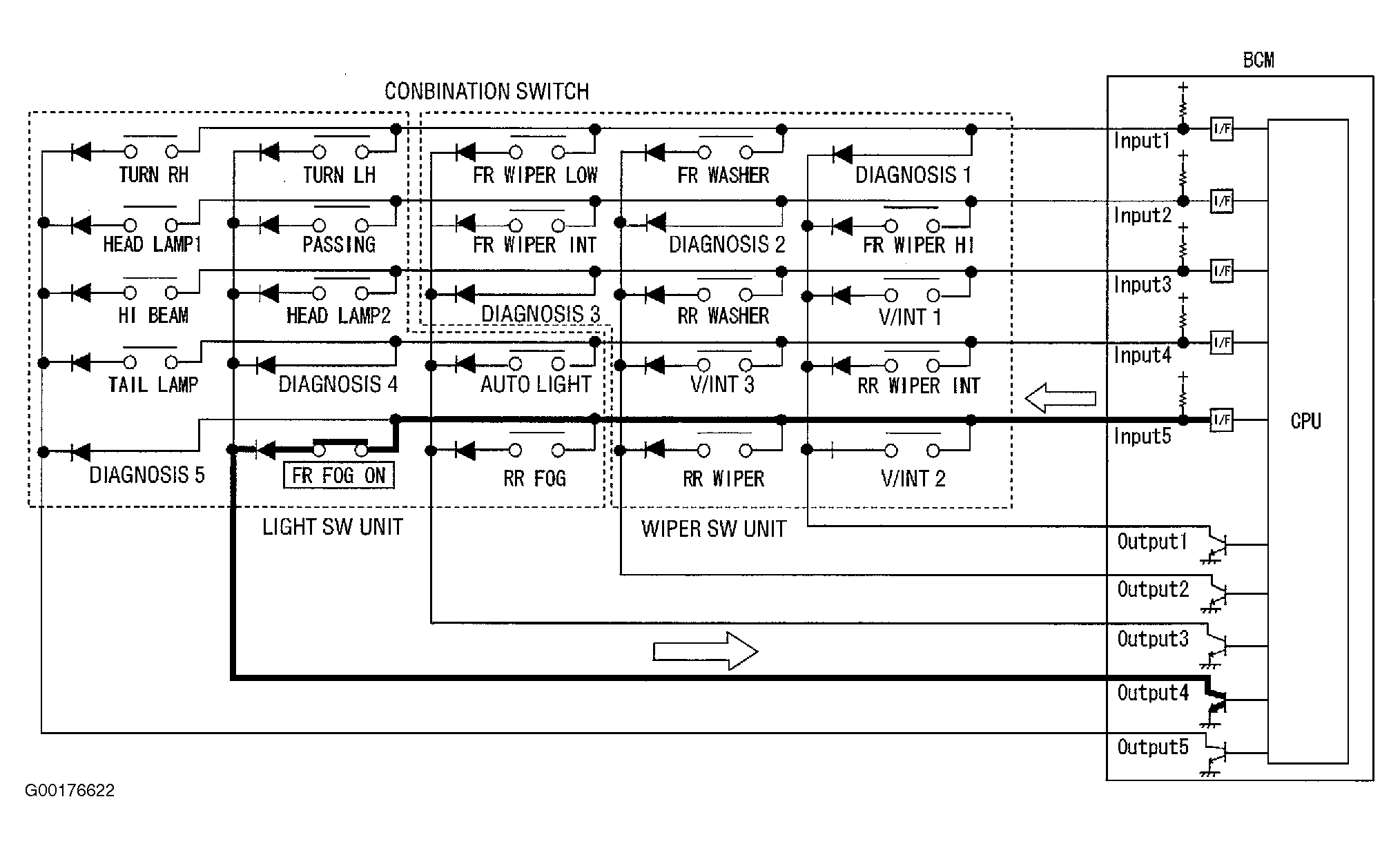

An example of this would be, when fog lamp switch is turned "ON", contact in combination switch turns "ON". At this time if OUTPUT 4 transistor is activated, BCM detects current flow in INPUT 5. When OUTPUT 4 transistor is "ON", BCM detects current flow in INPUT5, and judges fog lamp switch is "ON". Then BCM sends fog lamp "ON" signal to IPDM E/R using CAN communication. When OUTPUT 4 transistor is activated again, BCM detects current flow in INPUT 5, and confirms fog lamp switch is continuously "ON". See Fig 2 .

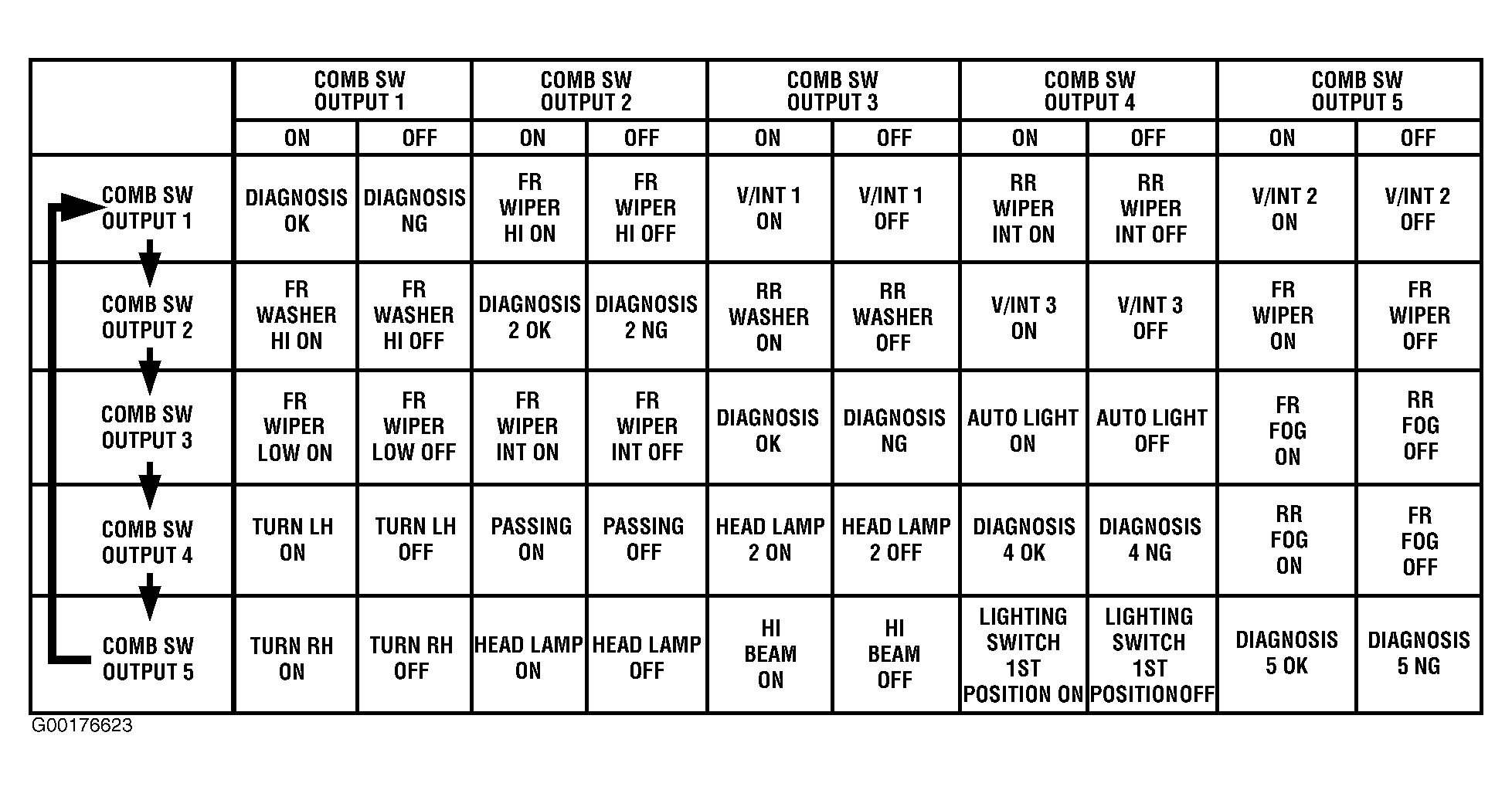

The BCM reads operation status of combination switches by the combination shown in Fig 3 .

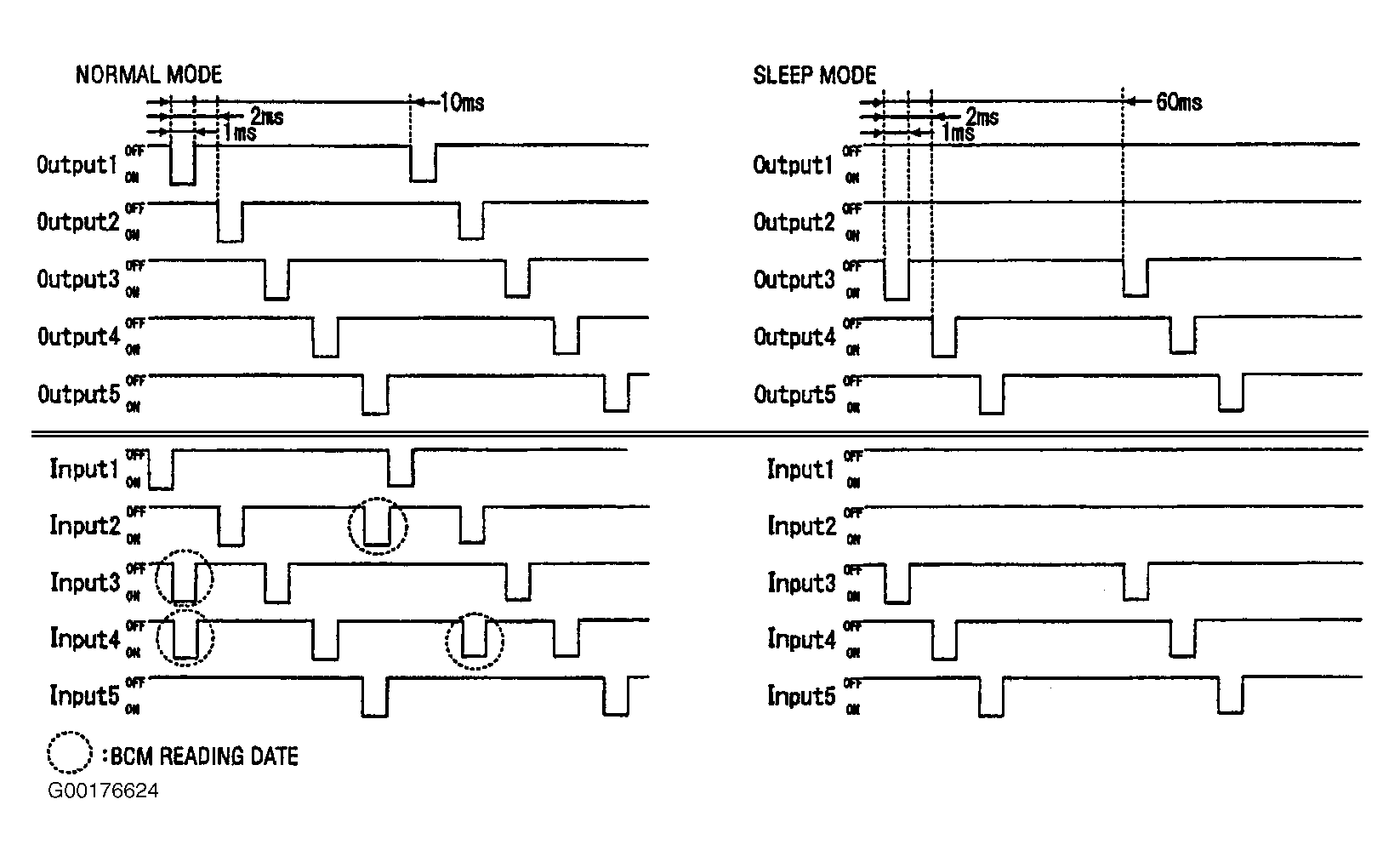

Combination switch reading function has operation modes as shown in Fig 4 . When BCM is not in sleep mode, each OUTPUT (1-5) terminal turns "ON-OFF" at 10 millisecond intervals. When BCM is in sleep mode, transistors of OUTPUT 1 and 2 stop the output, and BCM enters low-current-consumption mode. OUTPUTS (3-5) turn "ON-OFF" at 60 millisecond intervals, and receives lighting switch input only.
