Using Consult-II: Notes

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, self-diagnostic results, data monitor and active test through data reception and command transmission via the BCM communication line. See Fig 1 . Using Fig 2 diagnose items of each part.

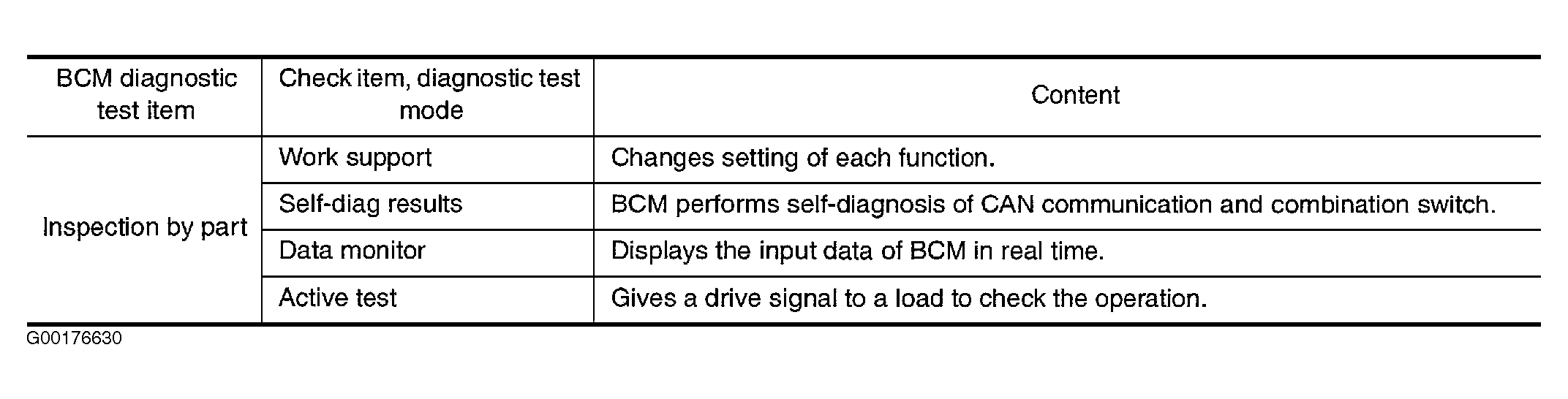

Fig 1: Identifying Diagnostic Test Modes

Courtesy of NISSAN MOTOR CO., U.S.A.

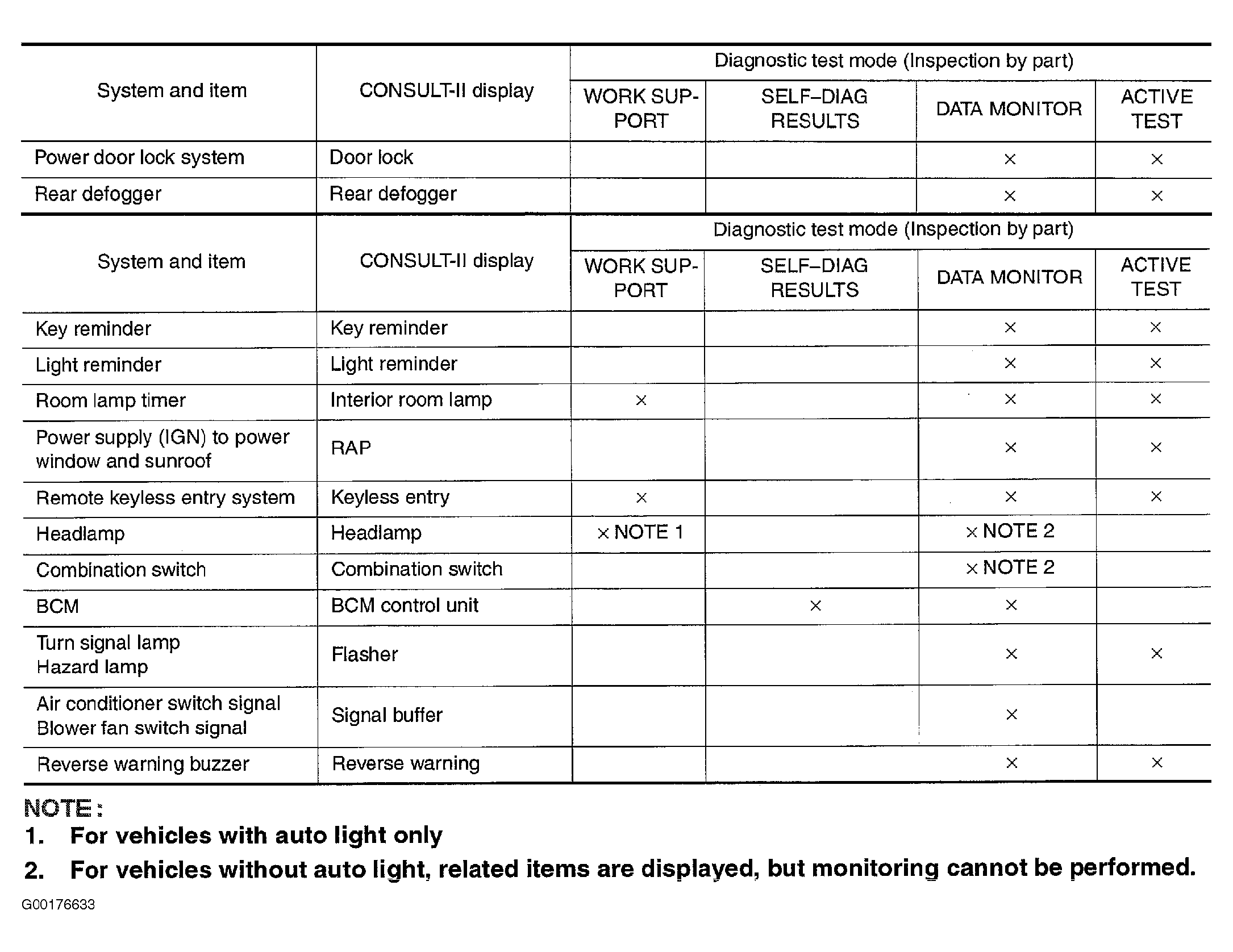

Fig 2: Identifying Items Of Each Part

Courtesy of NISSAN MOTOR CO., U.S.A.
