Read Configuration Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

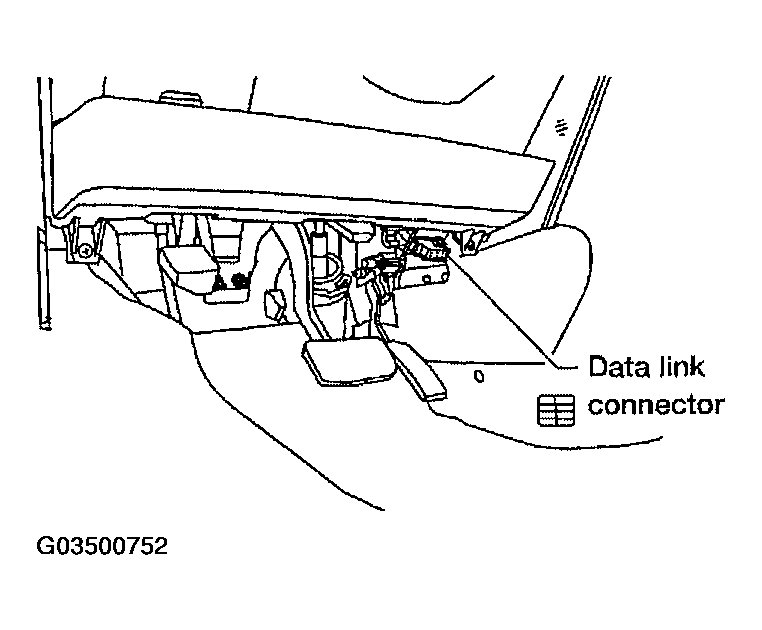

    Fig 1: Identifying Data Link Connector
    G03500752Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

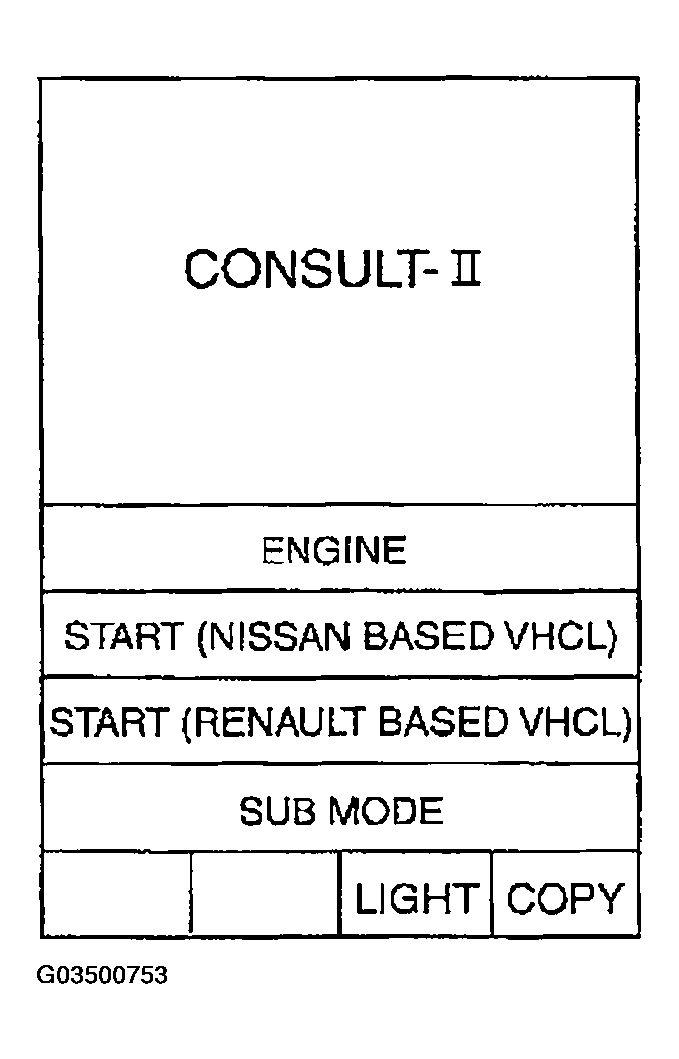

    Fig 2: Displaying "START (NISSAN BASED VHCL)" Mode
    G03500753Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, go to General Information Article to check CONSULT II data link connector (DLC) circuit. Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

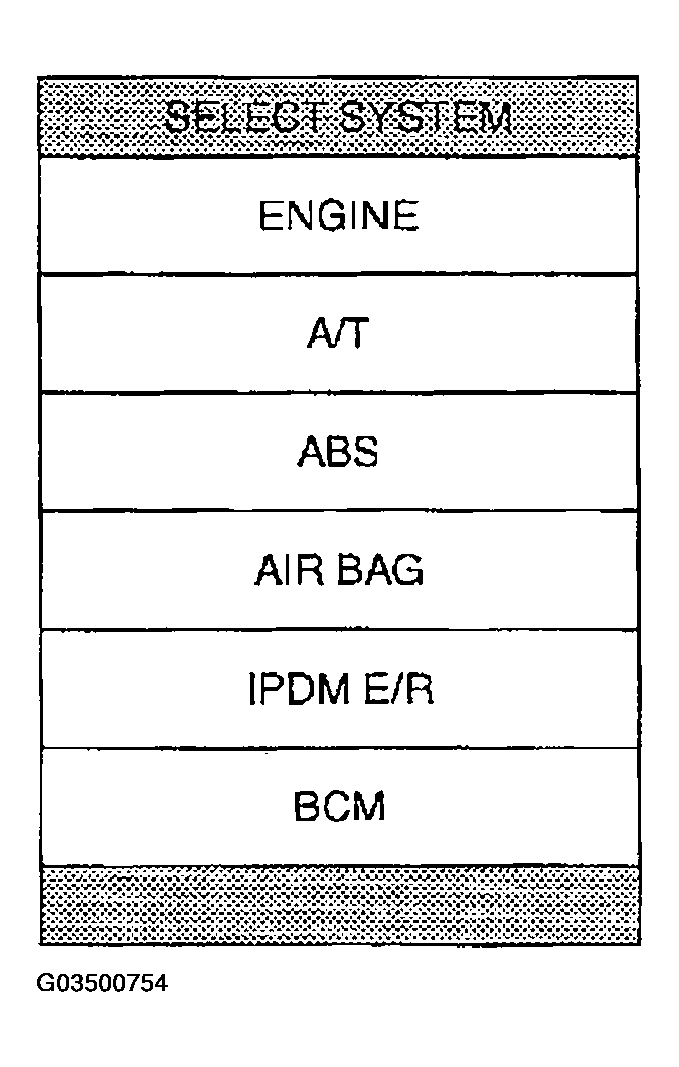

    Fig 3: Displaying "SELECT ITEM" Screen
    G03500754Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

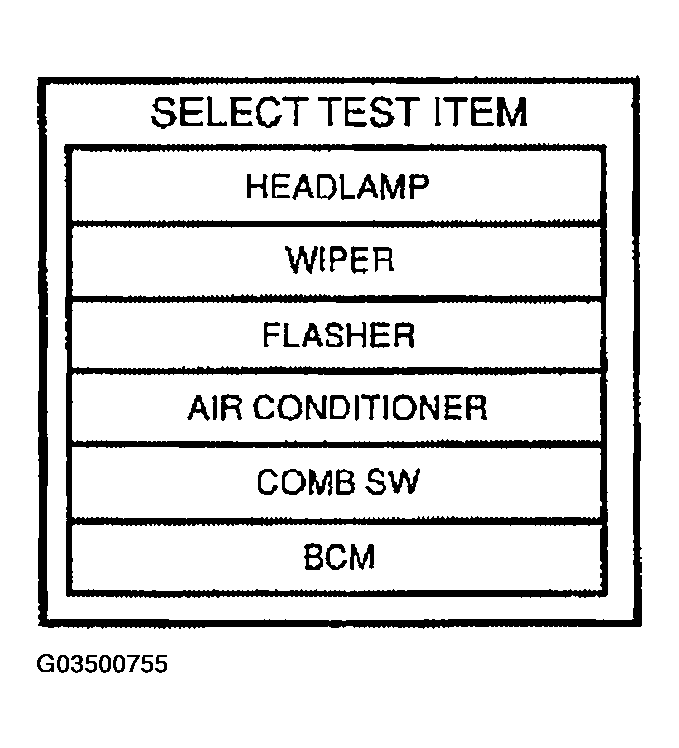

    Fig 4: Displaying "BCM" On "SELECT TEST ITEM" Screen
    G03500755Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

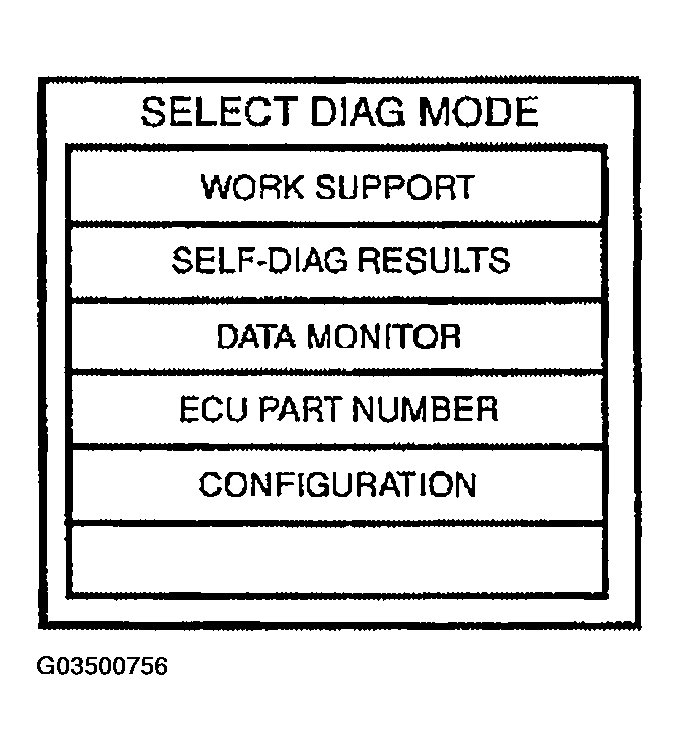

    Fig 5: Displaying "SELECT DIAG MODE" Screen
    G03500756Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "V42" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION " .

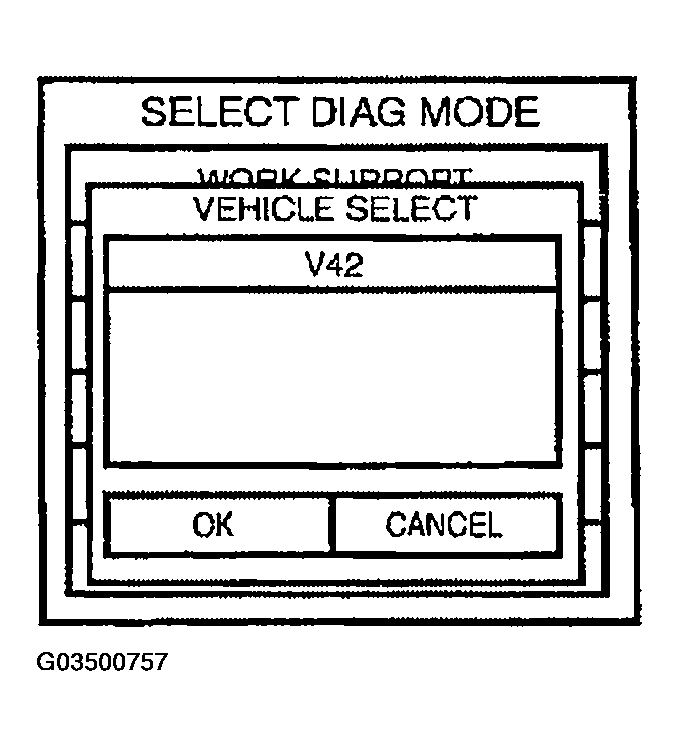

    Fig 6: Displaying "VEHICLE SELECT" Screen
    G03500757Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "CONFIGURATION" screen.

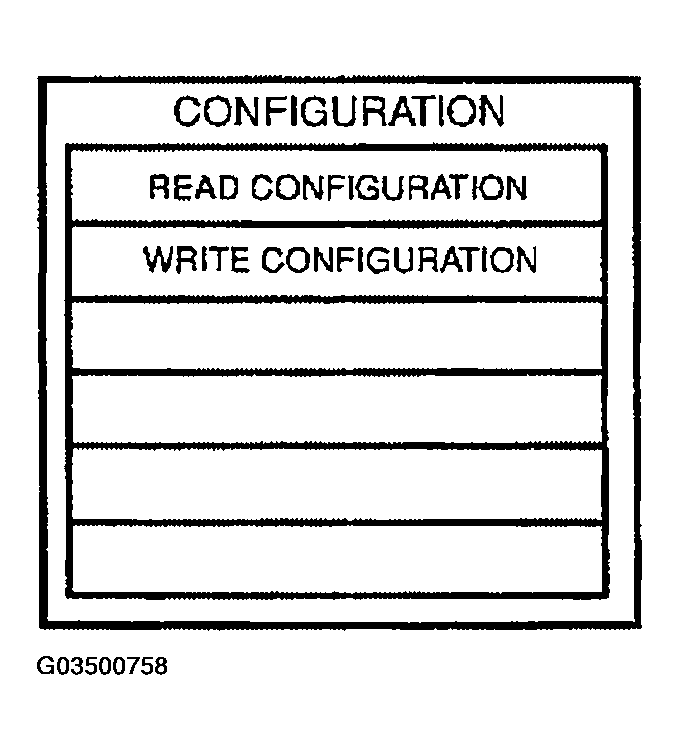

    Fig 7: Displaying "READ CONFIGURATION" On "CONFIGURATION" Screen
    G03500758Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. Configuration of brand-new BCM before executing "WRITE CONFIGURATION" is as follows.
    MANUAL SETTING ITEM

    MANUAL SETTING ITEM
    Items Setting Value
    AUTO LIGHT WITH
    FR FOG LAMP WITH
    AUTO SETTING ITEM
    KEYLESS ENTRY WITH
    H/L BULB HID

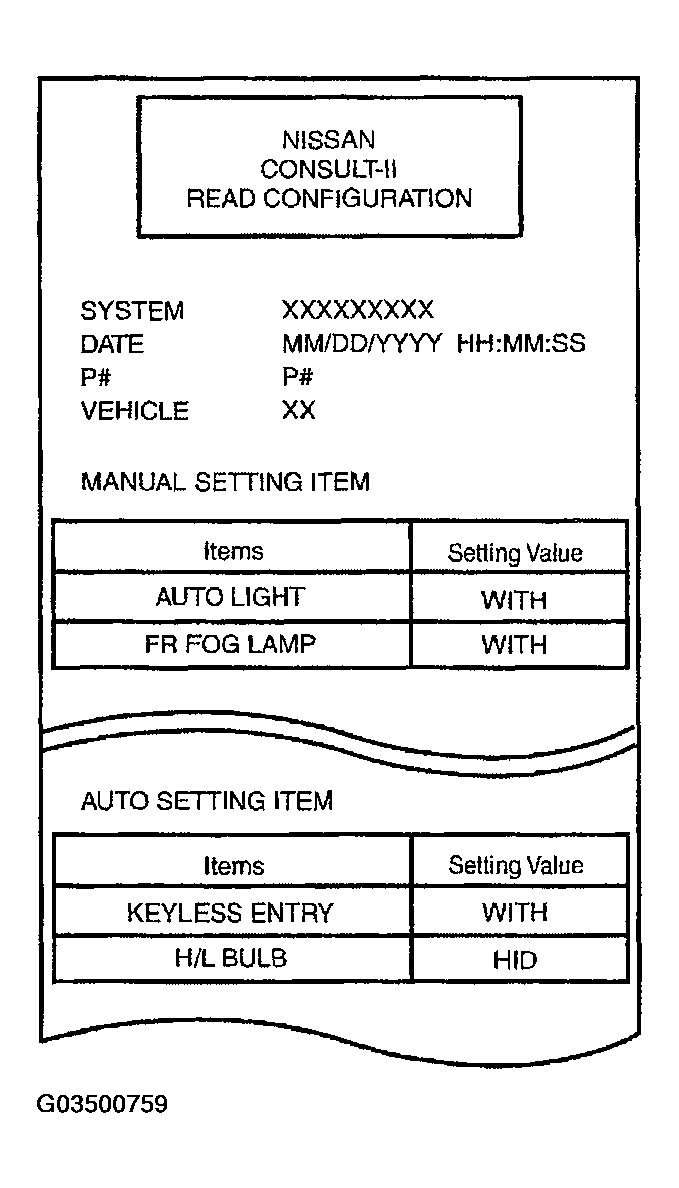

    Fig 8: Displaying READ CONFIGURATION Mode
    G03500759Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.

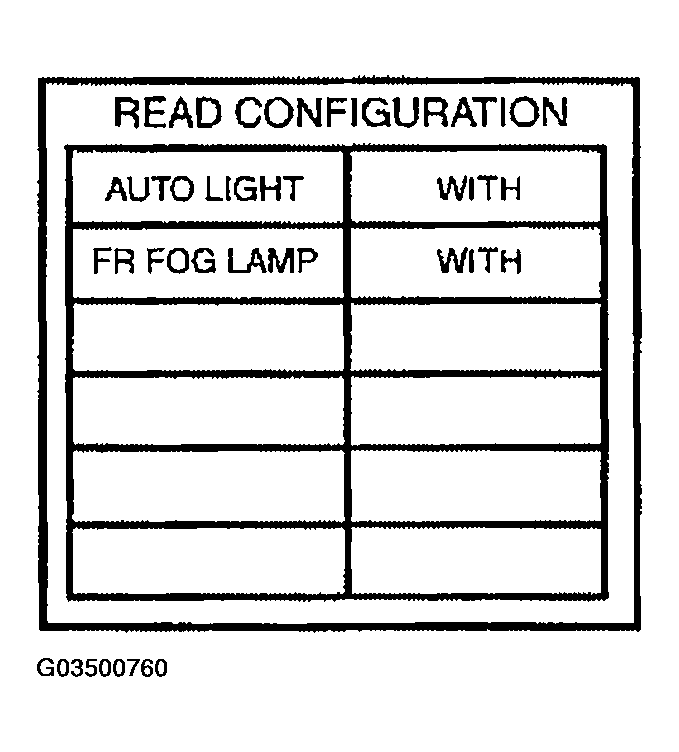

Fig 9: Displaying "READ CONFIGURATION" Screen
G03500760Courtesy of NISSAN MOTOR CO., U.S.A.
