Write Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

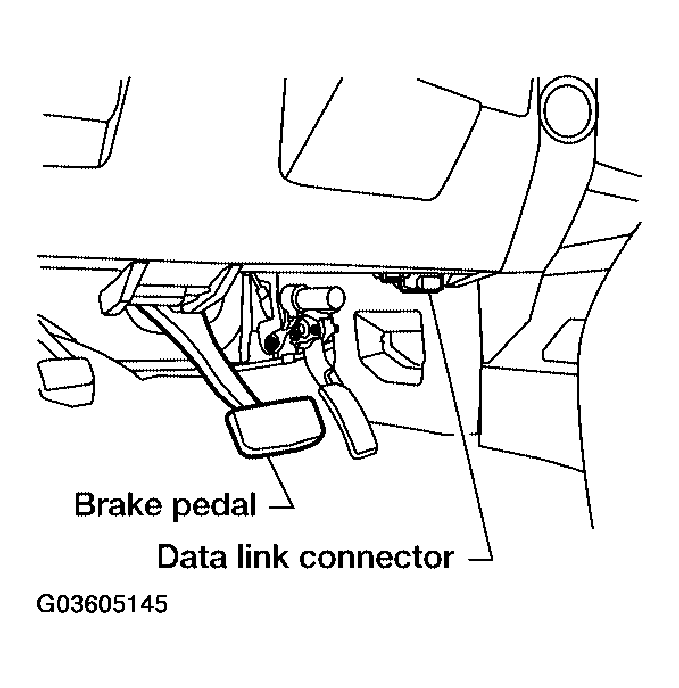

    Fig 1: Locating Data Link Connector
    G03605145Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

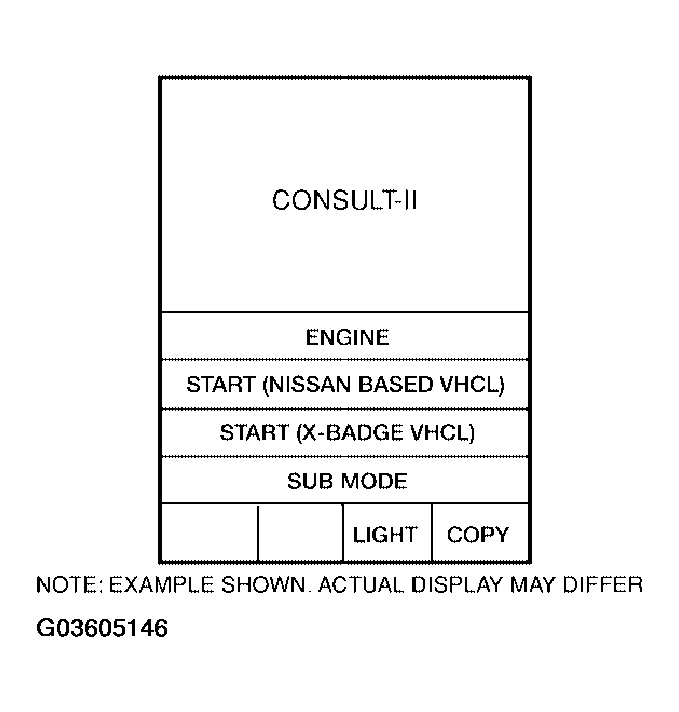

    Fig 2: CONSULT-II Display - "START (NISSAN BASED VHCL)"
    G03605146Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN SYSTEM to check data link connector (DLC) circuit.

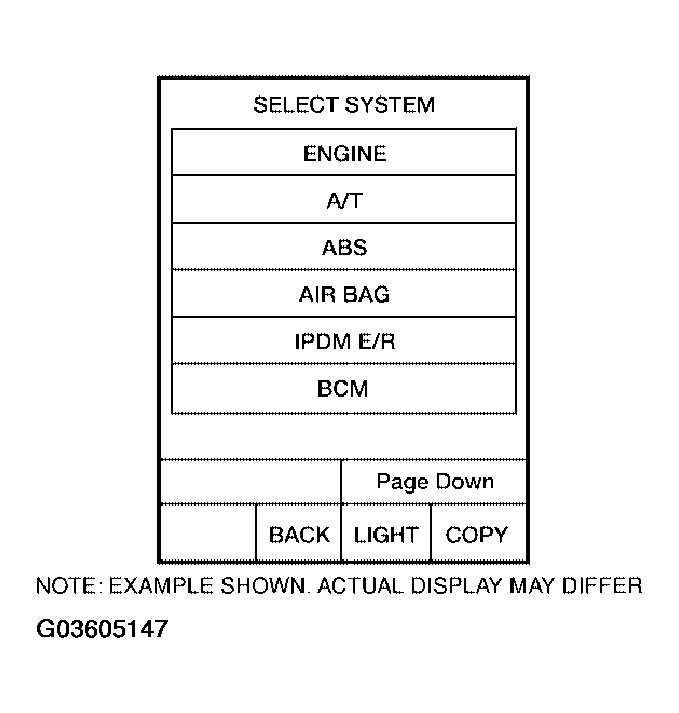

    Fig 3: CONSULT-II Display - "BCM" On "SELECT SYSTEM" Screen
    G03605147Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

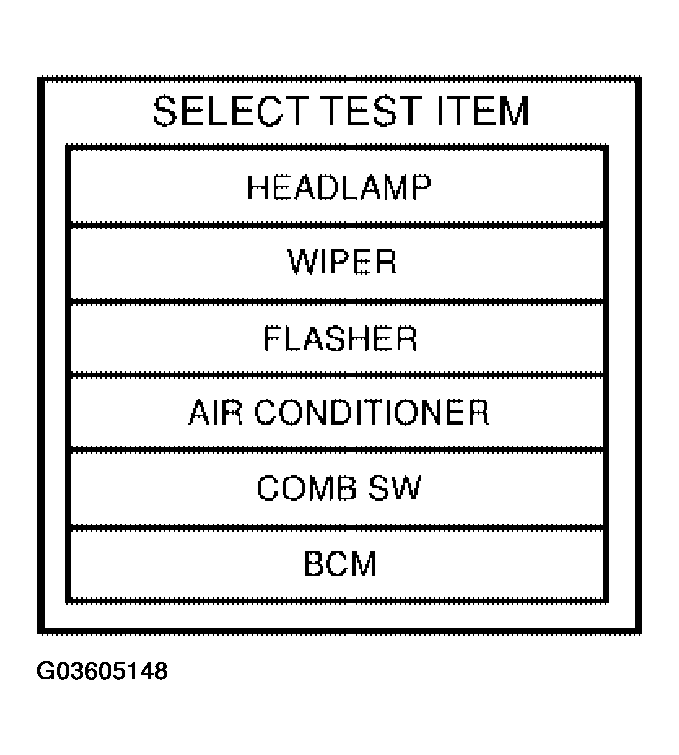

    Fig 4: CONSULT-II Display - "BCM" On "SELECT TEST ITEM" Screen
    G03605148Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

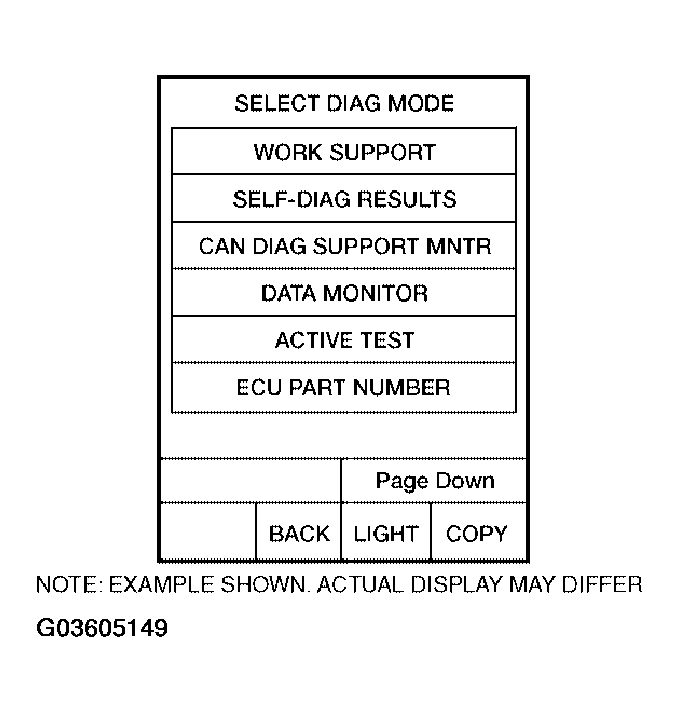

    Fig 5: CONSULT-II Display - "CONFIGURATION" On "SELECT DIAG MODE" Screen
    G03605149Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "A60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .
    Fig 6: CONSULT-II Display - "A60" & "OK" On "VEHICLE SELECT" Screen
    G03605150Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

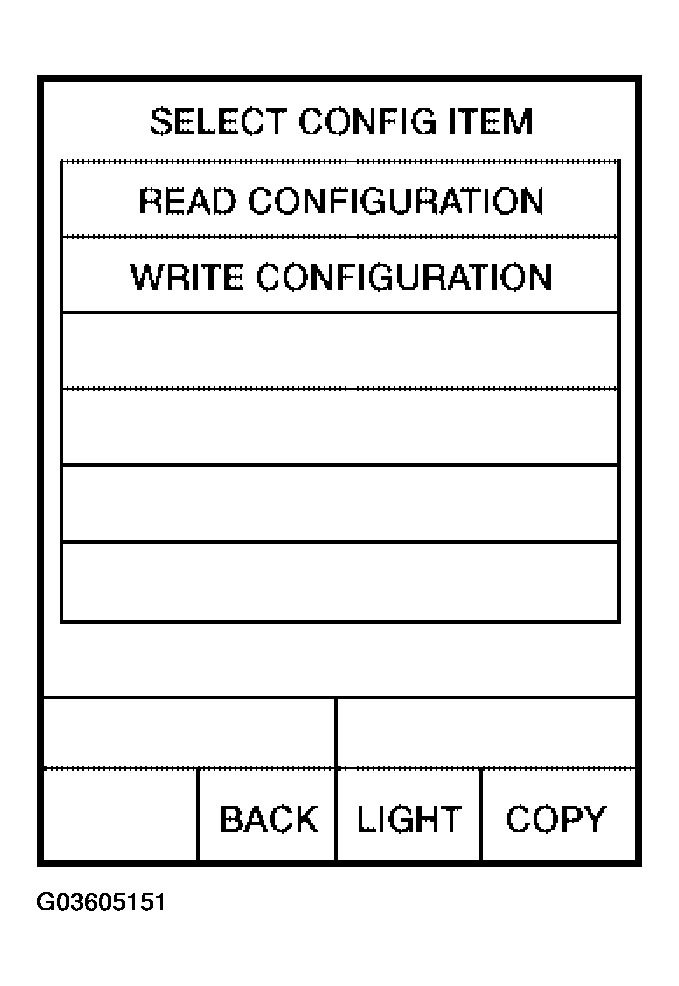

    Fig 7: CONSULT-II Display - "WRITE CONFIGURATION" On "SELECT CONFIG ITEM" Screen
    G03605151Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "YES".

    For canceling, touch "NO".

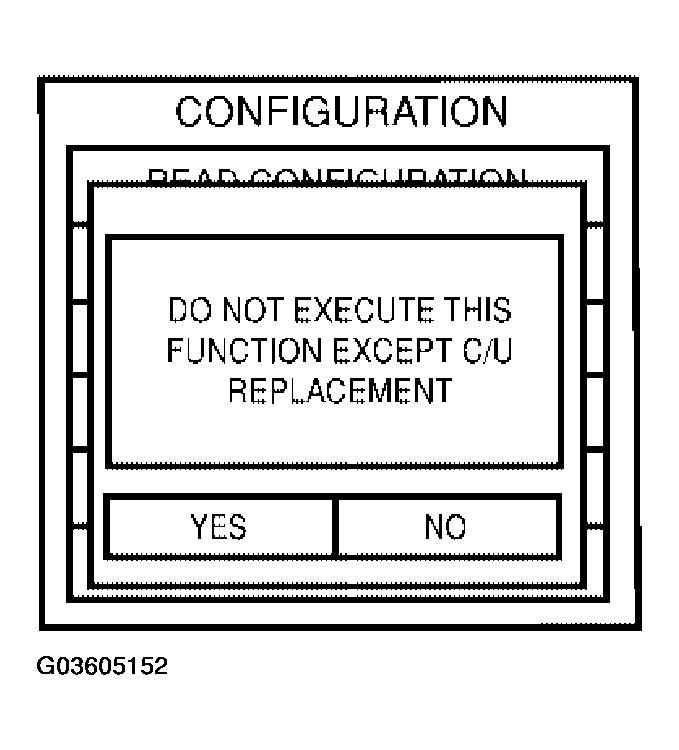

    Fig 8: CONSULT-II Display - "YES"
    G03605152Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Set by touching selection on "WRITE CONFIGURATION" screen based on the "WRITE CONFIGURATION" SELECTION ITEM LIST  table.
    "WRITE CONFIGURATION" SELECTION ITEM LIST

    ITEM SET VAL
    KEYLESS ENTRY WITH <=> WITHOUT
    AUTO LIGHT WITH <=> WITHOUT
    FR FOG LAMP WITH <=> WITHOUT
    DTRL WITH <=> WITHOUT
    THEFT ALARM WITH <=> WITHOUT
    DISPLAY STYLE MODE2
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

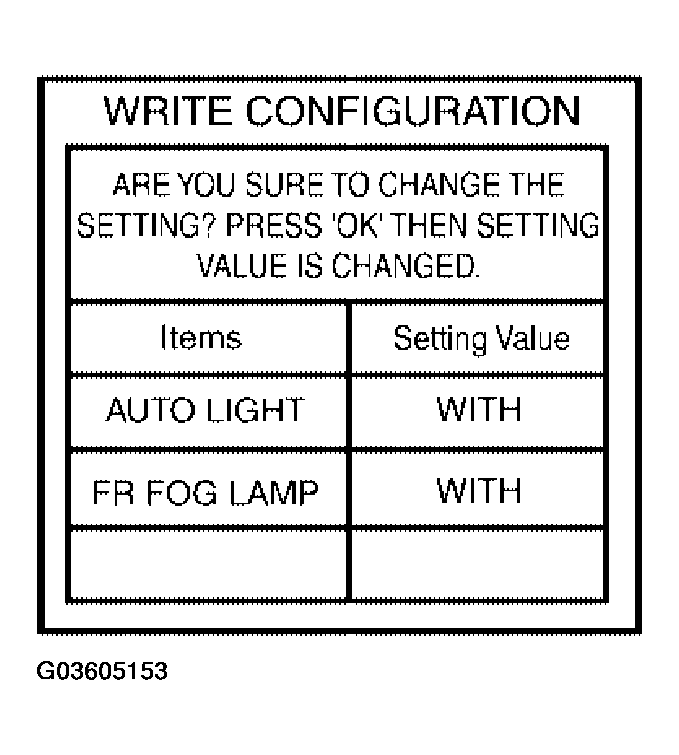

    Fig 9: CONSULT-II Display - "OK" On "WRITE CONFIGURATION" Screen
    G03605153Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

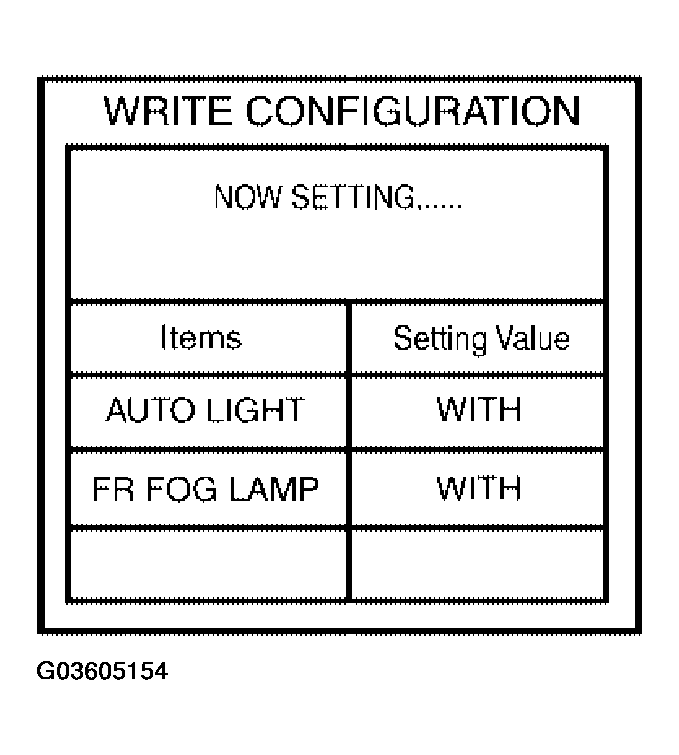

    Fig 10: CONSULT-II Display - "WRITE CONFIGURATION"
    G03605154Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9.

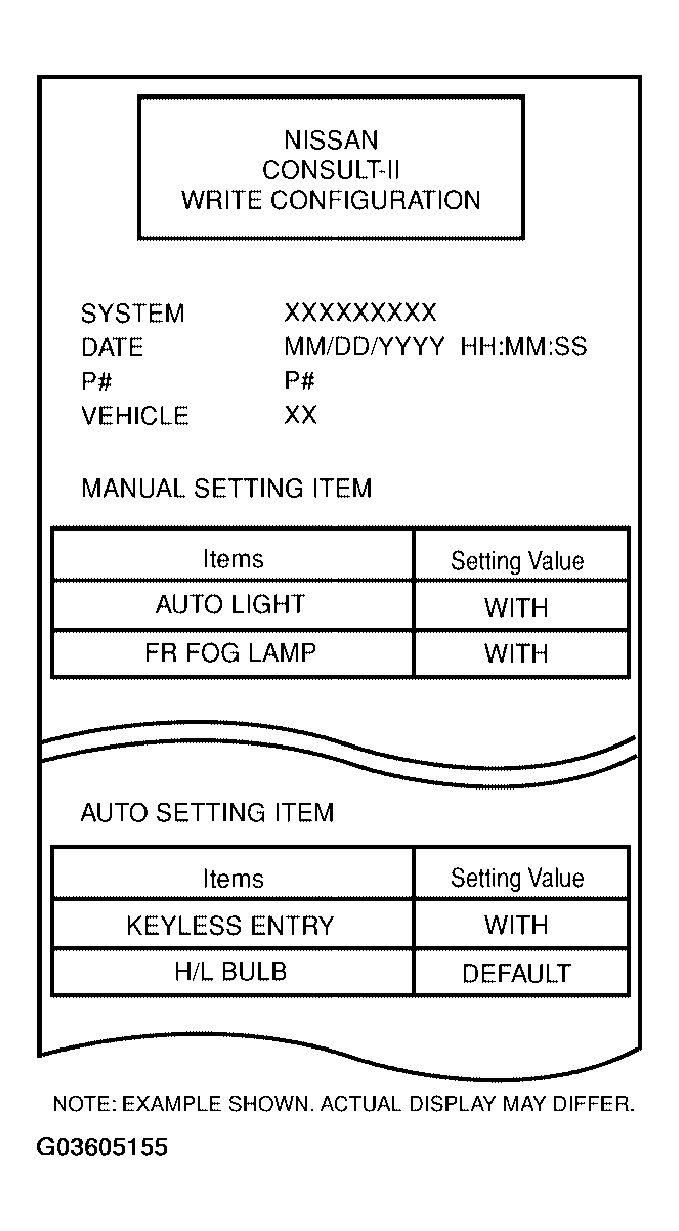

    Fig 11: WRITE CONFIGURATION Results Print Out
    G03605155Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen.

    WRITE CONFIGURATION is completed.

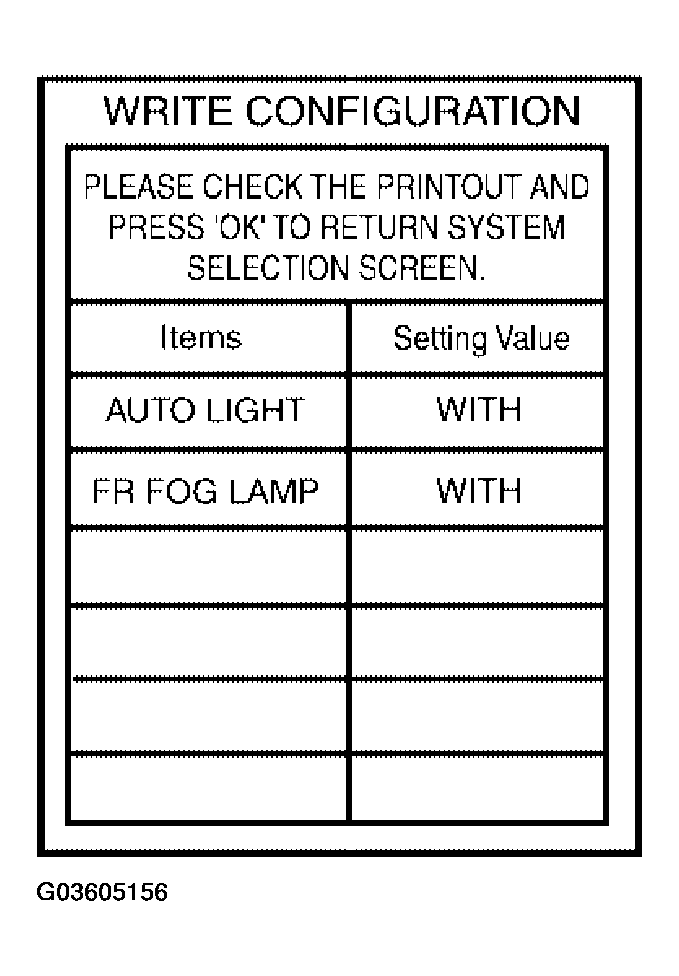

    Fig 12: CONSULT-II Display - "OK" On "WRITE CONFIGURATION" Screen
    G03605156Courtesy of NISSAN MOTOR CO., U.S.A.
