Read Configuration Procedure

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Connecting CONSULT-II To Data Link Connector
    G04902504Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G04899602Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: CONSULT-II Display - SELECT SYSTEM
    G04899603Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: CONSULT-II Display - SELECT TEST ITEM
    G04903945Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    Fig 5: CONSULT-II Display - SELECT DIAG MODE
    G04899604Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "V42" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model. Refer to "MODEL VARIATION ".
    Fig 6: CONSULT-II Display - VEHICLE SELECT
    G04908888Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.
    Fig 7: CONSULT-II Display - SELECT CONFIG ITEM
    G04903948Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to "WRITE CONFIGURATION PROCEDURE ".

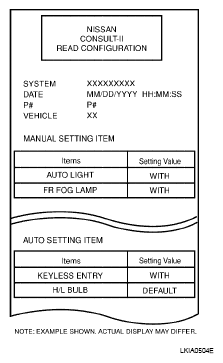

    Fig 8: CONSULT II Display - NISSAN READ CONFIGURATION
    G04903949Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.
    Fig 9: CONSULT-II Display - READ CONFIGURATION
    G04903950Courtesy of NISSAN MOTOR CO., U.S.A.
