Method B

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

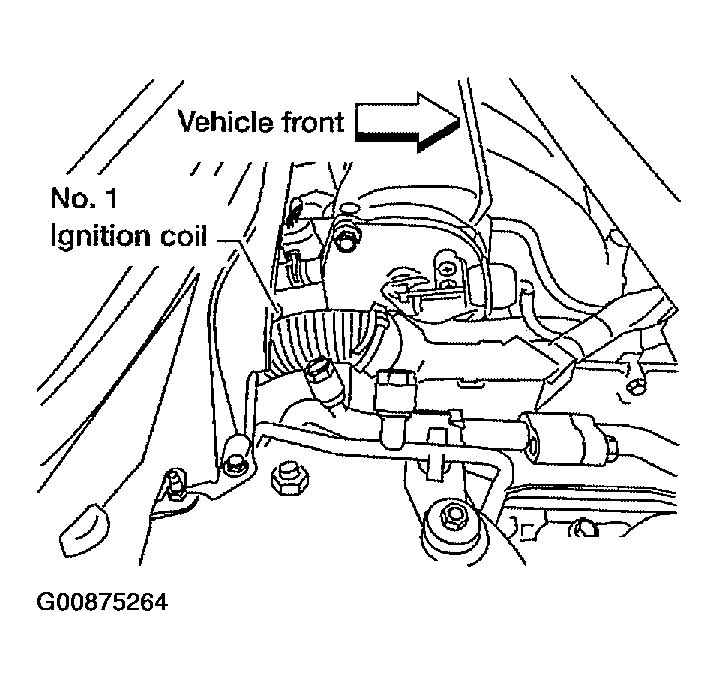

  1. Remove No. 1 ignition coil. See Figure.
  2. Connect No. 1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

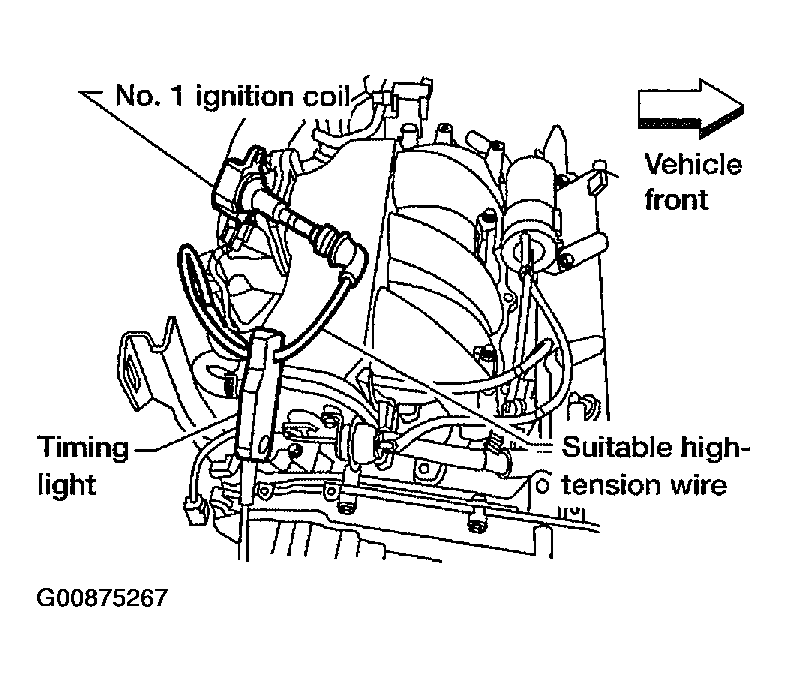

    Fig 1: Connect No. 1 ignition coil and spark plug with suitable high-tension wire
    G00875267Courtesy of NISSAN MOTOR CO., U.S.A.

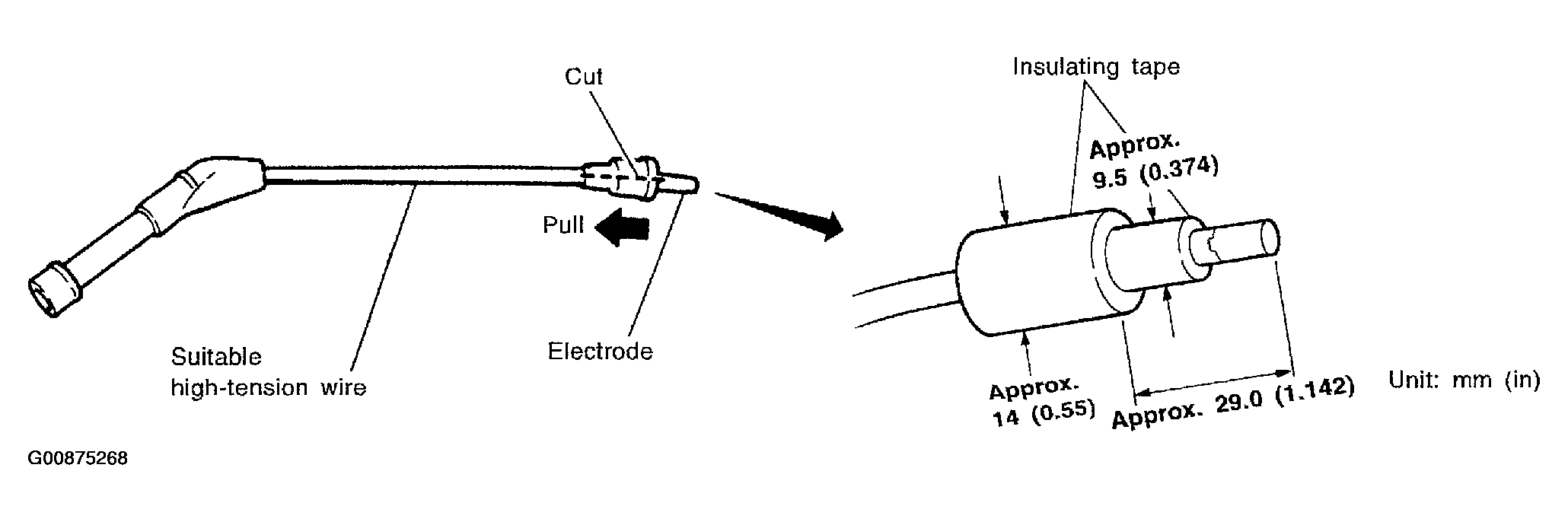

    Fig 2: Constructing ignition lead for testing ignition timing
    G00875268Courtesy of NISSAN MOTOR CO., U.S.A.

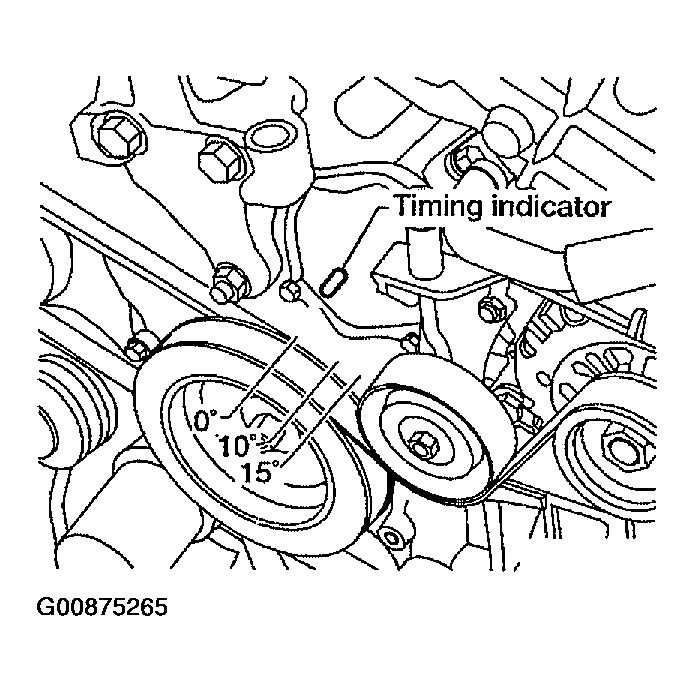

  3. Check ignition timing. See Figure.
