Control Units

CONTROL UNITS LOCATION

Component Component Location

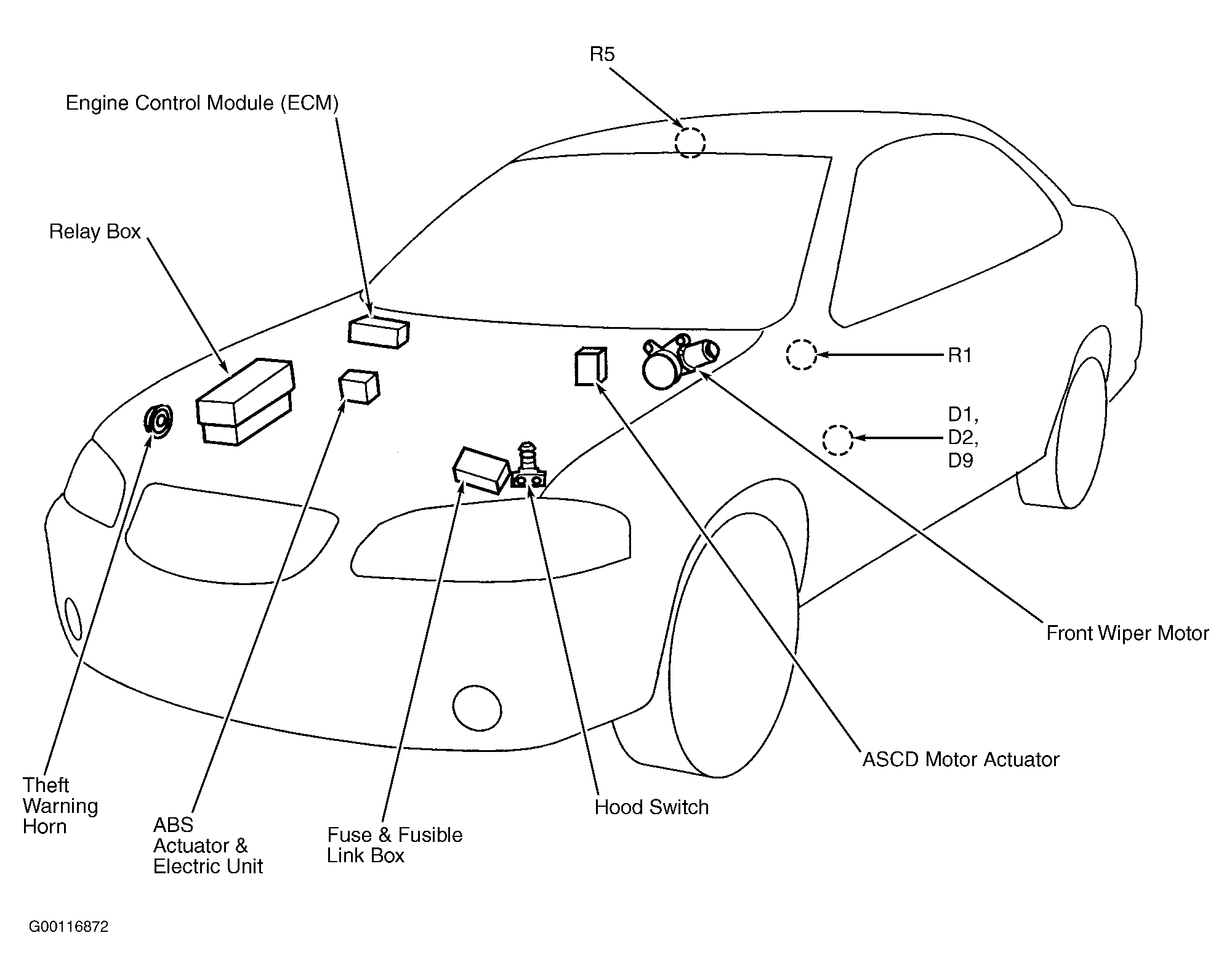

ABS Actuator & Electric Unit At right rear of engine compartment. See Figure .

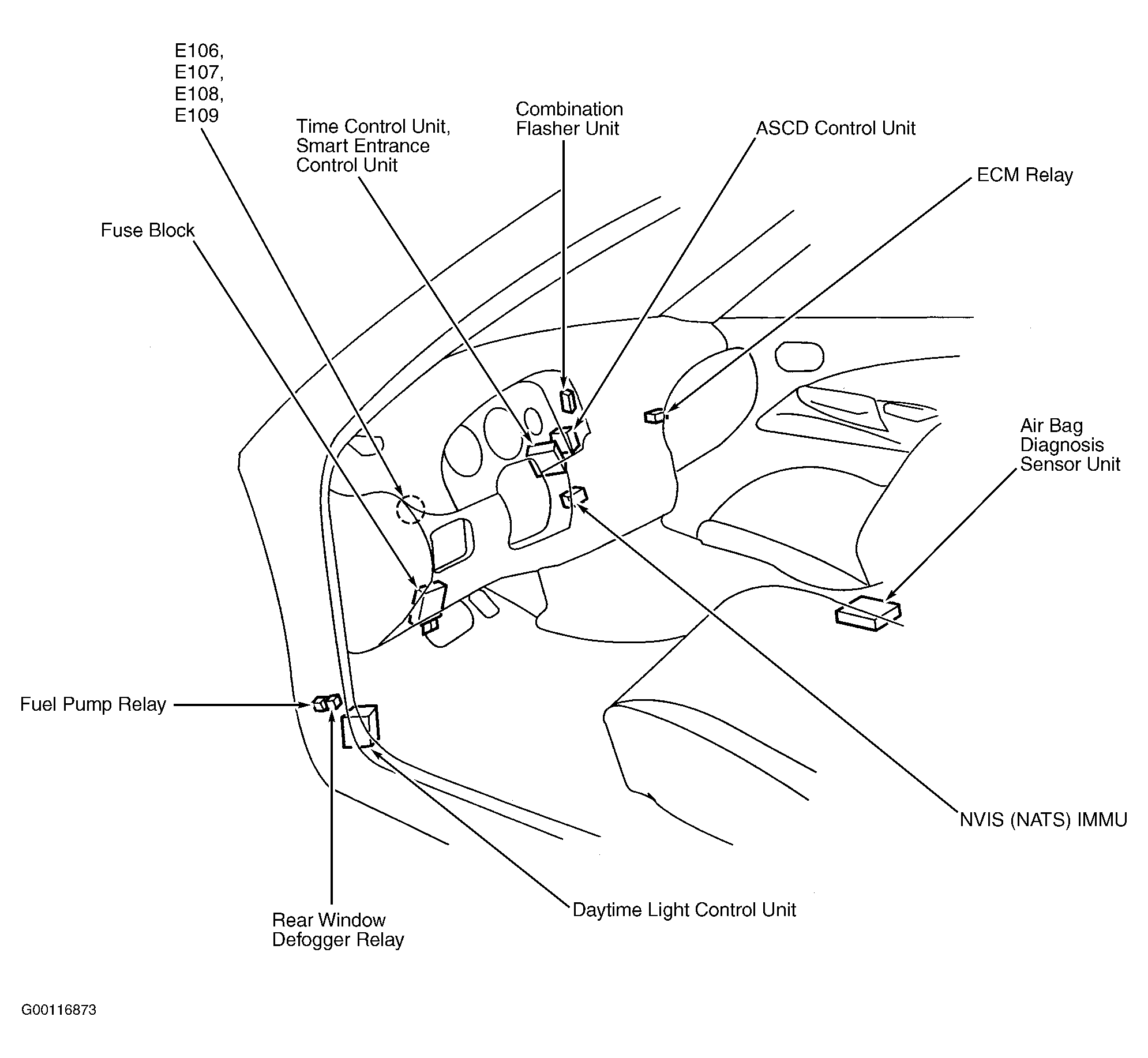

Air Bag Diagnosis Sensor Unit Below center floor console. See Figure .
ASCD Control Unit Behind center of dash. See Figure .
Combination Flasher Unit Behind center of dash. See Figure .
Daytime Light Control Unit Behind left kick panel. See Figure .
Engine Control Module (ECM) On right side of firewall. See Figure .
NVIS (NATS) IMMU At top of steering column. See Figure .
Smart Entrance Control Unit Behind center of dash. See Figure .
Time Control Unit Behind center of dash. See Figure .
Transmission Control Module Behind right kick panel.
