Wheel Alignment Specifications & Adjustment Procedures: Specifications: Frontier

Fig 1: Wheel Alignment Specifications (Frontier - 2.4L 4-Cylinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

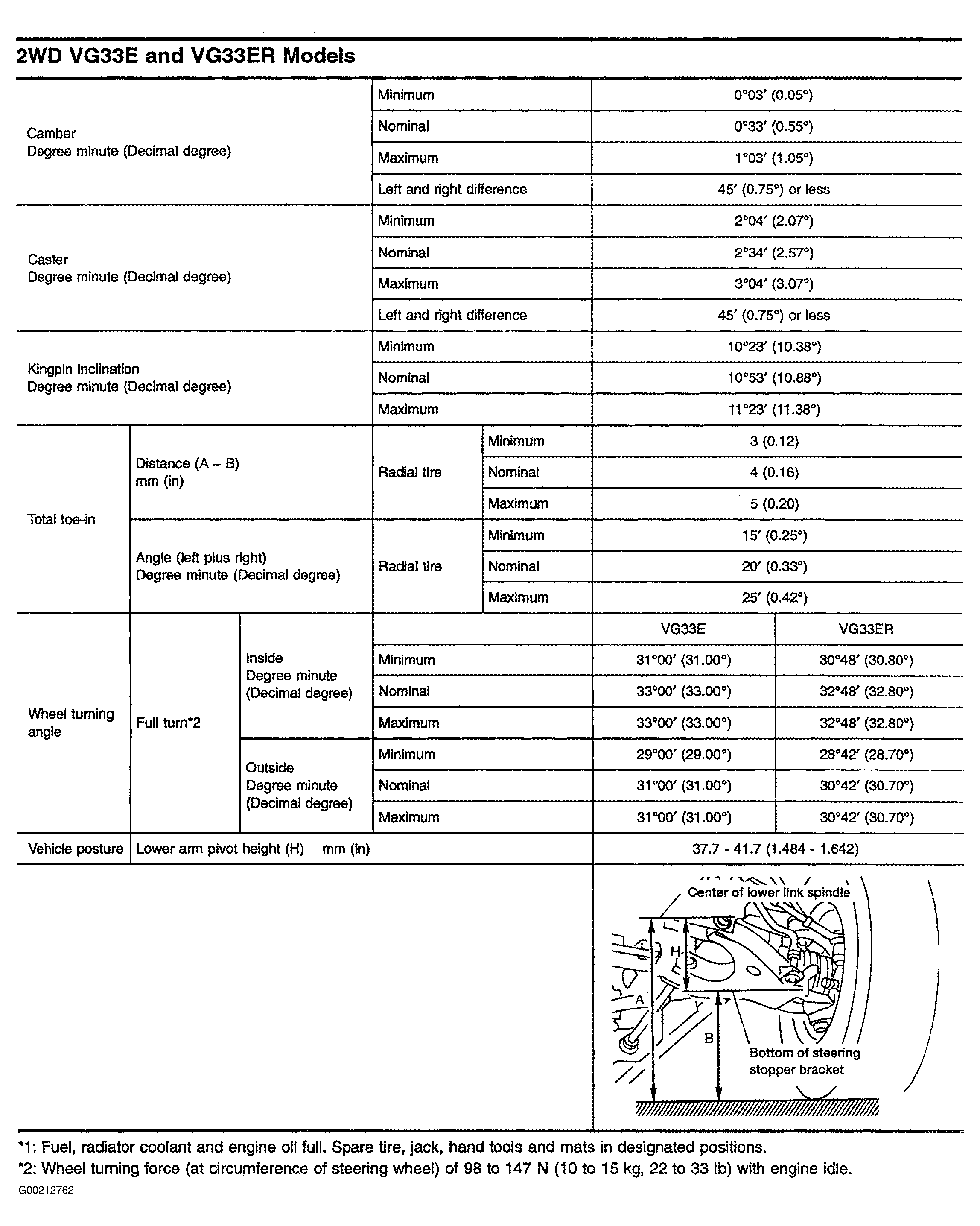

Fig 2: Wheel Alignment Specifications (Frontier - V6 2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

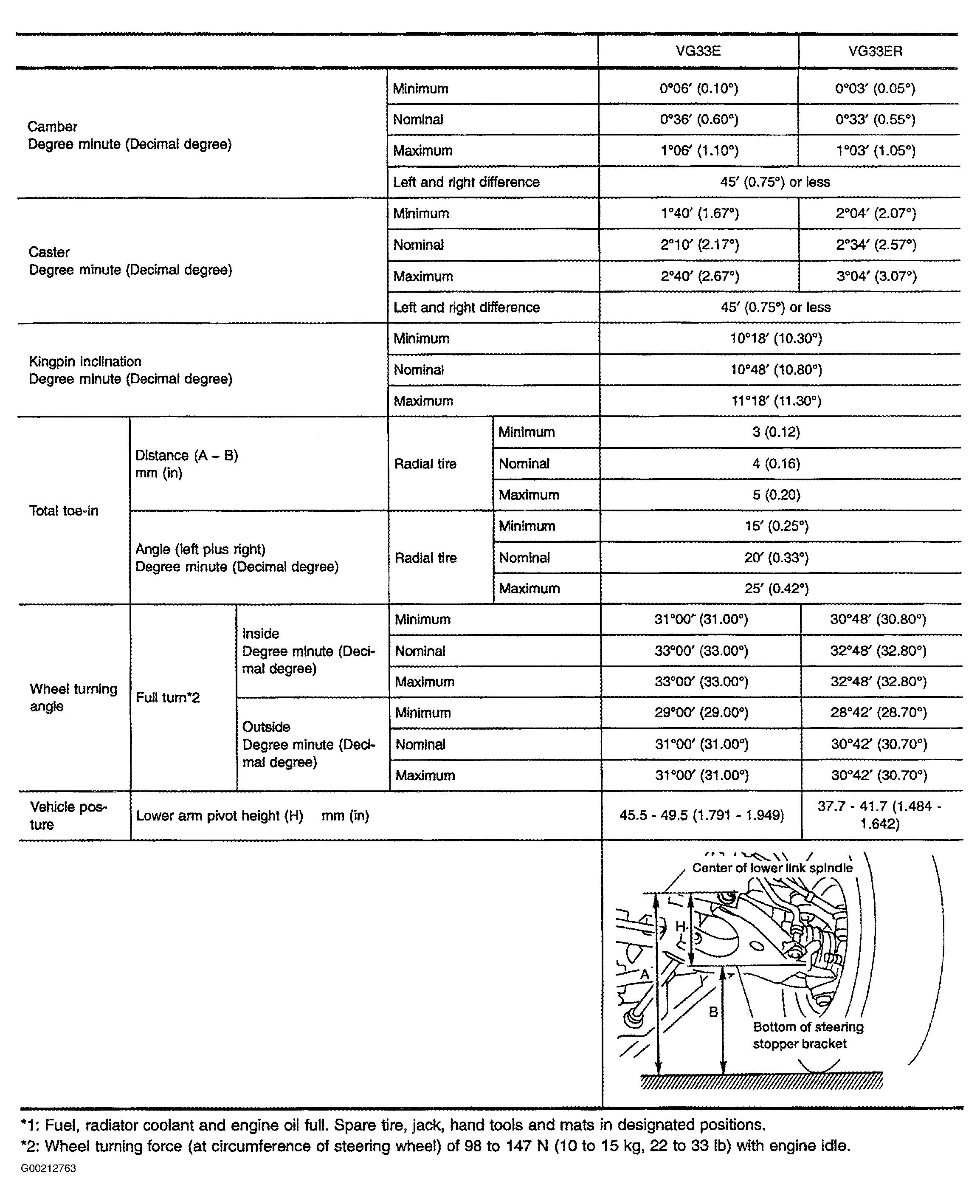

Fig 3: Wheel Alignment Specifications (Frontier - V6 4WD)

Courtesy of NISSAN MOTOR CO., U.S.A.
