Wheel Alignment Specifications & Adjustment Procedures: Specifications: Maxima

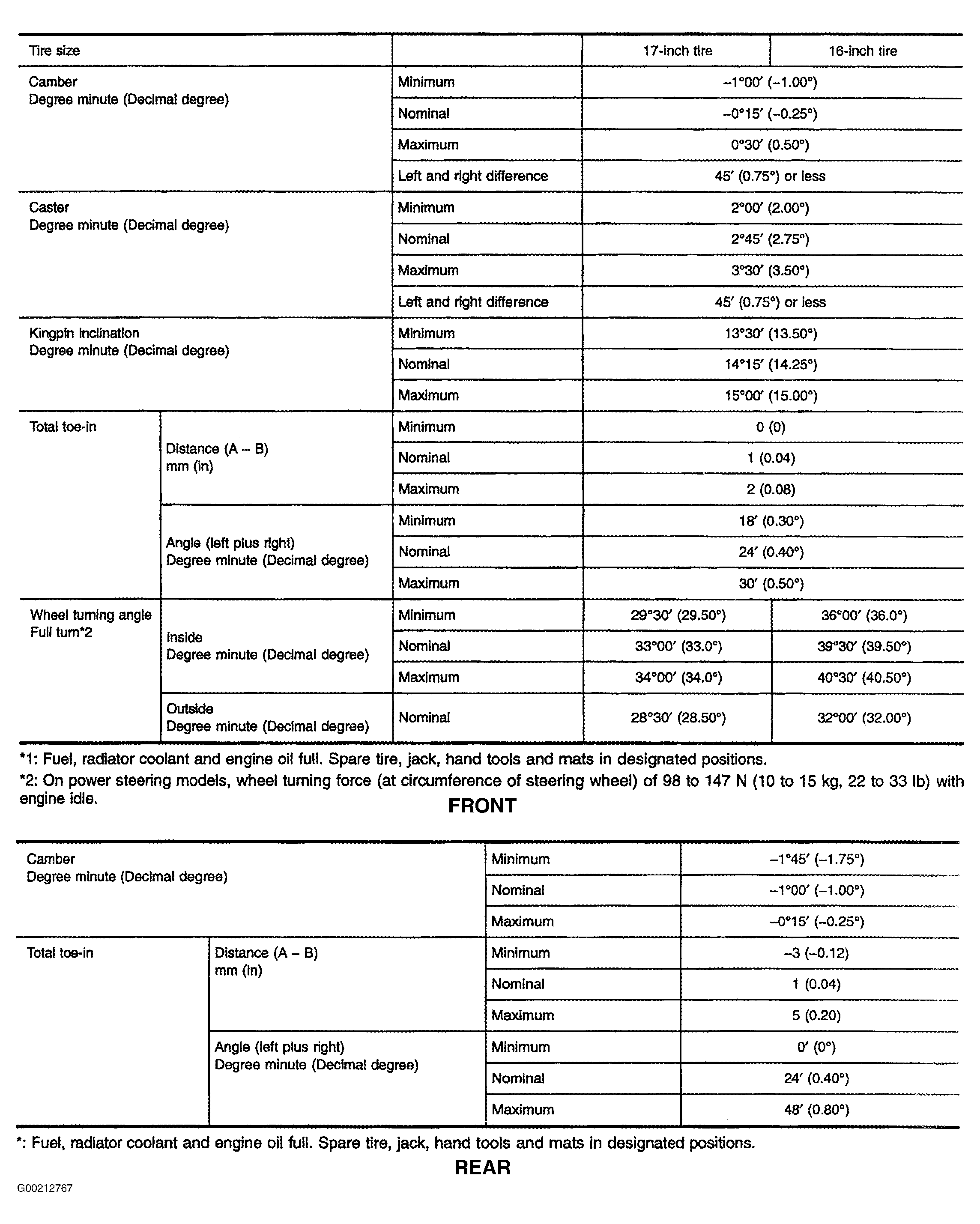

Fig 1: Wheel Alignment Specifications (Maxima)
G00212767Courtesy of NISSAN MOTOR CO., U.S.A.
