Diagnostic Procedure

Do you have CONSULT-II?

Yes or No

1. Yes: GO TO 2.
2. No: GO TO  6.

With CONSULT-II

1. Turn ignition switch to ON position.

   (Do not start engine.)

2. Select TCM INPUT SIGNALS in DATA MONITOR mode for A/T with CONSULT-II.
3. Read out P, R, N, D, 2 and 1 position switches moving selector lever to each position.
   Fig 1: Checking Park/Neutral Position Switch Circuit (With CONSULT-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Check that the signal of the selector lever position is indicated properly.

OK or NG

1. OK: GO TO  7.
2. NG: GO TO 3.

Check the following item:

• Park/neutral position (PNP) switch

  Check continuity between park/neutral position (PNP) switch F29 terminals 1 (G/OR) and 2 (B) and between terminals 3 (Y) and 4 (OR), 5 (L), 6 (W/G), 7 (BR/W), 8 (G/W) and 9 (G) while moving manual shaft through each position.

  Fig 2: Lever Position And Terminals Continuity Reference

  Courtesy of NISSAN MOTOR CO., U.S.A.
  Fig 3: Checking Park Neutral Position Switch Continuity

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO  5.
2. NG: GO TO 4.

Check PNP switch again with manual control cable disconnected from manual shaft of A/T assembly. Refer to test group 1.

OK or NG

1. OK: Adjust manual control cable. Refer to Control Cable Adjustment .
2. NG: Repair or replace PNP switch.

Check the following items:

• Harness for short or open between ignition switch and park/neutral position (PNP) switch (Main harness)
• Harness for short or open between park/neutral position (PNP) switch and TCM (Main harness)
• Fuse
• Joint connector-3 M29
• Ignition switch

  Refer to POWER DISTRIBUTION .

OK or NG

1. OK: GO TO  7.
2. NG: Repair or replace damaged parts.

Without CONSULT-II

1. Turn ignition switch to ON position. (Do not start engine.)
2. Check voltage between TCM terminals 26 (OR), 27 (L), 34 (W/G), 35 (G/W), 36 (BR/W) and ground while moving selector lever through each position.

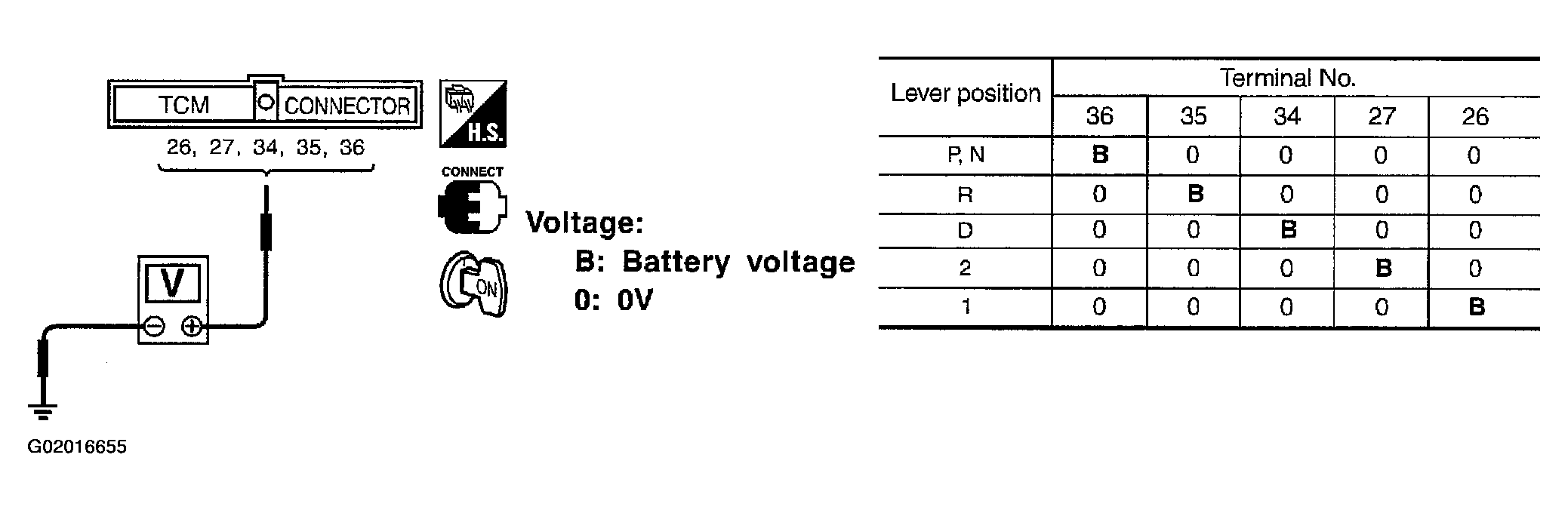

   Fig 4: Checking Park Neutral Position Switch Circuit (Without CONSULT-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 7.
2. NG: GO TO 5.

Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 8.

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
