Key Interlock Cable: Components

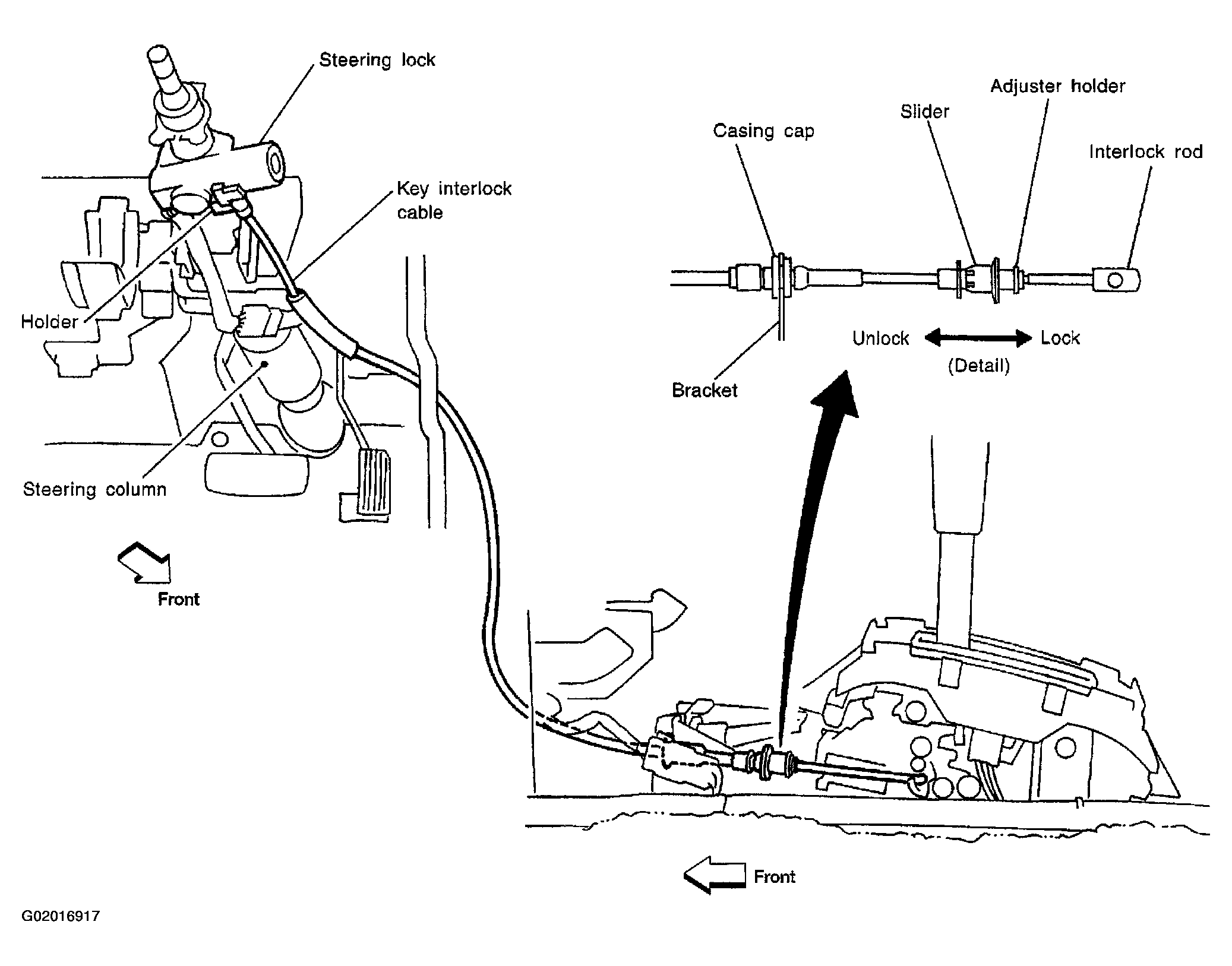

Fig 1: Locating Key Interlock Cable Components
G02016917Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
  • After installing key interlock cable to control device, make sure that casing cap and bracket are firmly secured in their positions.
