Key Interlock Cable: Installation

Turn ignition key to lock position.
Set A/T selector lever to P position.
Set key interlock cable to steering lock assembly and install lock plate.
Clamp cable to steering column and attach to control cable with band.

Fig 1: Removing Key Interlock Cable (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

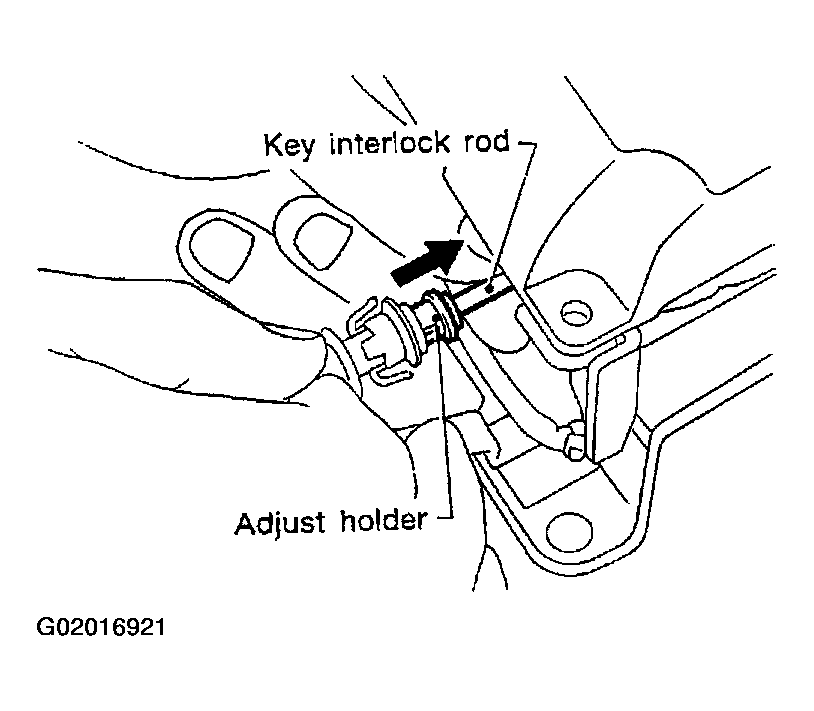

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to connect adjuster holder to interlock rod.

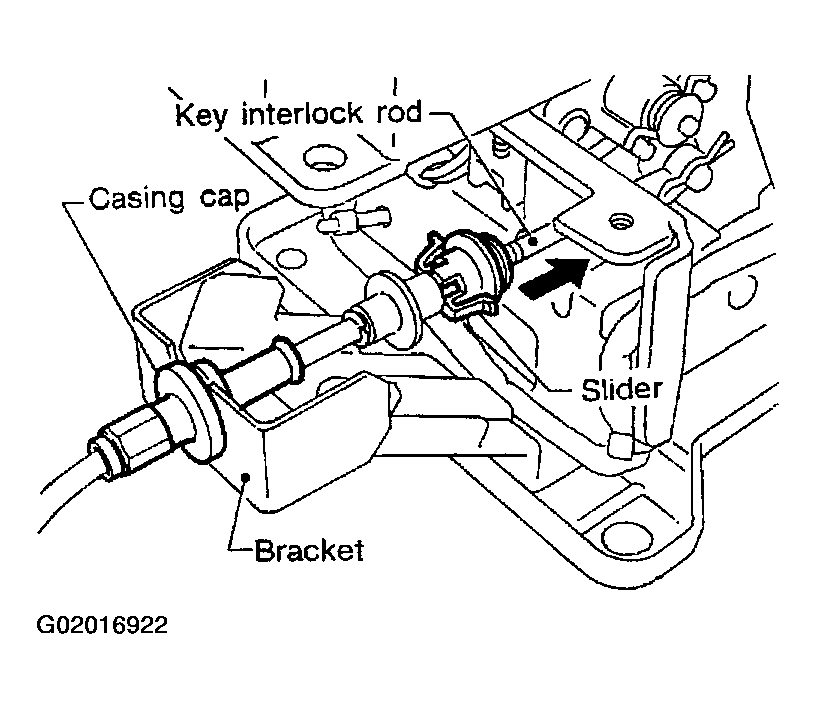

Fig 3: Inserting Slider To Connect Adjuster Holder To Interlock Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
