During Shift Change

The line pressure is temporarily reduced corresponding to a change in engine torque when shifting gears (that is, when the shift solenoid valve is switched for clutch operation) to reduce shifting shock.

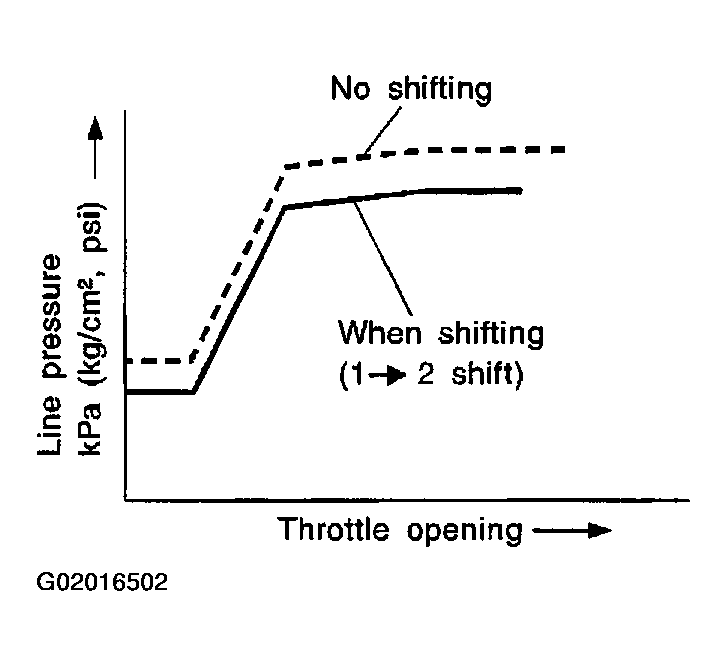

Fig 1: Automatic Transaxle Control Mechanism Line Pressure Control Graph (During Shift Change)

Courtesy of NISSAN MOTOR CO., U.S.A.
