Overrun Clutch Operating Conditions

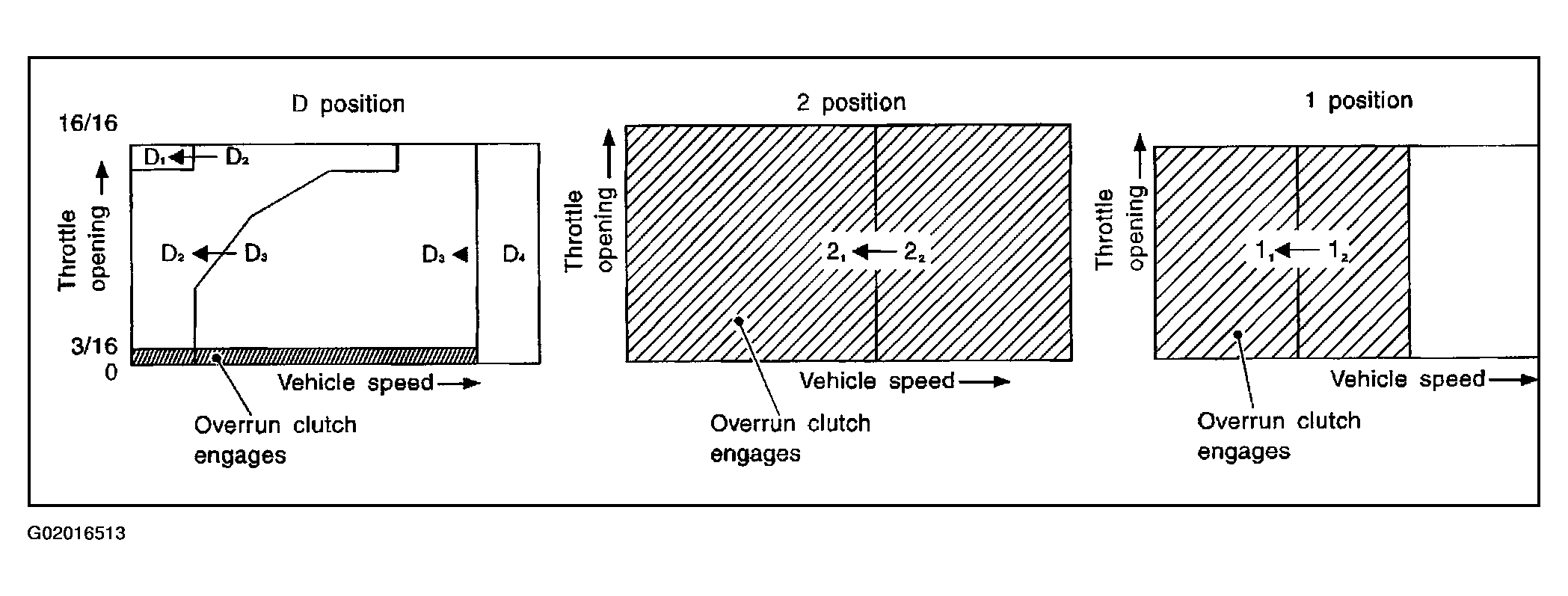

Fig 1: Overrun Clutch Operation Conditions
G02016513Courtesy of NISSAN MOTOR CO., U.S.A.

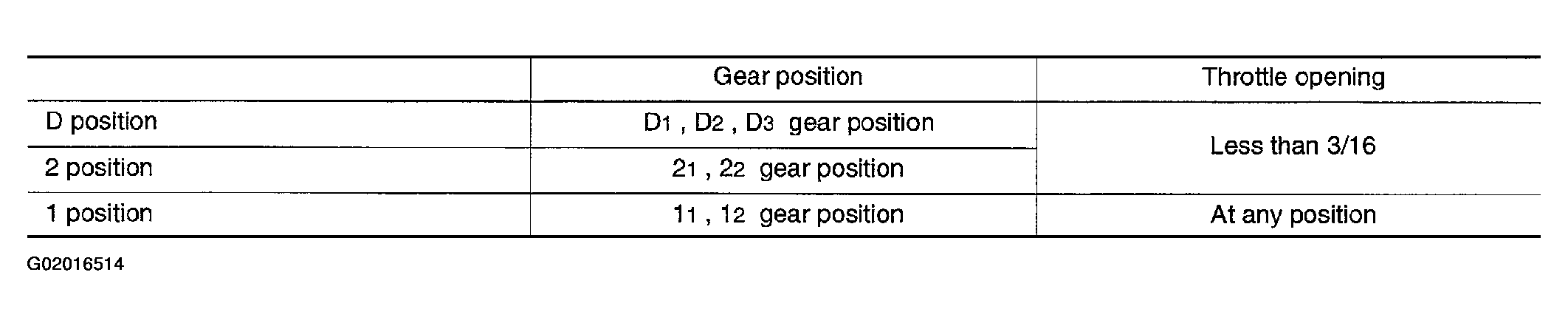

Fig 2: Overrun Clutch Operation Condition Description Chart
G02016514Courtesy of NISSAN MOTOR CO., U.S.A.
