Control Valve Lower Body: Assembly: Notes

Install control valves. For installation procedures, refer to ASSEMBLY .

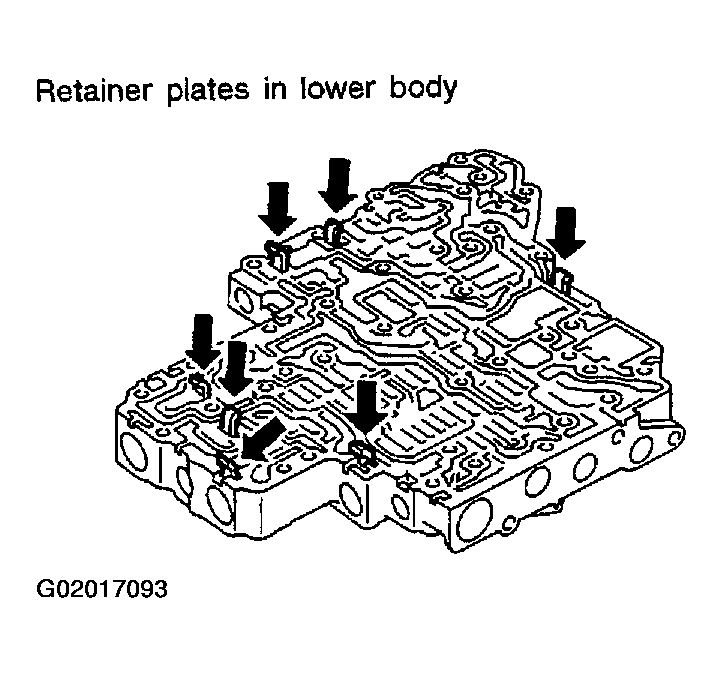

Fig 1: Locating Control Valve Lower Body Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
