1-2 Accumulator Valve

Install 1-2 accumulator valve. Align 1-2 accumulator retainer plate from opposite side of control valve body.

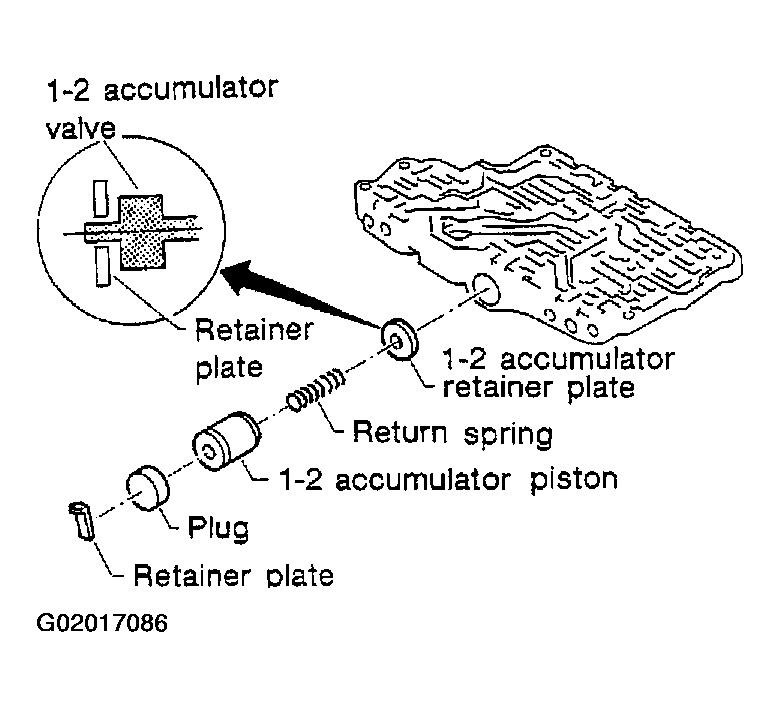

Fig 1: Installing 1 - 2 Accumulator Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring, 1-2 accumulator piston and plug.

Install retainer plates.
- While pushing plug or return spring, install retainer plate.
Fig 2: Installing Retainer Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
