Control Valve Upper Body: Assembly: Notes

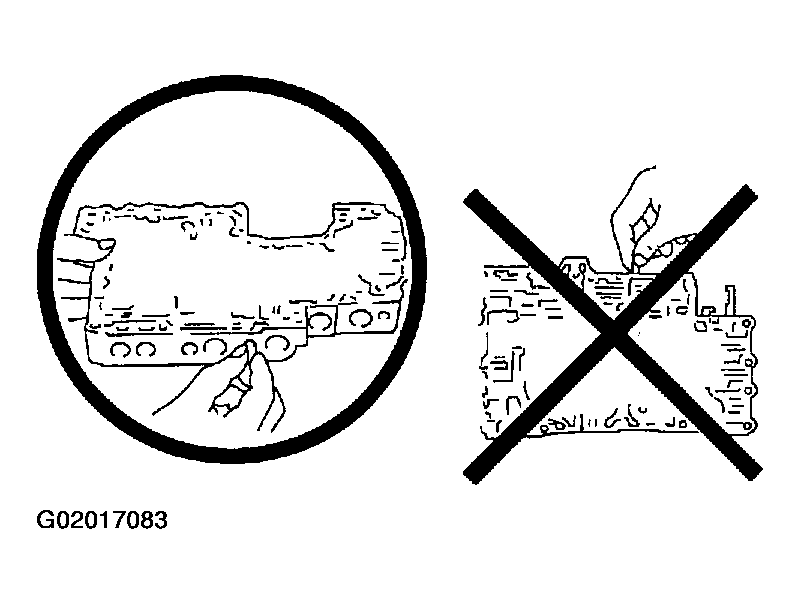

Lay control valve body down when installing valves. Do not stand the control valve body upright.

Fig 1: Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.

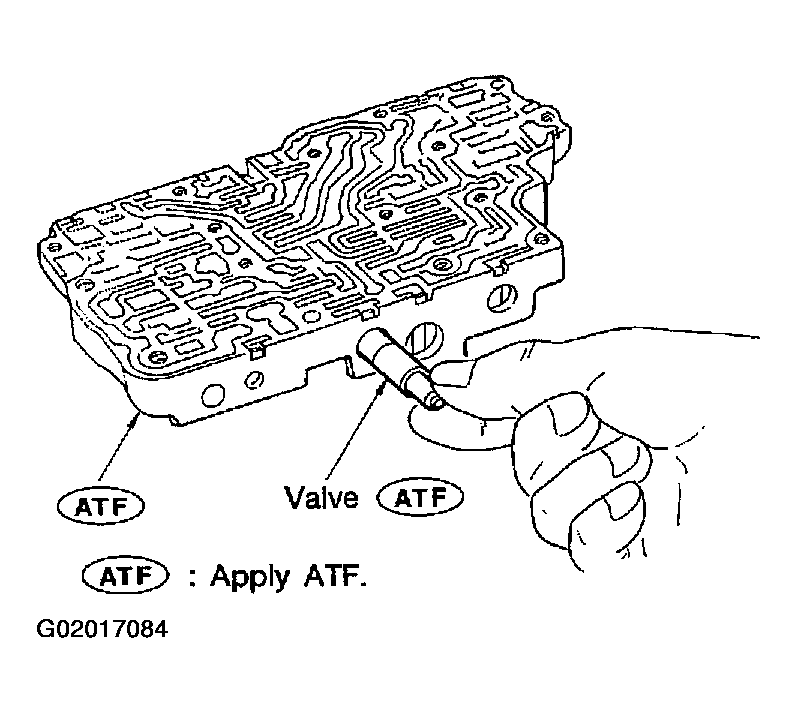

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
- Be careful not to scratch or damage valve body.

  Fig 2: Installing Control Valves
  Courtesy of NISSAN MOTOR CO., U.S.A.

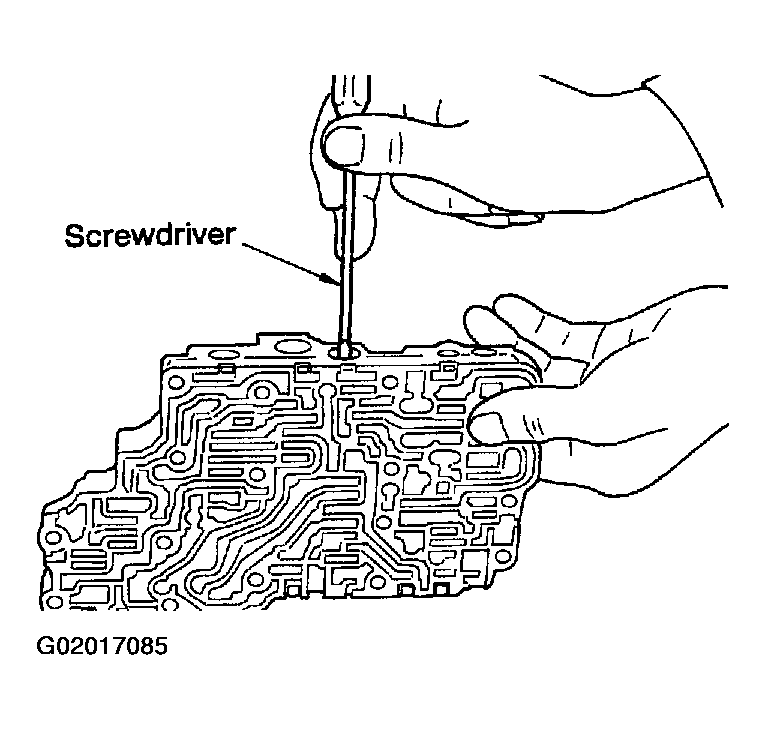

- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

  Fig 3: Inserting Valves Into Proper Positions
  Courtesy of NISSAN MOTOR CO., U.S.A.
