Valve Spring

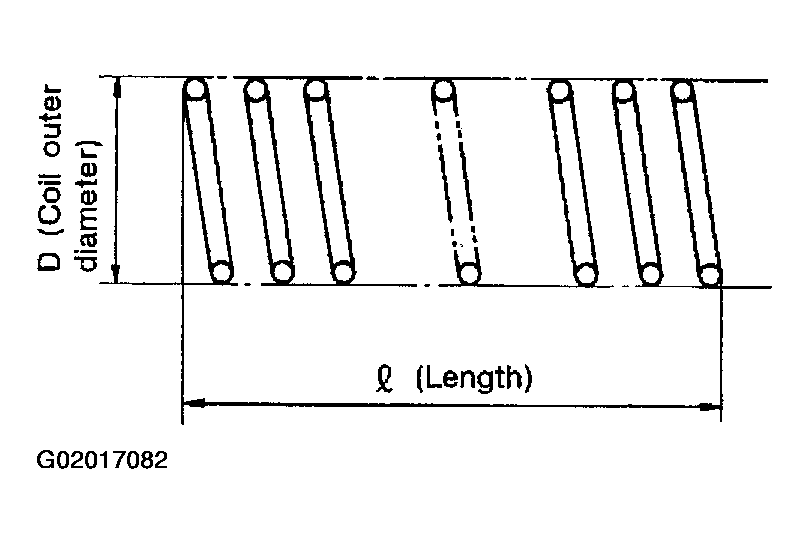

- Measure free length and outer diameter of each valve spring. Also check for damage or deformation.
Inspection standard: Refer to CONTROL VALVE AND PLUG RETURN SPRINGS .
- Replace valve springs if deformed or fatigued.
Inspection standard: Refer to CONTROL VALVE AND PLUG RETURN SPRINGS .
