Low & Reverse Brake: Assembly

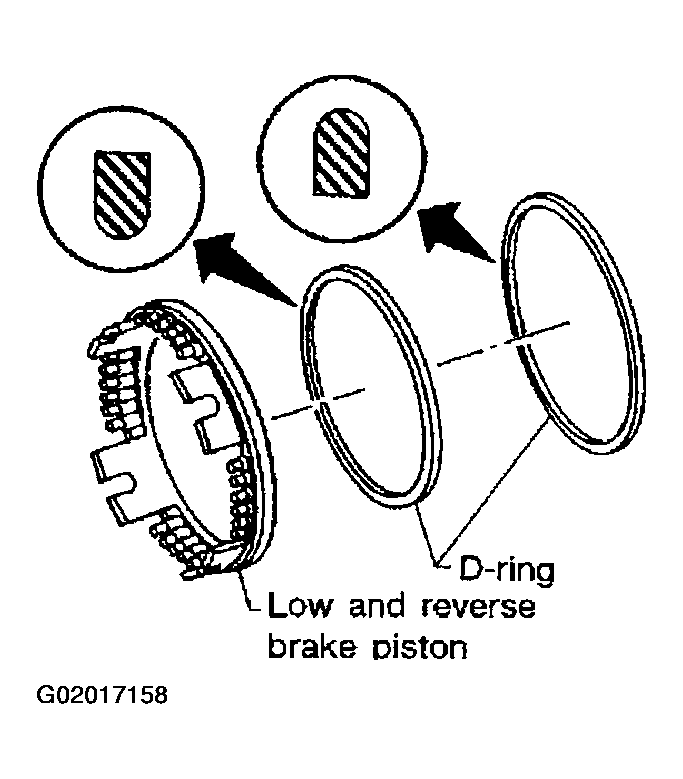

Install D-rings on piston.
- Apply ATF to both parts.
Fig 1: Installing D-Ring On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

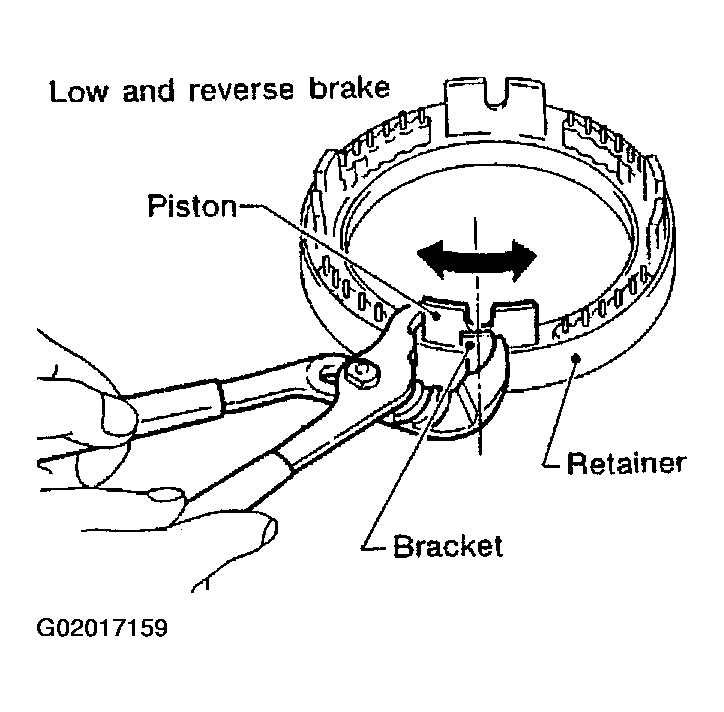

Set and align piston with retainer.

Fig 2: Setting And Aligning Piston With Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
- This operation is required in order to engage the protrusions of piston to return springs correctly.
  Further procedures are given in ASSEMBLY. Refer to ASSEMBLY .

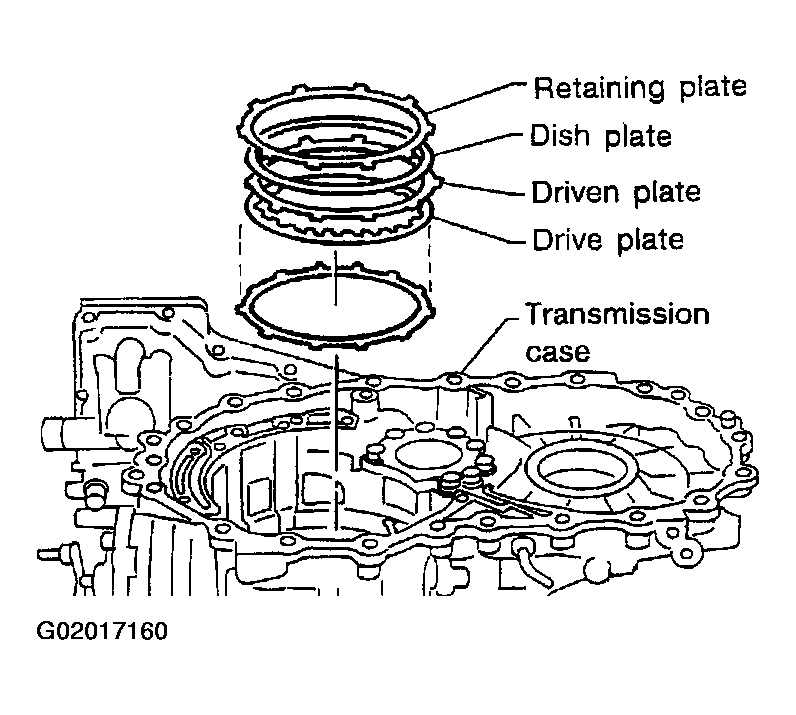

Install driven plates, drive plates, retaining plate and dish plate on transmission case.
- Take care with order of plates and direction of dish plate.
Fig 3: Installing Plates On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

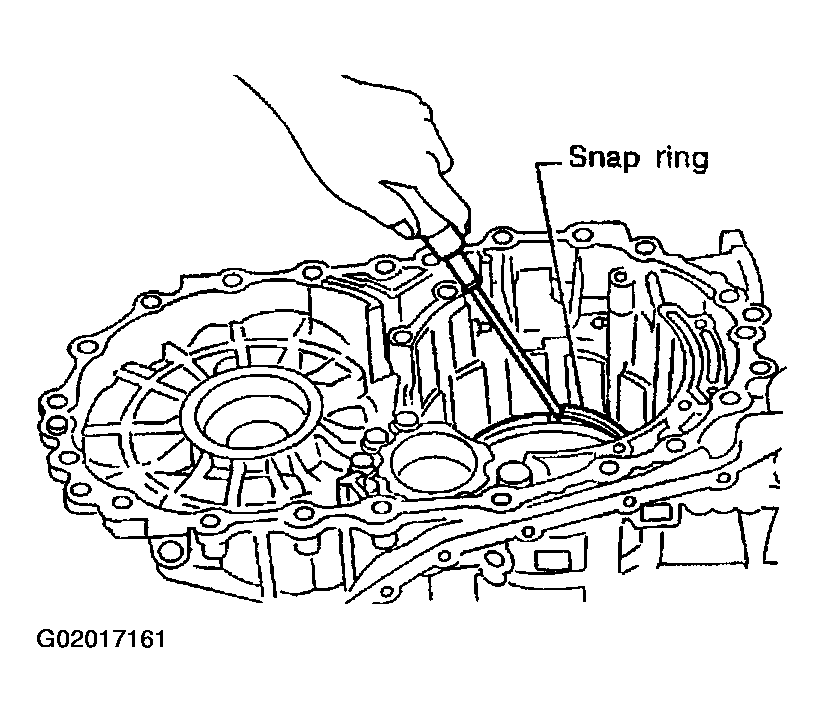

Install snap ring.

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

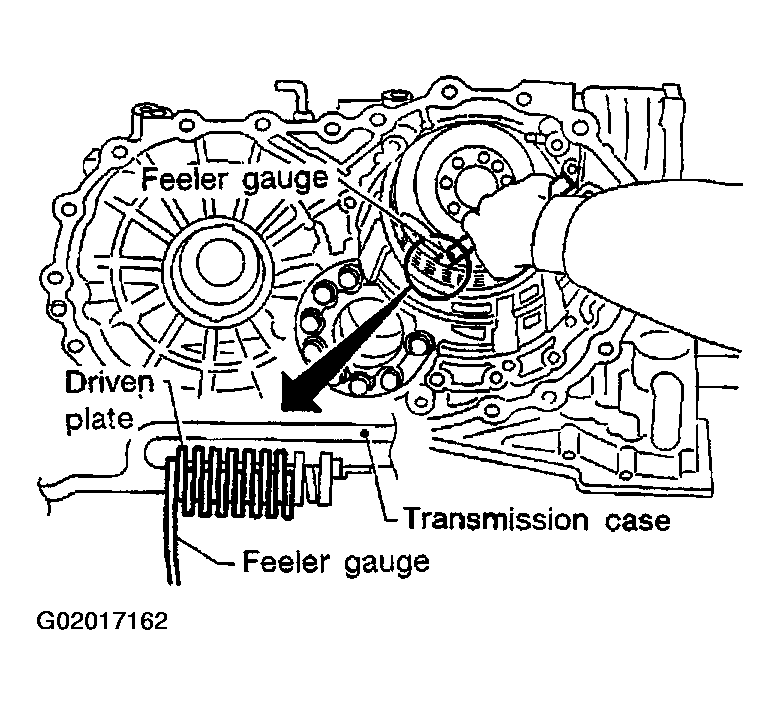

Measure clearance between driven plate and transmission case. If not within allowable limit, select proper retaining plate. (front side)

Fig 5: Measuring Clearance Between Driven Plate And Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 1.7 - 2.1 mm (0.067 - 0.083 in)

Allowable limit: 3.3 mm (0.130 in)

Retaining plate Refer to LOW & REVERSE BRAKE .
