Vehicle Speed When Shifting Gears Throttle Position

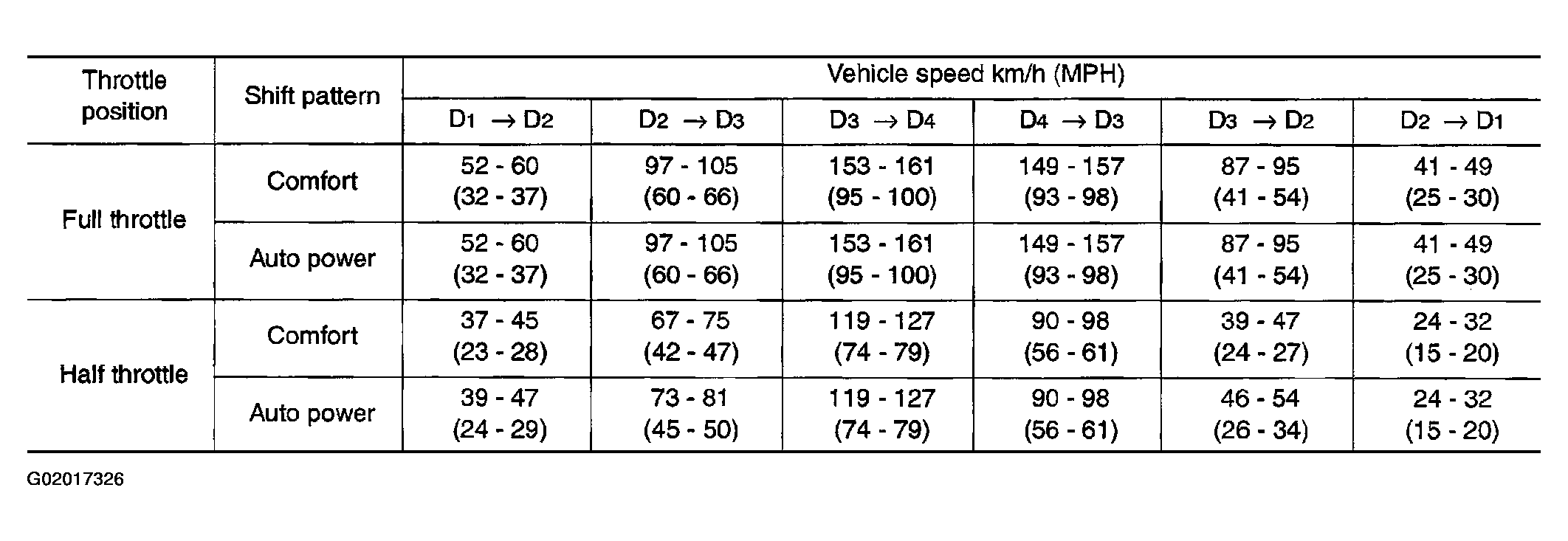

Fig 1: Vehicle Speed Gear Shifting Specifications
G02017326Courtesy of NISSAN MOTOR CO., U.S.A.
