Component Locations

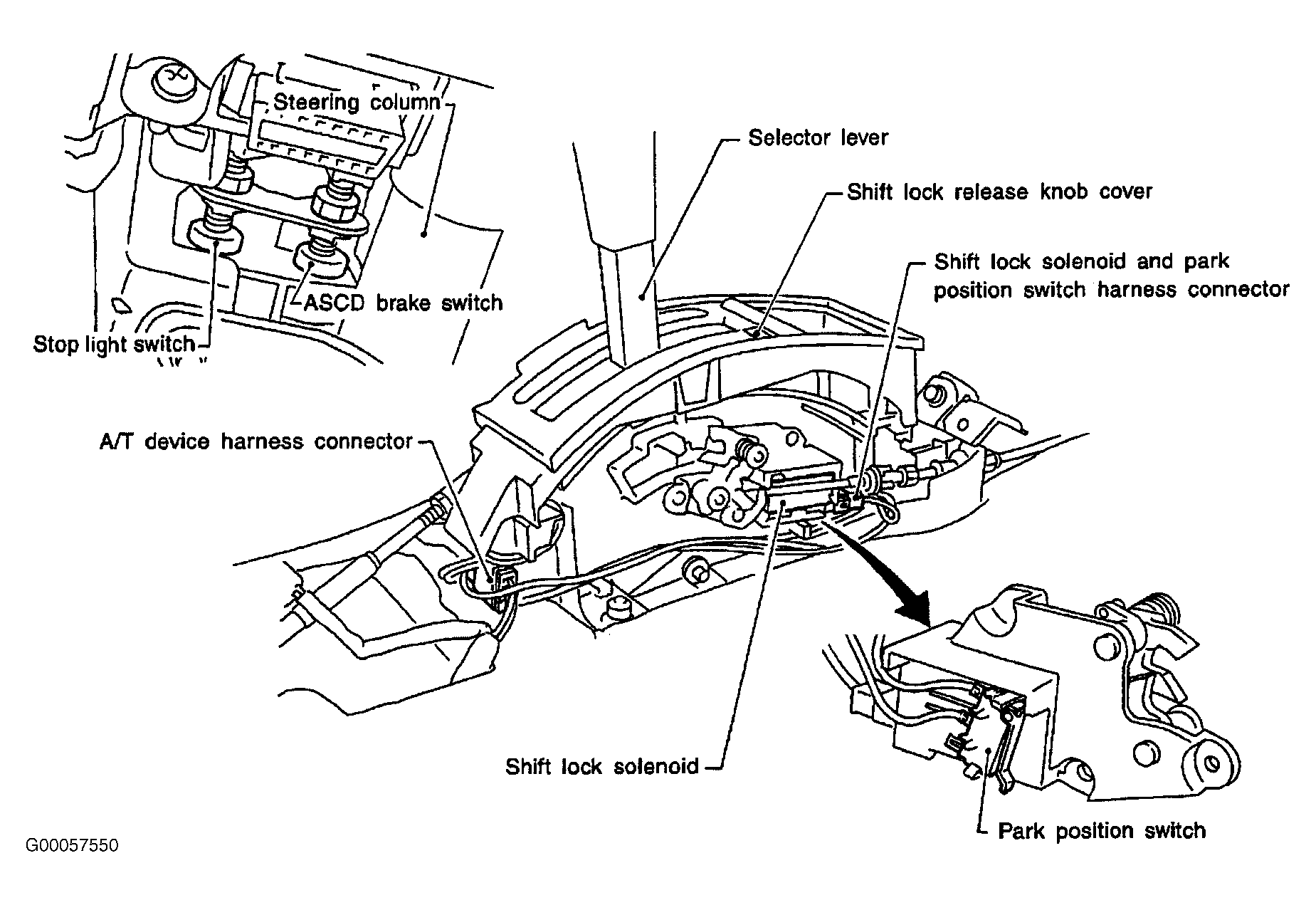

Fig 1: Identifying Shift Lock Components (Frontier W/Console Shift, & Pathfinder, QX4 & Xterra)
Courtesy of NISSAN MOTOR CO., U.S.A.

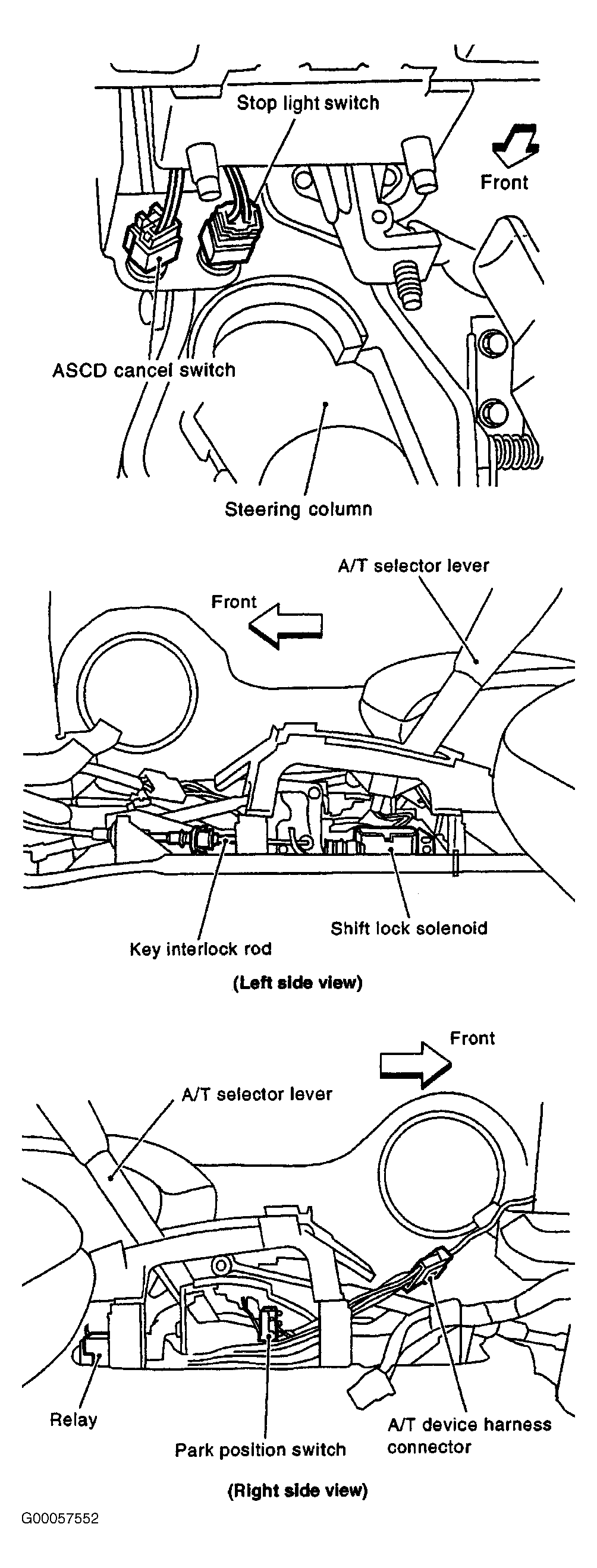

Fig 2: Identifying Shift Lock Components (G20 & Sentra)
Courtesy of NISSAN MOTOR CO., U.S.A.

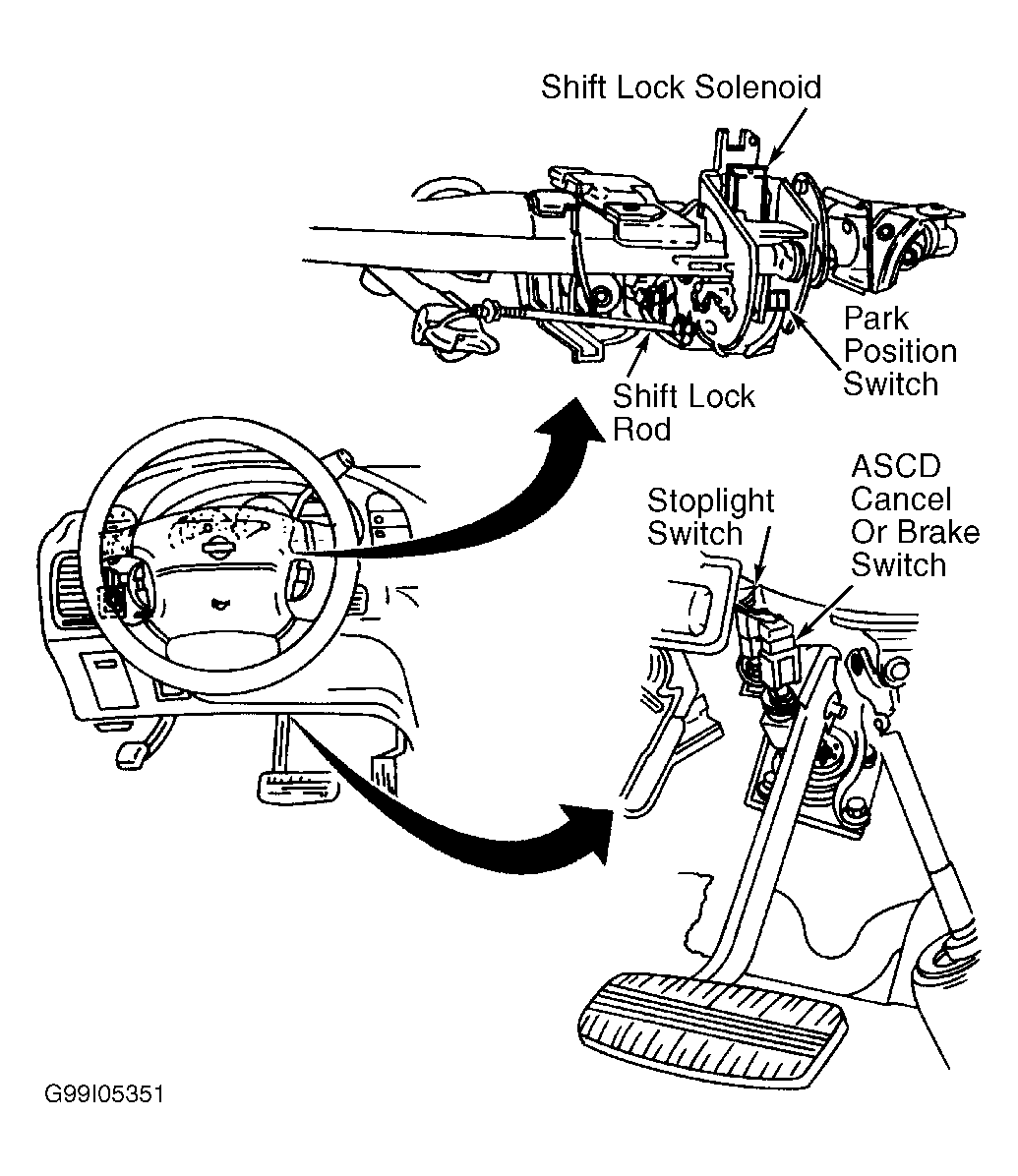

Fig 3: Identifying Shift Lock Components (Frontier W/Column Shift, & Quest)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
