Key Interlock Cable: Notes
NOTE:

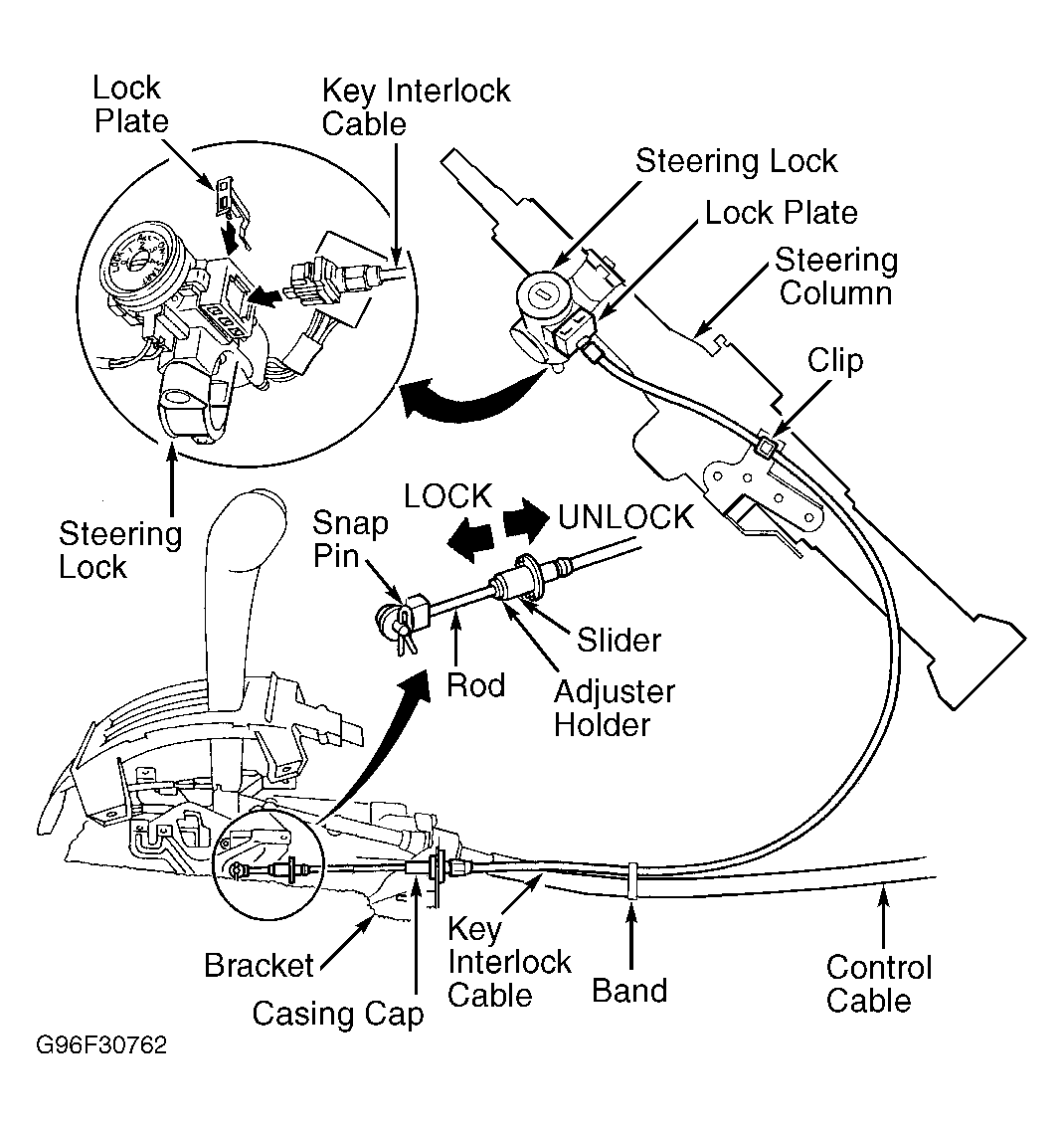

Ensure key interlock cable is installed without sharp bends, twists or interference with adjacent parts. Ensure casing cap and bracket are firmly secured. If casing cap can be removed with a load of less than 8.8 lbs. (11.93 N.m), replace key interlock cable. See Figure
.
