Shift Lock Rod: Installation

Place selector lever in "P" position. Turn ignition key to ACC position. Insert shift lock rod into slider. Push key interlock rod toward shift lock rod to adjust. DO NOT hold shift lock rod. Lock slider into position. Test shift lock operation. See SYSTEM OPERATION CHECK  under TROUBLE SHOOTING.

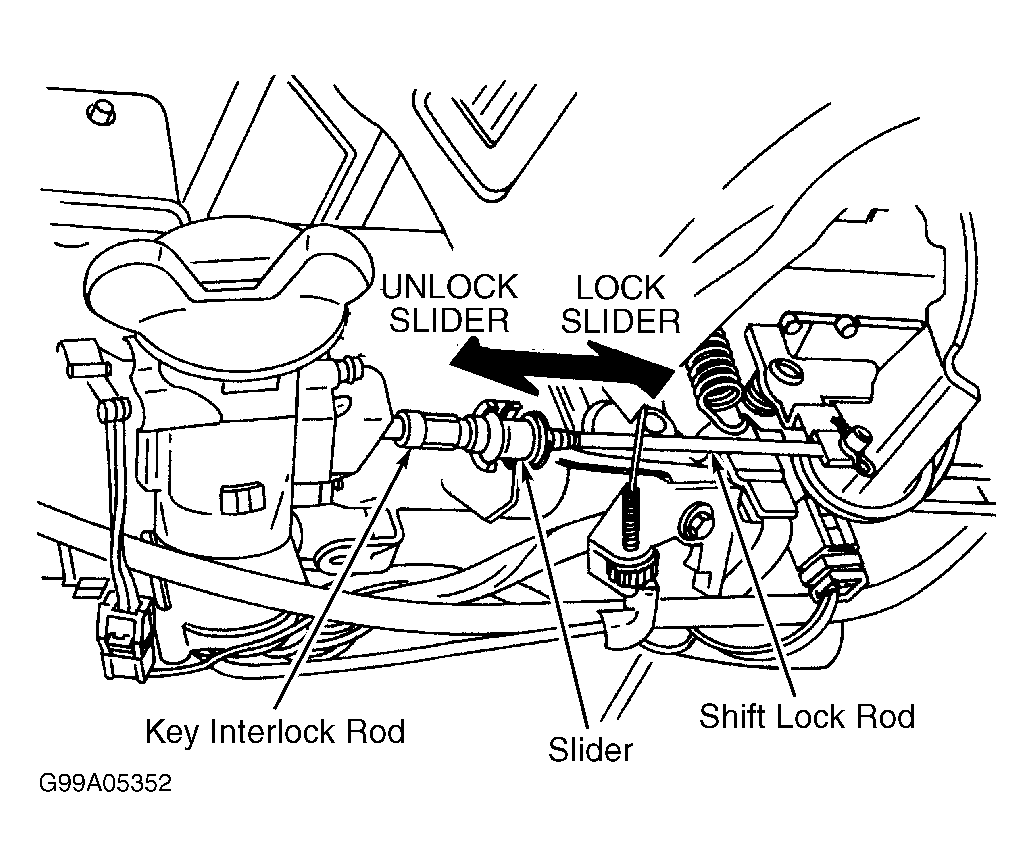

Fig 1: Identifying Shift Lock Rod Components (Frontier W/Column Shift, & Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.
