Smart Entrance Control Unit: Schematic

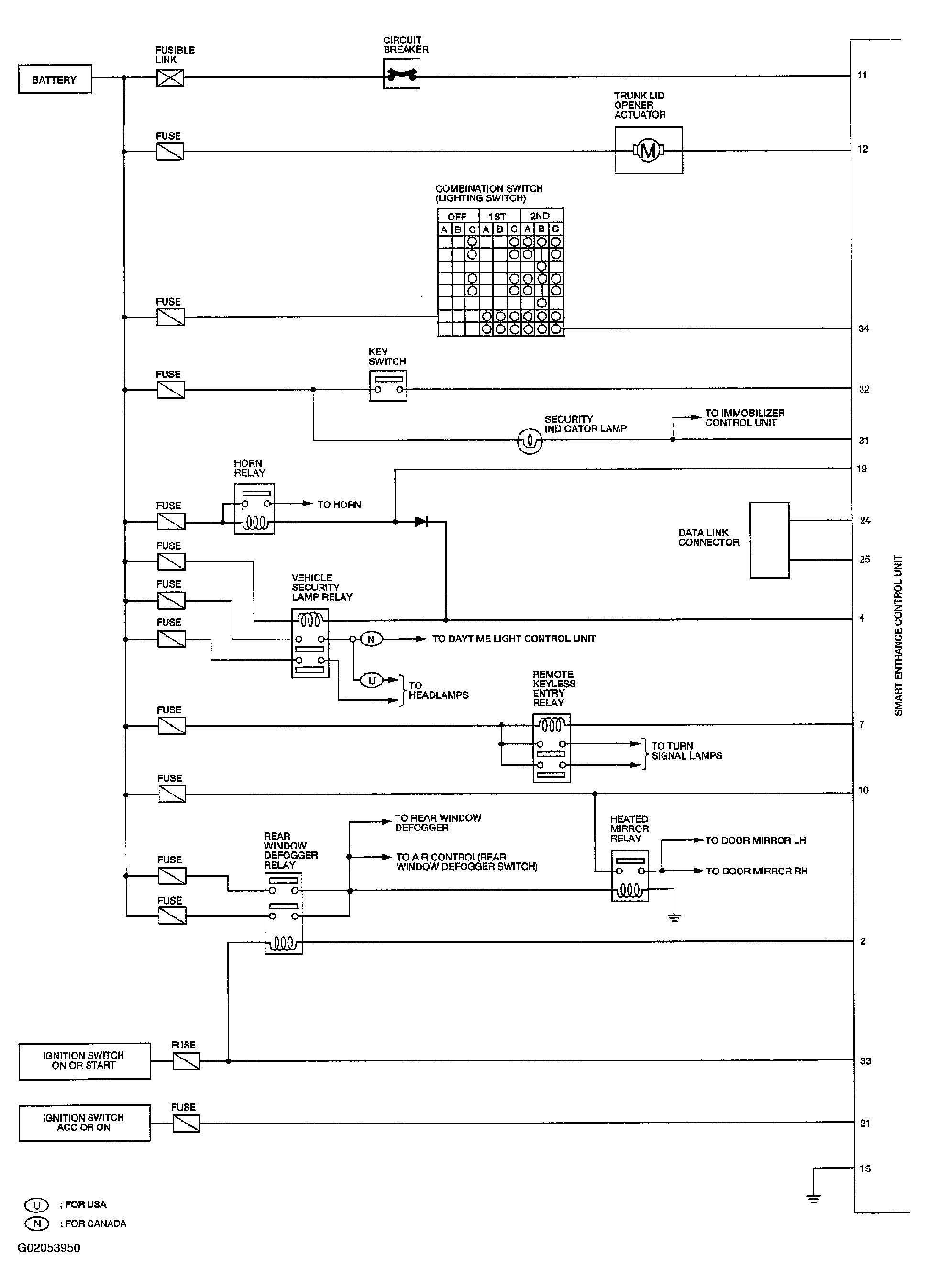

Fig 1: Smart Entrance Control Unit (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Smart Entrance Control Unit (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
