KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.

Turn ignition switch "OFF".

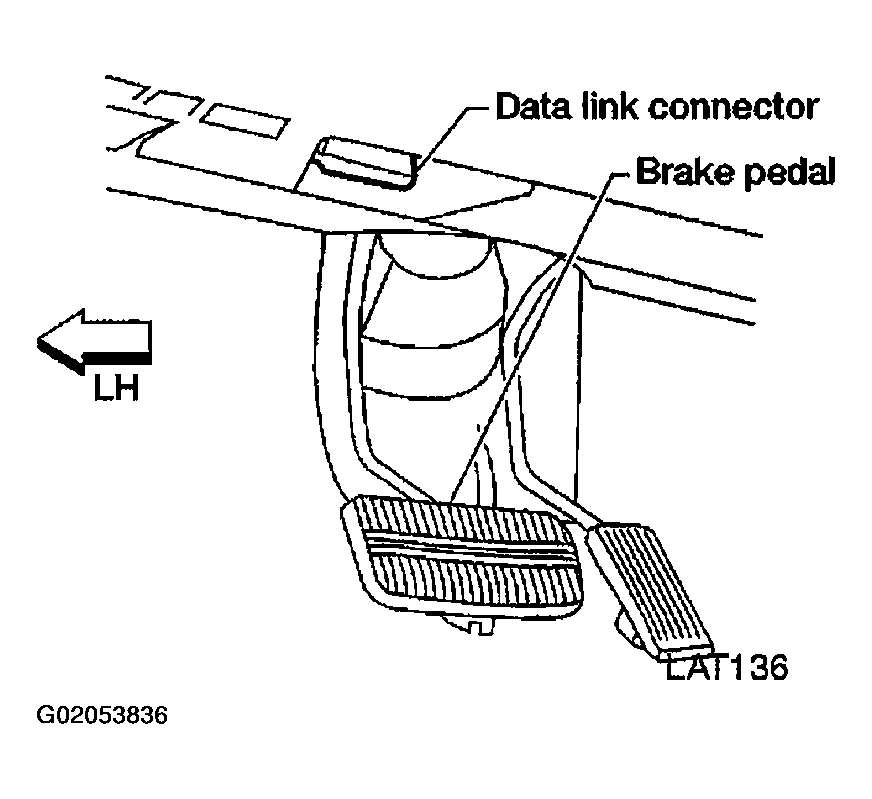

Fig 1: Checking Harness Open Or Short Between Smart Entrance Control Unit And Interior Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect "CONSULT-II" to the data link connector.
Turn ignition switch "ON".

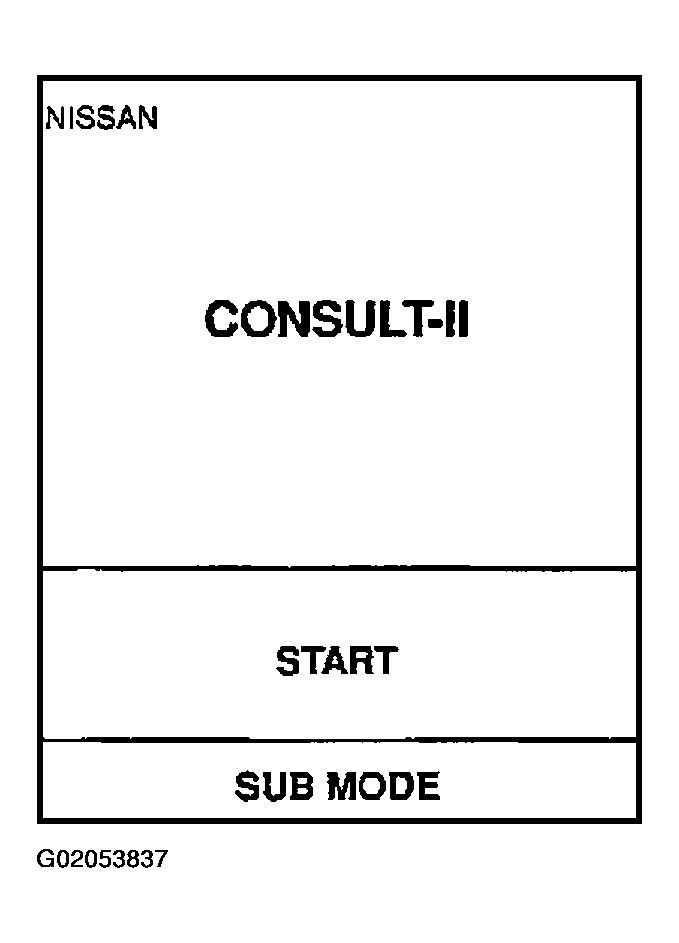

Fig 2: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Touch "SMART ENTRANCE".

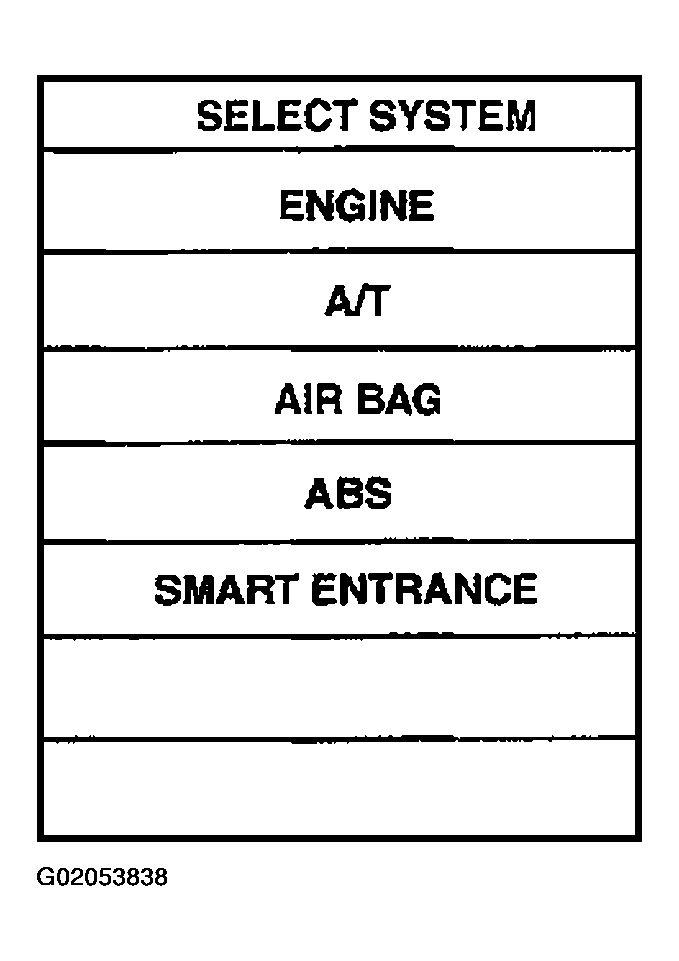

Fig 3: CONSULT-II Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

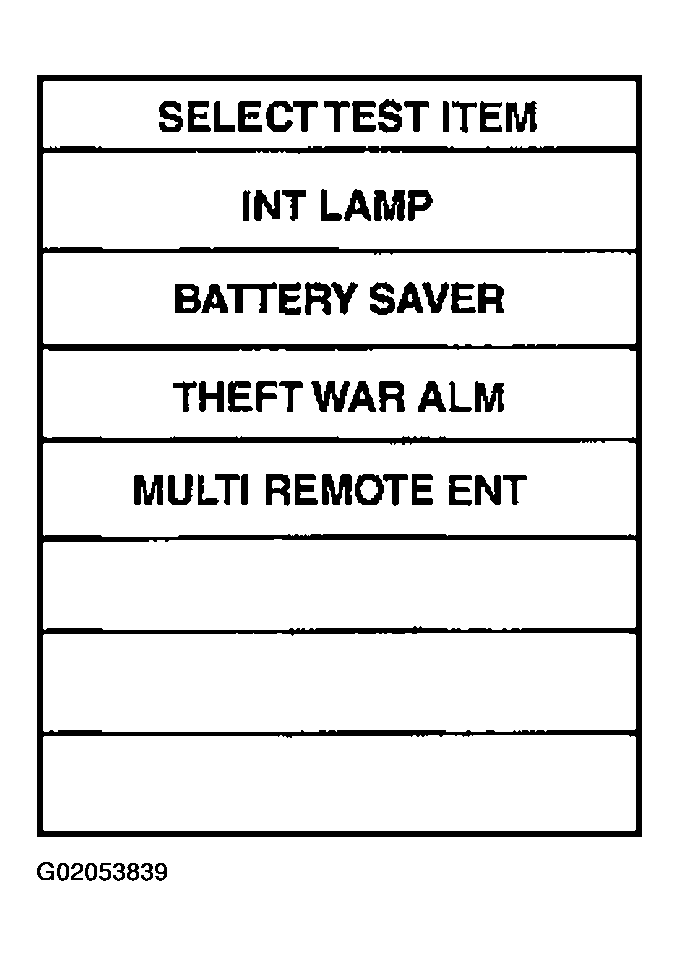

Fig 4: CONSULT-II Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

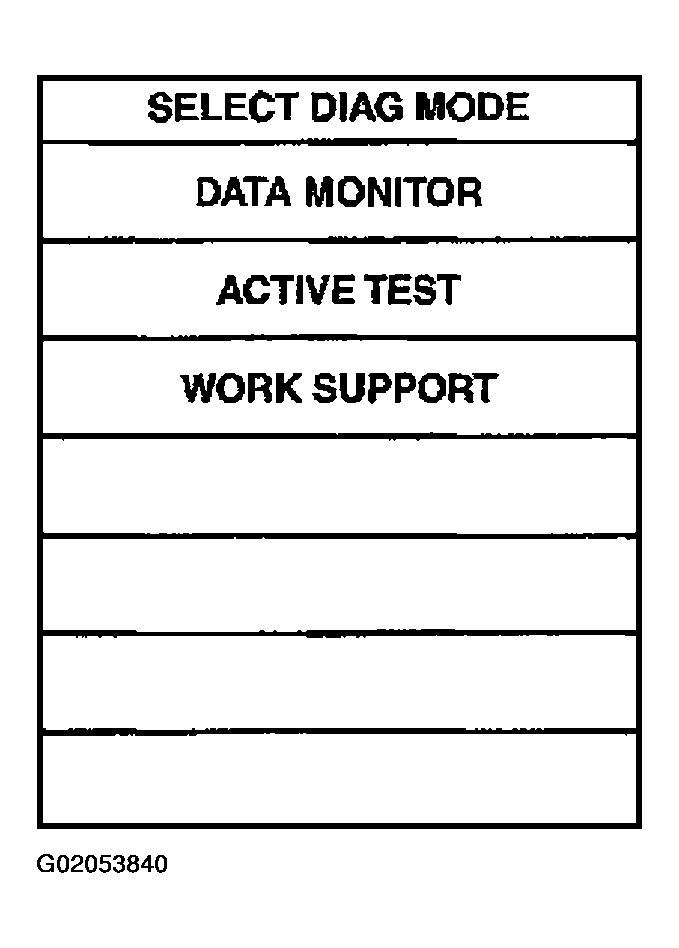

Fig 5: CONSULT-II Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown that can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a keyfob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a keyfob ID code.

  NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
- "REMO CONT ID ERASUR"
  Use this mode to erase a keyfob ID code.
- "HZRD REM SET"
  Use this mode to activate or deactivate the hazard and horn reminder.

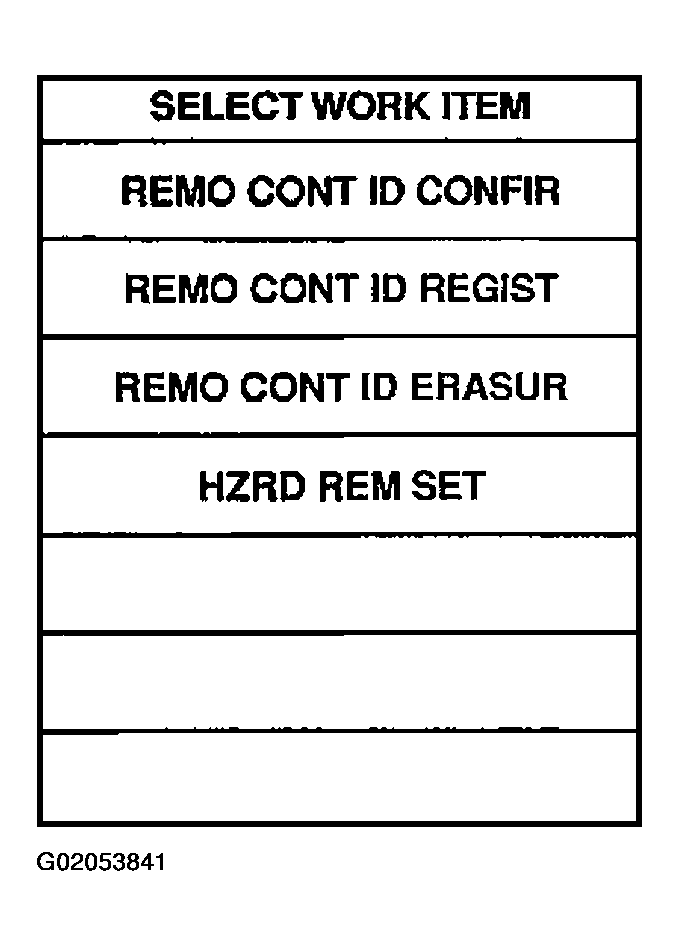

  Fig 6: Condult II Select Work Item
  Courtesy of NISSAN MOTOR CO., U.S.A.
