Component Locations

COMPONENT LOCATIONS

Component Location
Body Ground M28 Behind Left Side Of Dash, See Fig 1
Body Ground M54 Behind Right Side Of Dash, See Fig 2
Fuse Block (J/B) Behind Left Side Of Dash, See Fig 3
Fuse & Fusible Link Box Under Hood, Next to Front Left Hood Switch, See Fig 4
Main Power Window & Door Lock/Unlock Switch On Front Left Arm Rest, See Fig 5
Smart Entrance Control Unit Behind Center Console, See Fig 6

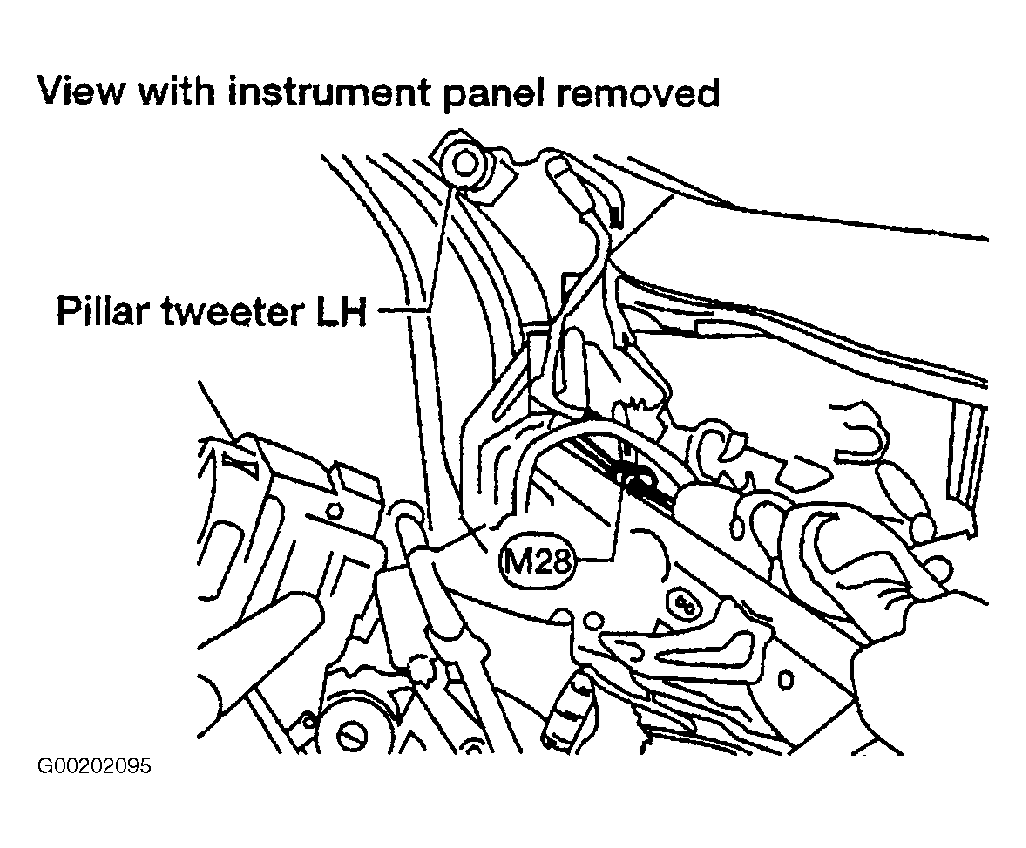

Fig 1: Locating Body Ground M28
G00202095Courtesy of NISSAN MOTOR CO., U.S.A.

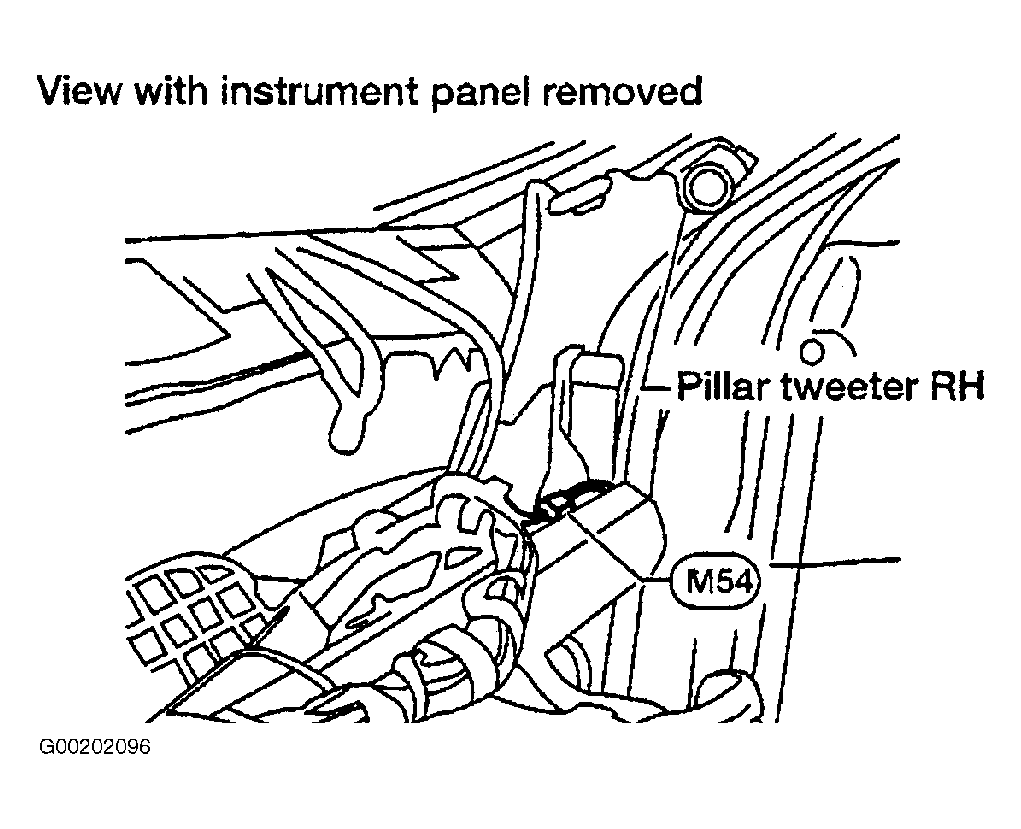

Fig 2: Locating Body Ground M54
G00202096Courtesy of NISSAN MOTOR CO., U.S.A.

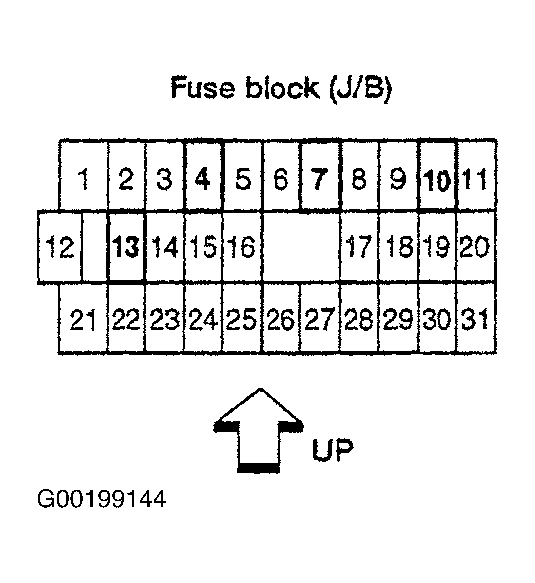

Fig 3: Identifying & Locating Fuse Block (J/B) Fuses
G00199144Courtesy of NISSAN MOTOR CO., U.S.A.

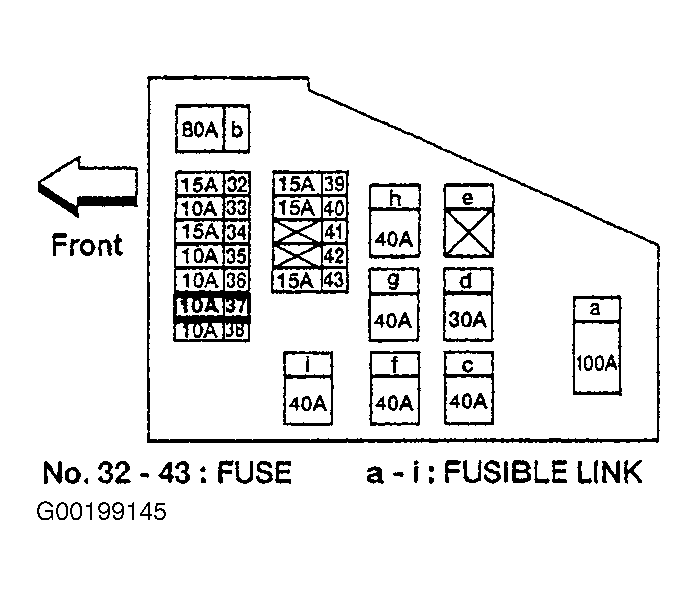

Fig 4: Locating & Identifying Fuse & Fusible Link Box Fusses & Fusible Links
G00199145Courtesy of NISSAN MOTOR CO., U.S.A.

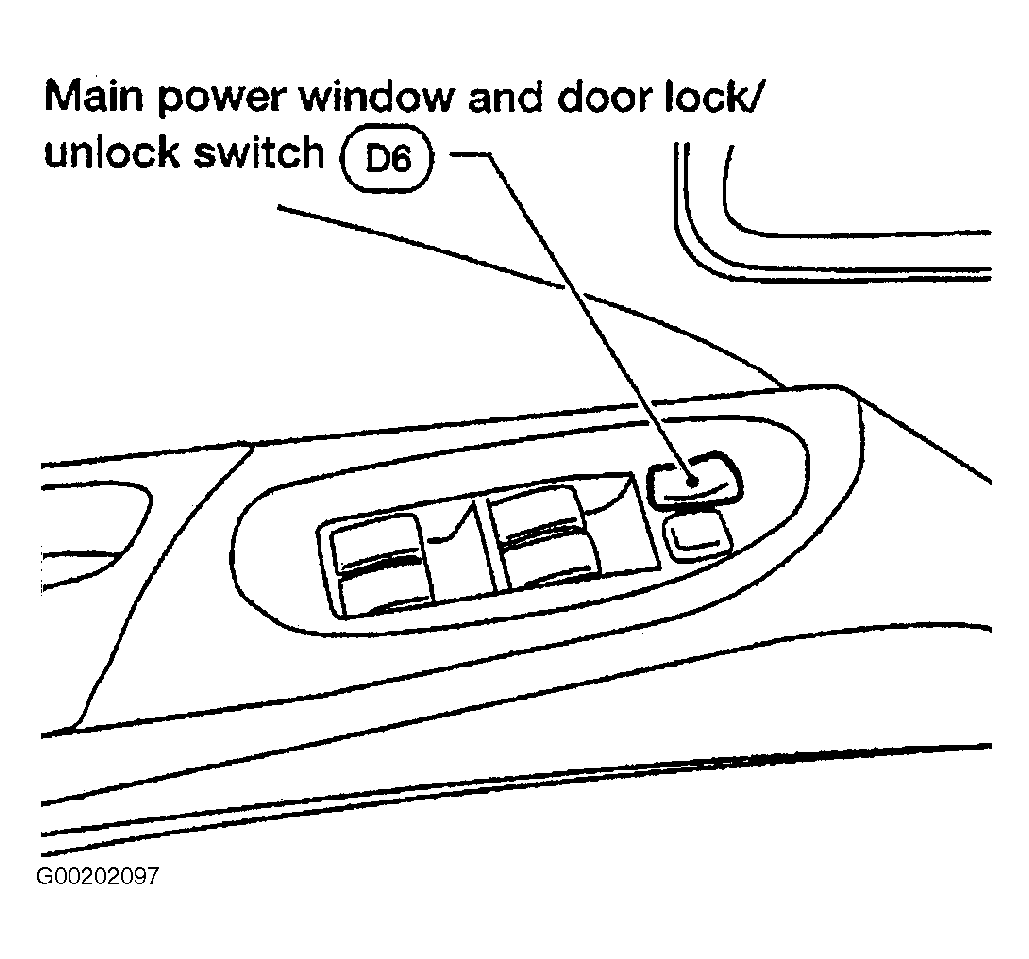

Fig 5: Locating Main Window & Door Lock/Unlock Switch
G00202097Courtesy of NISSAN MOTOR CO., U.S.A.

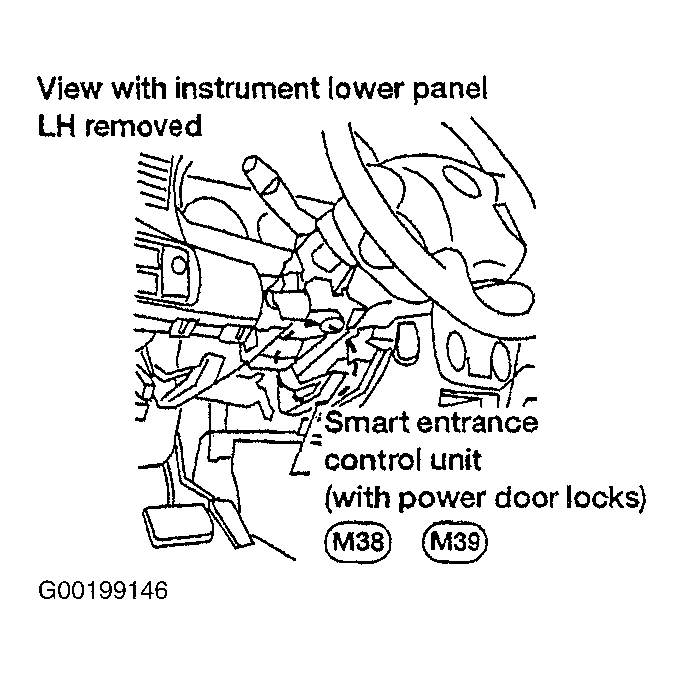

Fig 6: Locating Smart Entrance Control Unit
G00199146Courtesy of NISSAN MOTOR CO., U.S.A.
