Component Locations

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Body Computer Module Behind Left End Of Dash, See Fig 1
Data Link Connector Underside Of Dash In Front Of Driver Seat, See Fig 2
Engine Control Module Behind Glove Box, See Fig 3
Intelligent Power Distribution Module Under Hood Next To Coolant Reservoir Tank, See Fig 4 & Fig 5

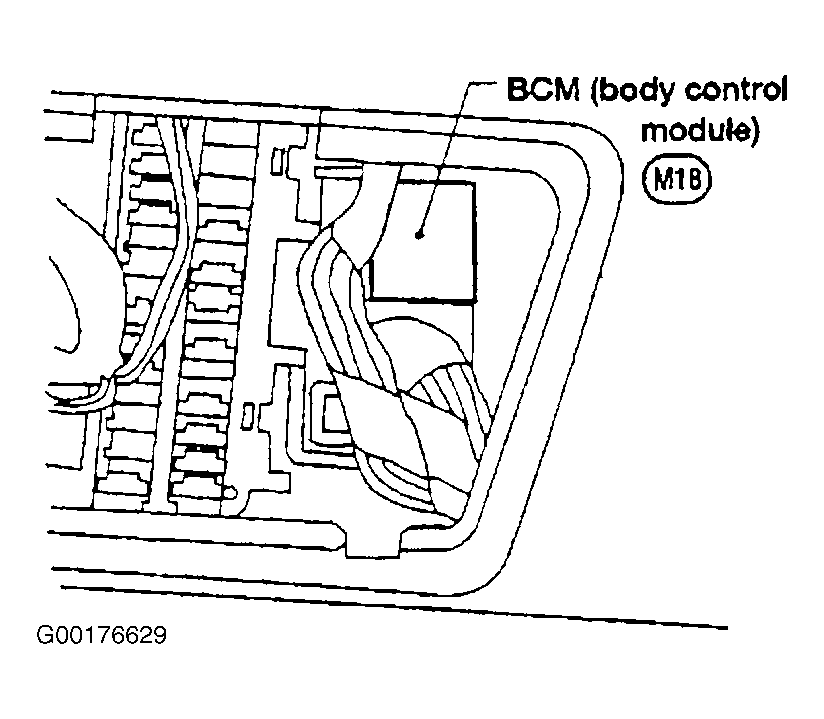

Fig 1: Locating Body Computer Module
G00176629Courtesy of NISSAN MOTOR CO., U.S.A.

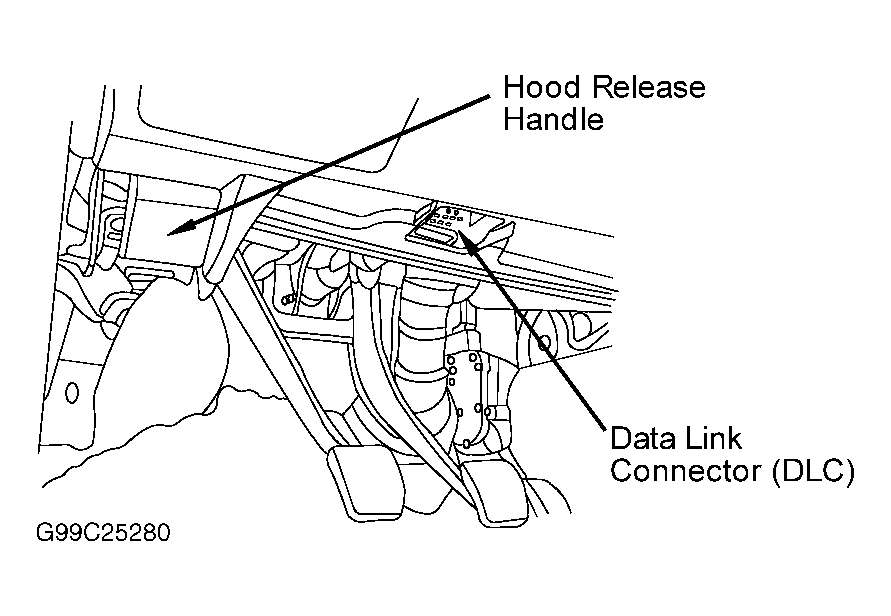

Fig 2: Locating Data Link Connector
G99C25280Courtesy of NISSAN MOTOR CO., U.S.A.

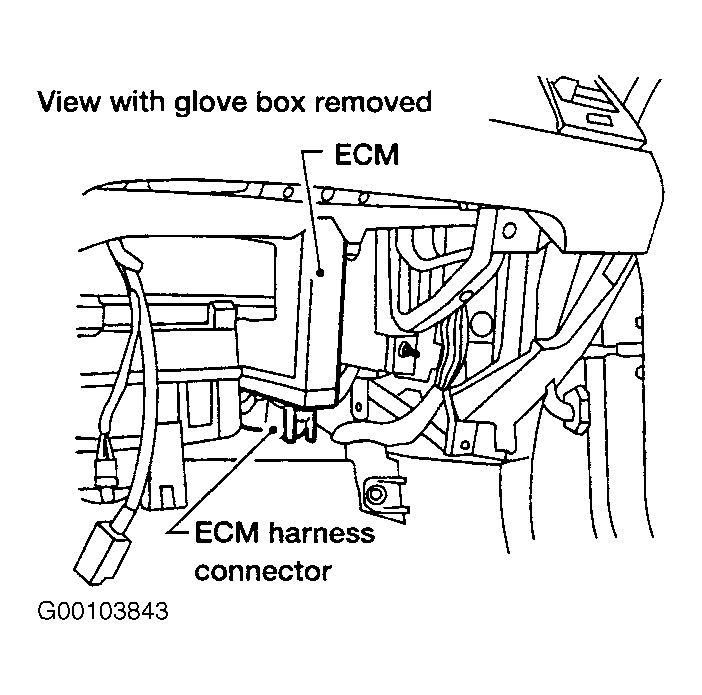

Fig 3: Locating Engine Control Module
G00103843Courtesy of NISSAN MOTOR CO., U.S.A.

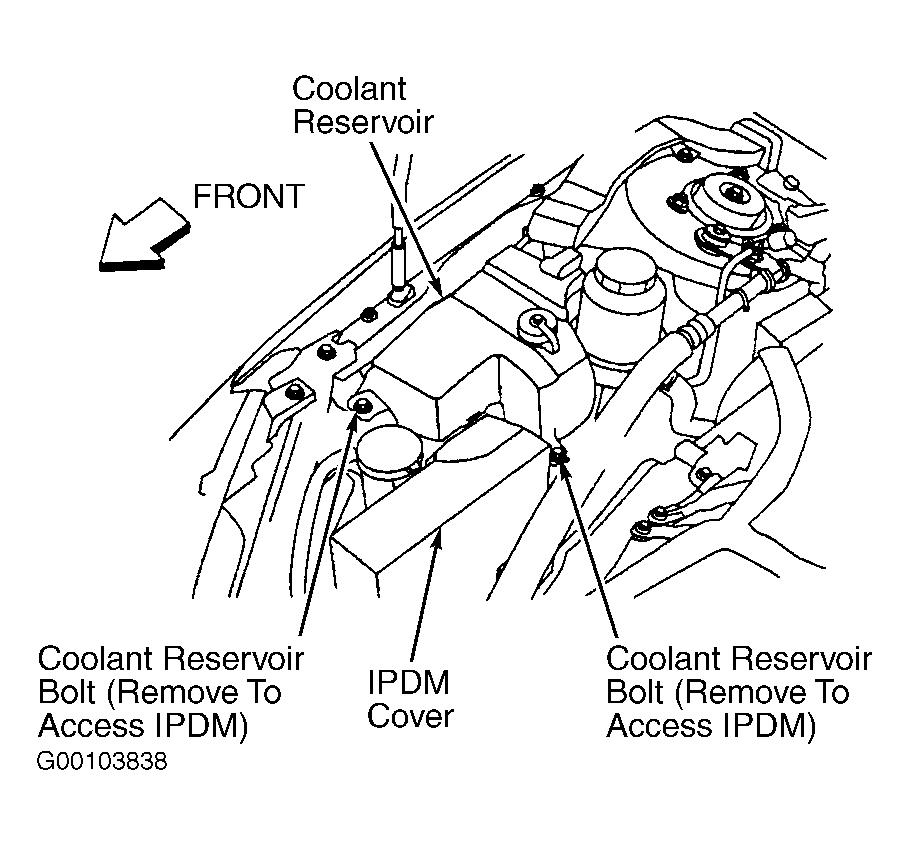

Fig 4: Locating Intelligent Power Distribution Module
G00103838Courtesy of NISSAN MOTOR CO., U.S.A.

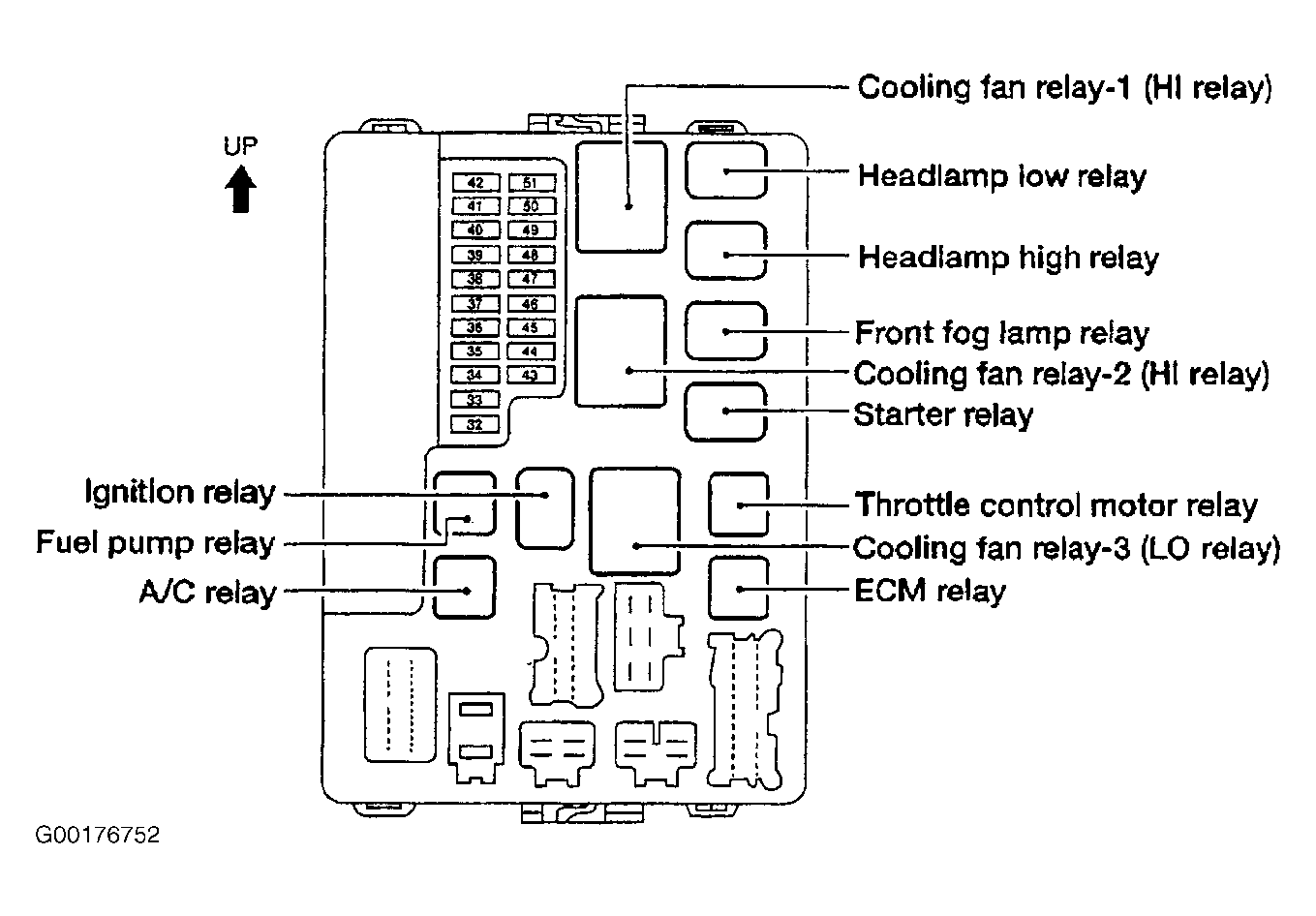

Fig 5: Identifying Intelligent Power Distribution Module Fuse & Relay Arrangement
G00176752Courtesy of NISSAN MOTOR CO., U.S.A.
