Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "BCM" on "SELECT TEST ITEM" screen.

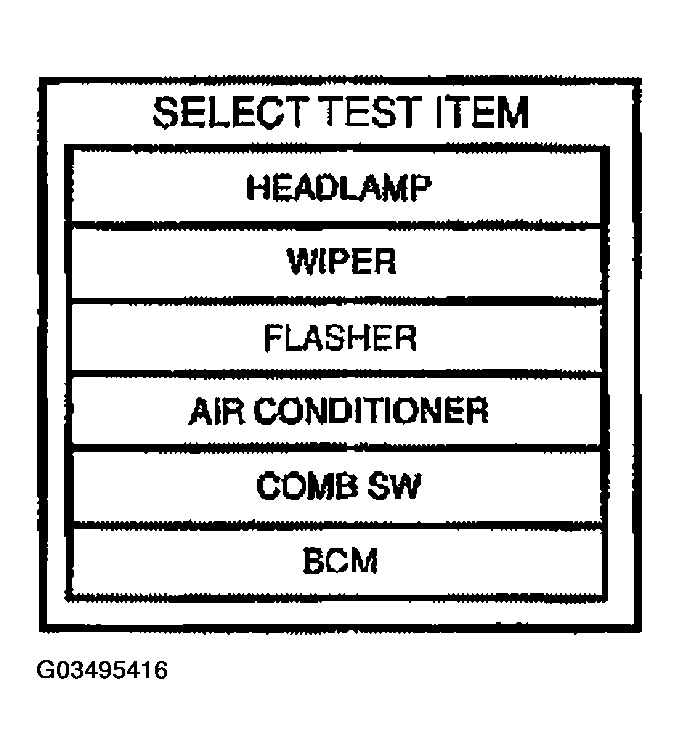

    Fig 1: Display Select Test Item
    G03495416Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

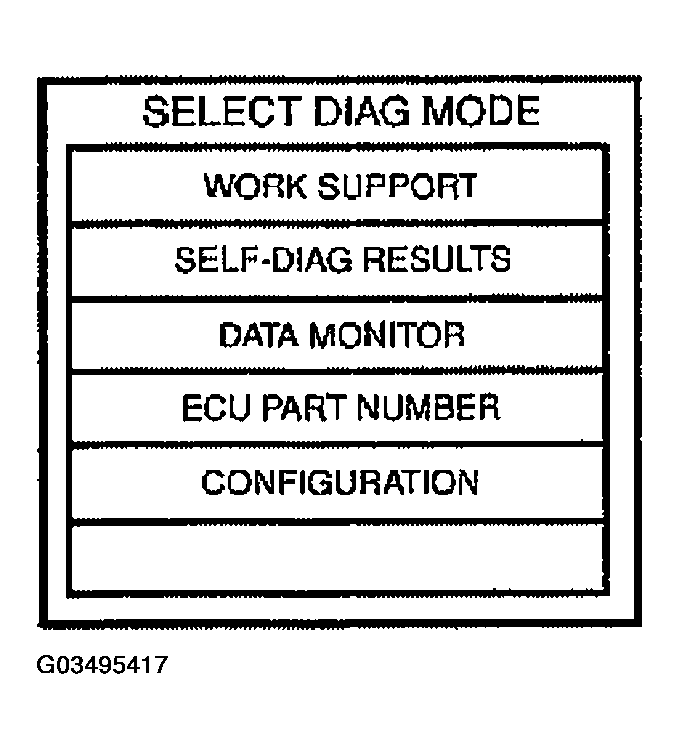

    Fig 2: Display Select Diag Mode
    G03495417Courtesy of NISSAN MOTOR CO., U.S.A.
