Output Rod Length Check
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

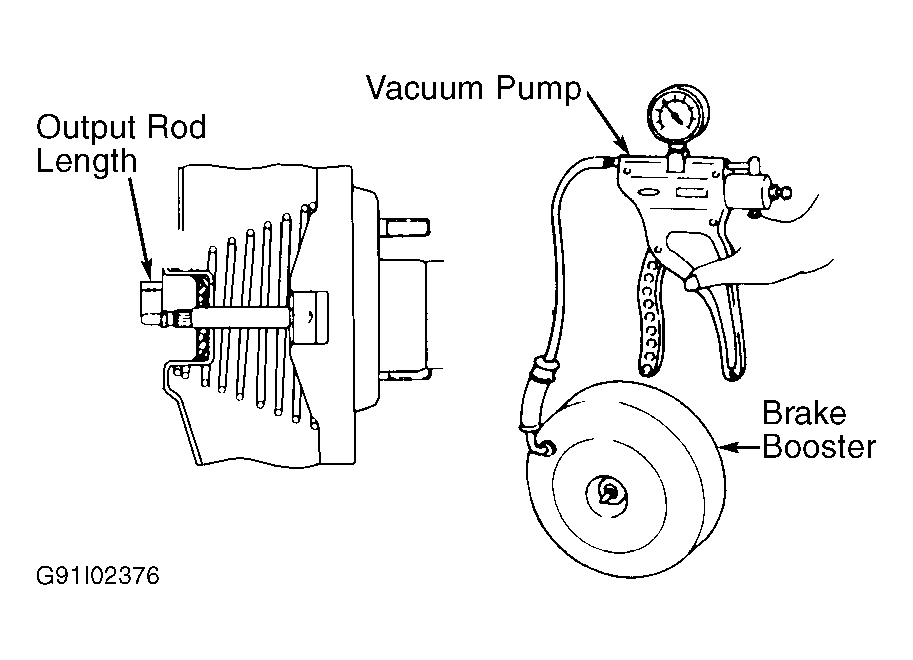

With master cylinder removed, apply 19.69 in. Hg vacuum and measure output rod length. See Fig 1. Specified length is:
- Without Vehicle Dynamic Control (VDC) system.41 in. (10.4 mm).
- With Vehicle Dynamic Control (VDC) system.62 in. (15.7 mm).
