Fuse Block

Fuse block is located under left side of instrument panel. See Fig 1 . To identify components on fuse block, see Fig 2 .

Fuse and fusible link box is located underhood. See Fig 3 . To identify components on fuse and fusible link box, see Fig 5 or Fig 6 .

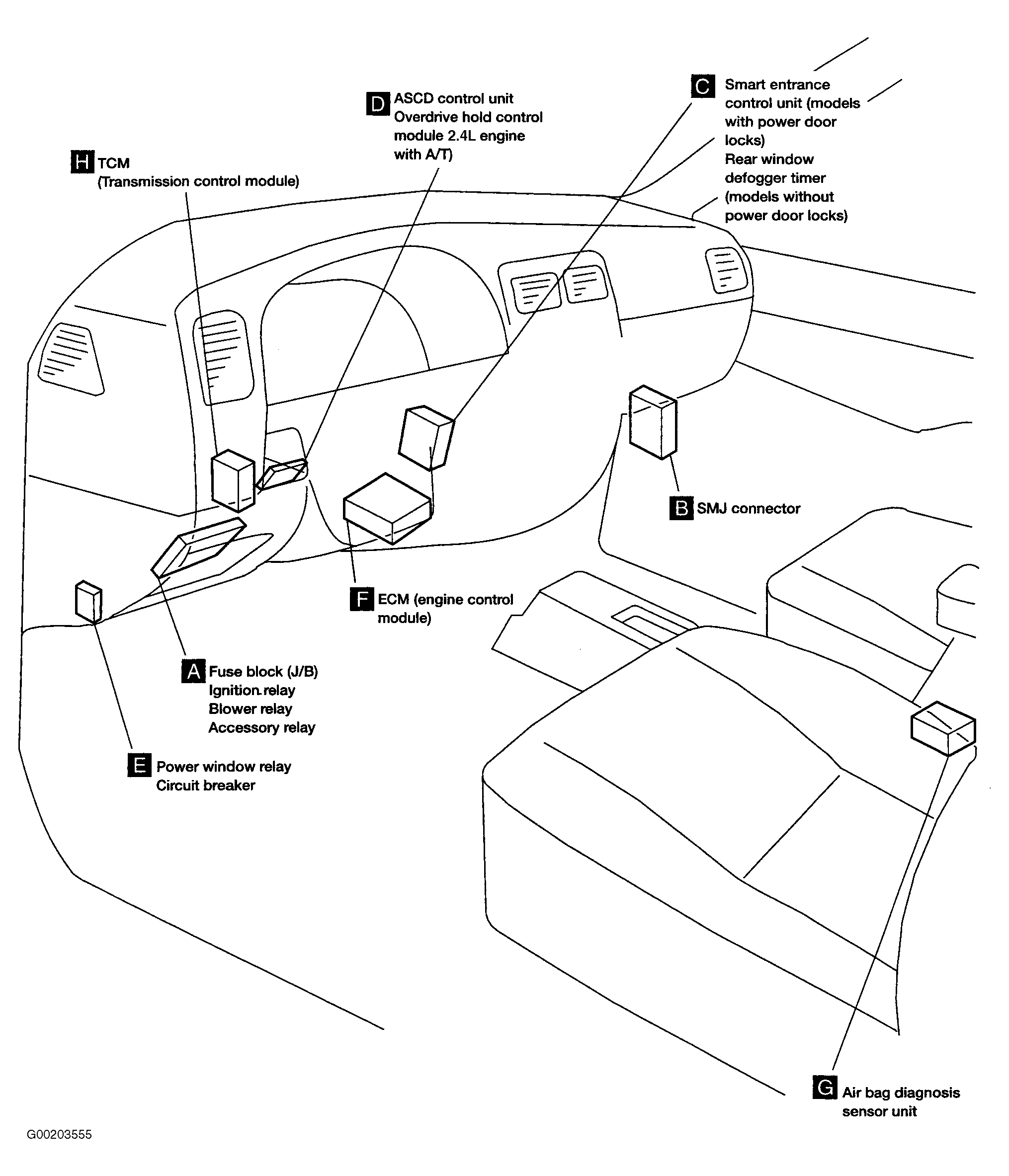

Fig 1: Locating Fuse Block (Frontier Shown; Xterra Is Similar)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Fuse Block Fuses, Relays & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

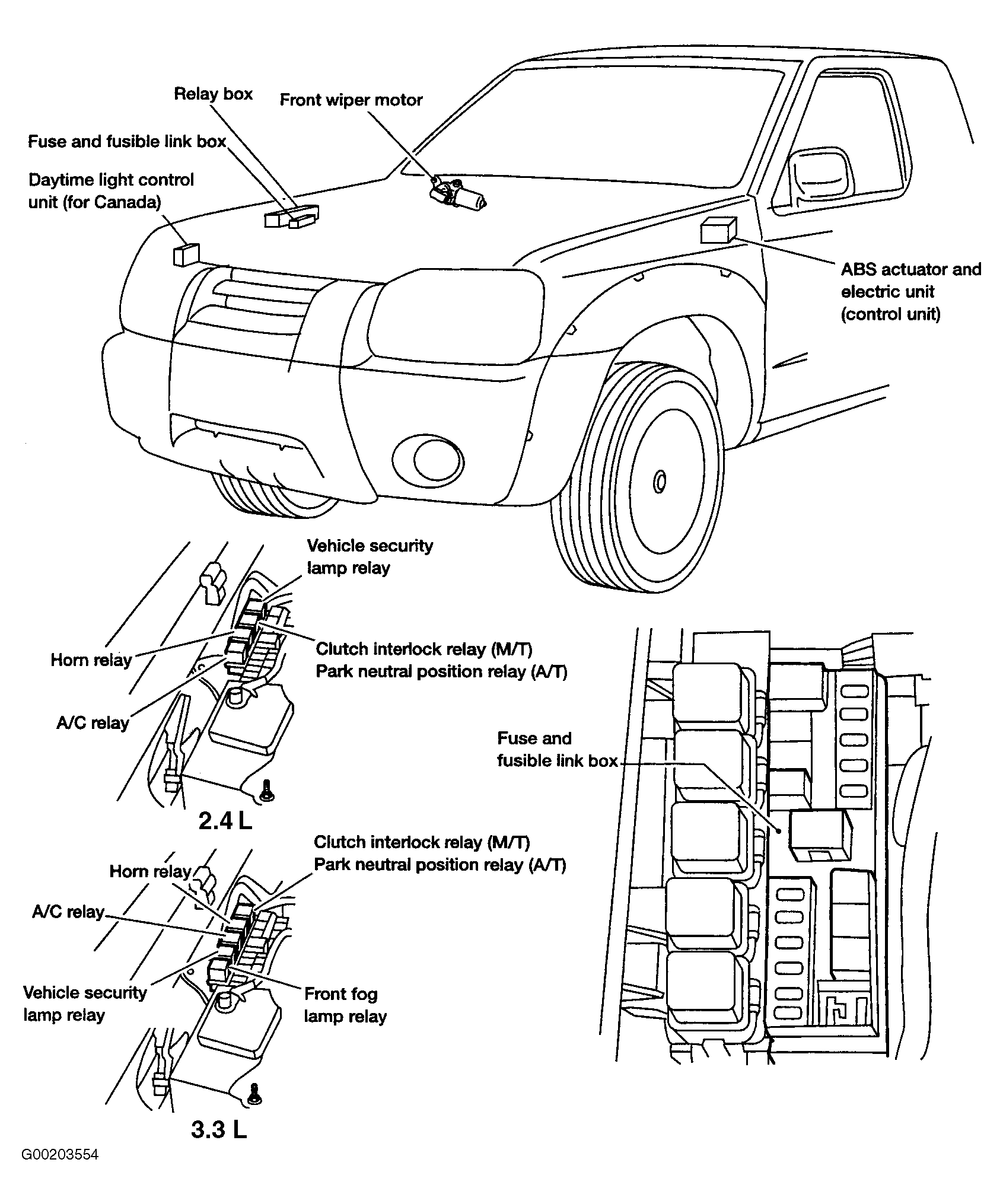

Fig 3: Locating Fuse & Fusible Link Box (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

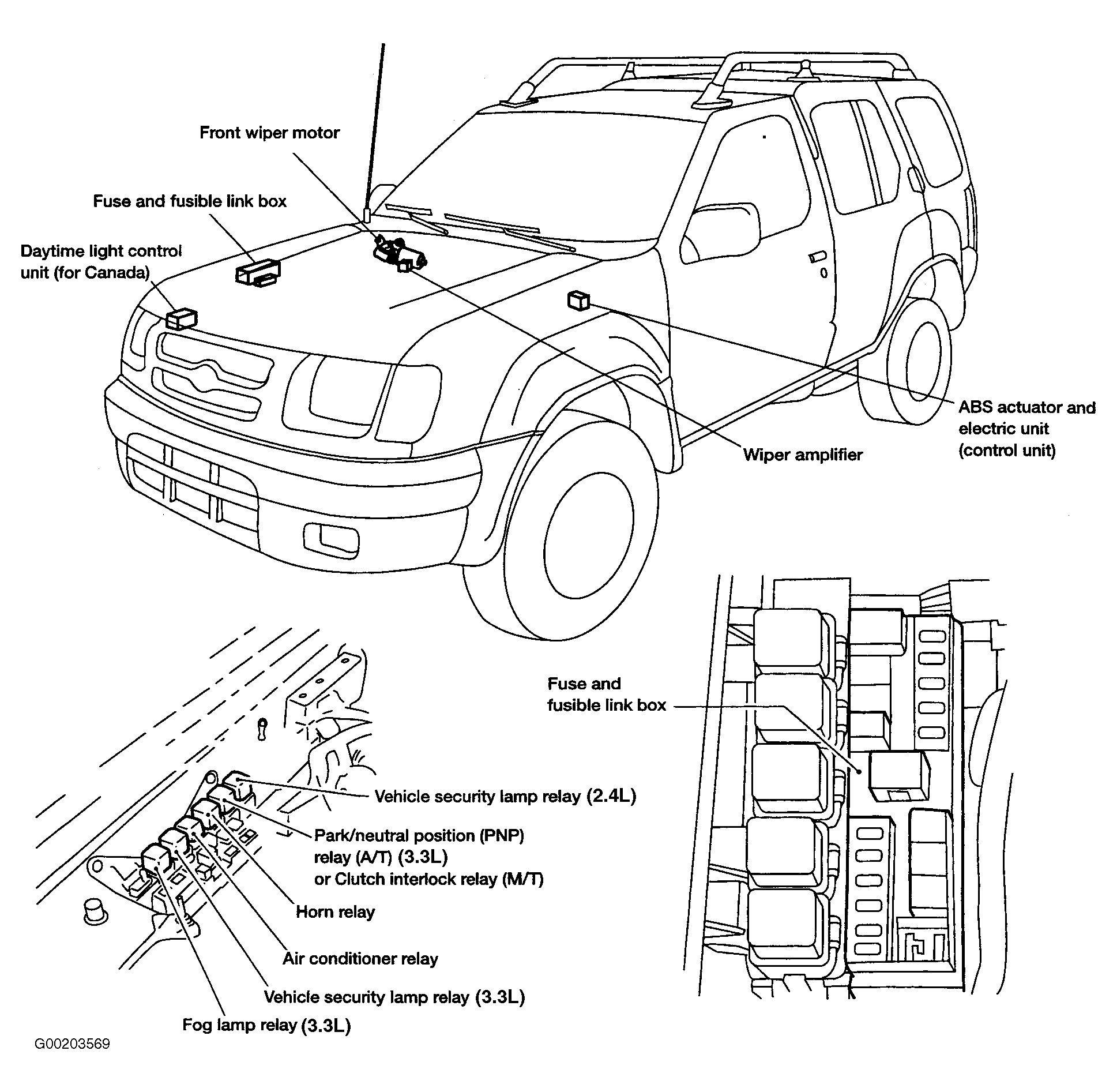

Fig 4: Locating Fuse & Fusible Link Box (Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.

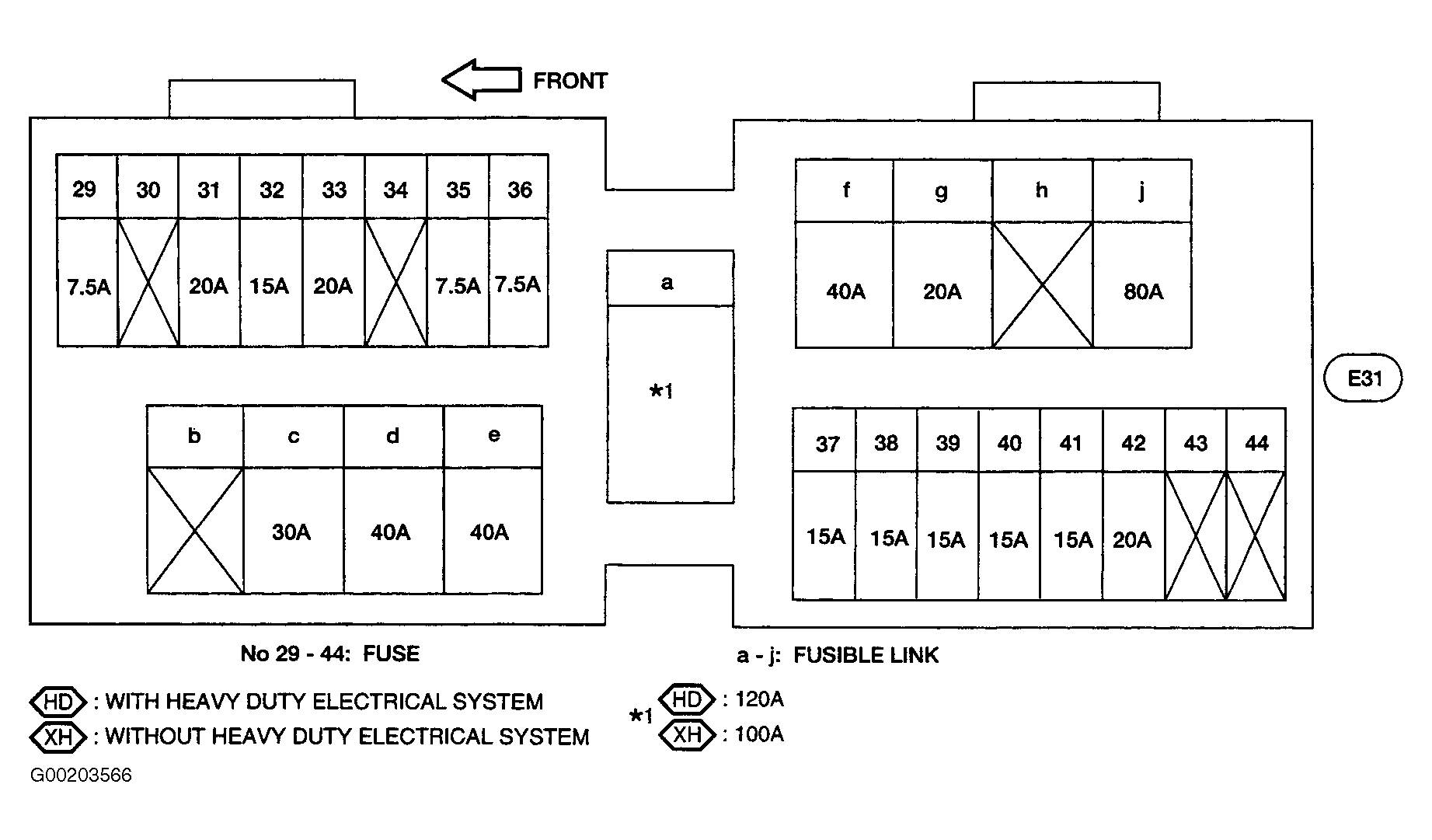

Fig 5: Identifying Fuse & Fusible Link Box Components (Frontier & Xterra 2.4L)

Courtesy of NISSAN MOTOR CO., U.S.A.

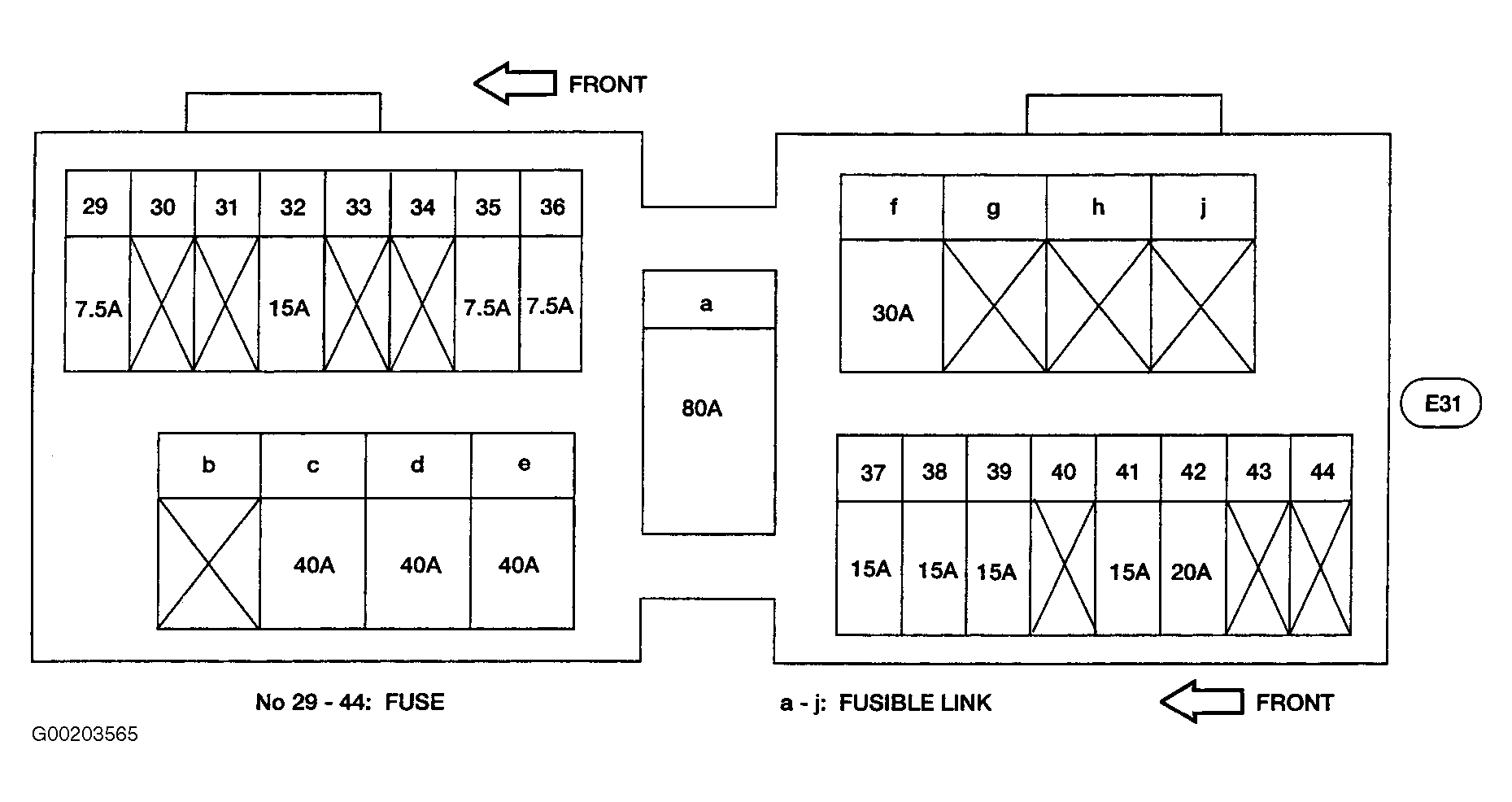

Fig 6: Identifying Fuse & Fusible Links Box Components (Frontier & Xterra 3.3L)

Courtesy of NISSAN MOTOR CO., U.S.A.
