Component Locations

Use illustrations for component locations. See Fig 1-Fig 55 .

Fig 1: Identifying Engine Performance Component Locations (Altima 2.5L - 1 Of 4)

G00154042

Courtesy of NISSAN MOTOR CO., U.S.A.

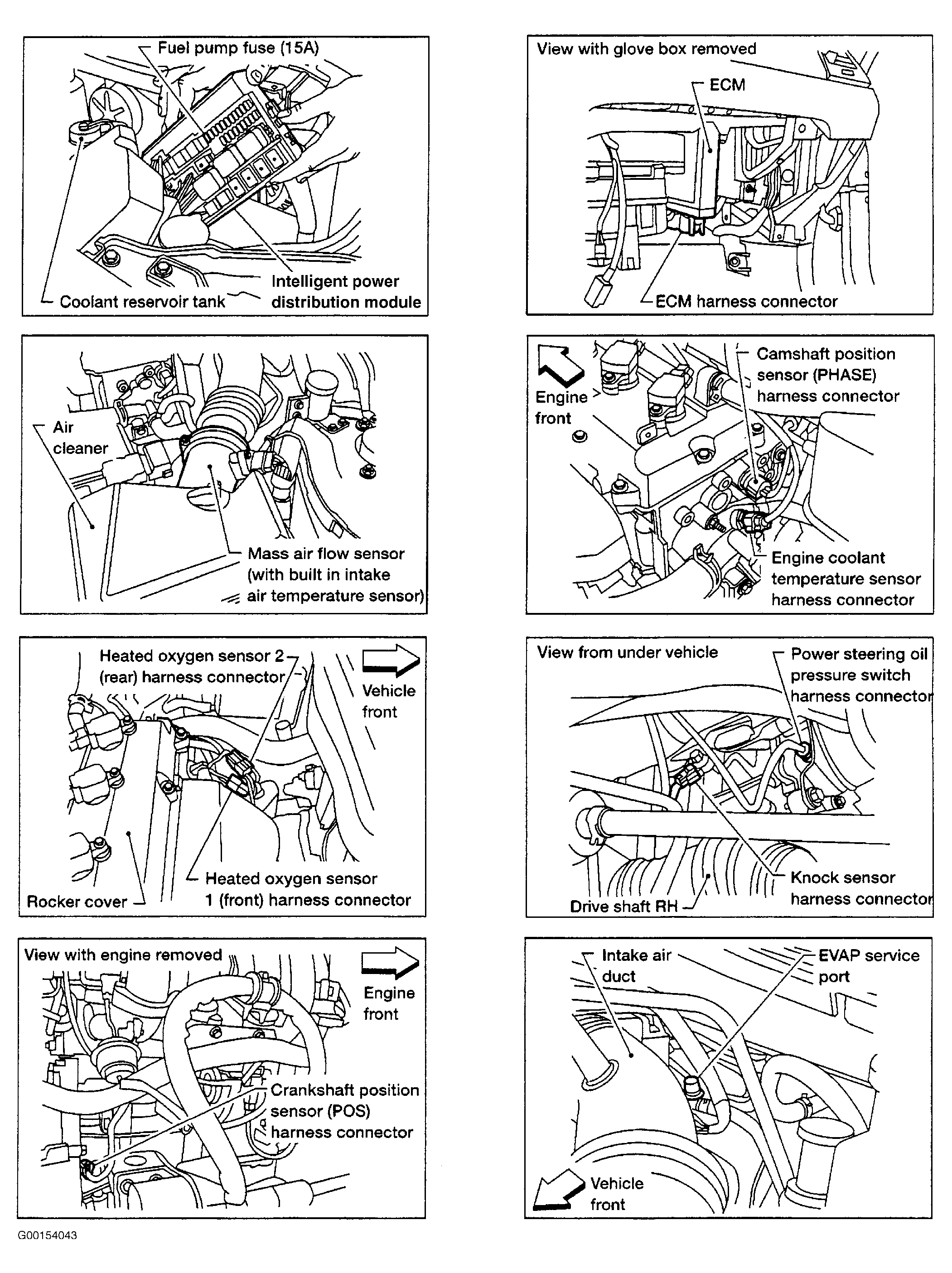

Fig 2: Identifying Engine Performance Component Locations (Altima 2.5L - 2 Of 4)

G00154043

Courtesy of NISSAN MOTOR CO., U.S.A.

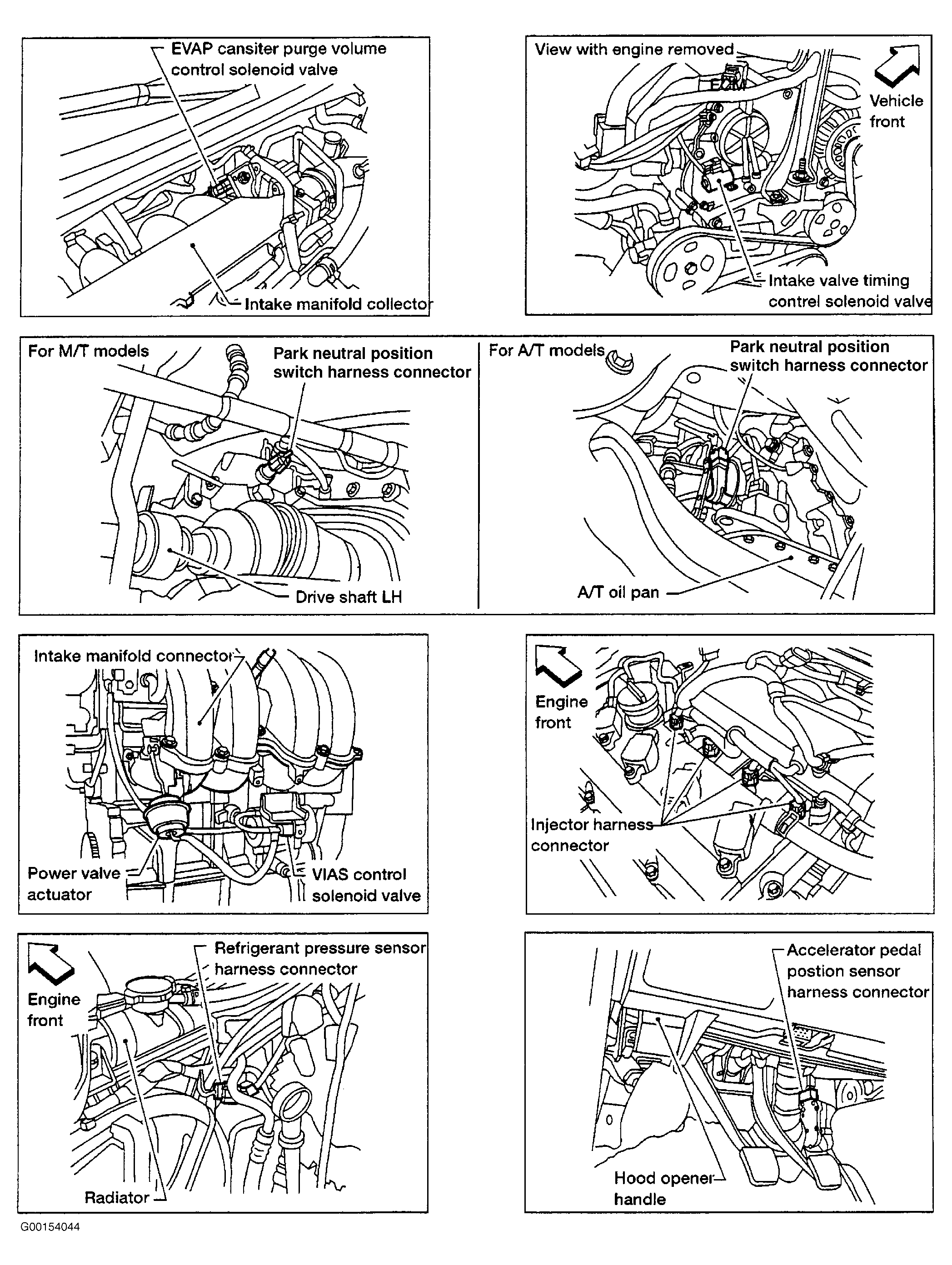

Fig 3: Identifying Engine Performance Component Locations (Altima 2.5L - 3 Of 4)

G00154044

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Performance Component Locations (Altima 2.5L - 4 Of 4)

G00154045

Courtesy of NISSAN MOTOR CO., U.S.A.

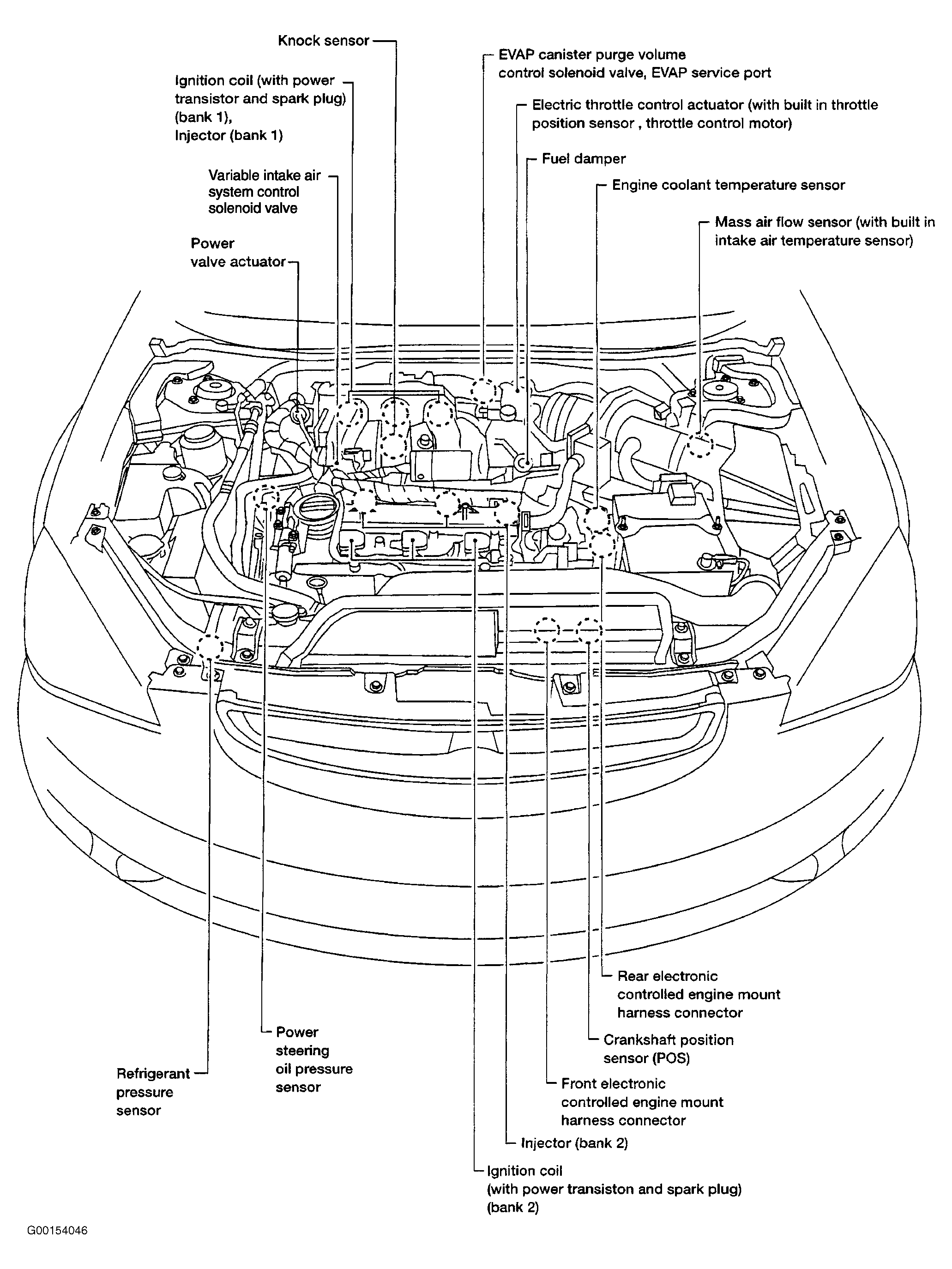

Fig 5: Identifying Engine Performance Component Locations (Altima 3.5L - 1 Of 5)

G00154046

Courtesy of NISSAN MOTOR CO., U.S.A.

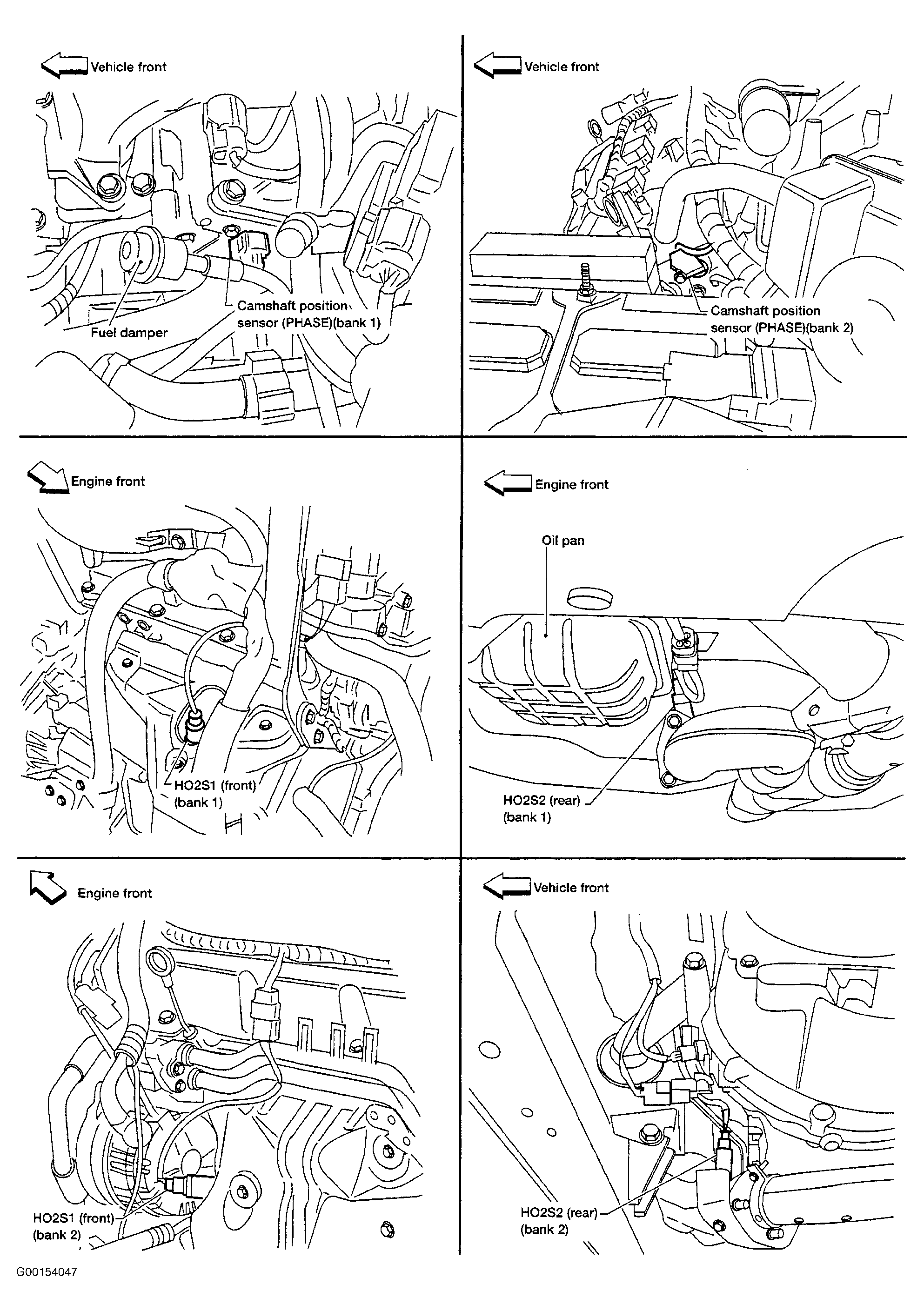

Fig 6: Identifying Engine Performance Component Locations (Altima 3.5L - 2 Of 5)

G00154047

Courtesy of NISSAN MOTOR CO., U.S.A.

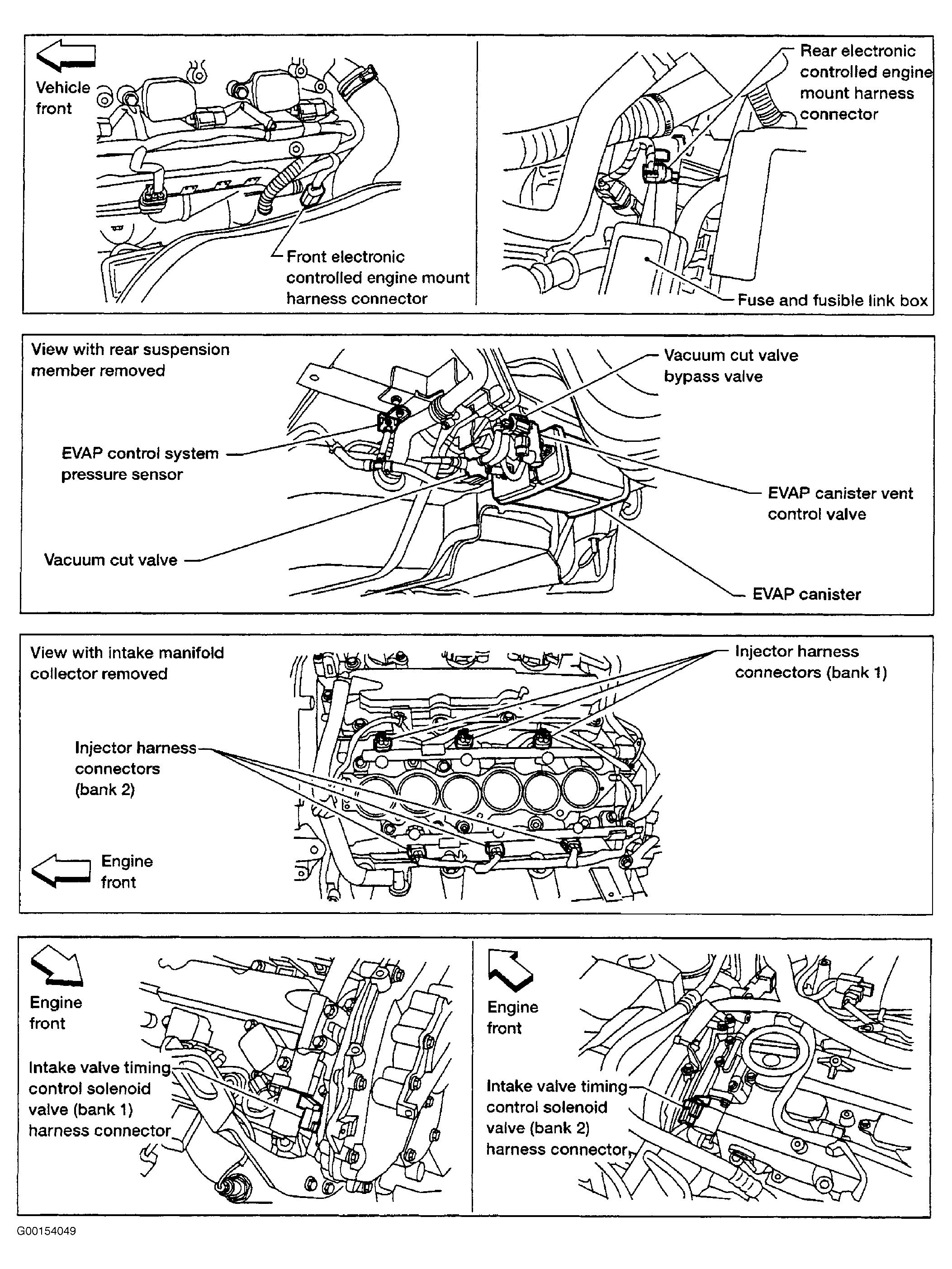

Fig 7: Identifying Engine Performance Component Locations (Altima 3.5L - 3 Of 5)

G00154049

Courtesy of NISSAN MOTOR CO., U.S.A.

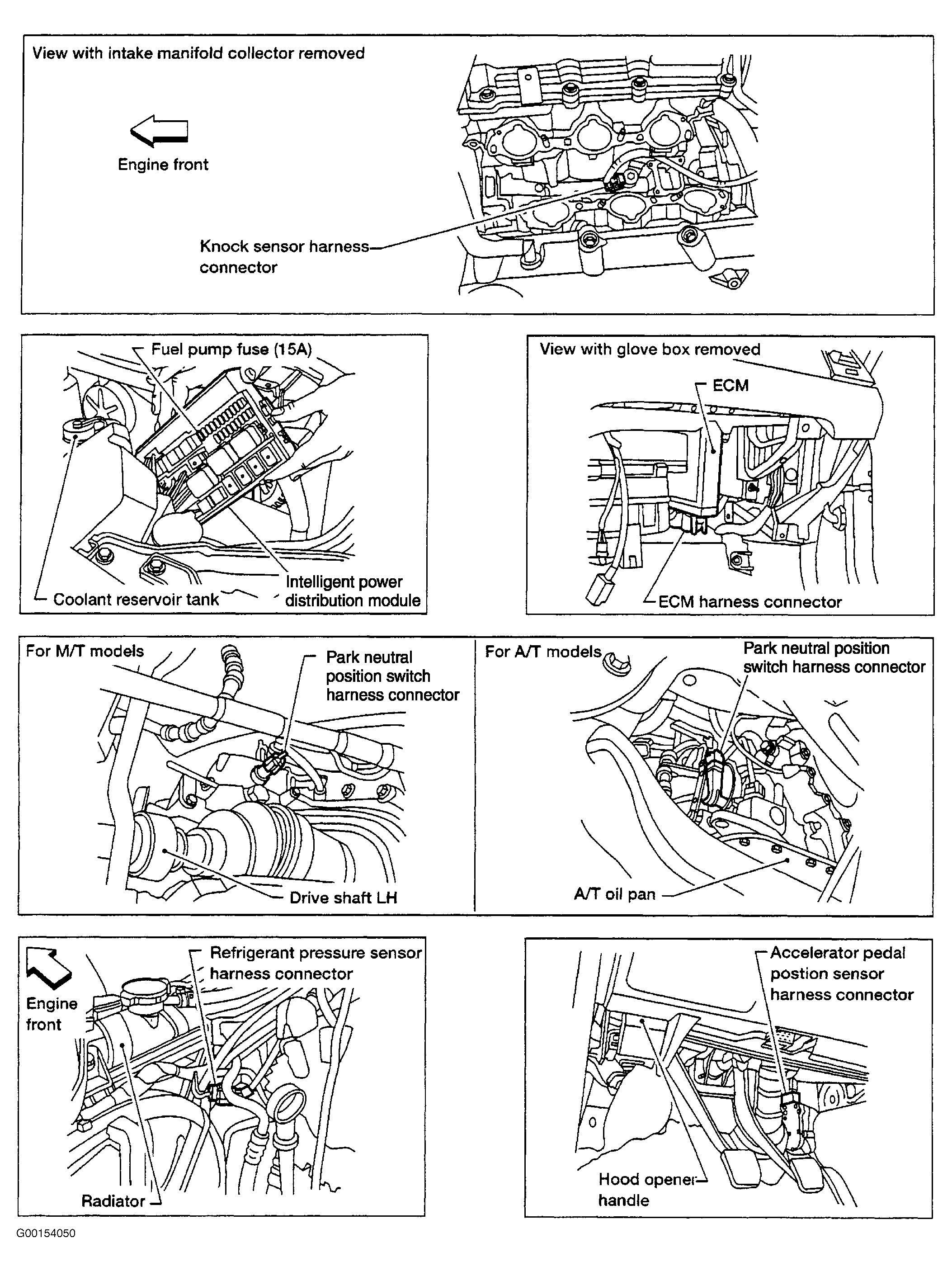

Fig 8: Identifying Engine Performance Component Locations (Altima 3.5L - 4 Of 5)

G00154050

Courtesy of NISSAN MOTOR CO., U.S.A.

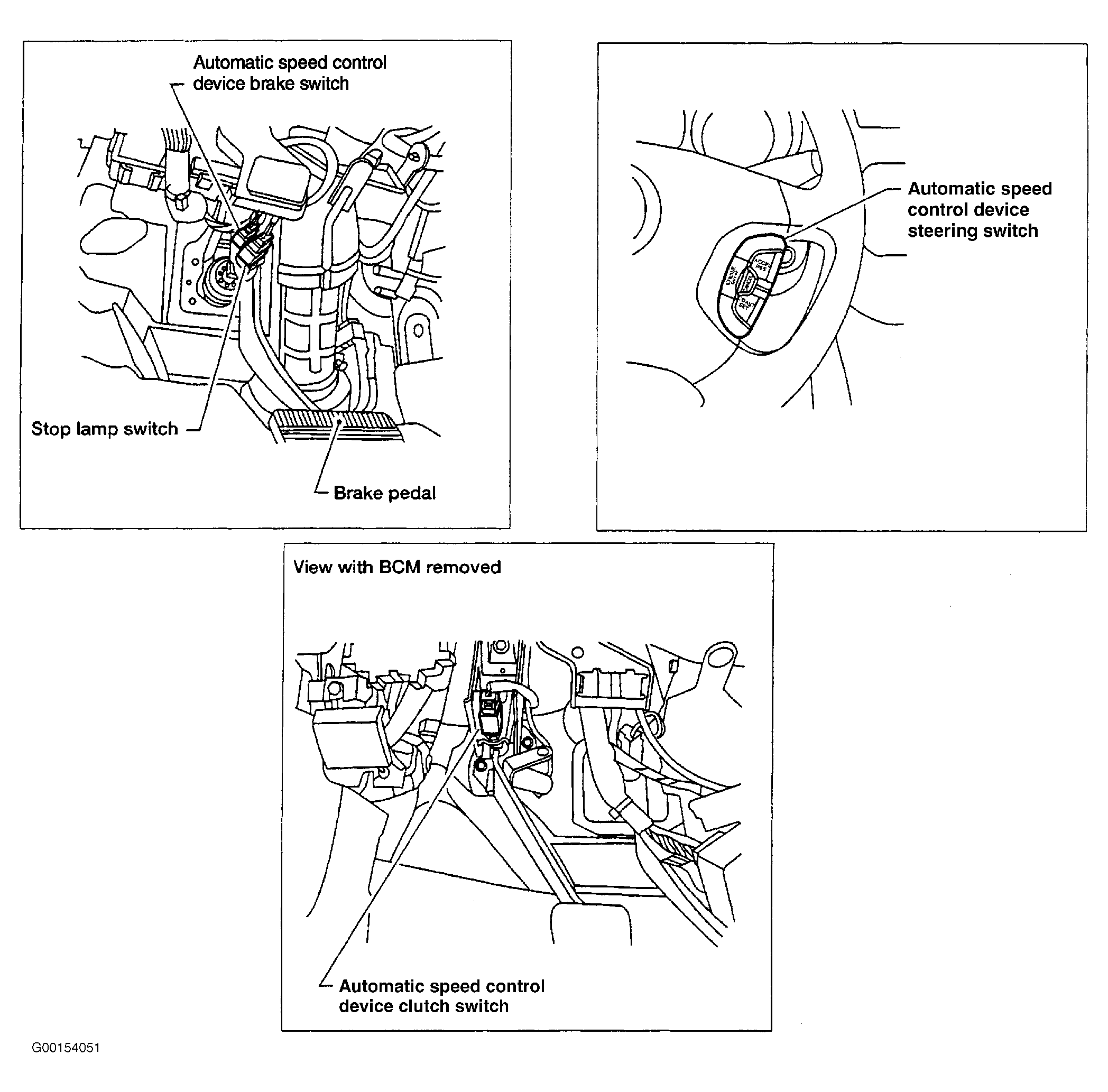

Fig 9: Identifying Engine Performance Component Locations (Altima 3.5L - 5 Of 5)

G00154051

Courtesy of NISSAN MOTOR CO., U.S.A.

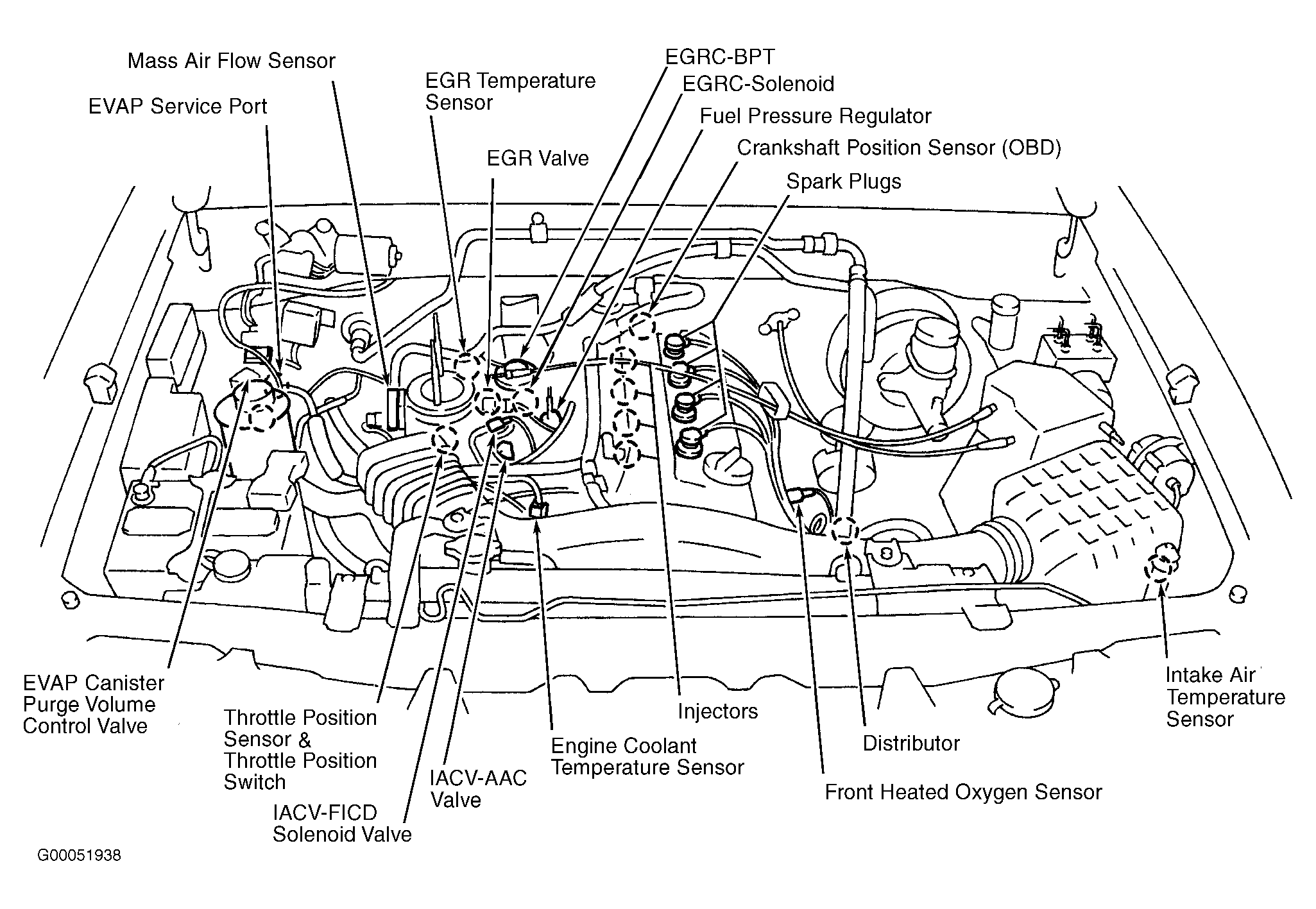

Fig 10: Identifying Engine Performance Component Locations (Frontier 2.4L & Xterra 2.4L - 1 Of 2)

G00051938

Courtesy of NISSAN MOTOR CO., U.S.A.

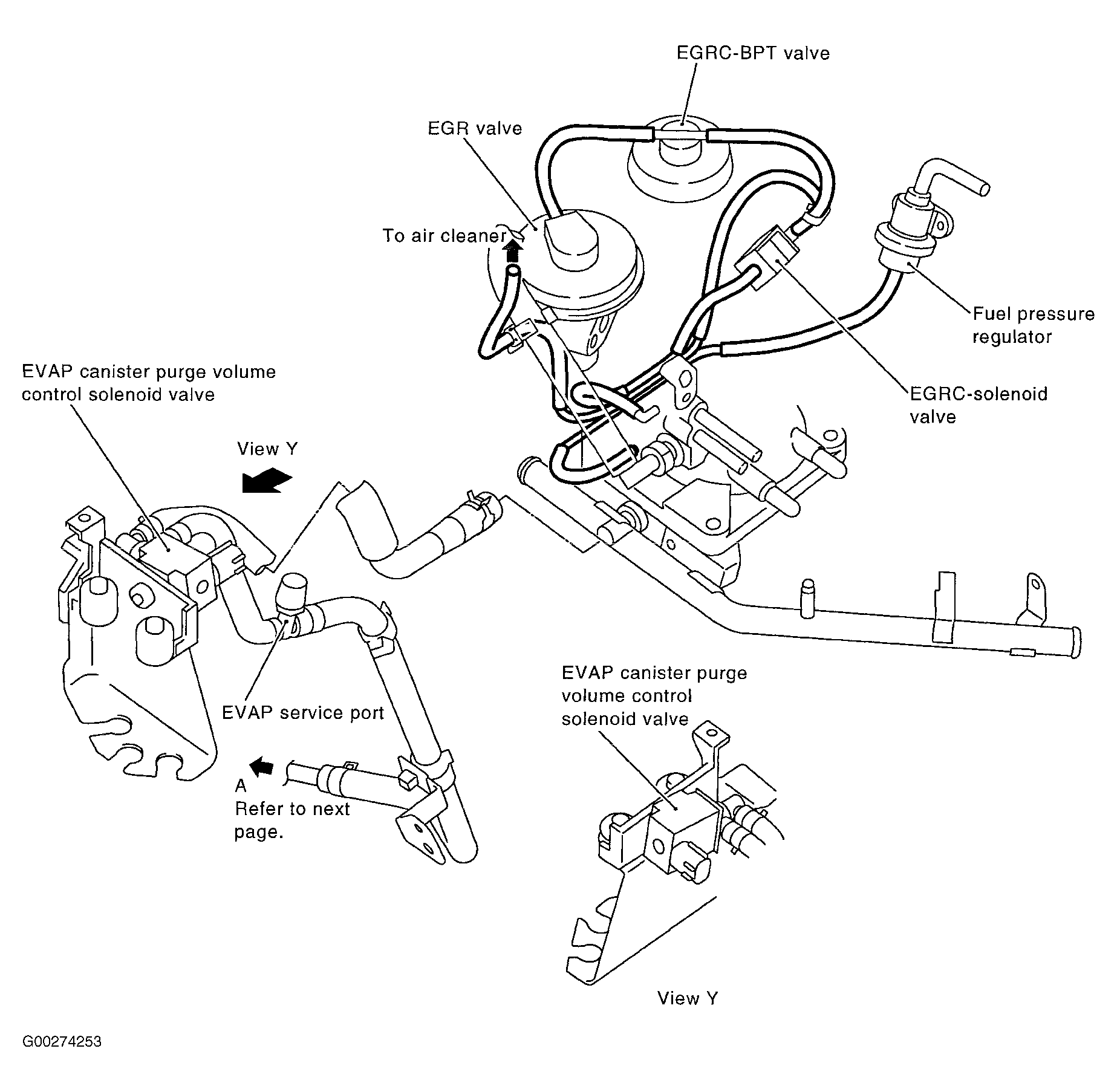

Fig 11: Identifying Engine Performance Component Locations (Frontier 2.4L & Xterra 2.4L - 2 Of 2)

G00274253

Courtesy of NISSAN MOTOR CO., U.S.A.

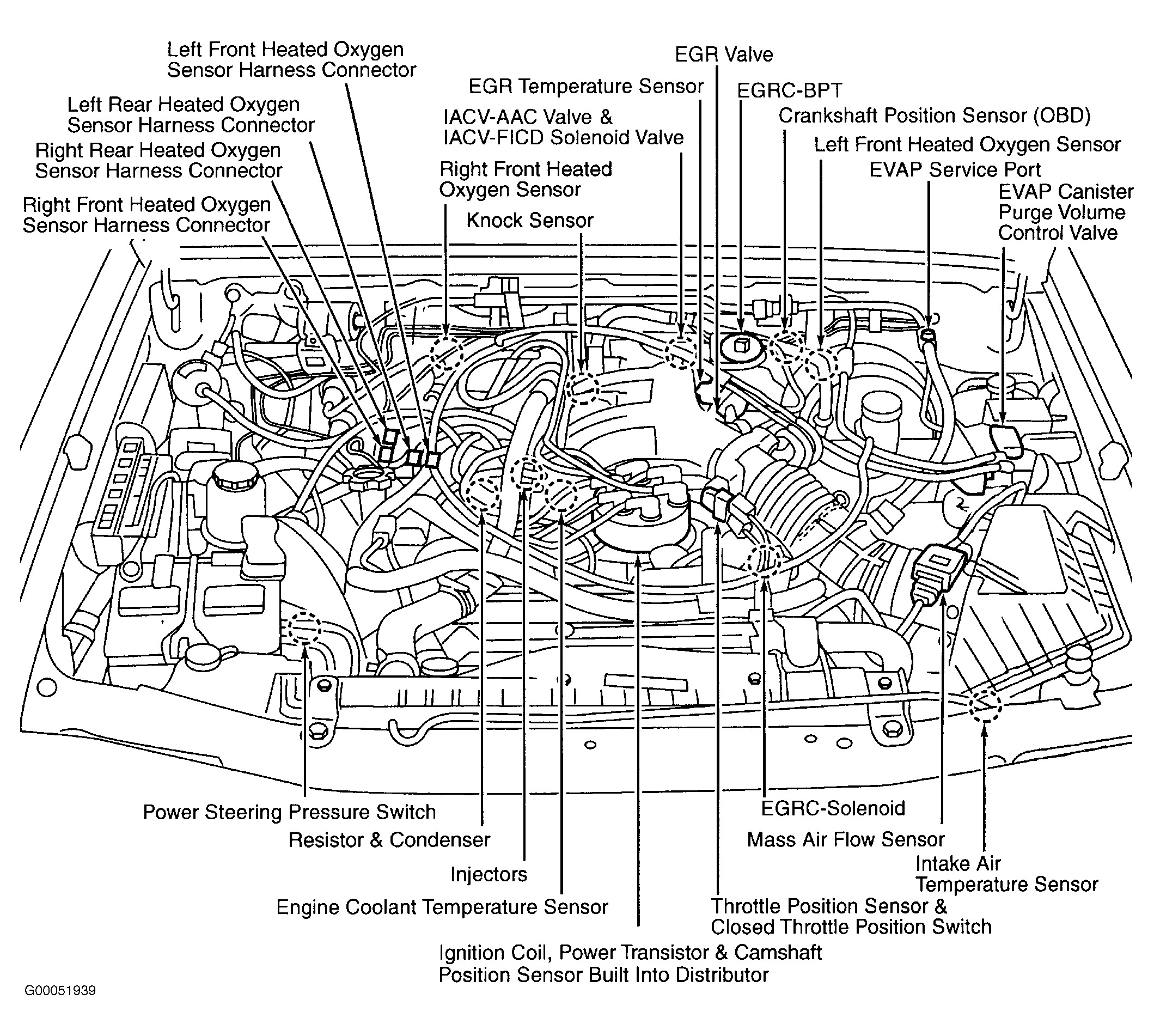

Fig 12: Identifying Engine Performance Component Locations (Frontier 3.3L & Xterra 3.3L - 1 Of 2)

G00051939

Courtesy of NISSAN MOTOR CO., U.S.A.

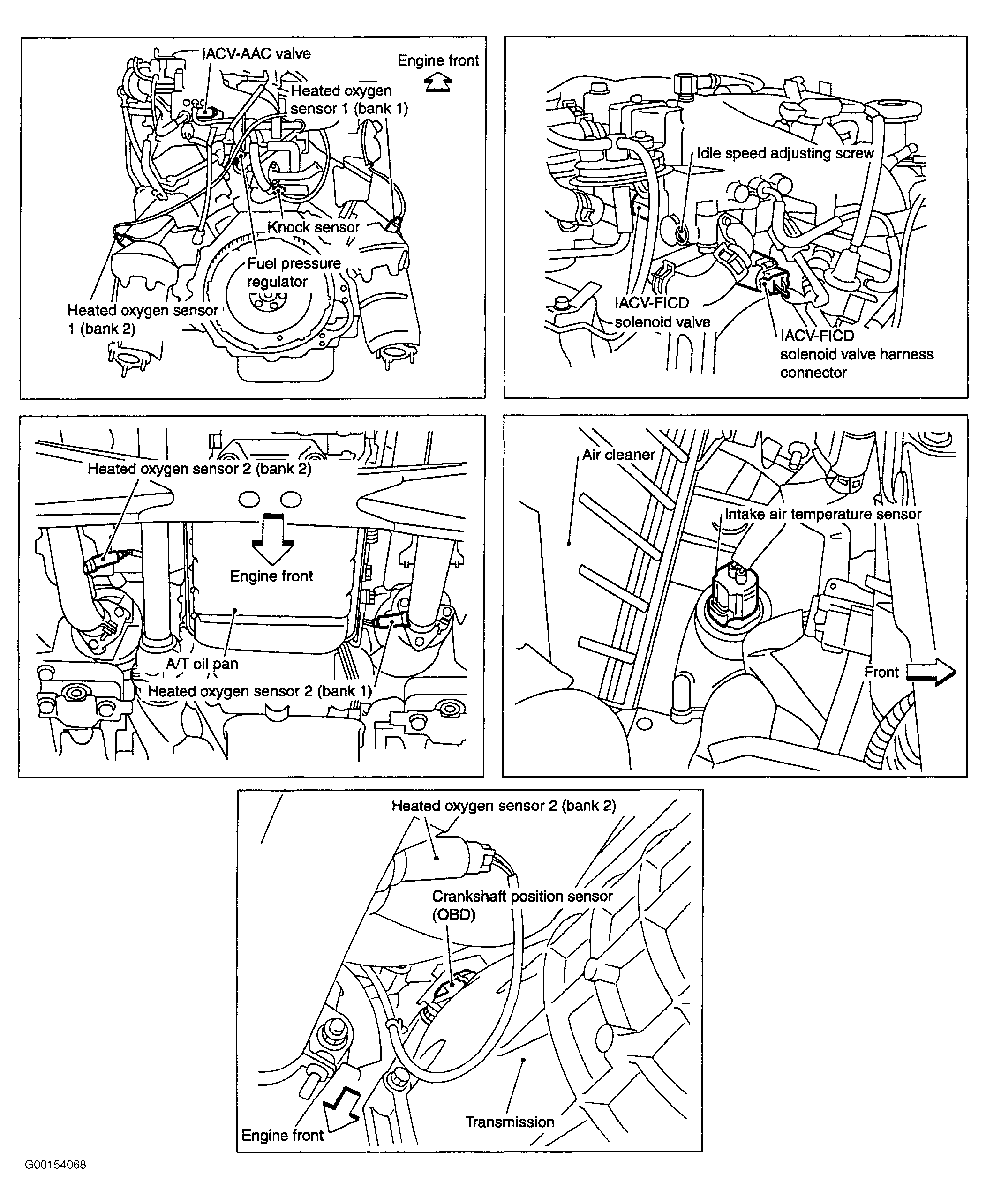

Fig 13: Identifying Engine Performance Component Locations (Frontier 3.3L & Xterra 3.3L - 2 Of 2)

G00154068

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Performance Component Locations (Maxima - 1 Of 4)

G00154052

Courtesy of NISSAN MOTOR CO., U.S.A.

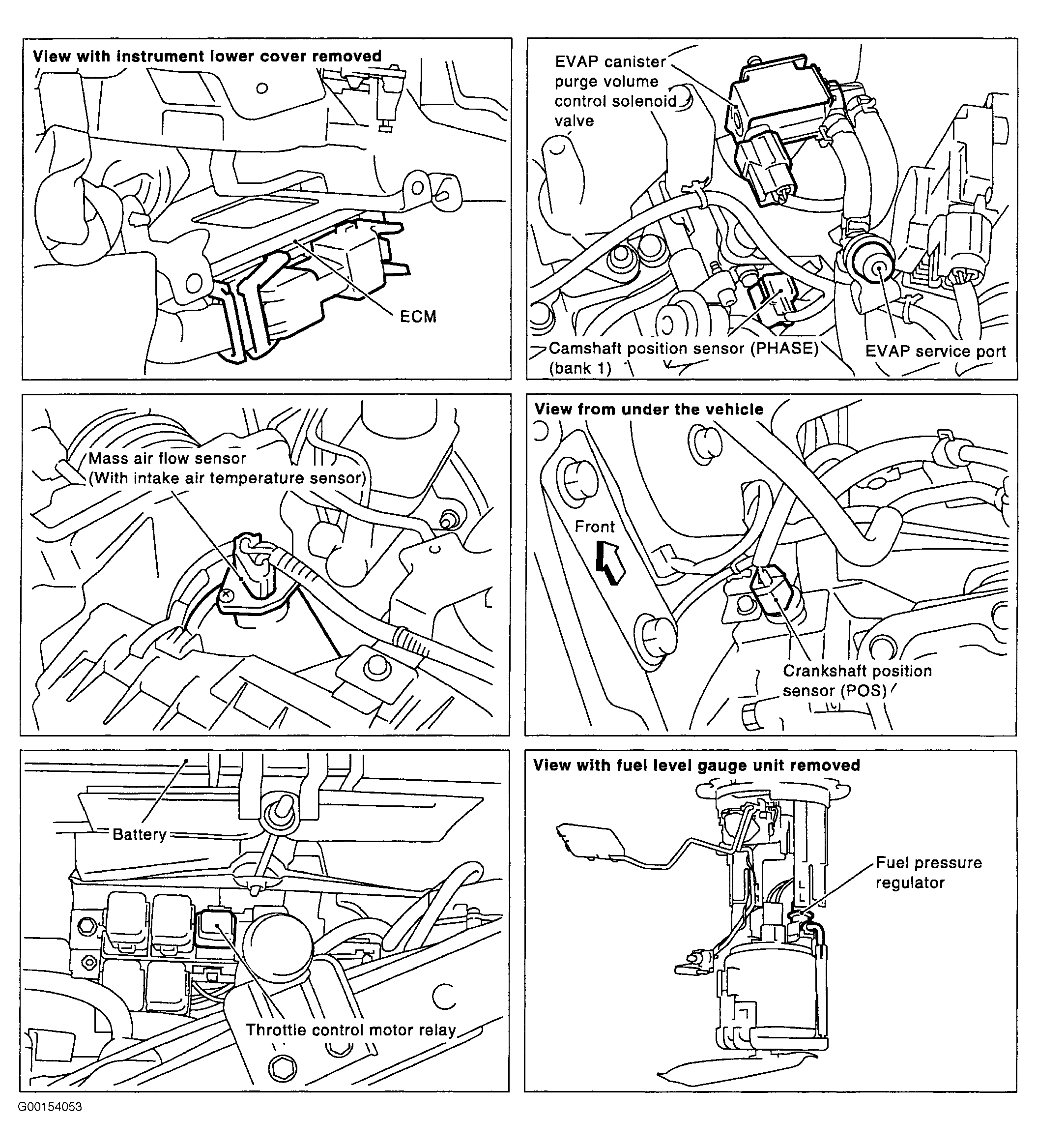

Fig 15: Identifying Engine Performance Component Locations (Maxima - 2 Of 4)

G00154053

Courtesy of NISSAN MOTOR CO., U.S.A.

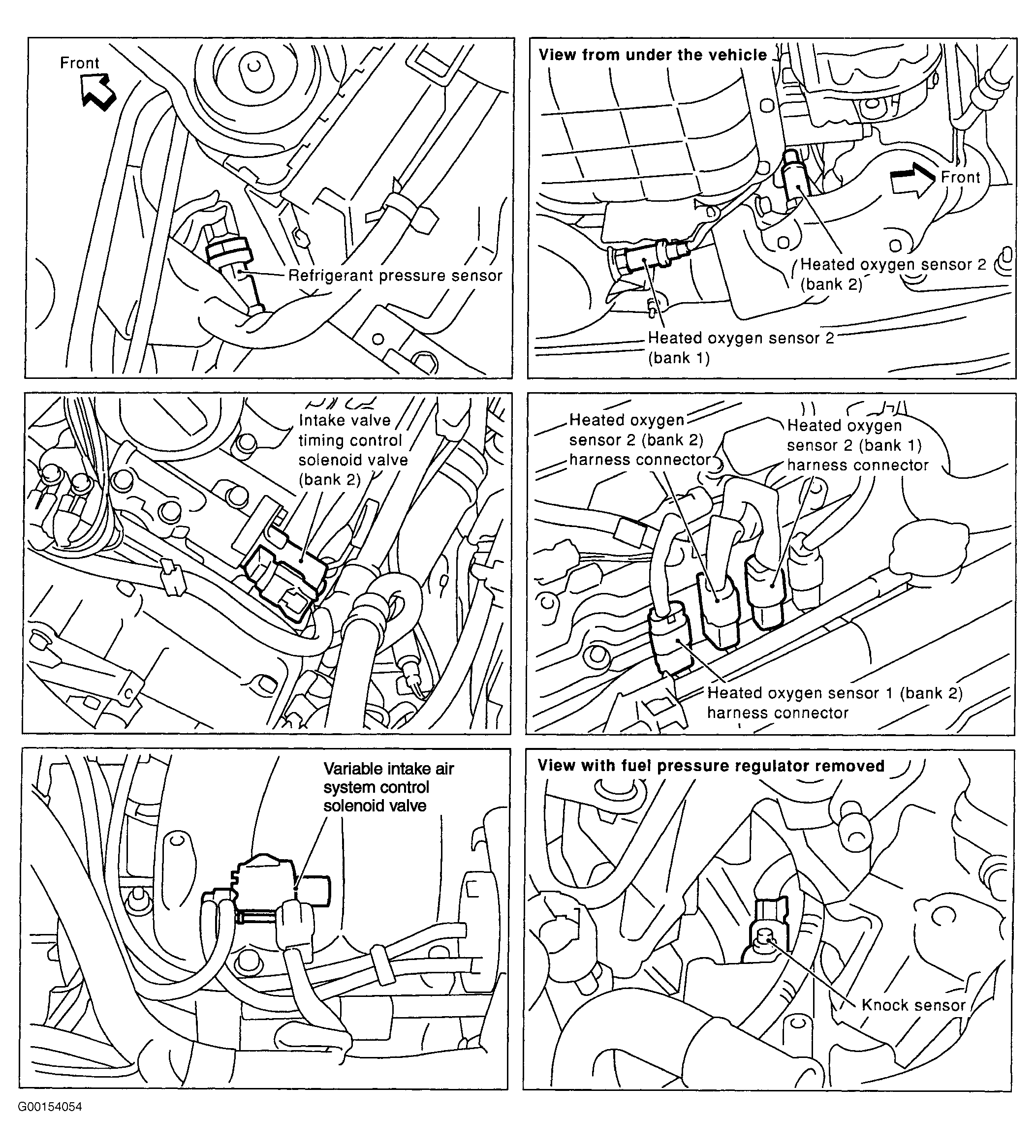

Fig 16: Identifying Engine Performance Component Locations (Maxima - 3 Of 4)

G00154054

Courtesy of NISSAN MOTOR CO., U.S.A.

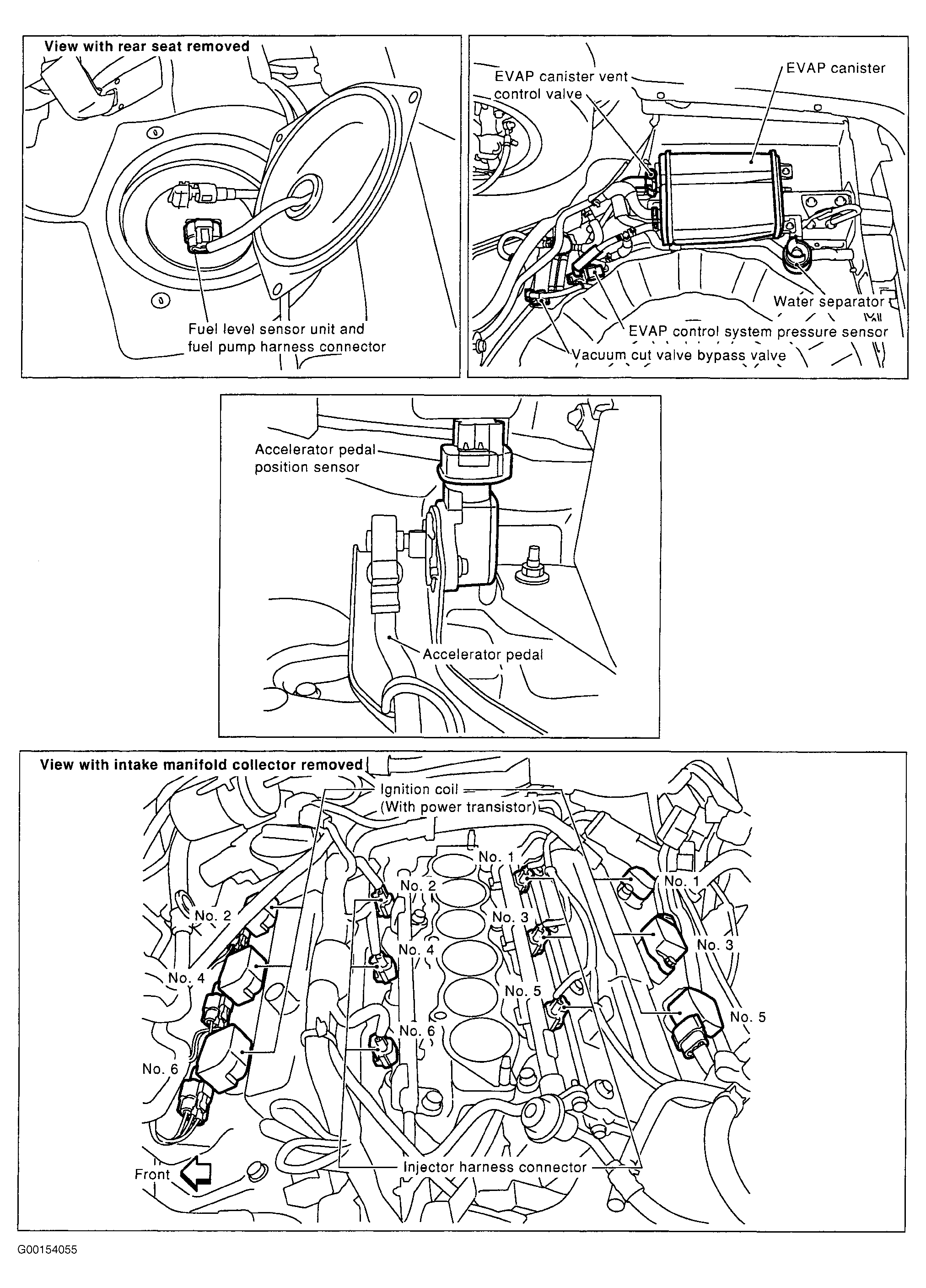

Fig 17: Identifying Engine Performance Component Locations (Maxima - 4 Of 4)

G00154055

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Performance Component Locations (Murano - 1 Of 6)

G00266957

Courtesy of NISSAN MOTOR CO., U.S.A.

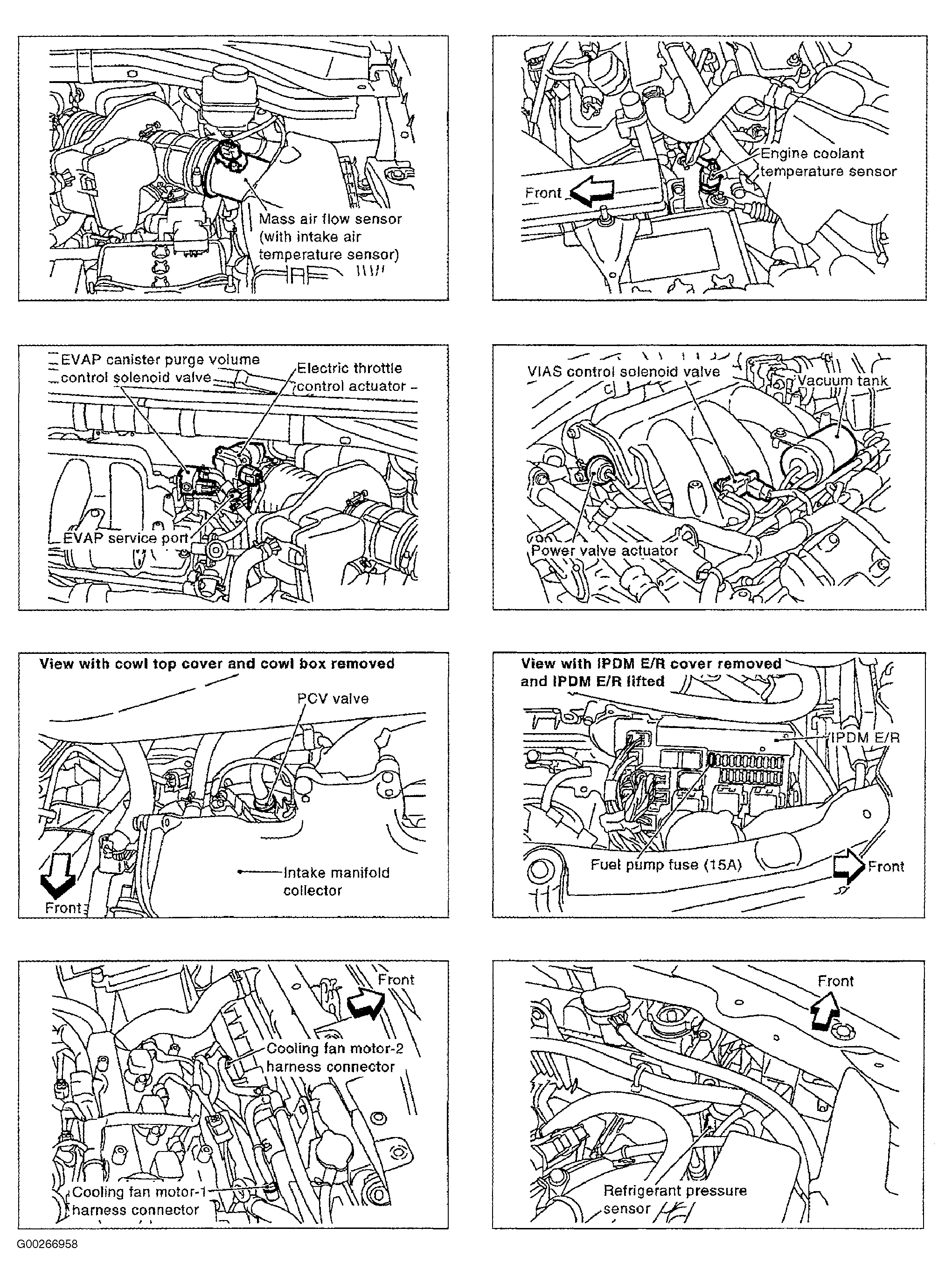

Fig 19: Identifying Engine Performance Component Locations (Murano - 2 Of 6)

G00266958

Courtesy of NISSAN MOTOR CO., U.S.A.

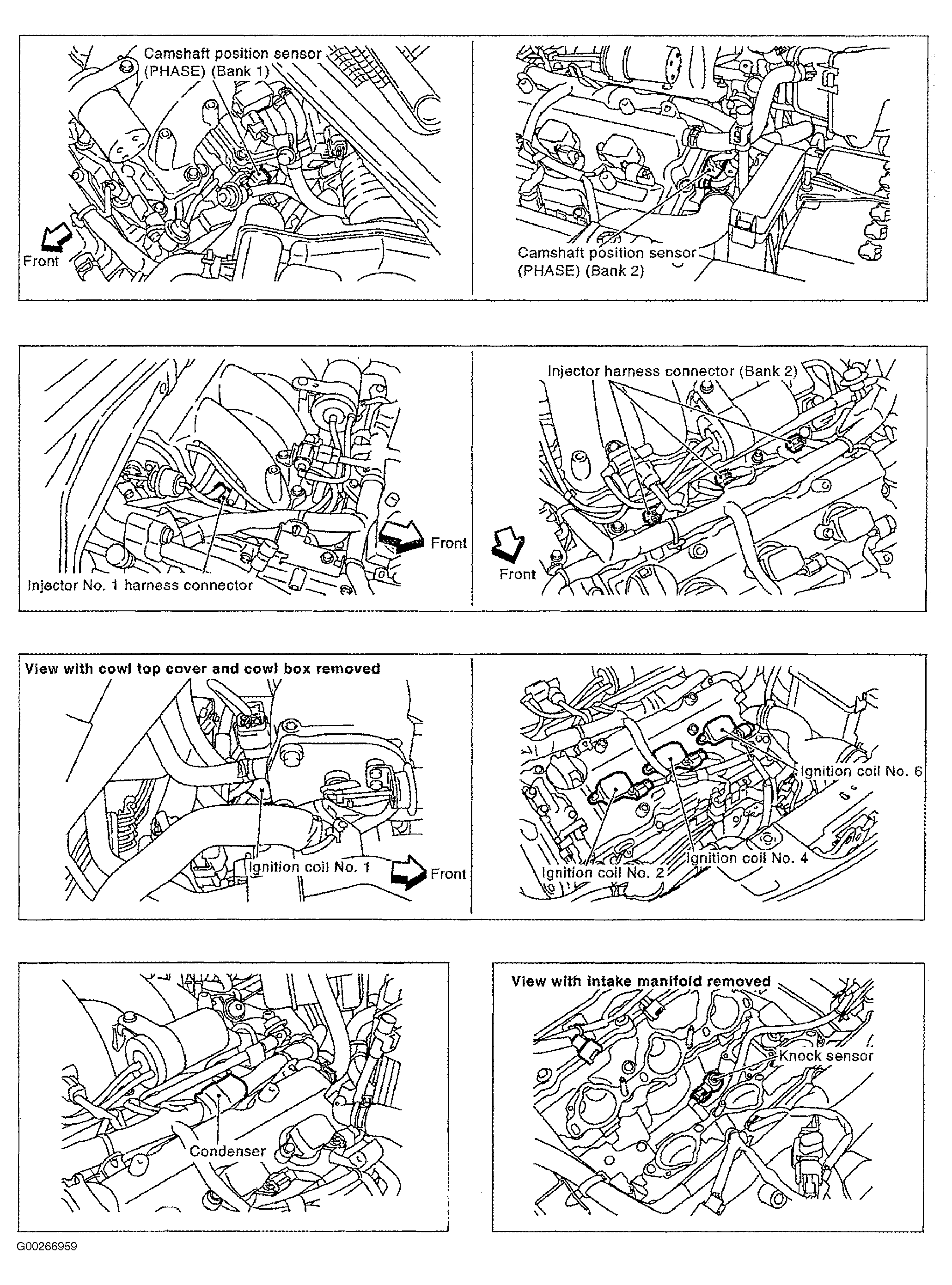

Fig 20: Identifying Engine Performance Component Locations (Murano - 3 Of 6)

G00266959

Courtesy of NISSAN MOTOR CO., U.S.A.

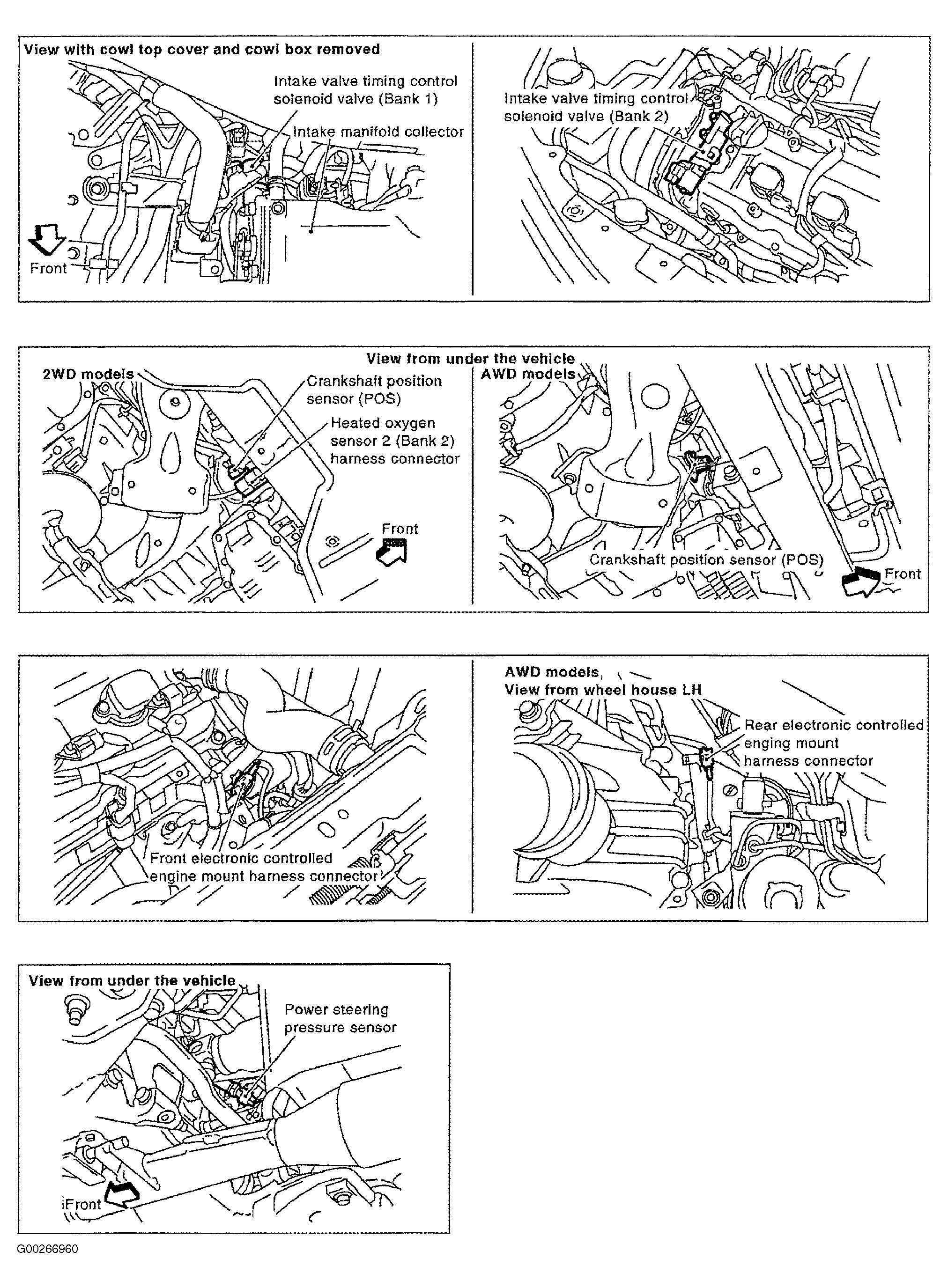

Fig 21: Identifying Engine Performance Component Locations (Murano - 4 Of 6)

G00266960

Courtesy of NISSAN MOTOR CO., U.S.A.

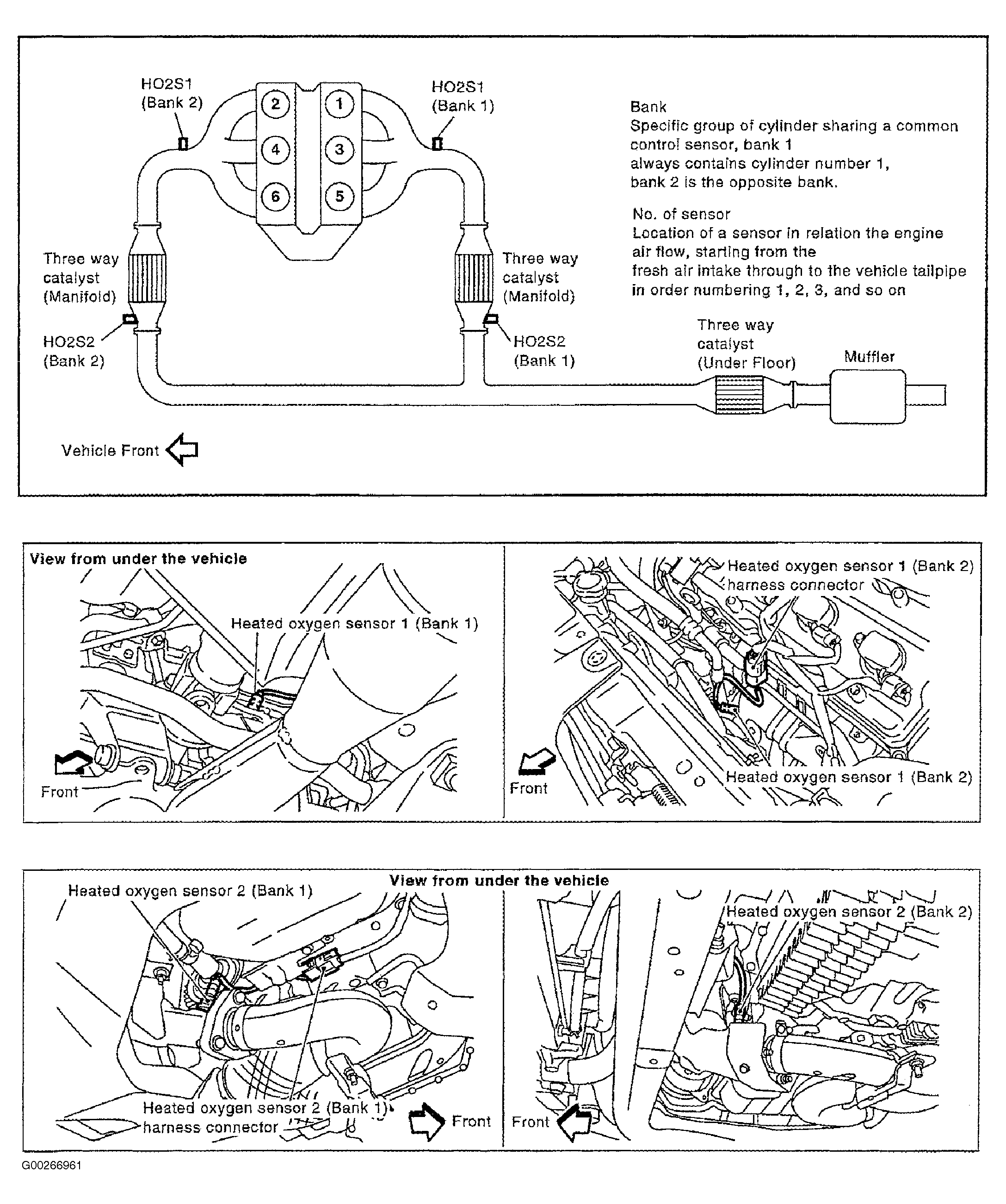

Fig 22: Identifying Engine Performance Component Locations (Murano - 5 Of 6)

G00266961

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Identifying Engine Performance Component Locations (Murano - 6 Of 6)

G00266962

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 24: Identifying Engine Performance Component Locations (Pathfinder - 1 Of 5)

G00051953

Courtesy of NISSAN MOTOR CO., U.S.A.

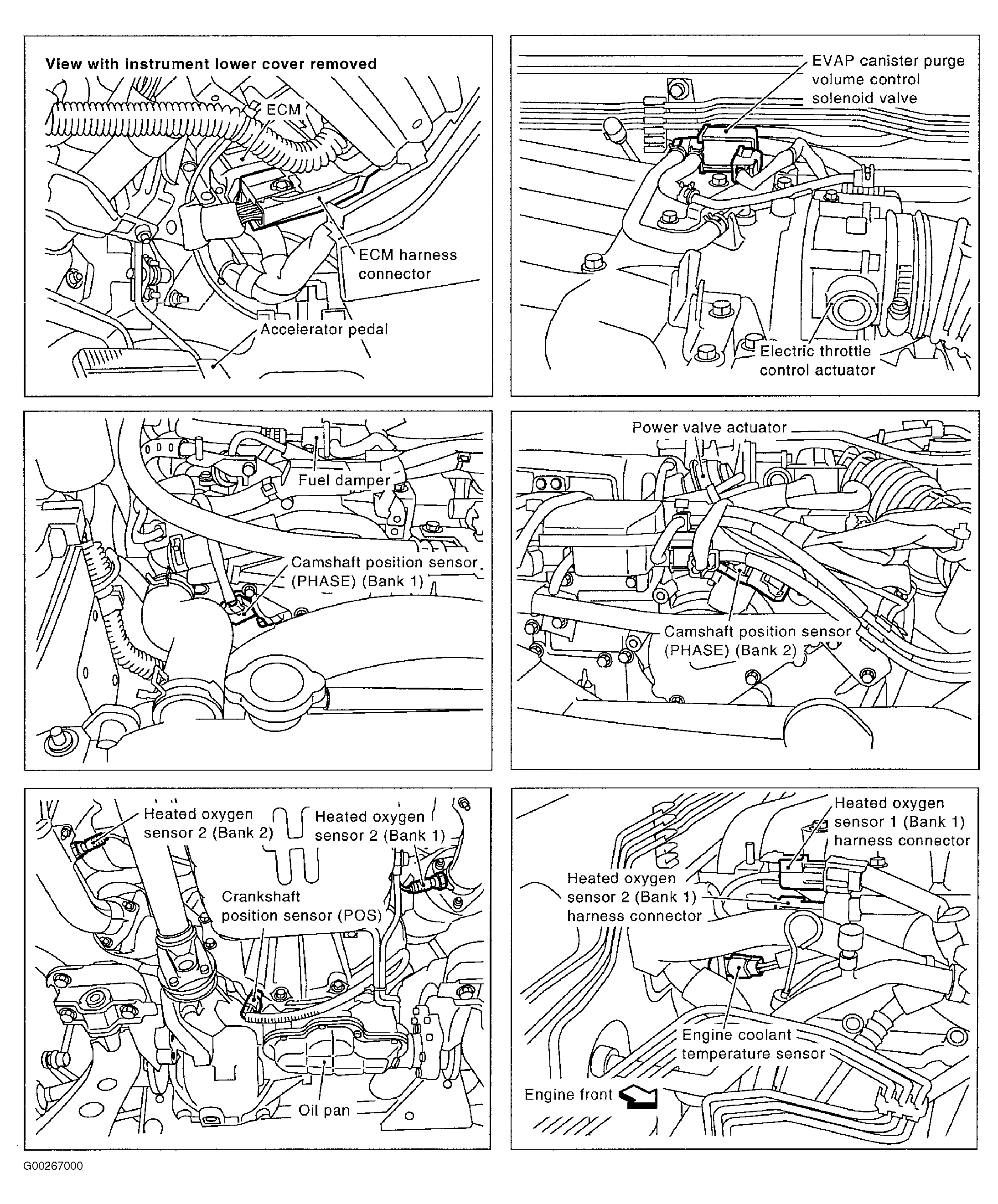

Fig 25: Identifying Engine Performance Component Locations (Pathfinder - 2 Of 5)

G00267000

Courtesy of NISSAN MOTOR CO., U.S.A.

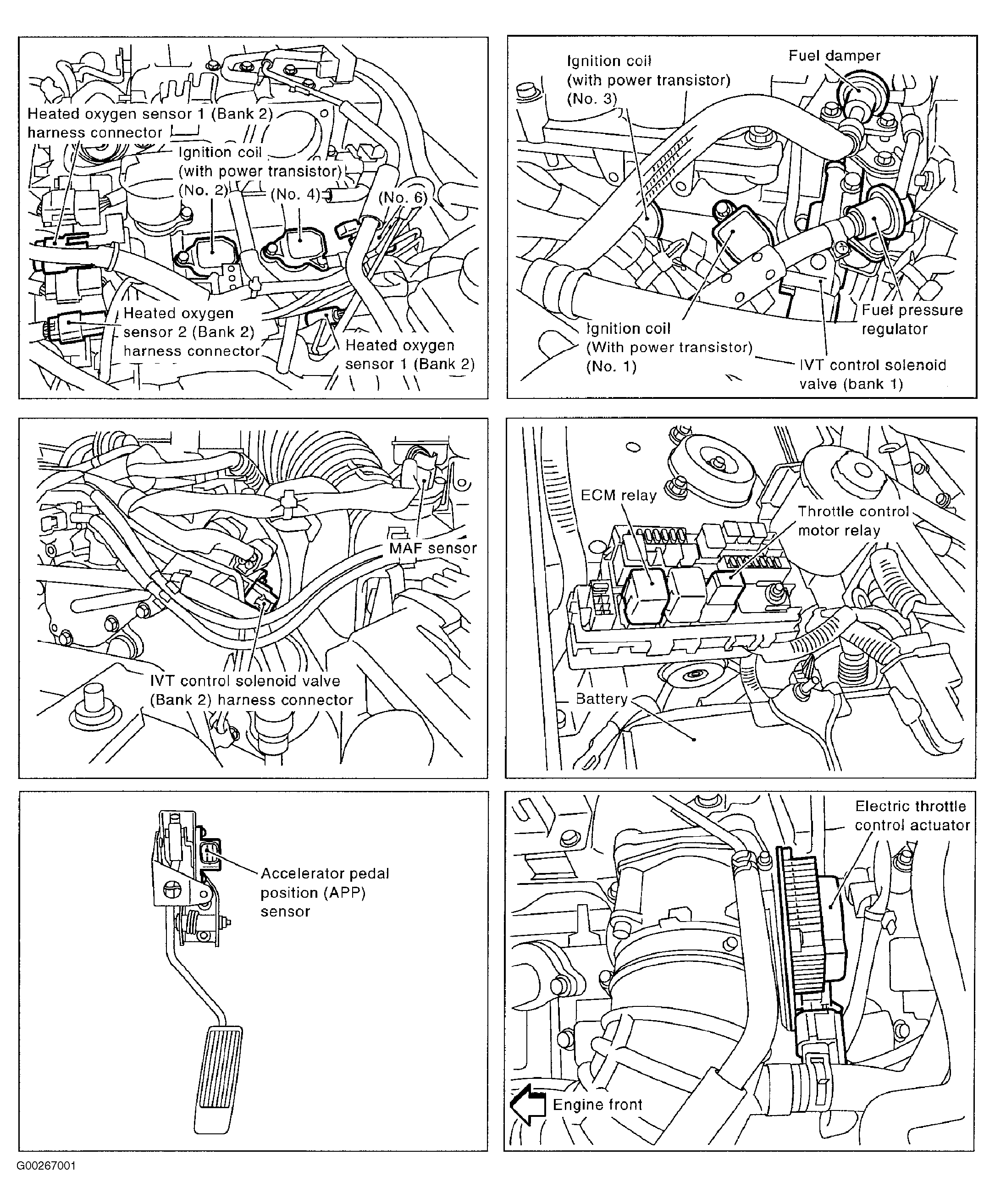

Fig 26: Identifying Engine Performance Component Locations (Pathfinder - 3 Of 5)

G00267001

Courtesy of NISSAN MOTOR CO., U.S.A.

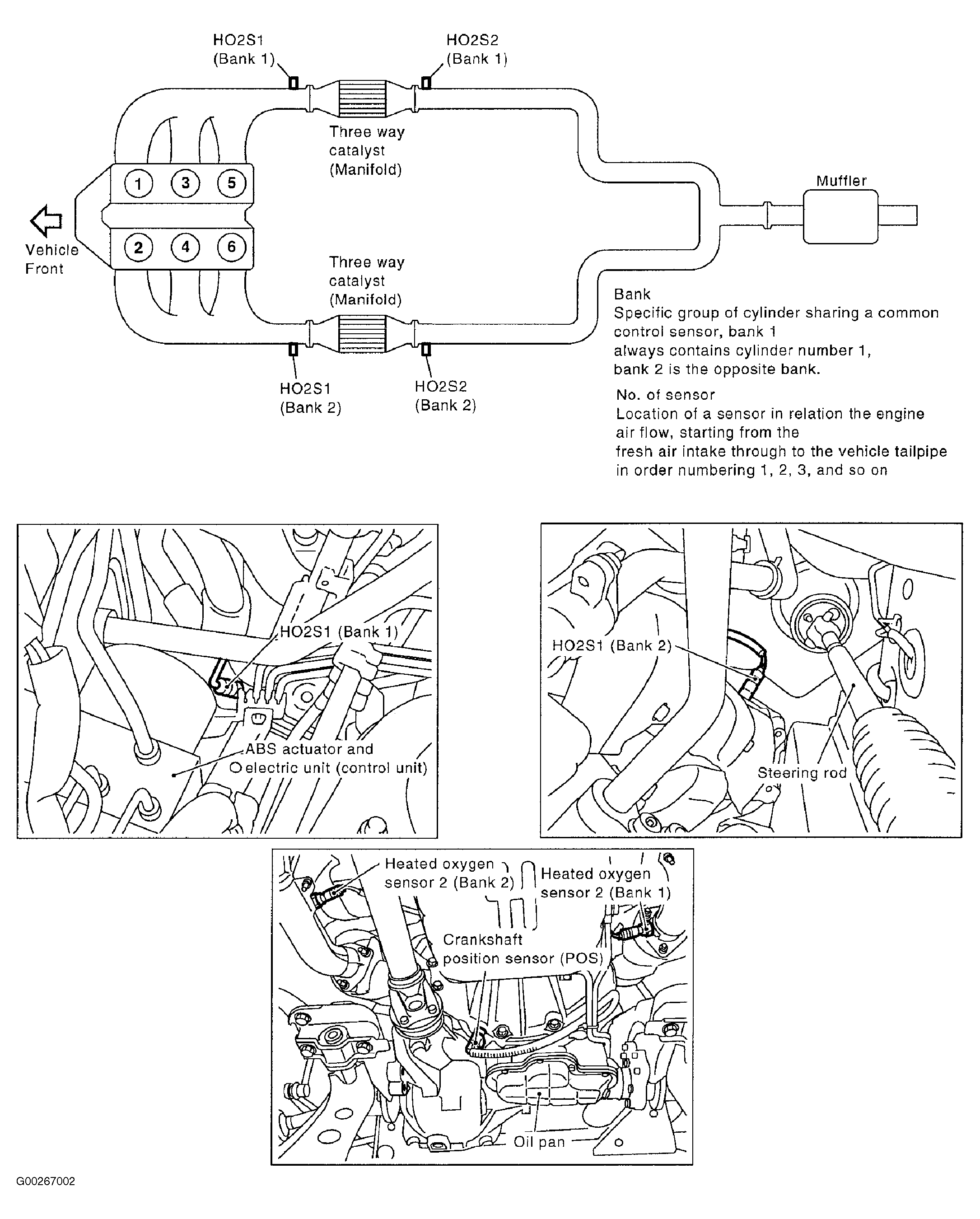

Fig 27: Identifying Engine Performance Component Locations (Pathfinder - 4 Of 5)

G00267002

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 28: Identifying Engine Performance Component Locations (Pathfinder - 5 Of 5)

G00154058

Courtesy of NISSAN MOTOR CO., U.S.A.

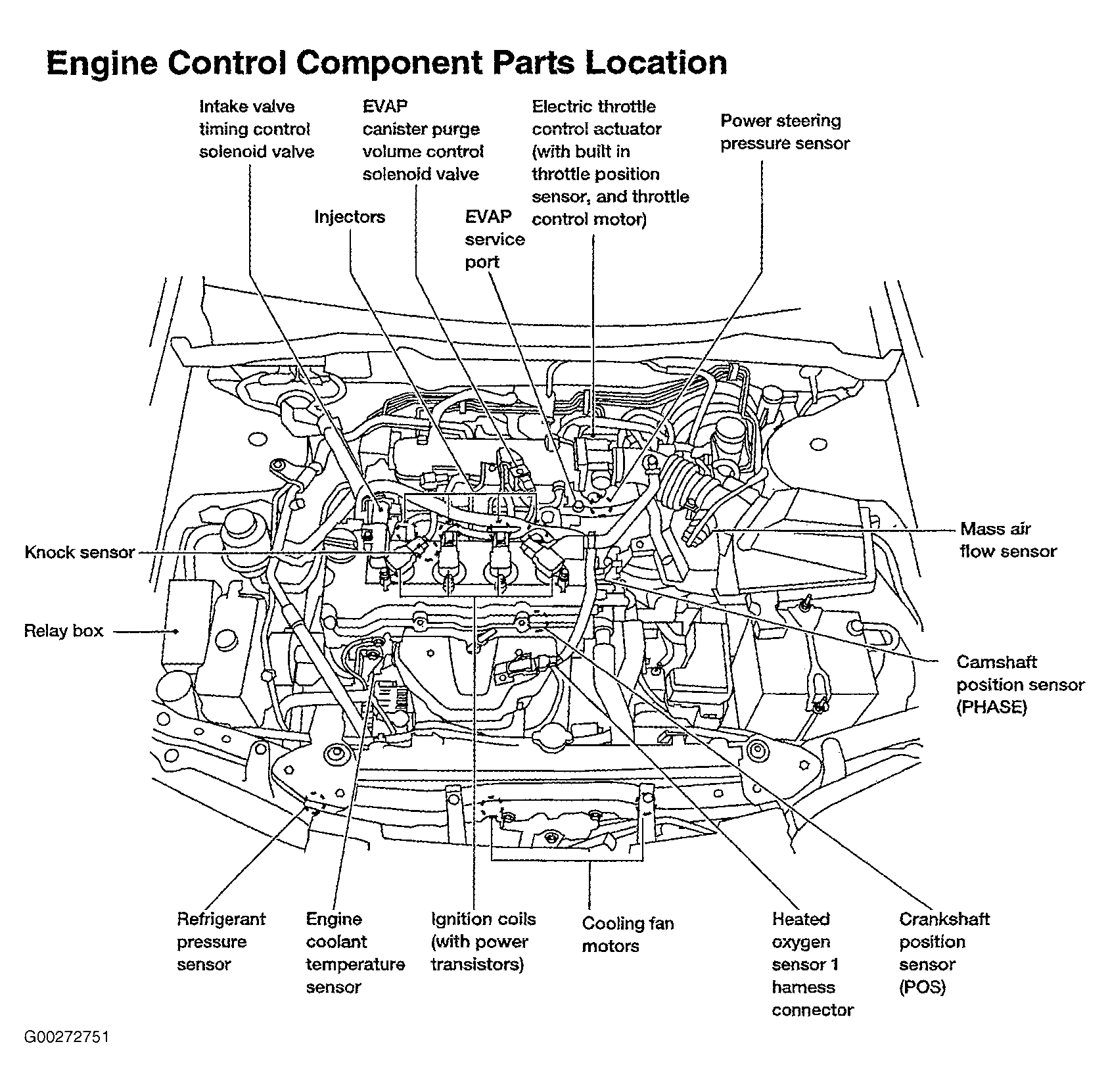

Fig 29: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 1 Of 6)

G00272751

Courtesy of NISSAN MOTOR CO., U.S.A.

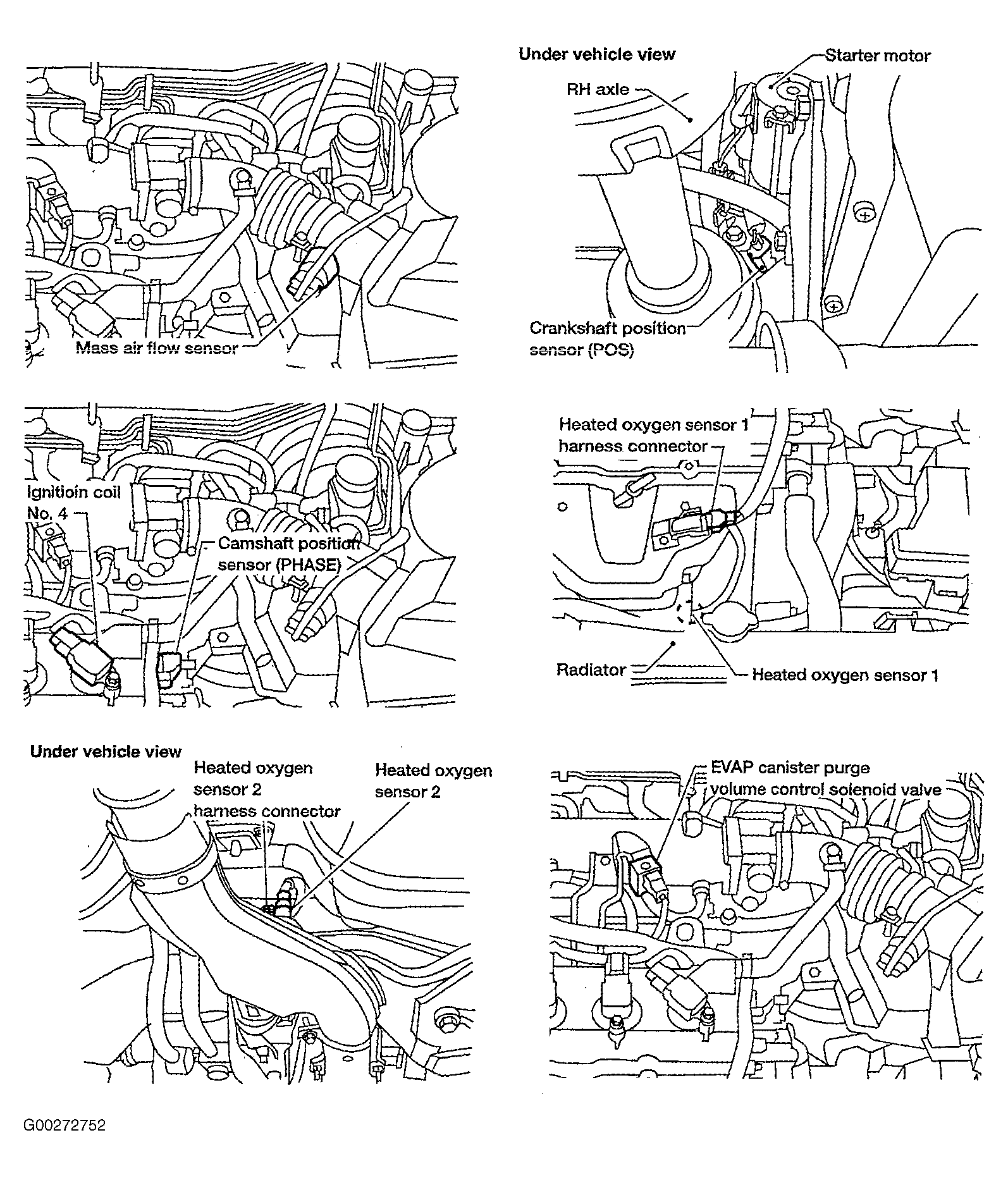

Fig 30: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 2 Of 6)

G00272752

Courtesy of NISSAN MOTOR CO., U.S.A.

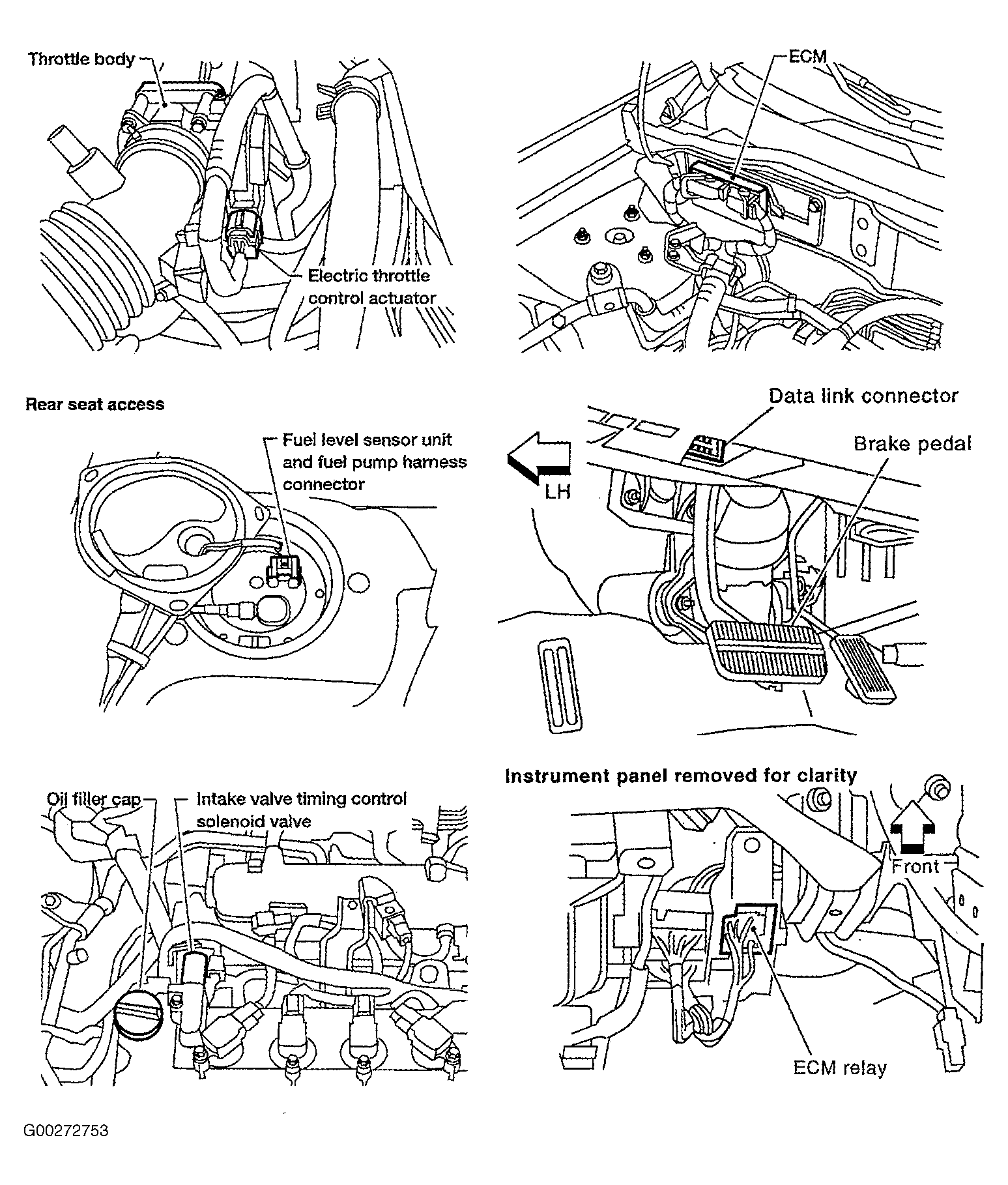

Fig 31: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 3 Of 6)

G00272753

Courtesy of NISSAN MOTOR CO., U.S.A.

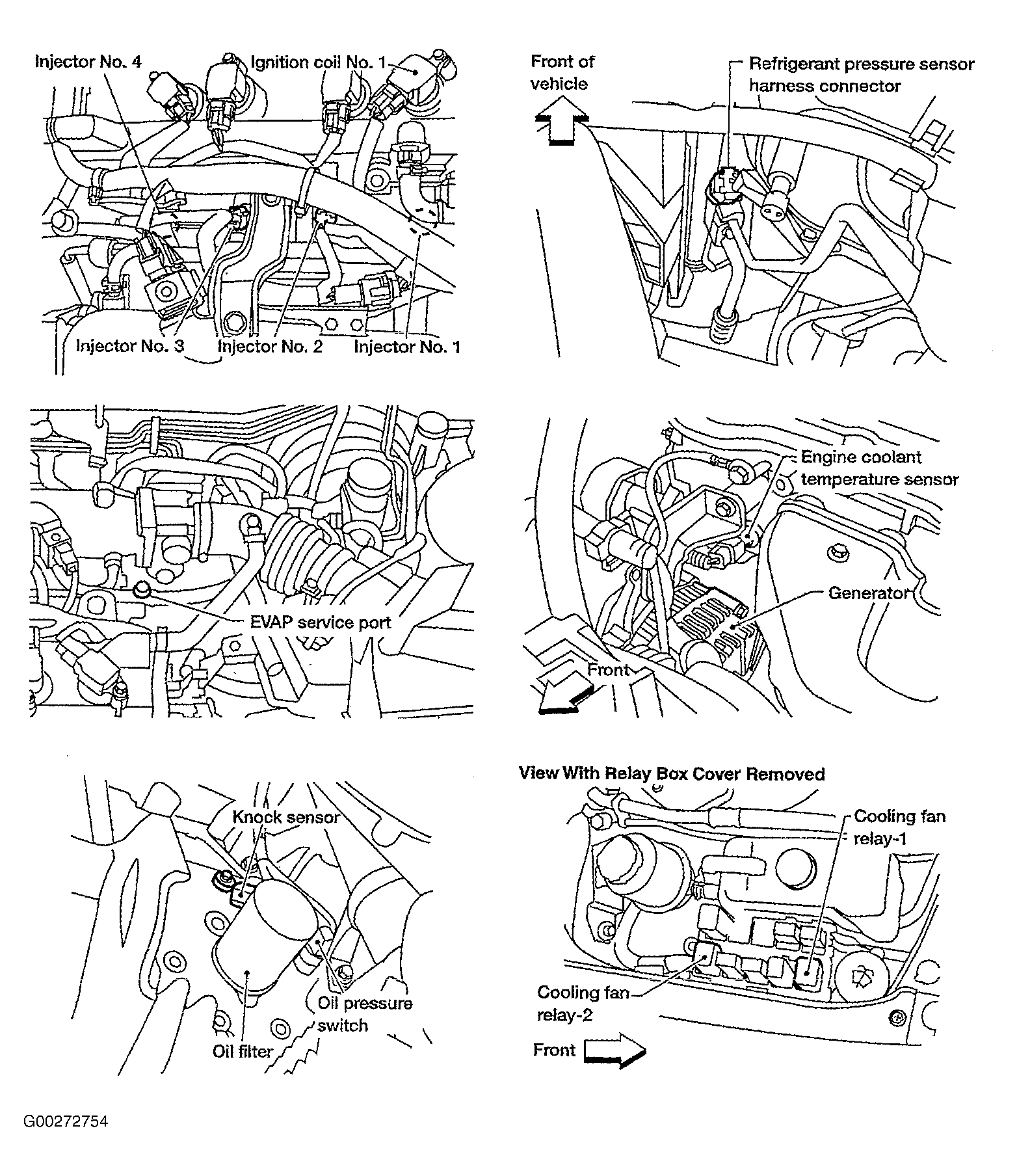

Fig 32: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 4 Of 6)

G00272754

Courtesy of NISSAN MOTOR CO., U.S.A.

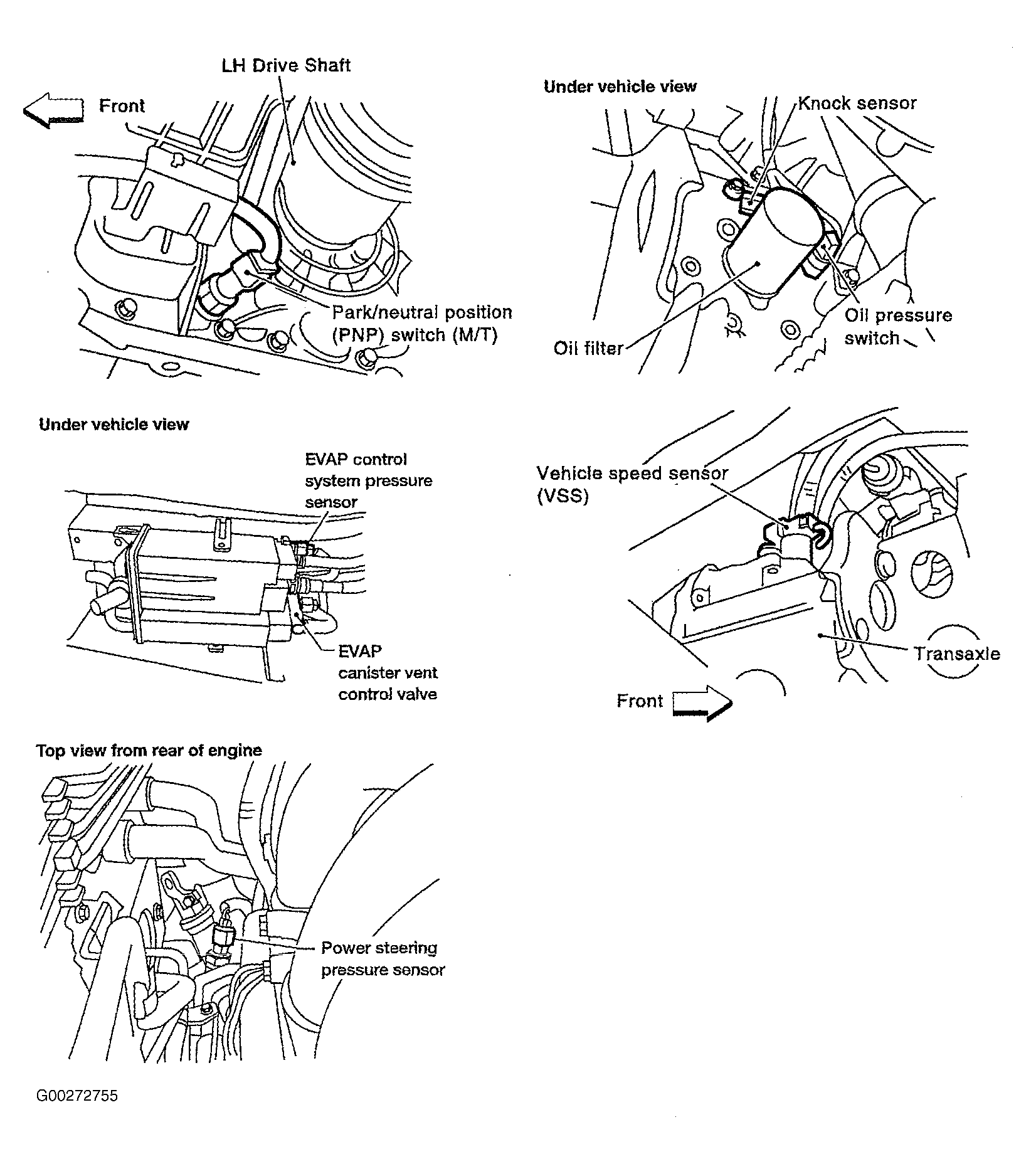

Fig 33: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 5 Of 6)

G00272755

Courtesy of NISSAN MOTOR CO., U.S.A.

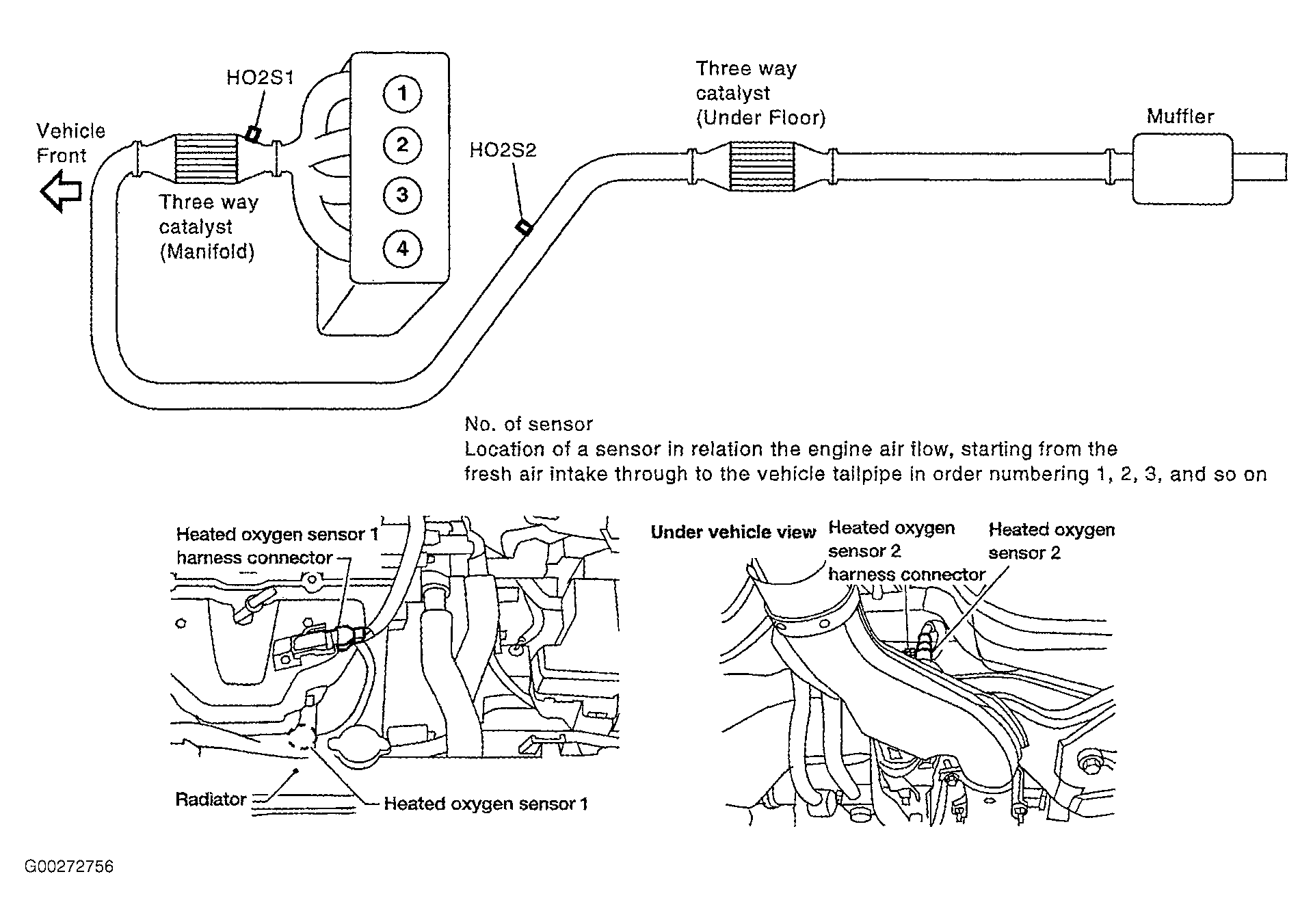

Fig 34: Identifying Engine Performance Component Locations (Sentra 1.8L ULEV - 6 Of 6)

G00272756

Courtesy of NISSAN MOTOR CO., U.S.A.

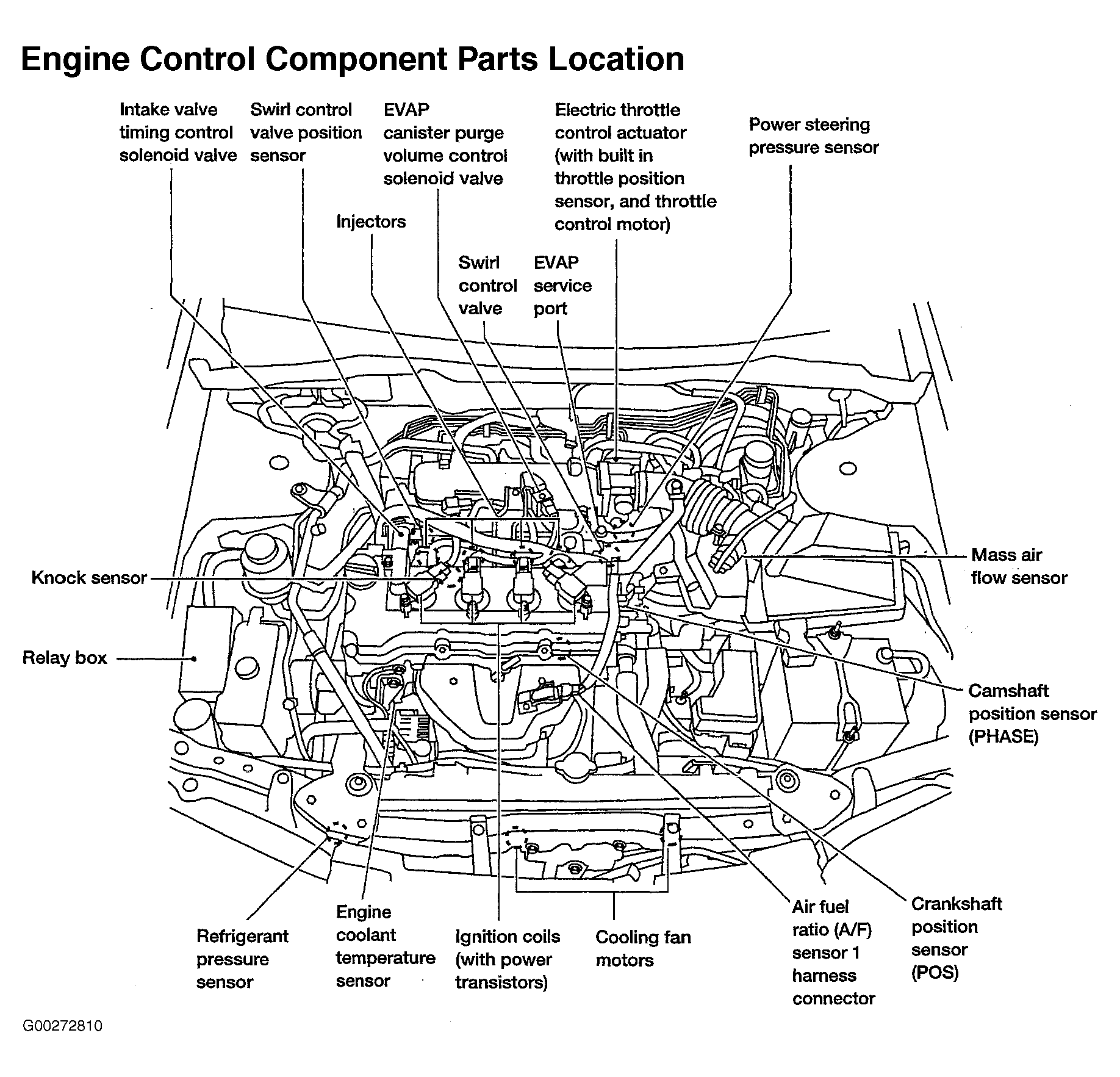

Fig 35: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 1 Of 6)

G00272810

Courtesy of NISSAN MOTOR CO., U.S.A.

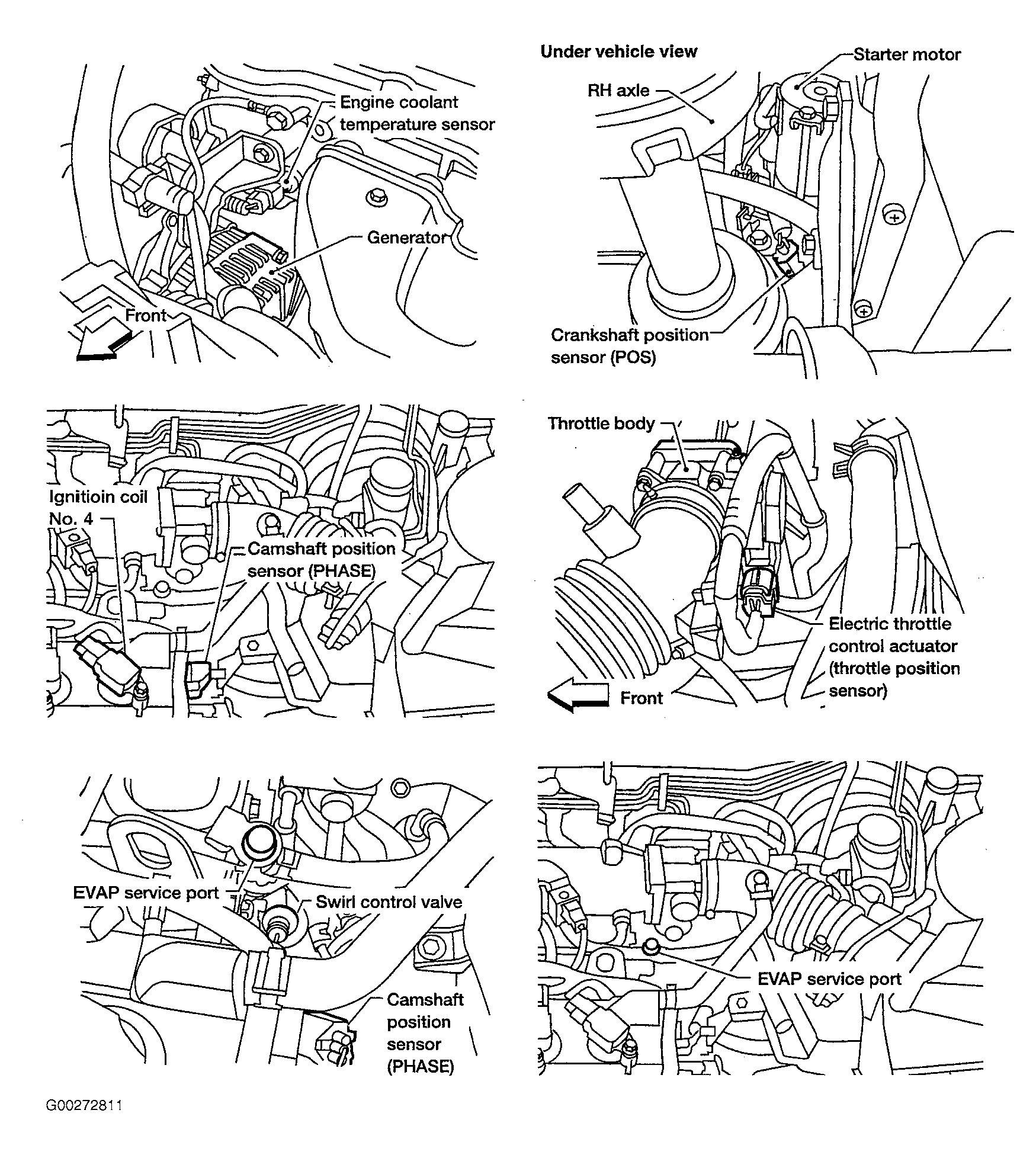

Fig 36: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 2 Of 6)

G00272811

Courtesy of NISSAN MOTOR CO., U.S.A.

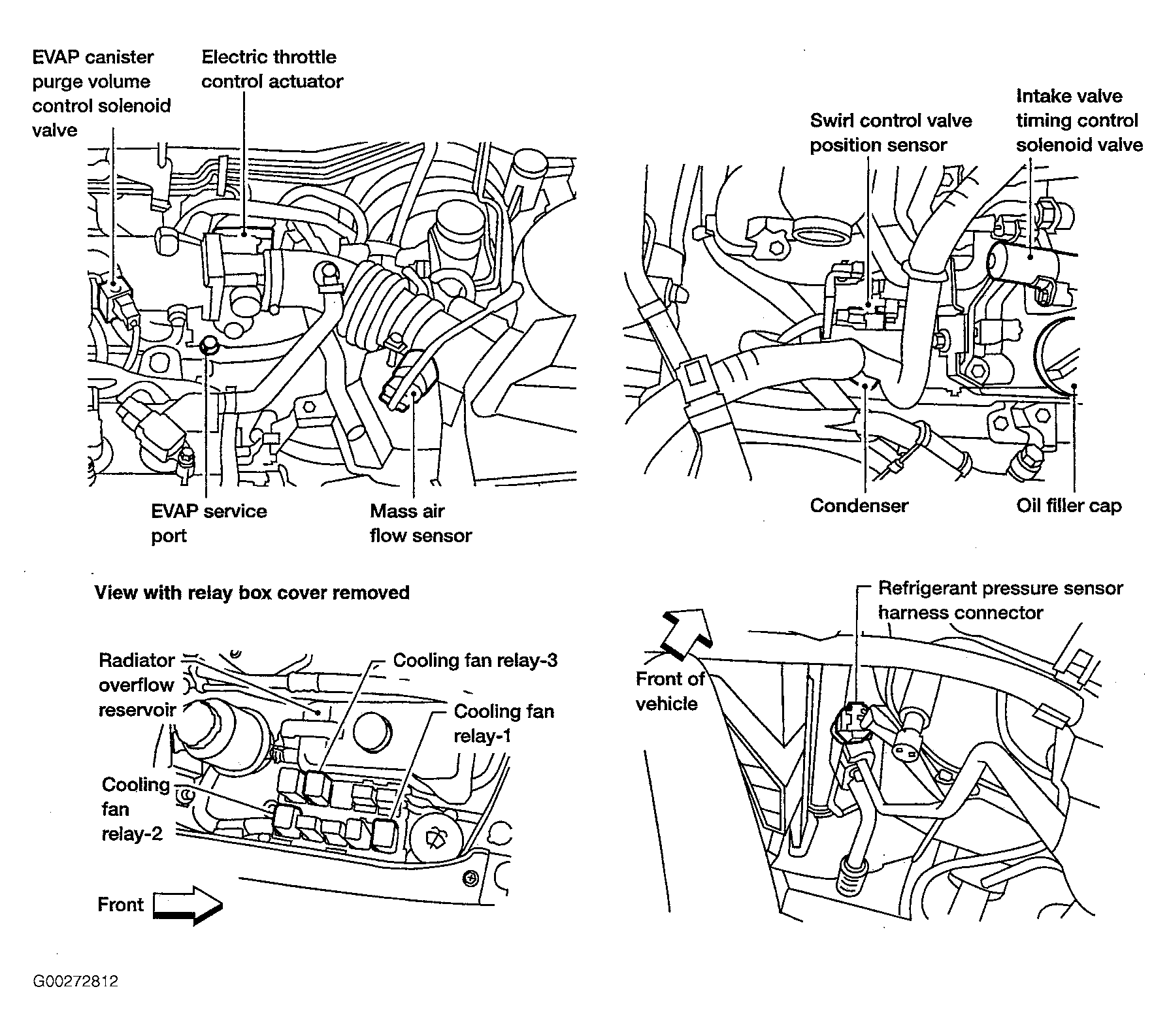

Fig 37: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 3 Of 6)

G00272812

Courtesy of NISSAN MOTOR CO., U.S.A.

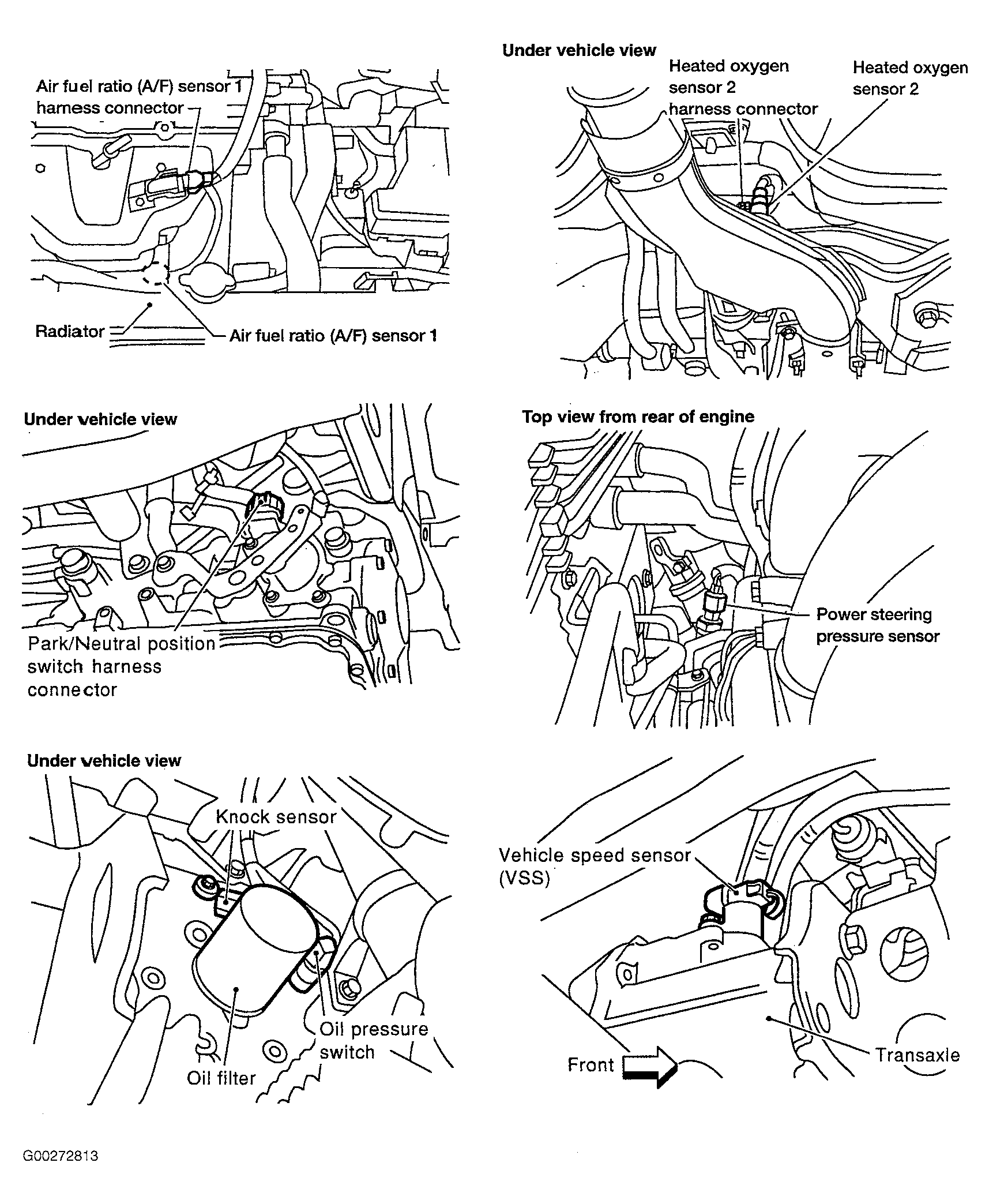

Fig 38: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 4 Of 6)

G00272813

Courtesy of NISSAN MOTOR CO., U.S.A.

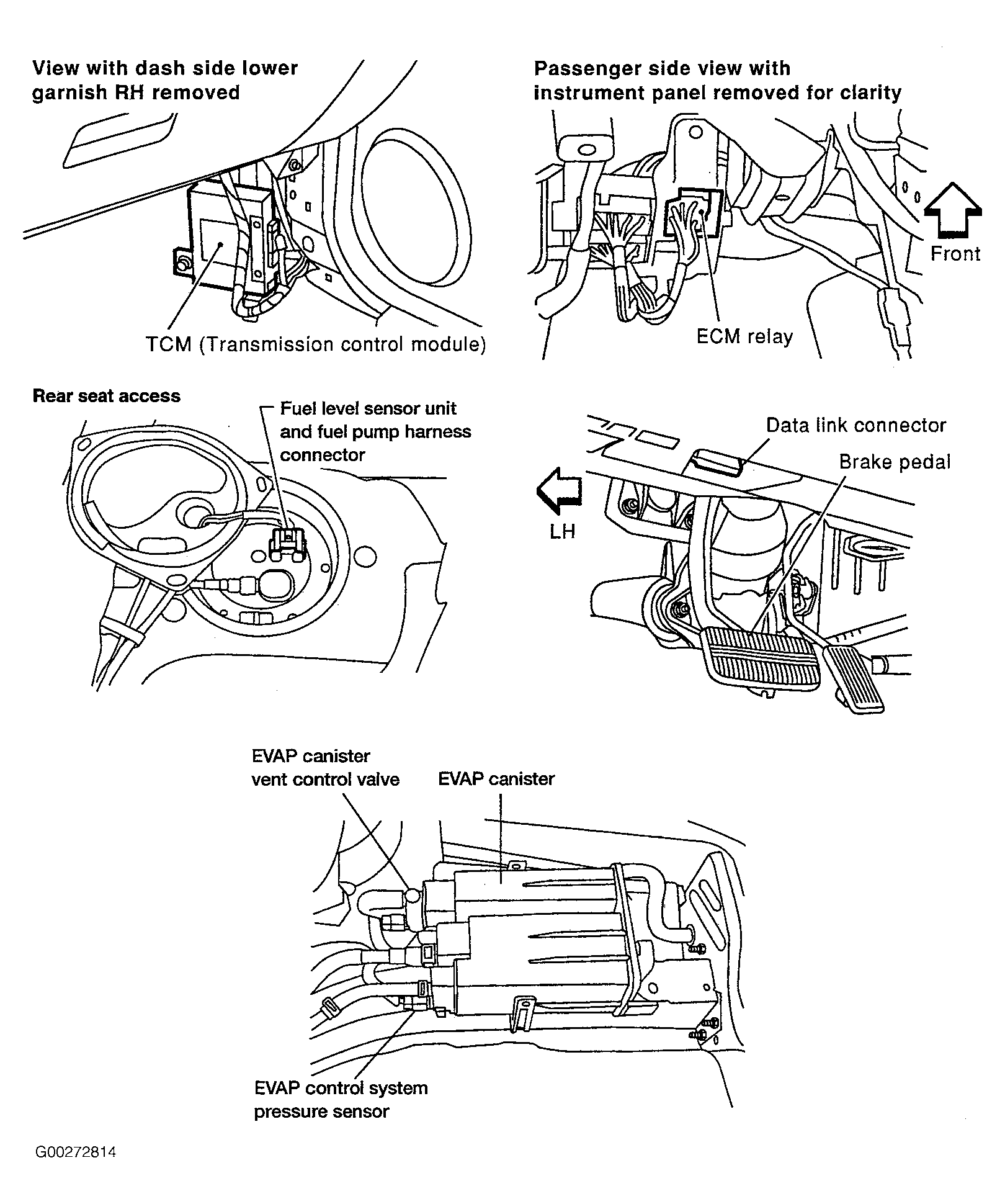

Fig 39: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 5 Of 6)

G00272814

Courtesy of NISSAN MOTOR CO., U.S.A.

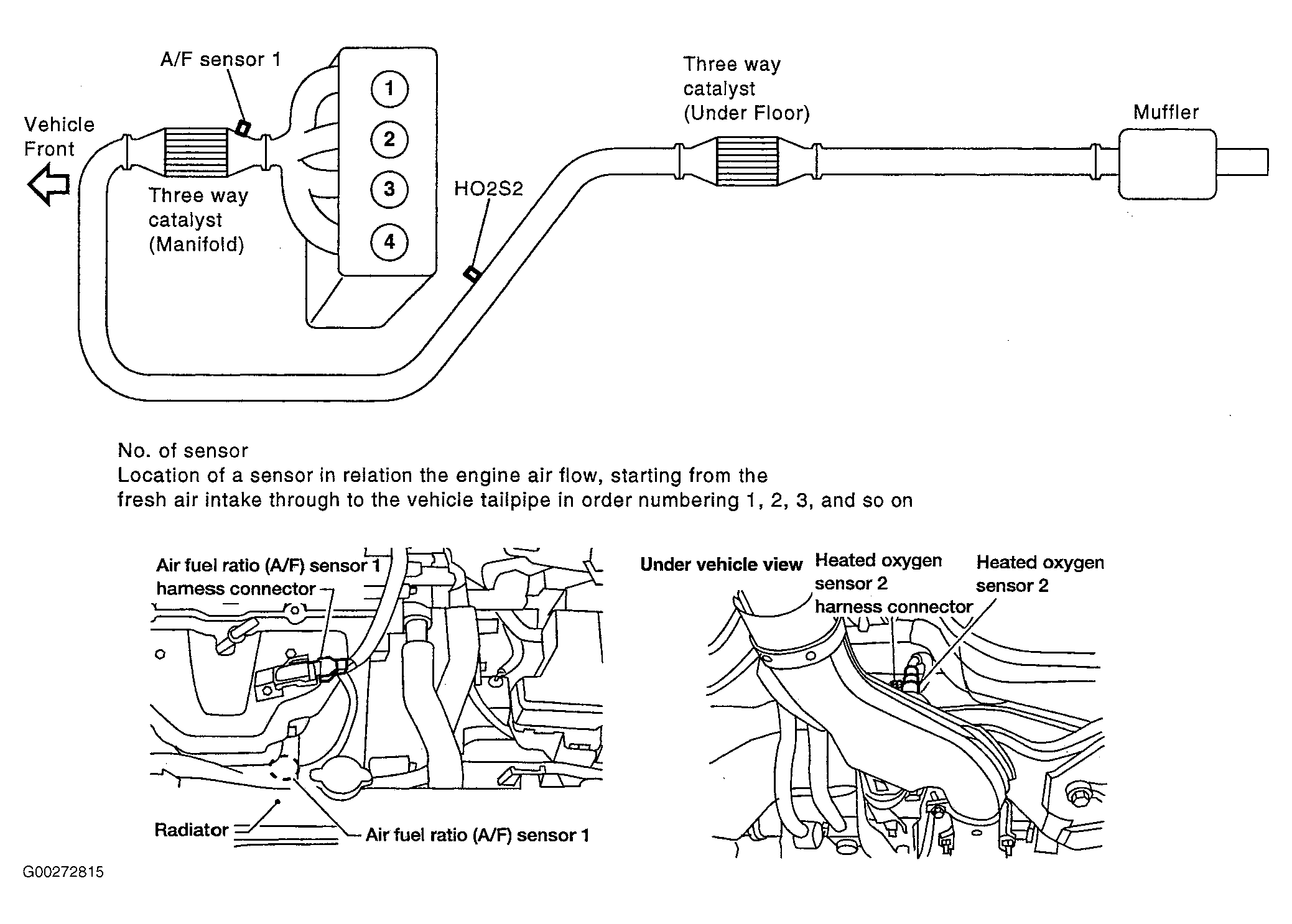

Fig 40: Identifying Engine Performance Component Locations (Sentra 1.8L SULEV - 6 Of 6)

G00272815

Courtesy of NISSAN MOTOR CO., U.S.A.

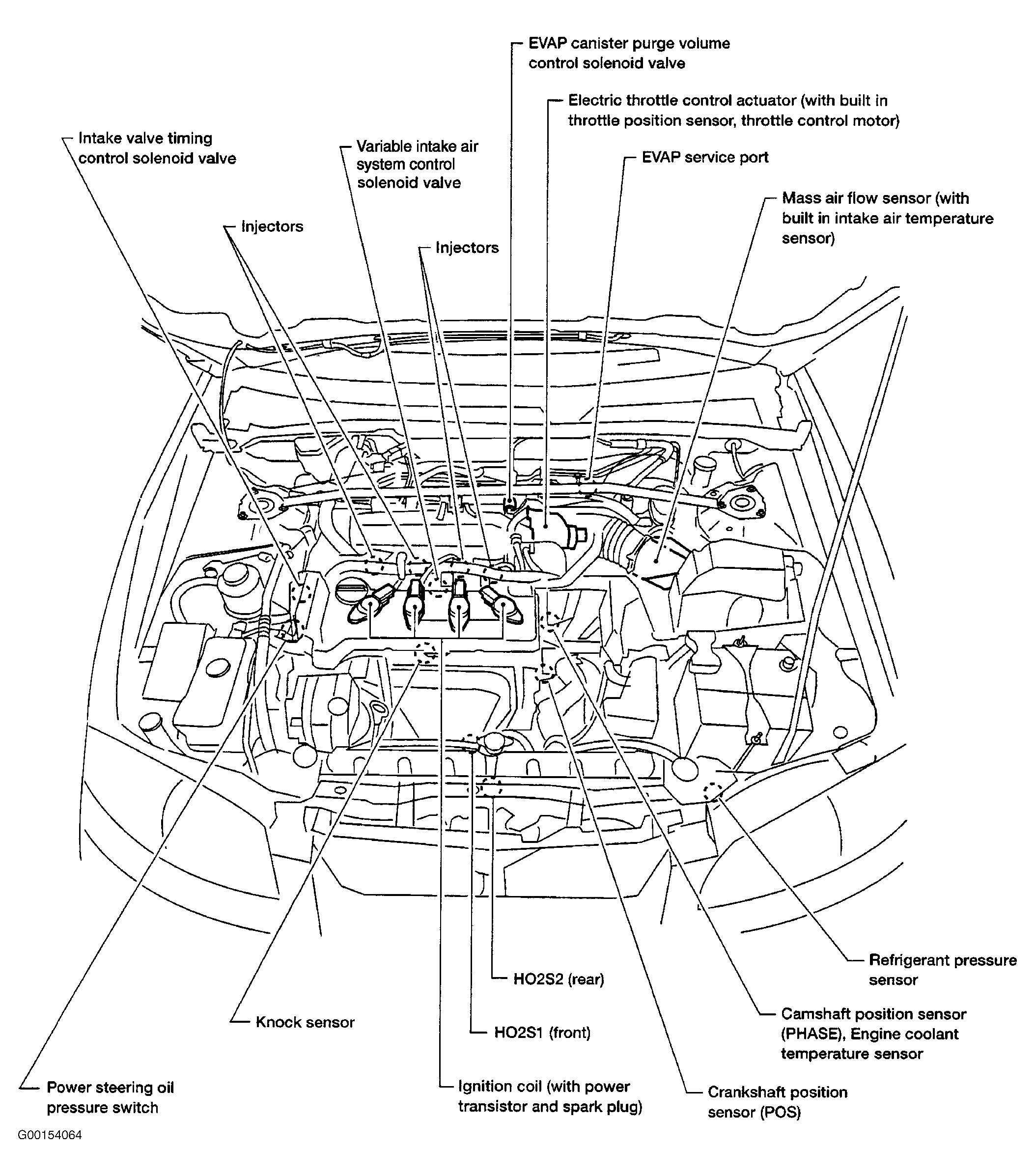

Fig 41: Identifying Engine Performance Component Locations (Sentra 2.5L - 1 Of 4)

G00154064

Courtesy of NISSAN MOTOR CO., U.S.A.

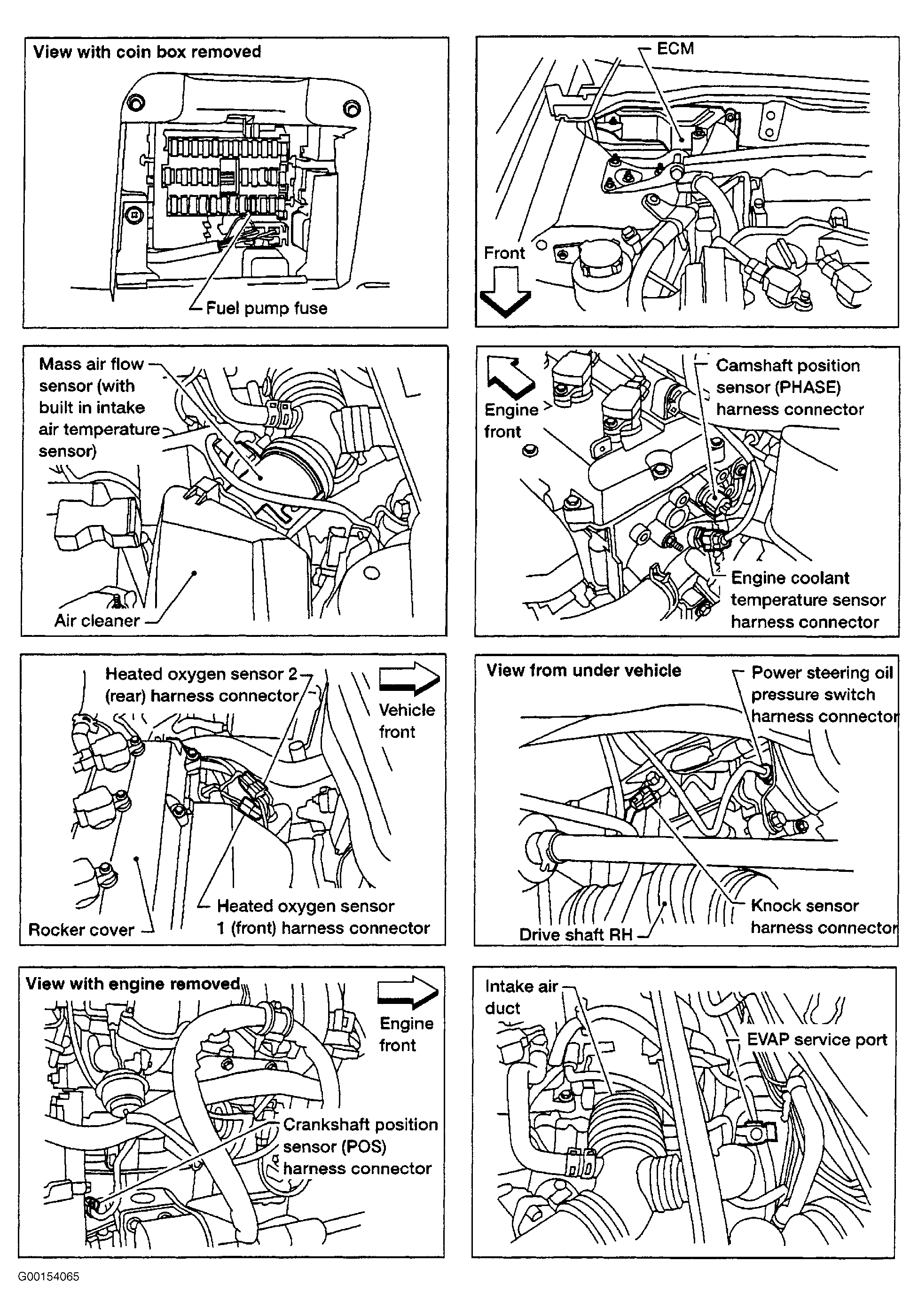

Fig 42: Identifying Engine Performance Component Locations (Sentra 2.5L - 2 Of 4)

G00154065

Courtesy of NISSAN MOTOR CO., U.S.A.

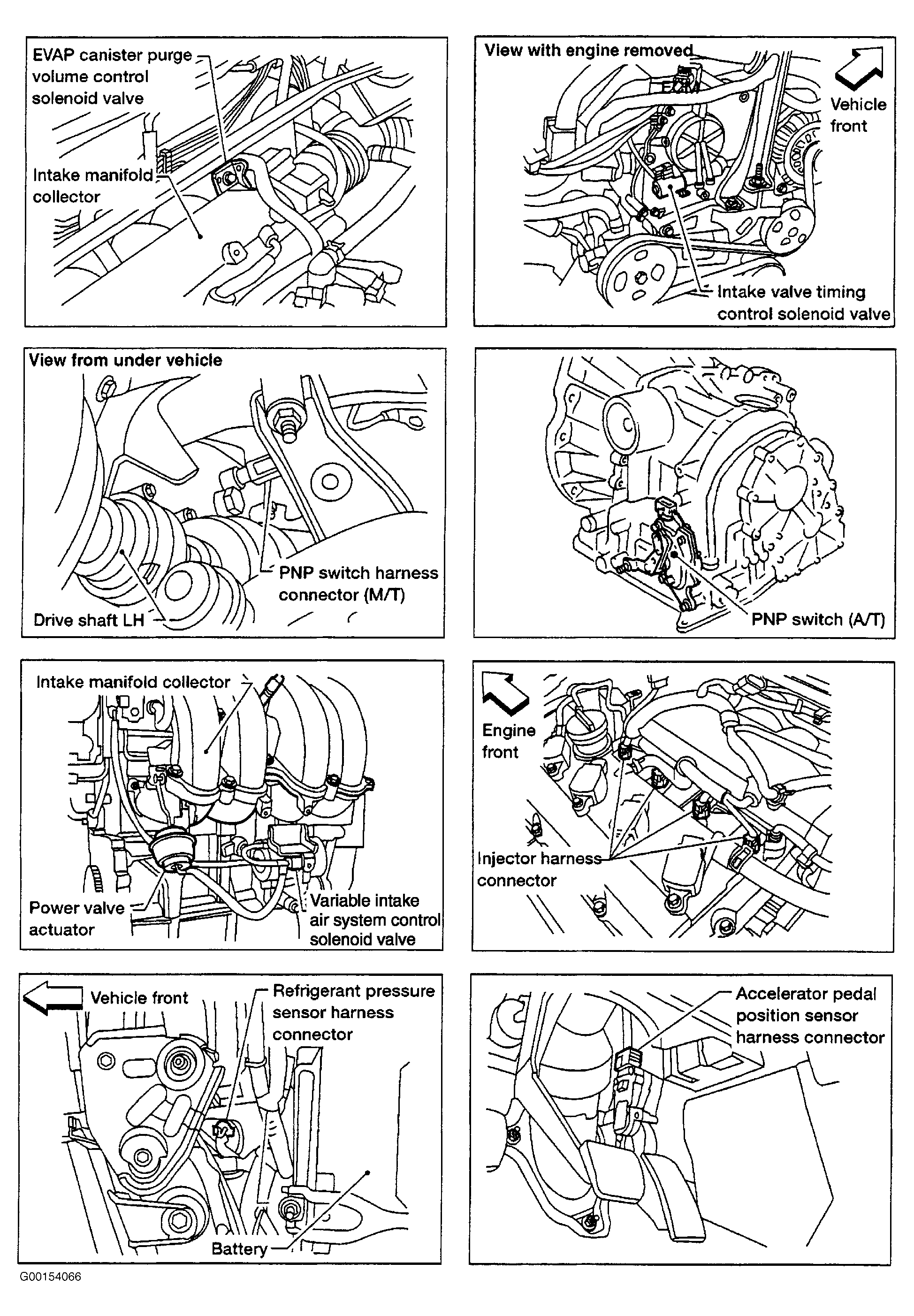

Fig 43: Identifying Engine Performance Component Locations (Sentra 2.5L - 3 Of 4)

G00154066

Courtesy of NISSAN MOTOR CO., U.S.A.

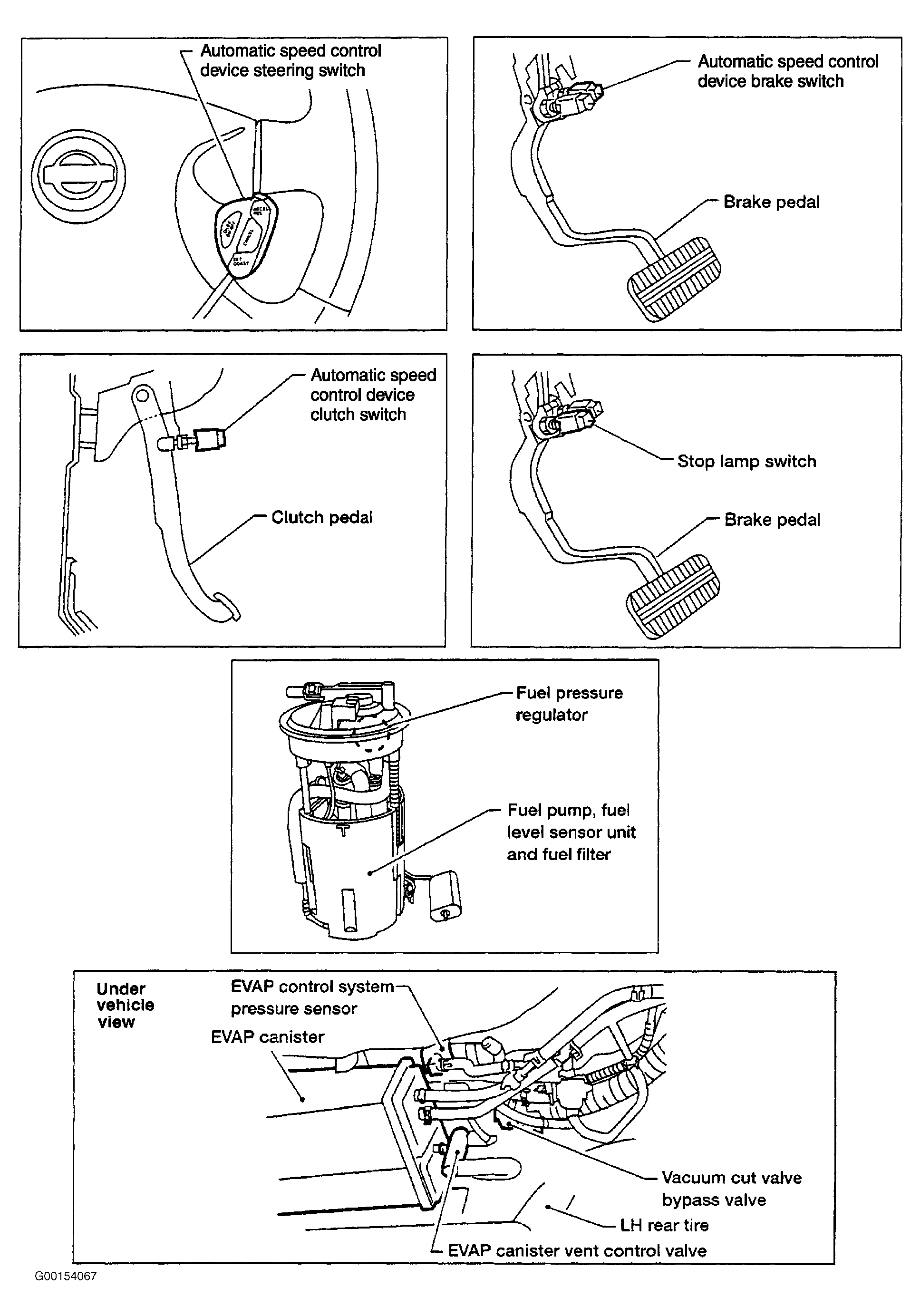

Fig 44: Identifying Engine Performance Component Locations (Sentra 2.5L - 4 Of 4)

G00154067

Courtesy of NISSAN MOTOR CO., U.S.A.

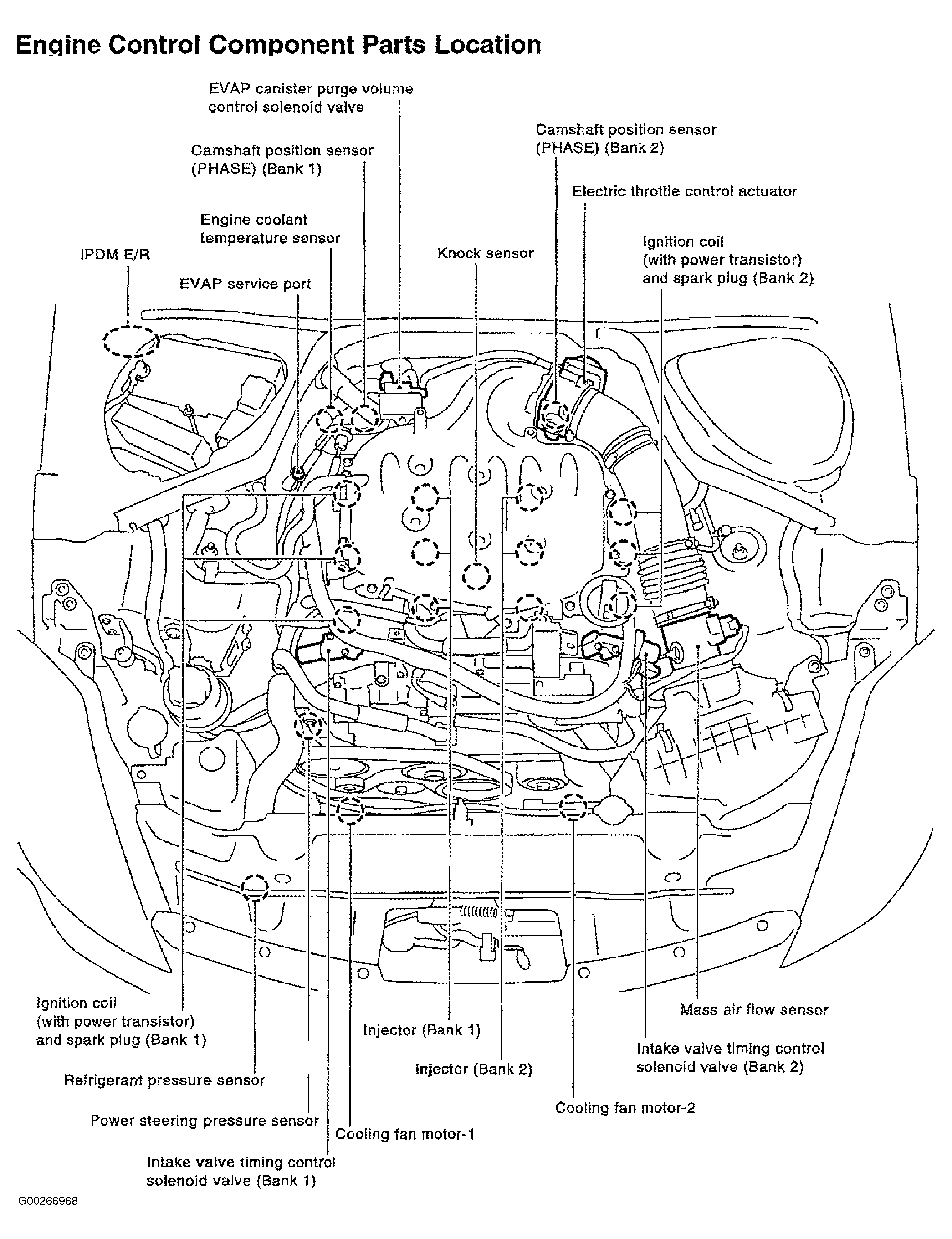

Fig 45: Identifying Engine Performance Component Locations (350Z - 1 Of 6)

G00266968

Courtesy of NISSAN MOTOR CO., U.S.A.

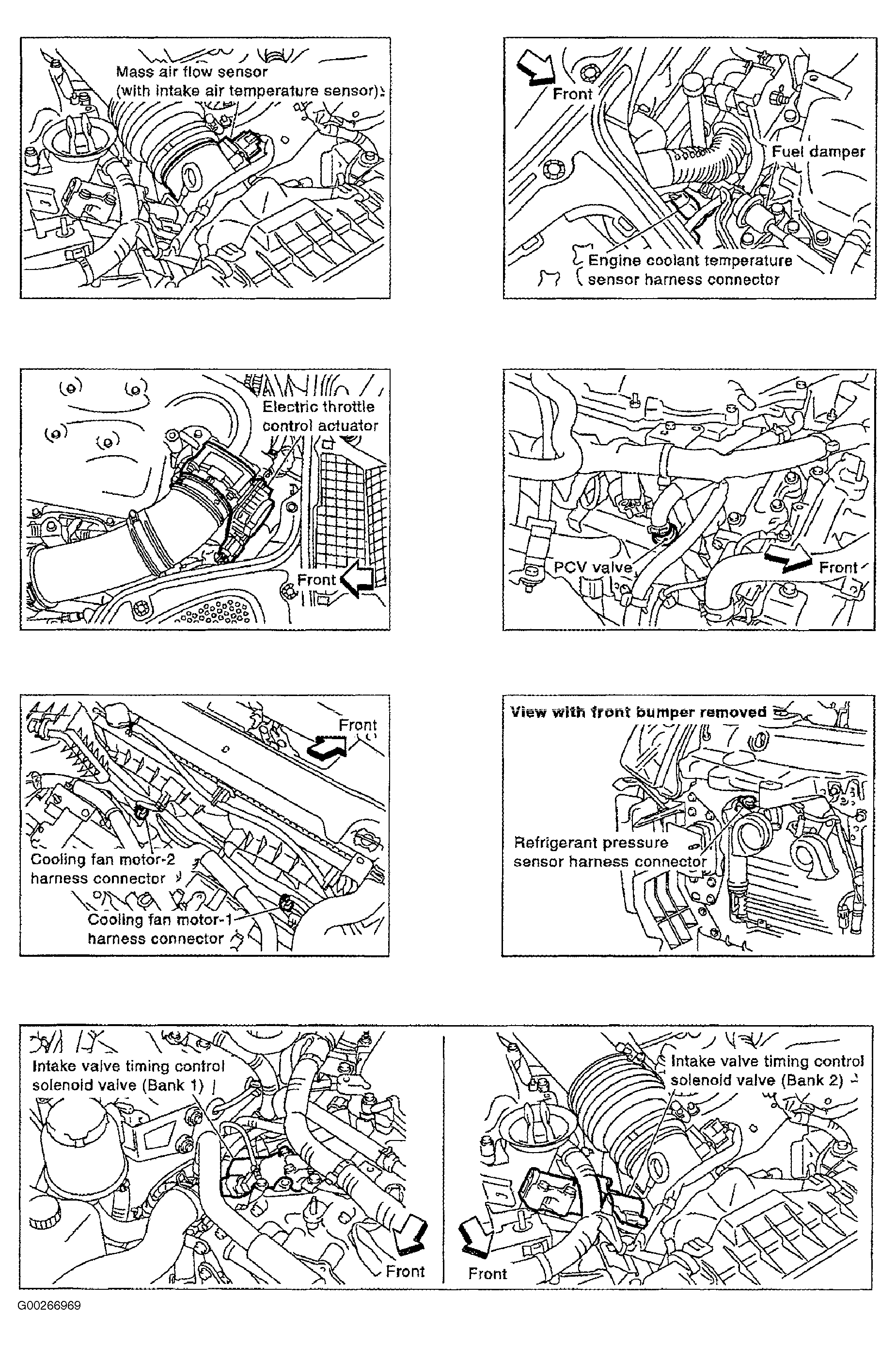

Fig 46: Identifying Engine Performance Component Locations (350Z - 2 Of 6)

G00266969

Courtesy of NISSAN MOTOR CO., U.S.A.

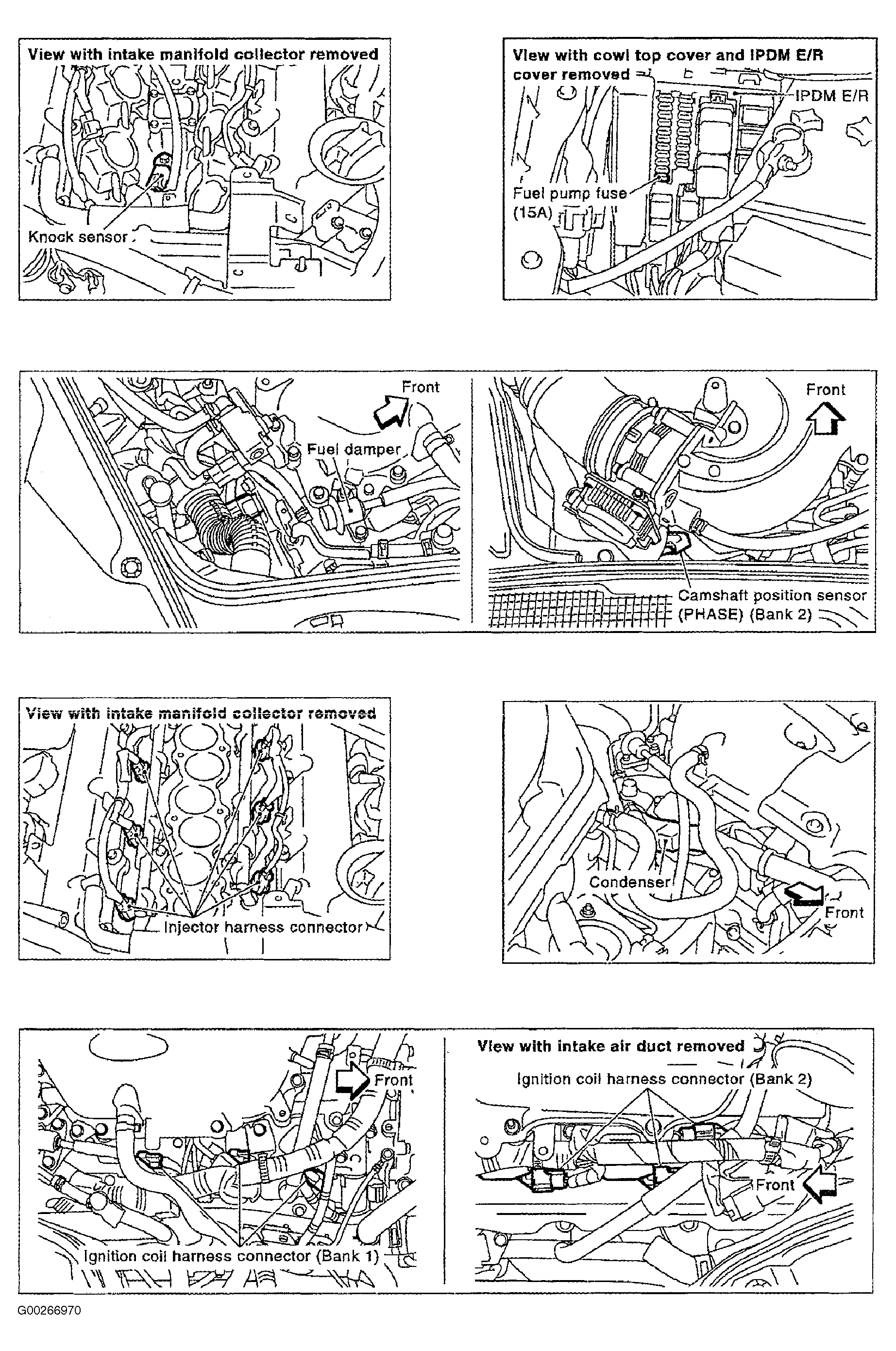

Fig 47: Identifying Engine Performance Component Locations (350Z - 3 Of 6)

G00266970

Courtesy of NISSAN MOTOR CO., U.S.A.

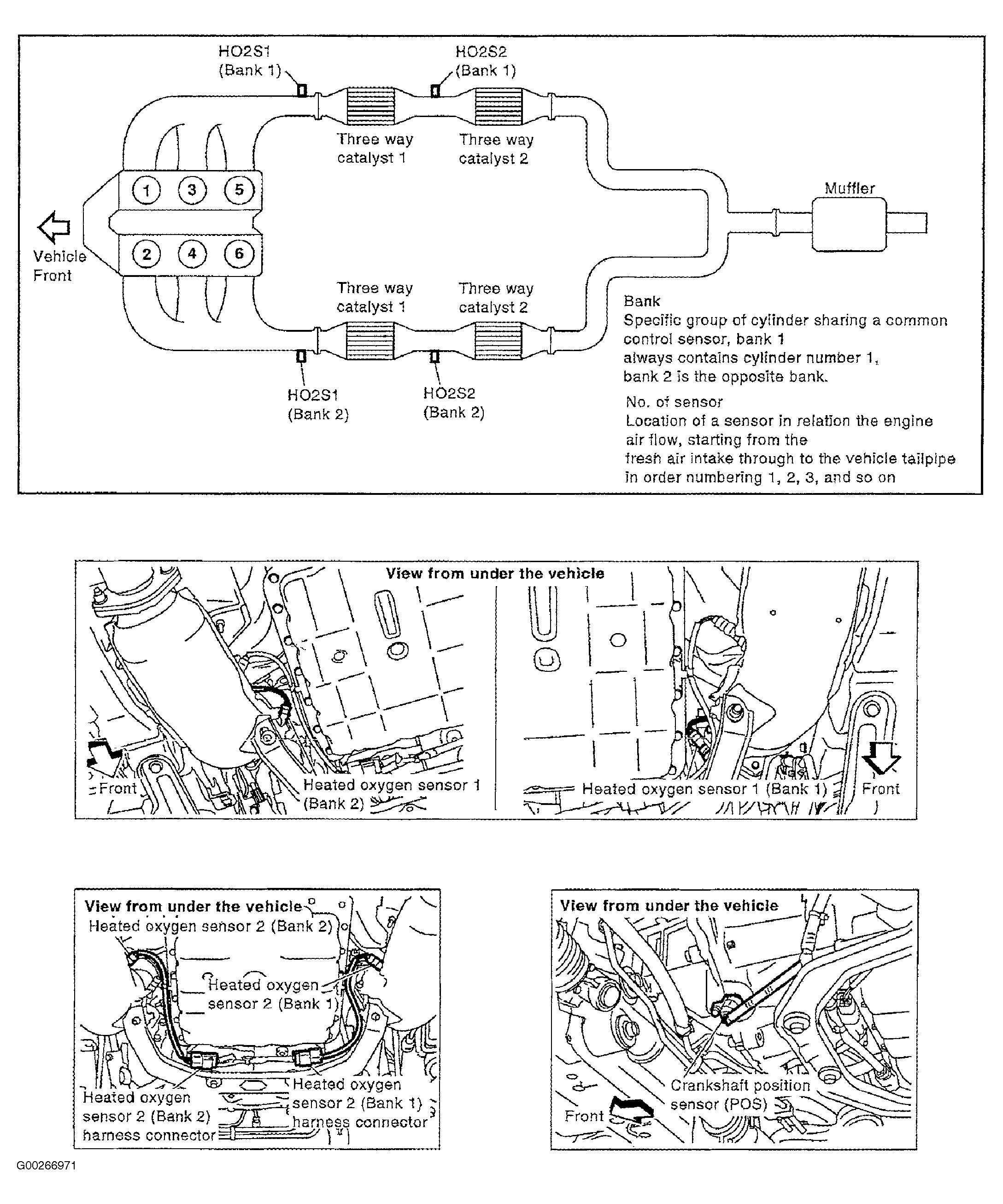

Fig 48: Identifying Engine Performance Component Locations (350Z - 4 Of 6)

G00266971

Courtesy of NISSAN MOTOR CO., U.S.A.

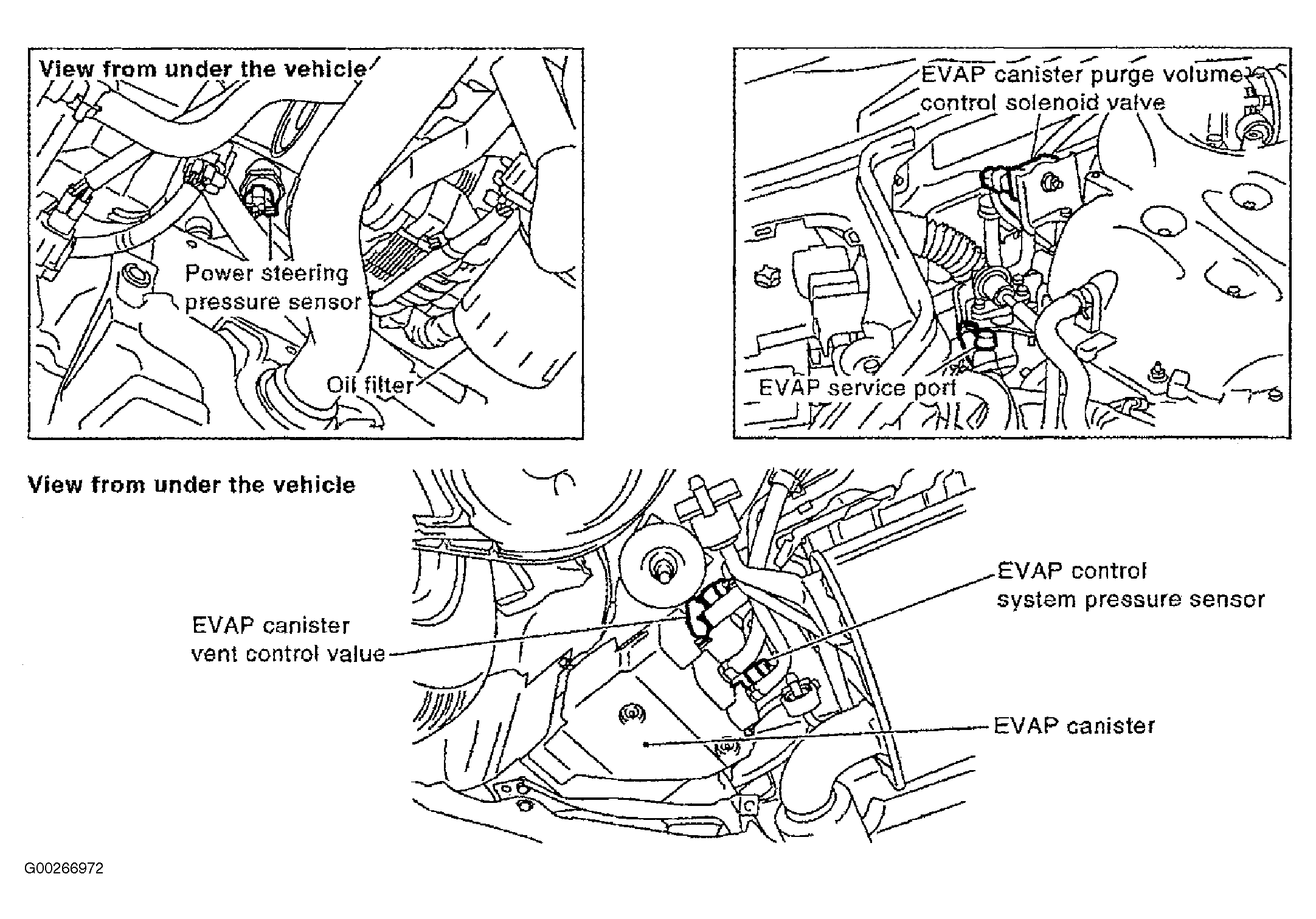

Fig 49: Identifying Engine Performance Component Locations (350Z - 5 Of 6)

G00266972

Courtesy of NISSAN MOTOR CO., U.S.A.

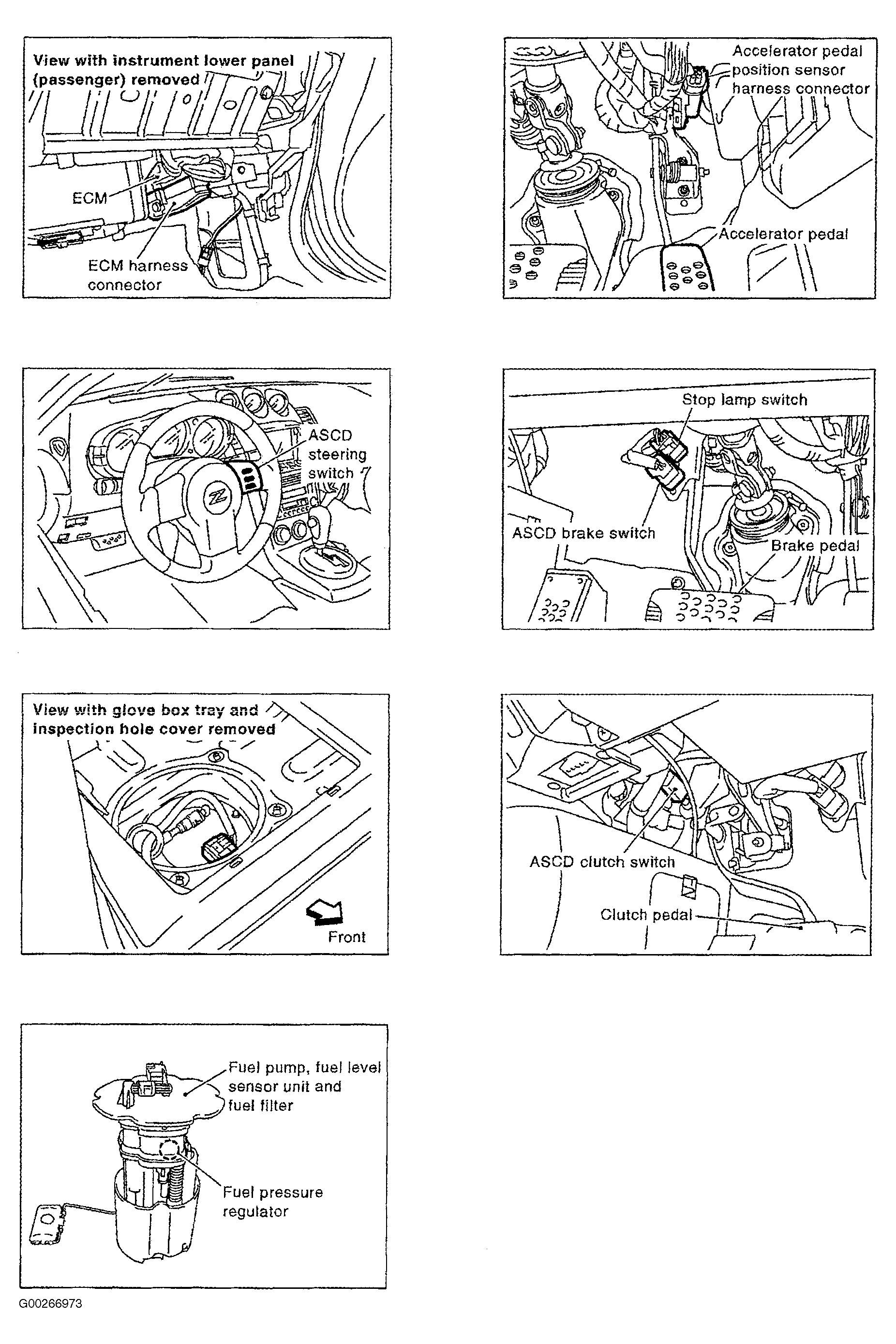

Fig 50: Identifying Engine Performance Component Locations (350Z - 6 Of 6)

G00266973

Courtesy of NISSAN MOTOR CO., U.S.A.

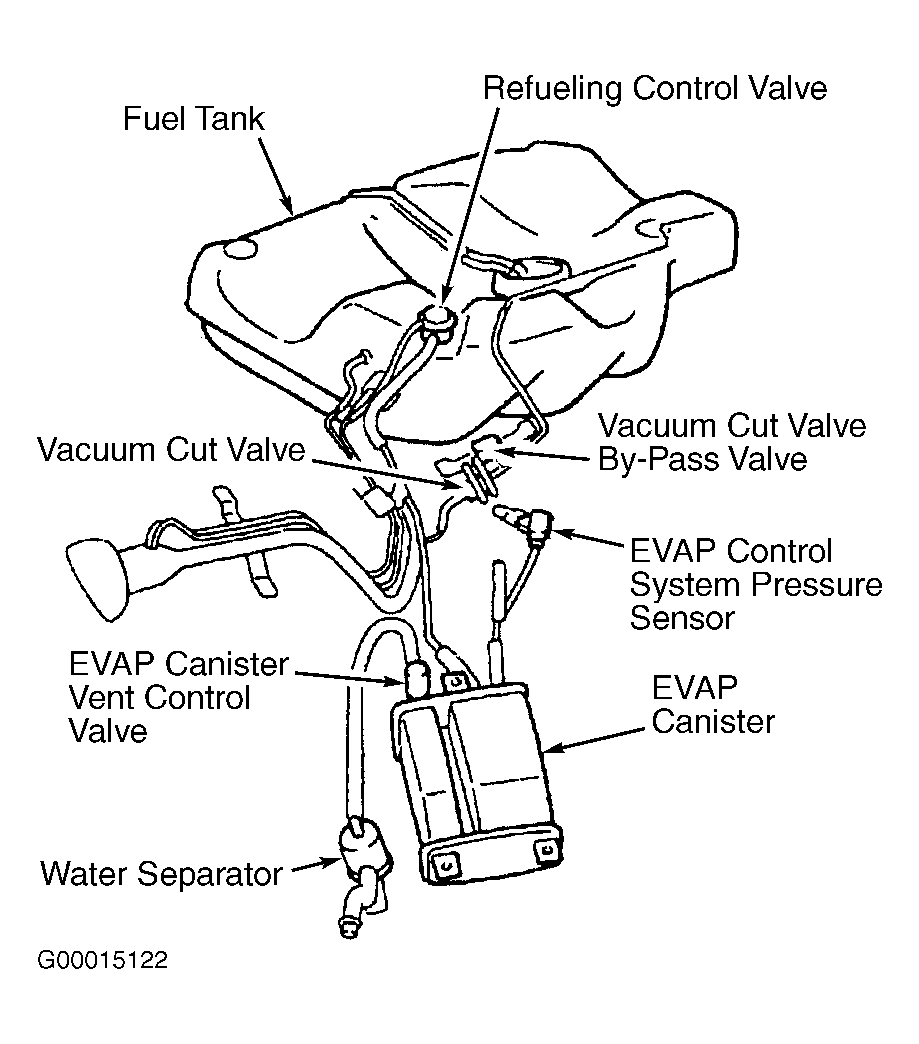

Fig 51: Locating EVAP System Components Under Vehicle View (Altima)

G00015122

Courtesy of NISSAN MOTOR CO., U.S.A.

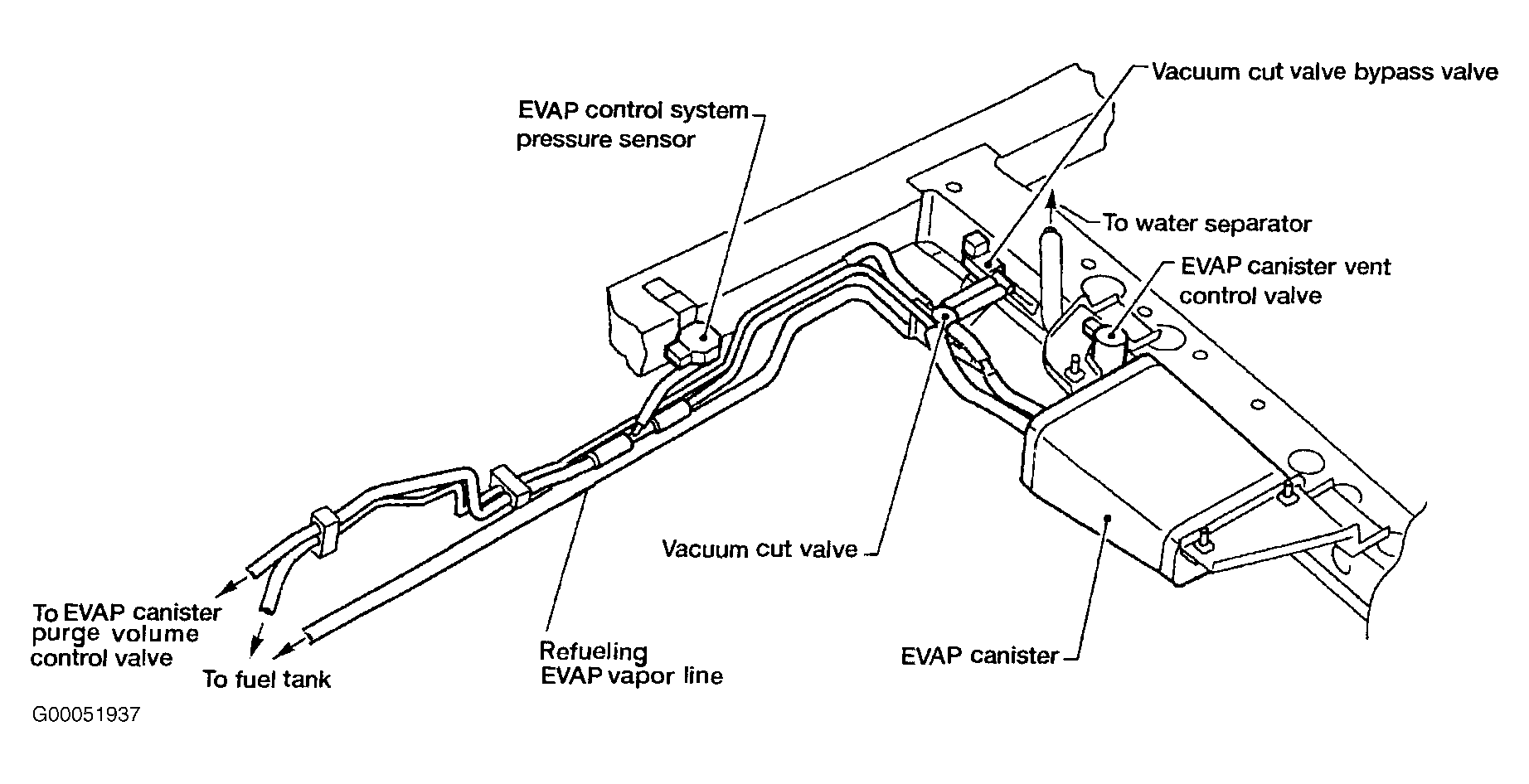

Fig 52: Locating EVAP System Components Under Vehicle View (Frontier & Xterra)

G00051937

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 53: Locating EVAP System Components Under Vehicle View (Maxima)

G00051947

Courtesy of NISSAN MOTOR CO., U.S.A.

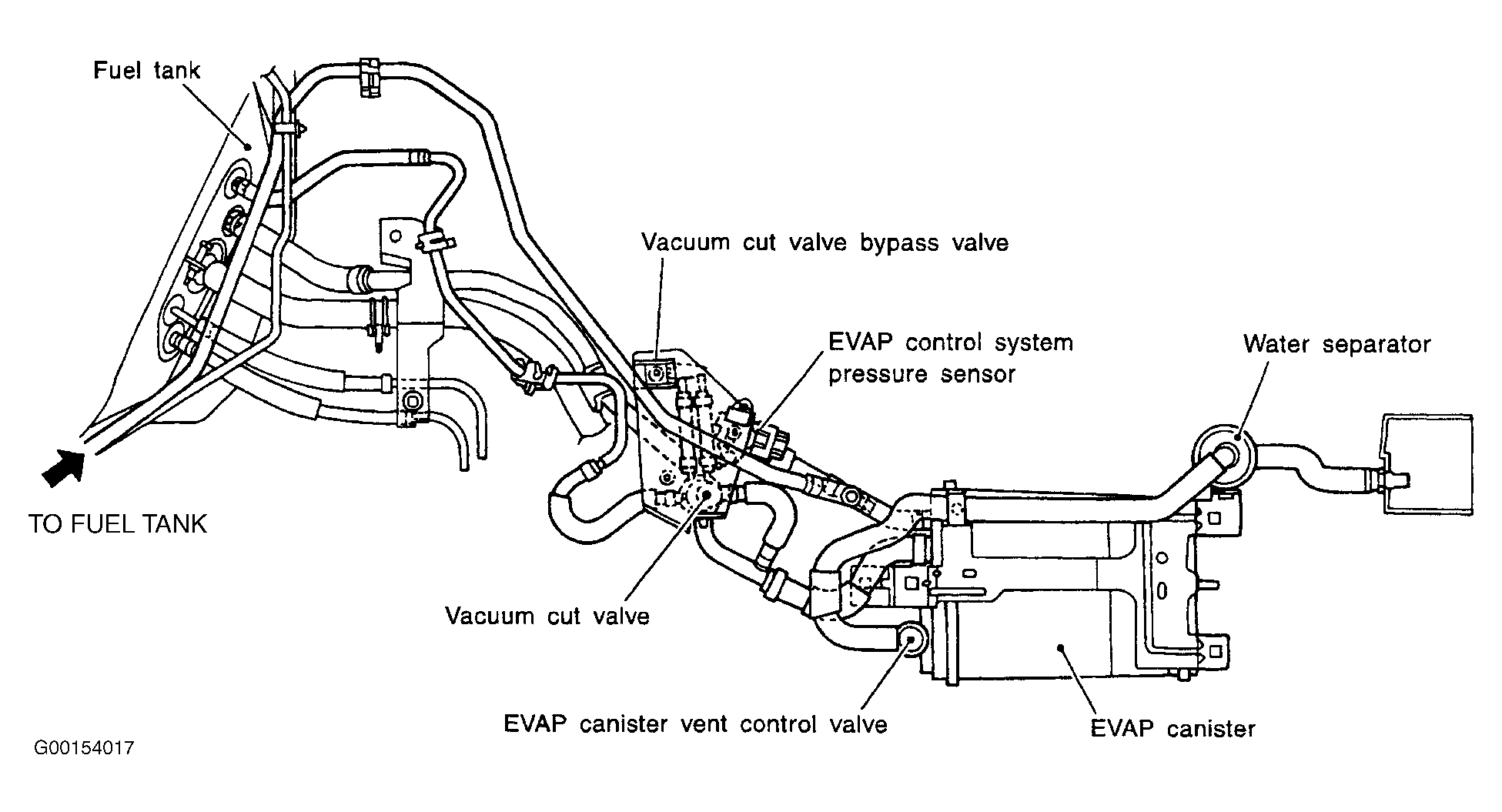

Fig 54: Locating EVAP System Components Under Vehicle View (Pathfinder)

G00154017

Courtesy of NISSAN MOTOR CO., U.S.A.

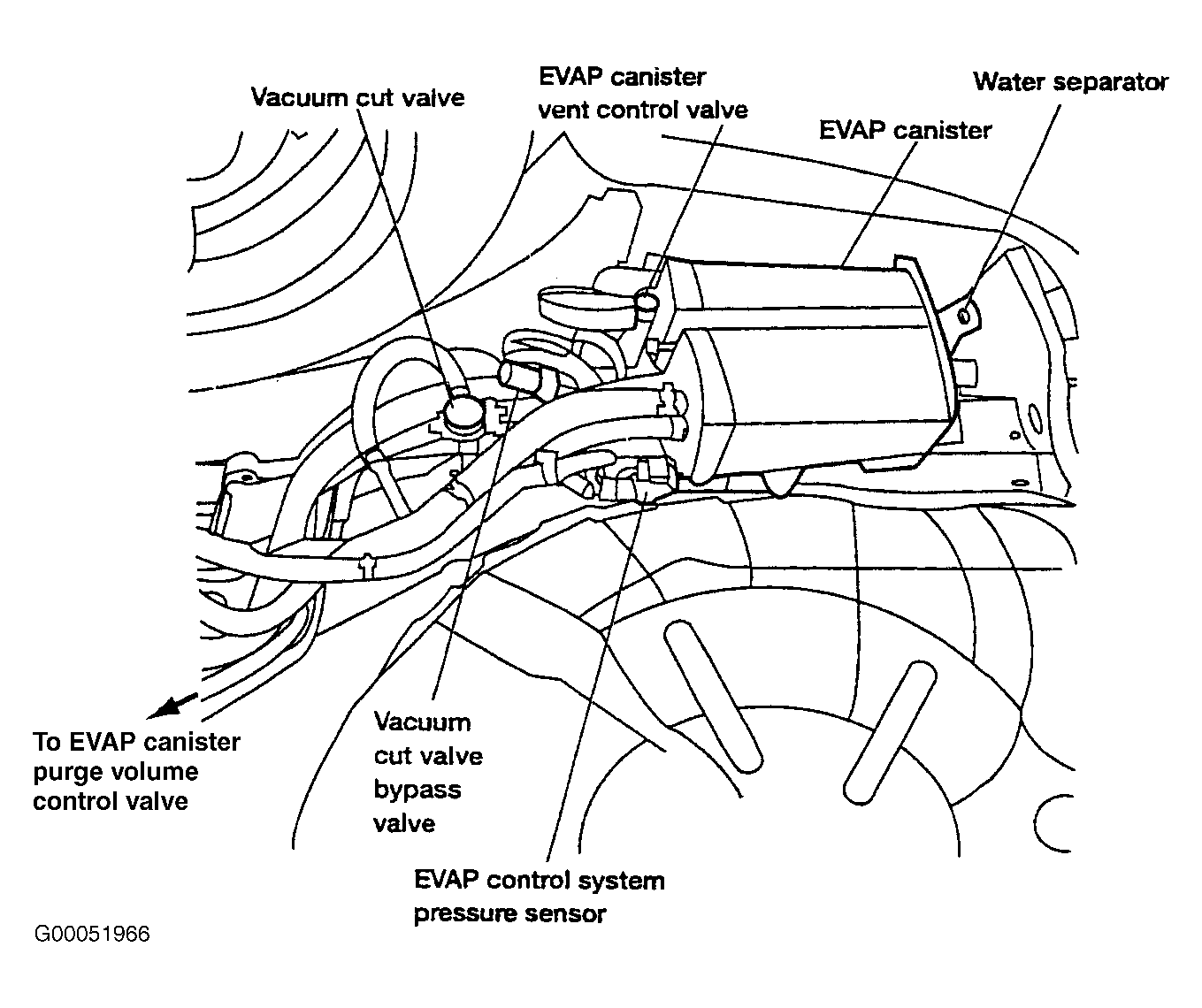

Fig 55: Locating EVAP System Components Under Vehicle View (Sentra)

G00051966

Courtesy of NISSAN MOTOR CO., U.S.A.
