Power & Ground Circuits (Murano)

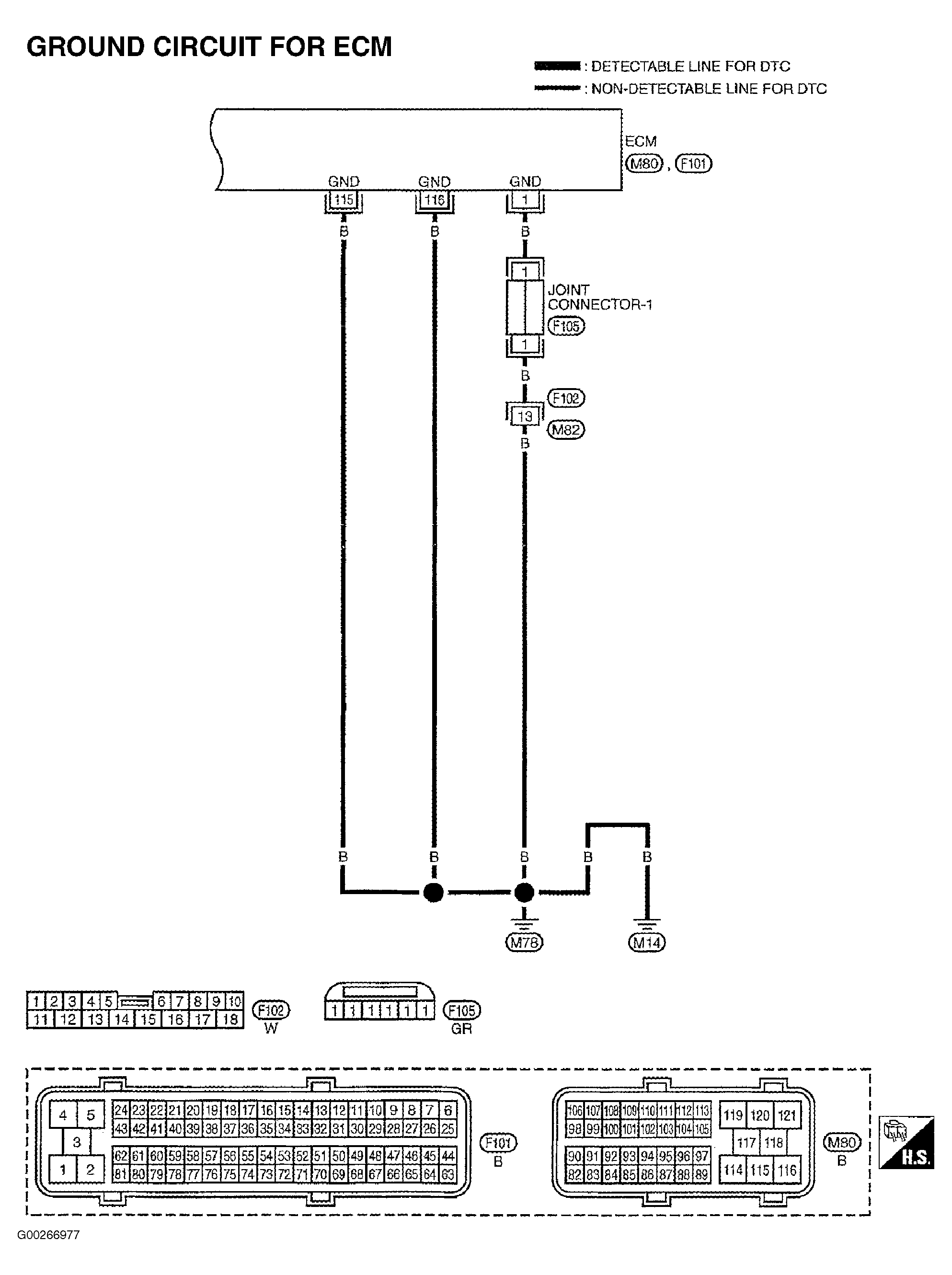

For ECM power and ground circuit wiring diagram and diagnostic procedure, see Fig 1-Fig 7 . If no problem is found, check ignition signal. See IGNITION SIGNAL CIRCUITS  under IGNITION SYSTEM. For intermittent diagnosis, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

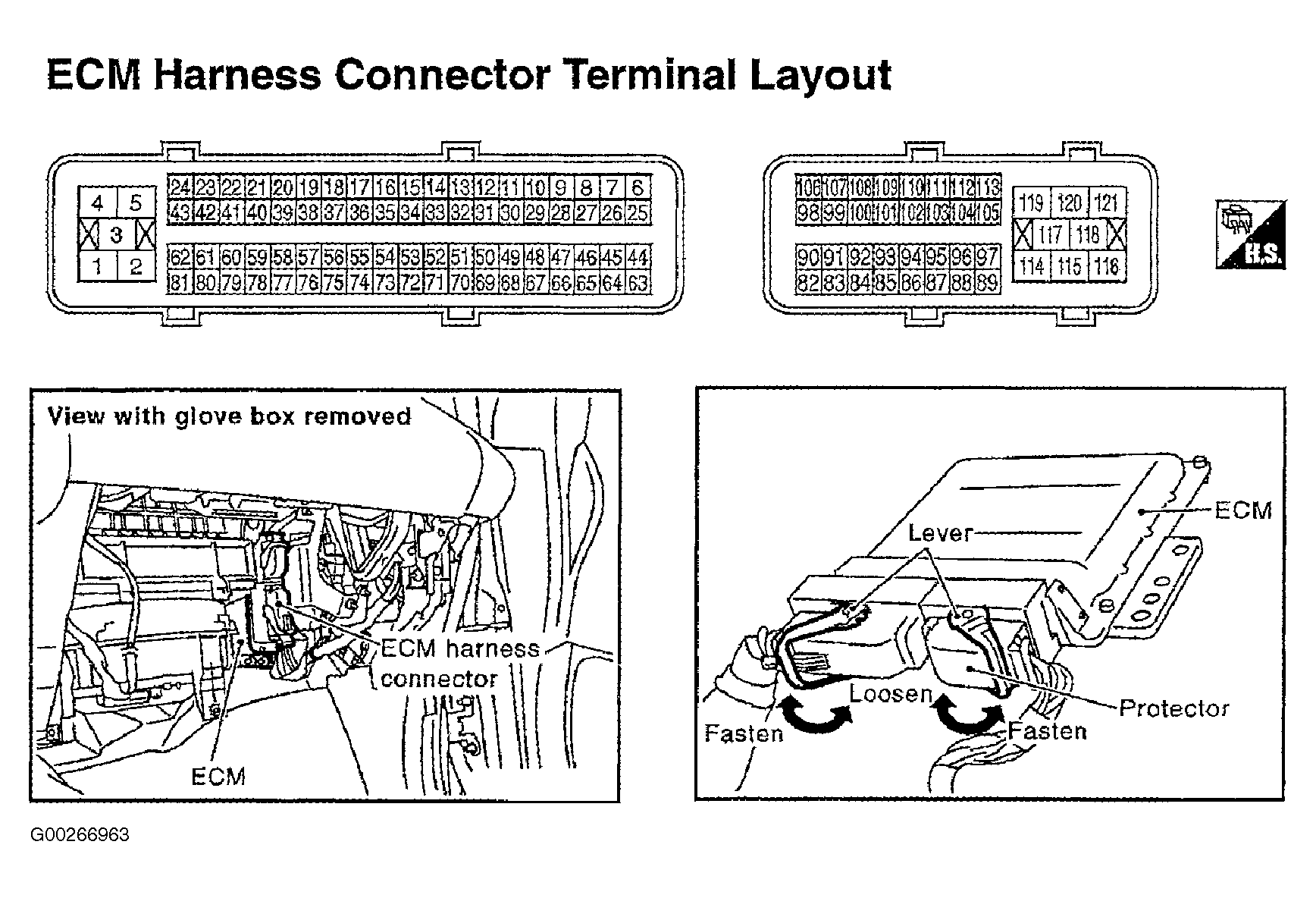

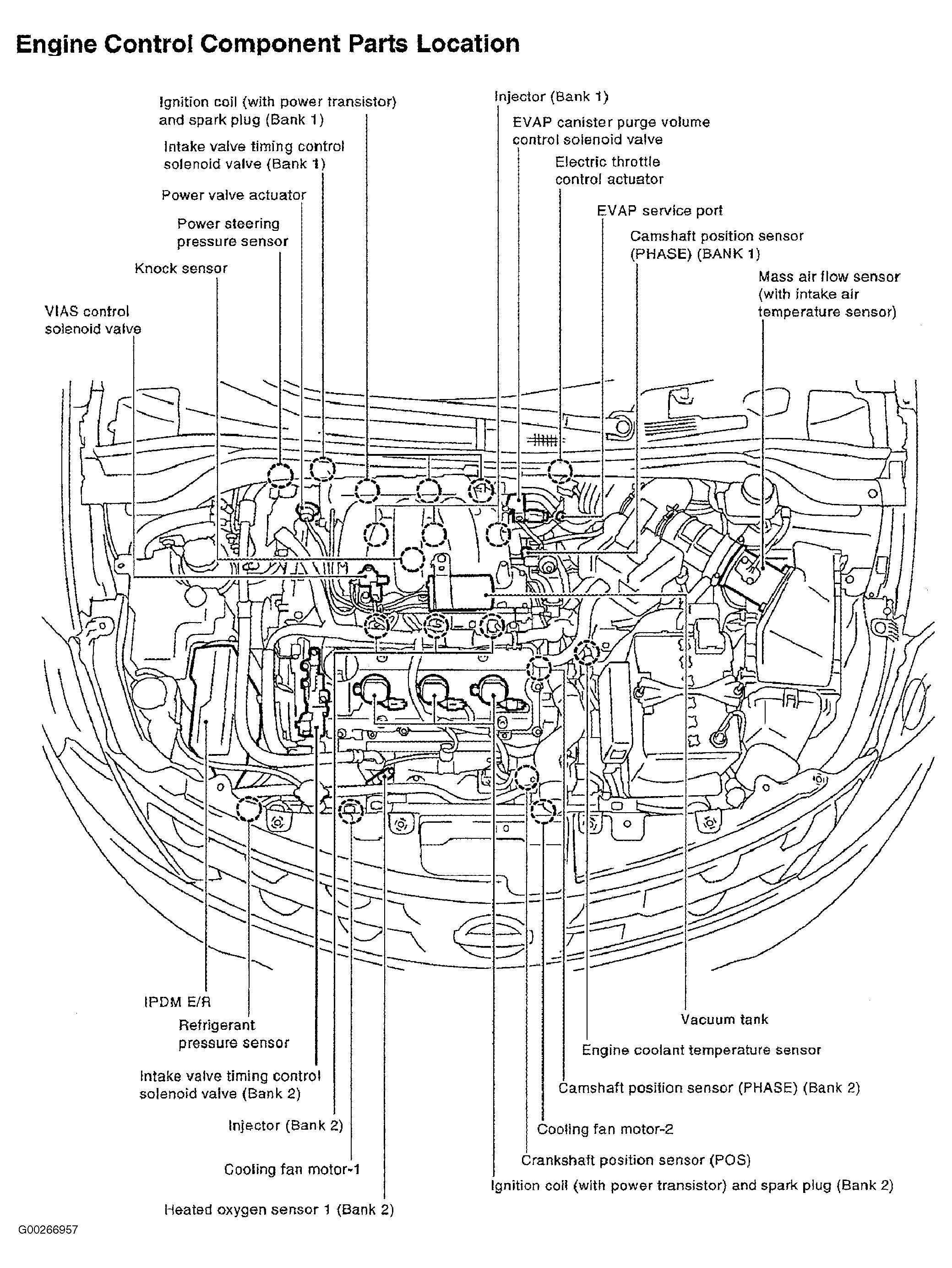

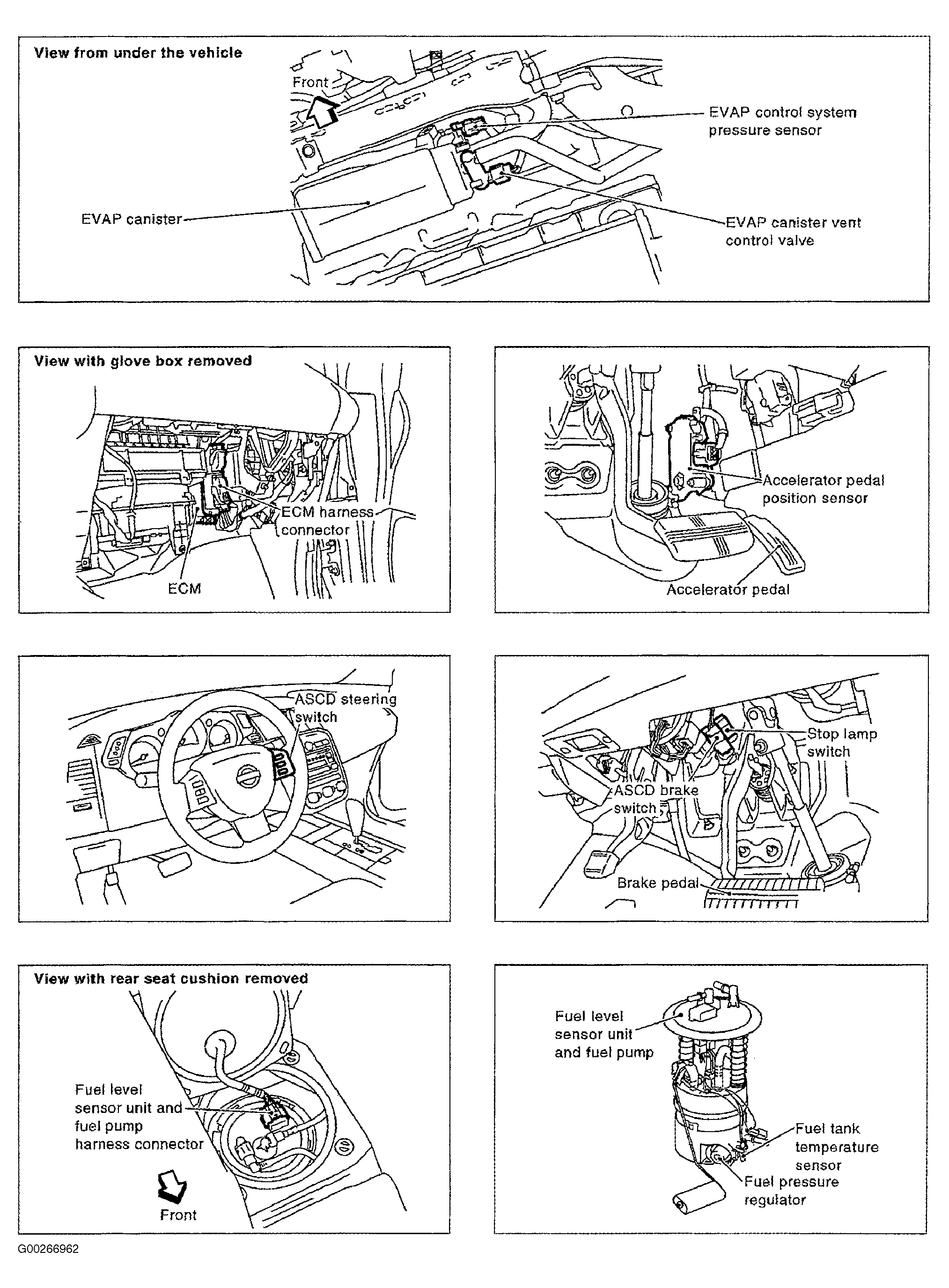

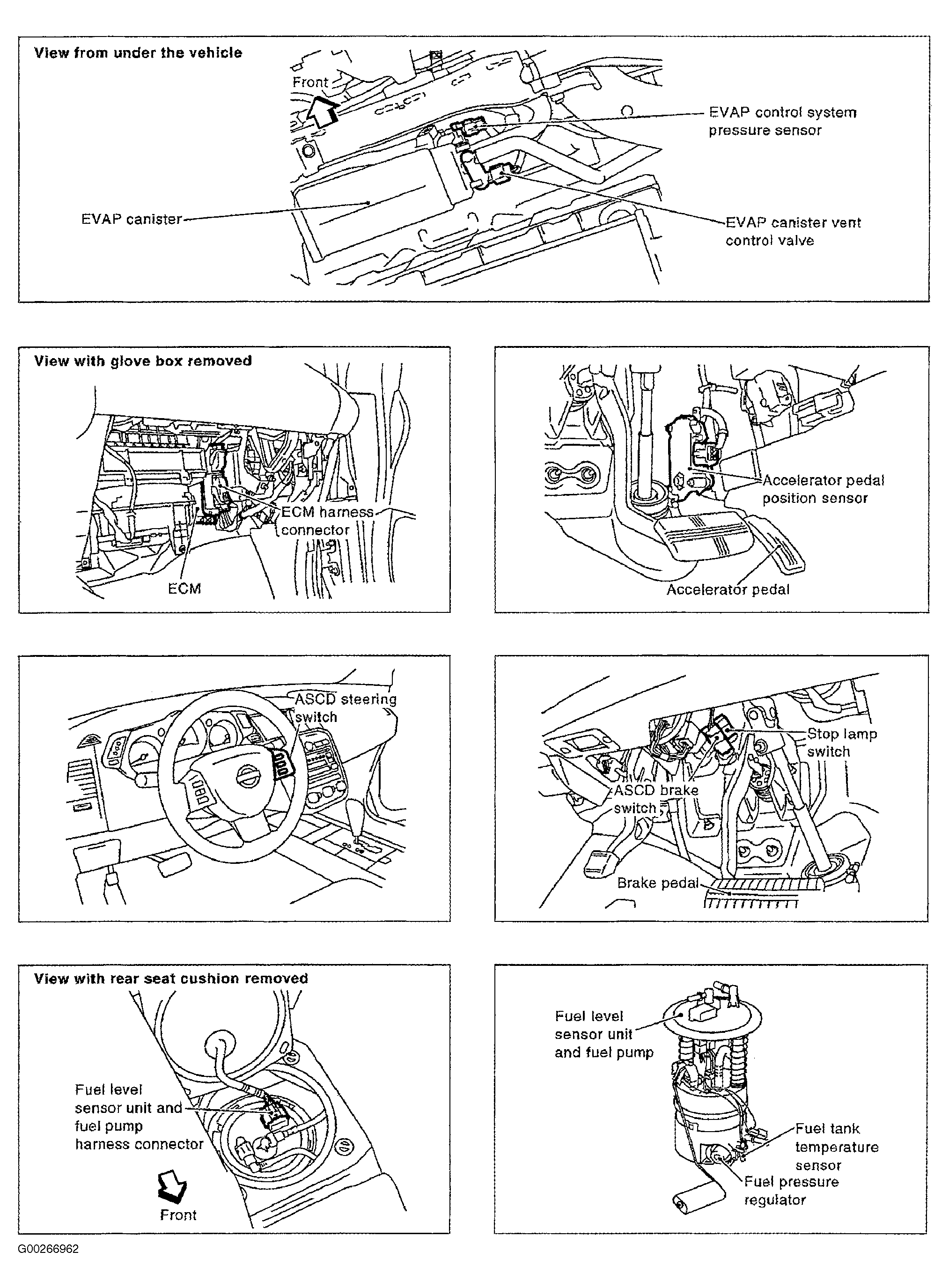

For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Figure. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

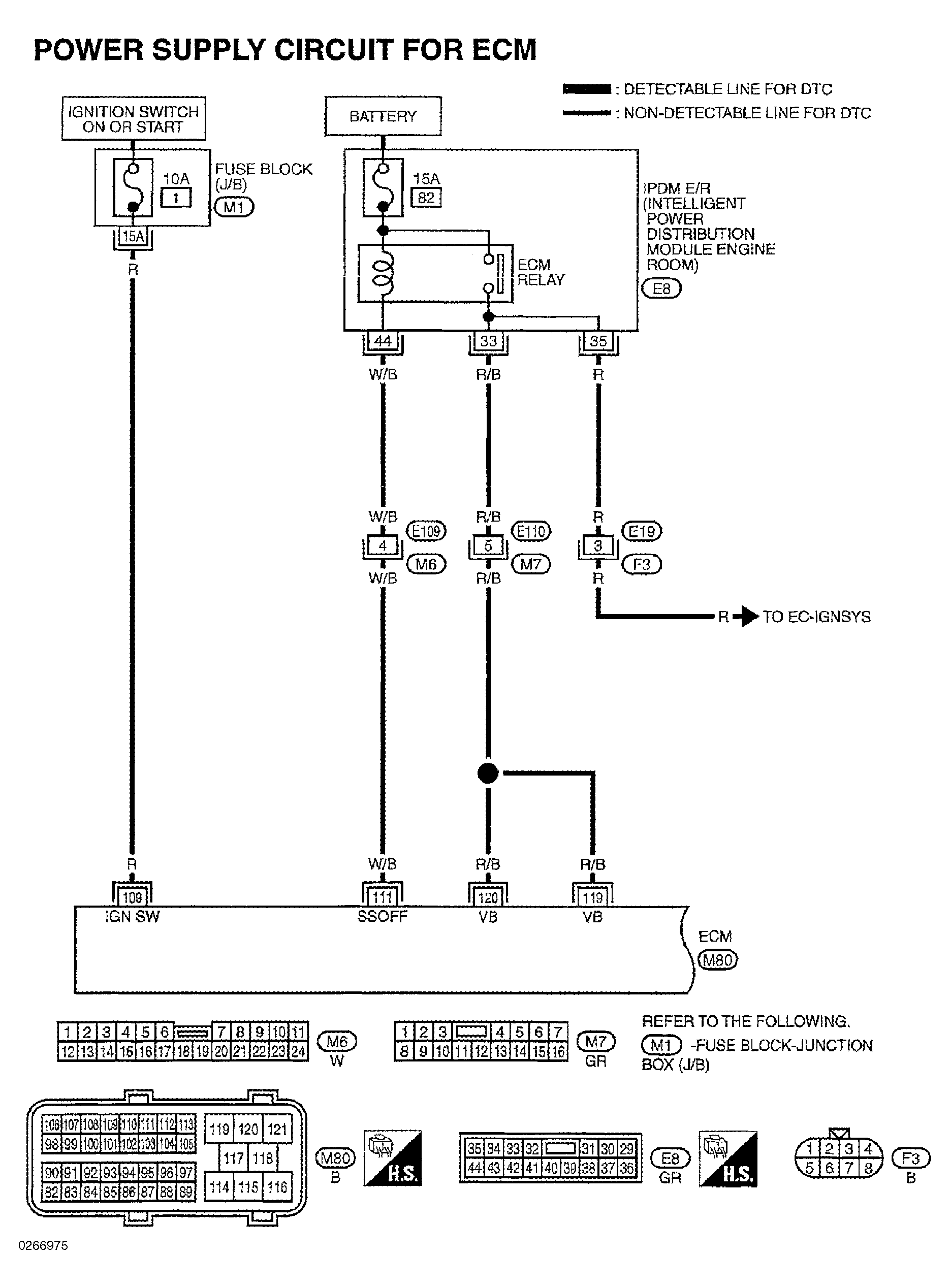

Fig 1: ECM Power Supply Circuit Diagnostic Procedure (Murano - 1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

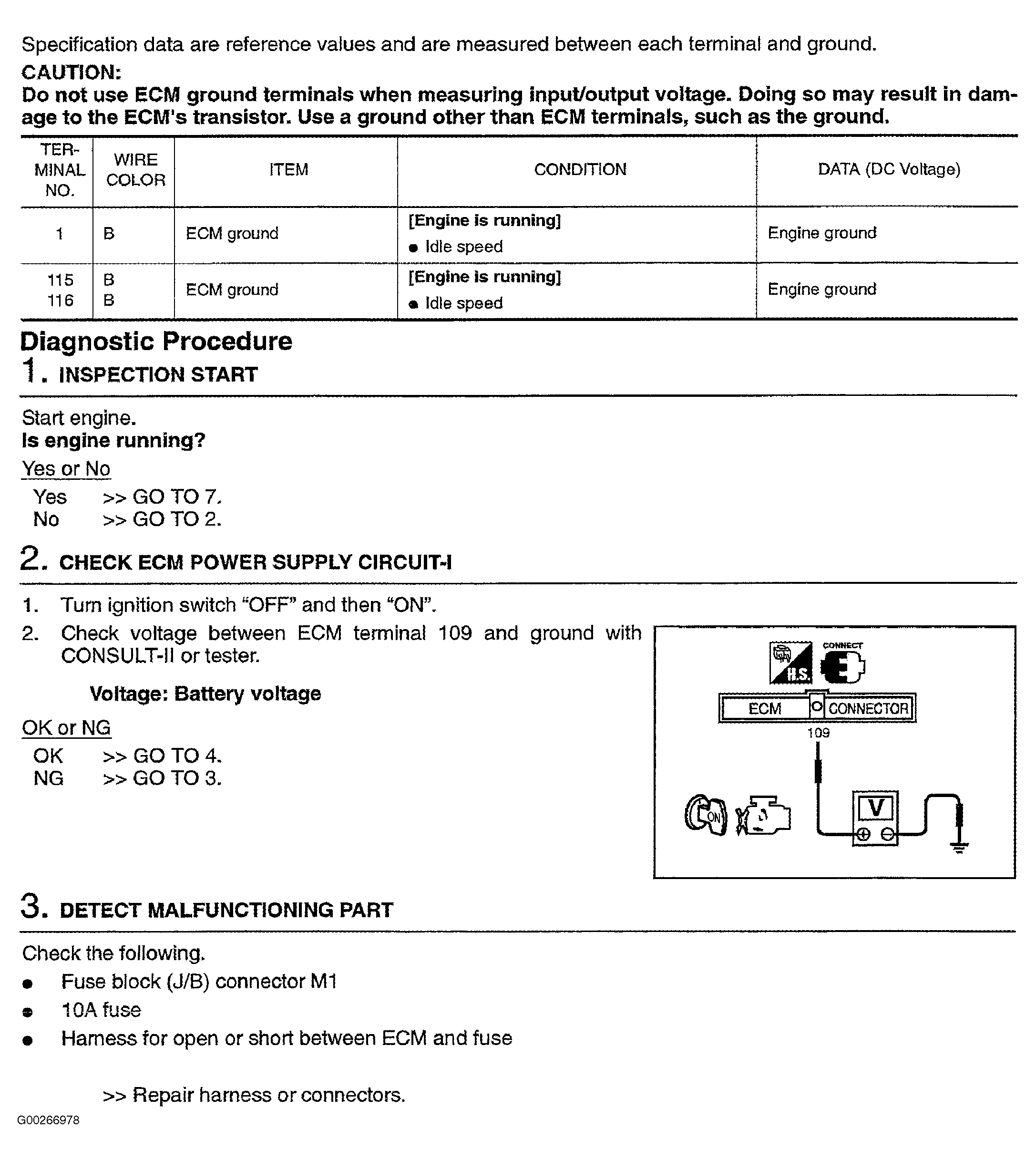

Fig 2: ECM Power Supply Circuit Diagnostic Procedure (Murano - 2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

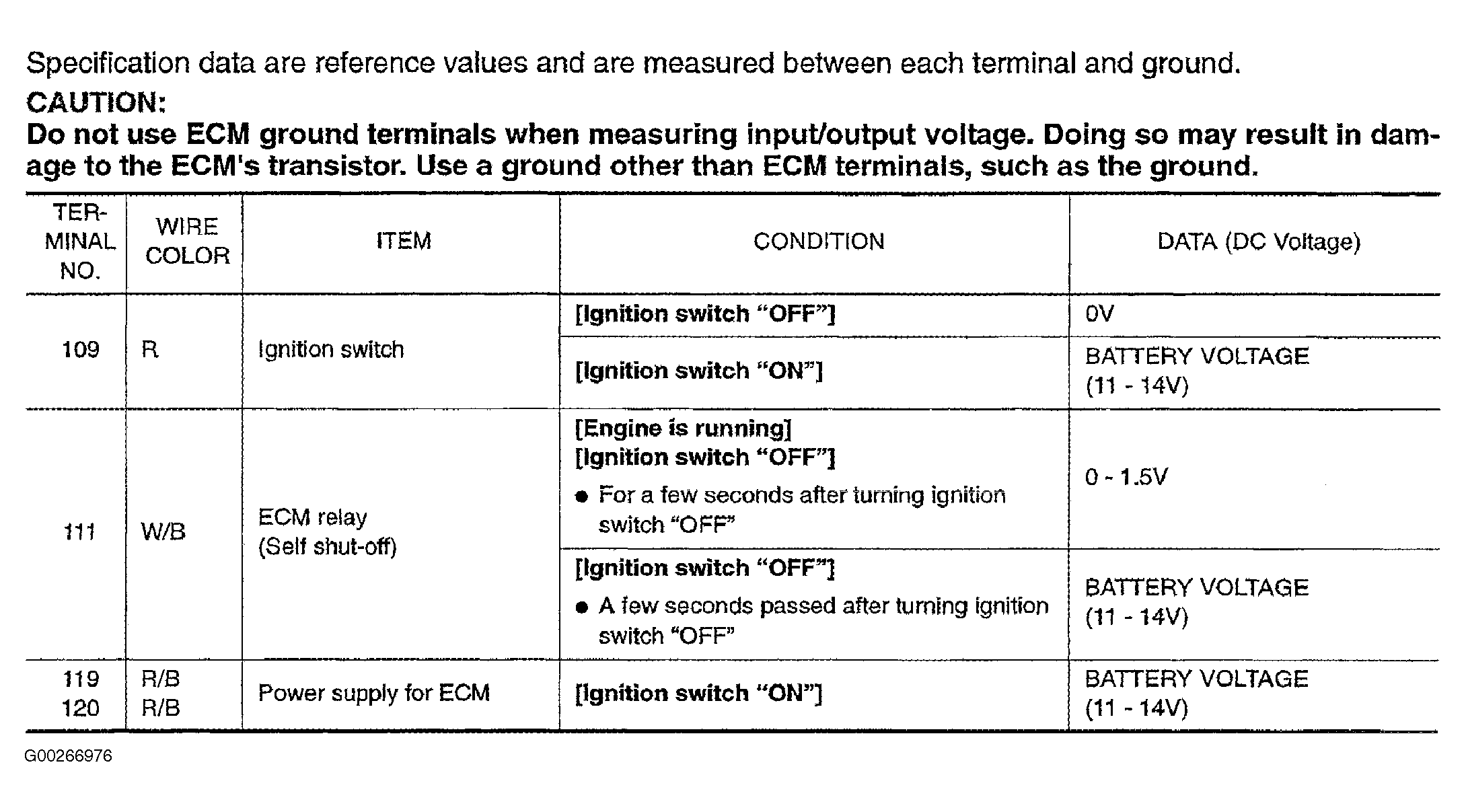

Fig 3: ECM Power Supply Circuit Diagnostic Procedure (Murano - 3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

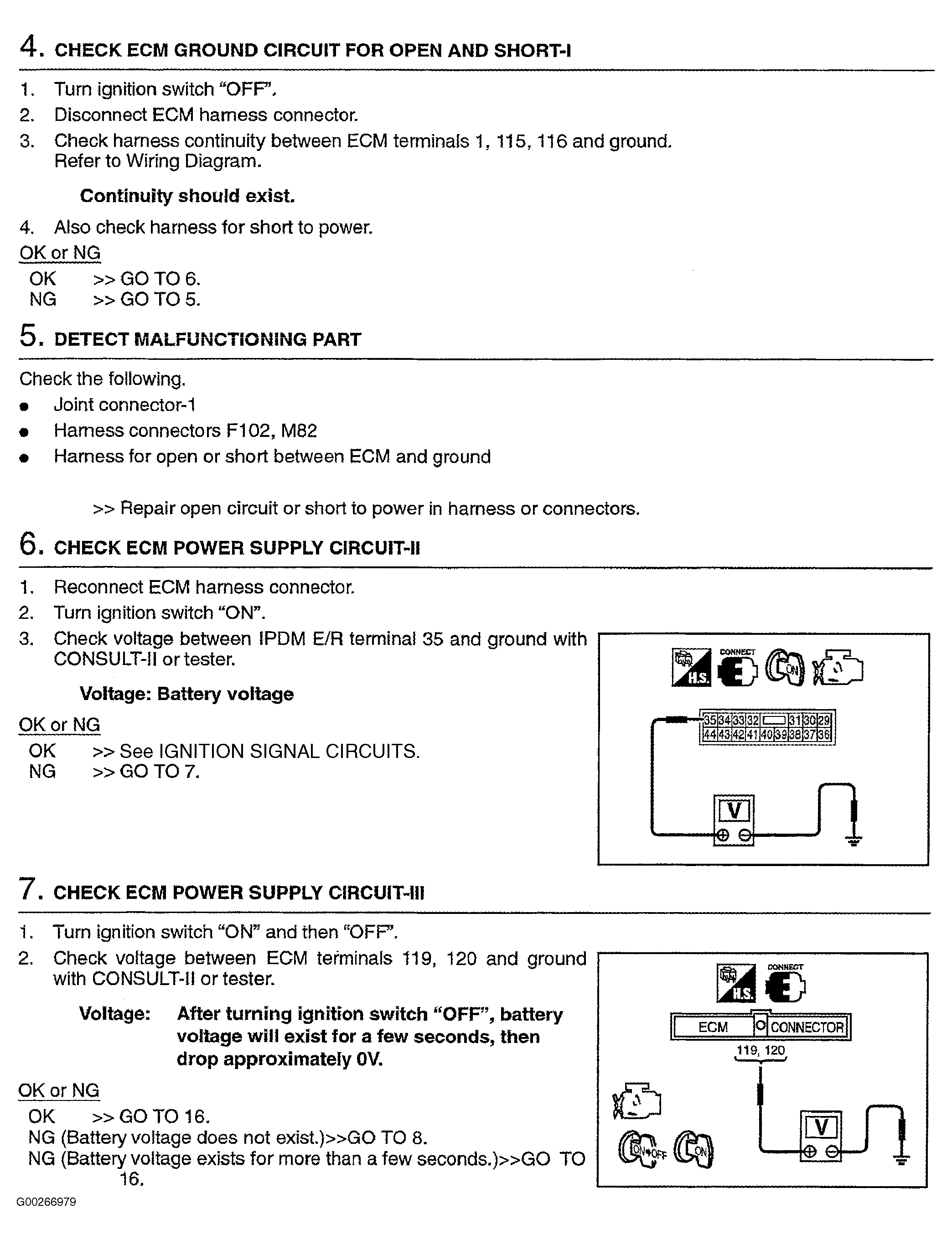

Fig 4: ECM Power Supply Circuit Diagnostic Procedure (Murano - 4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

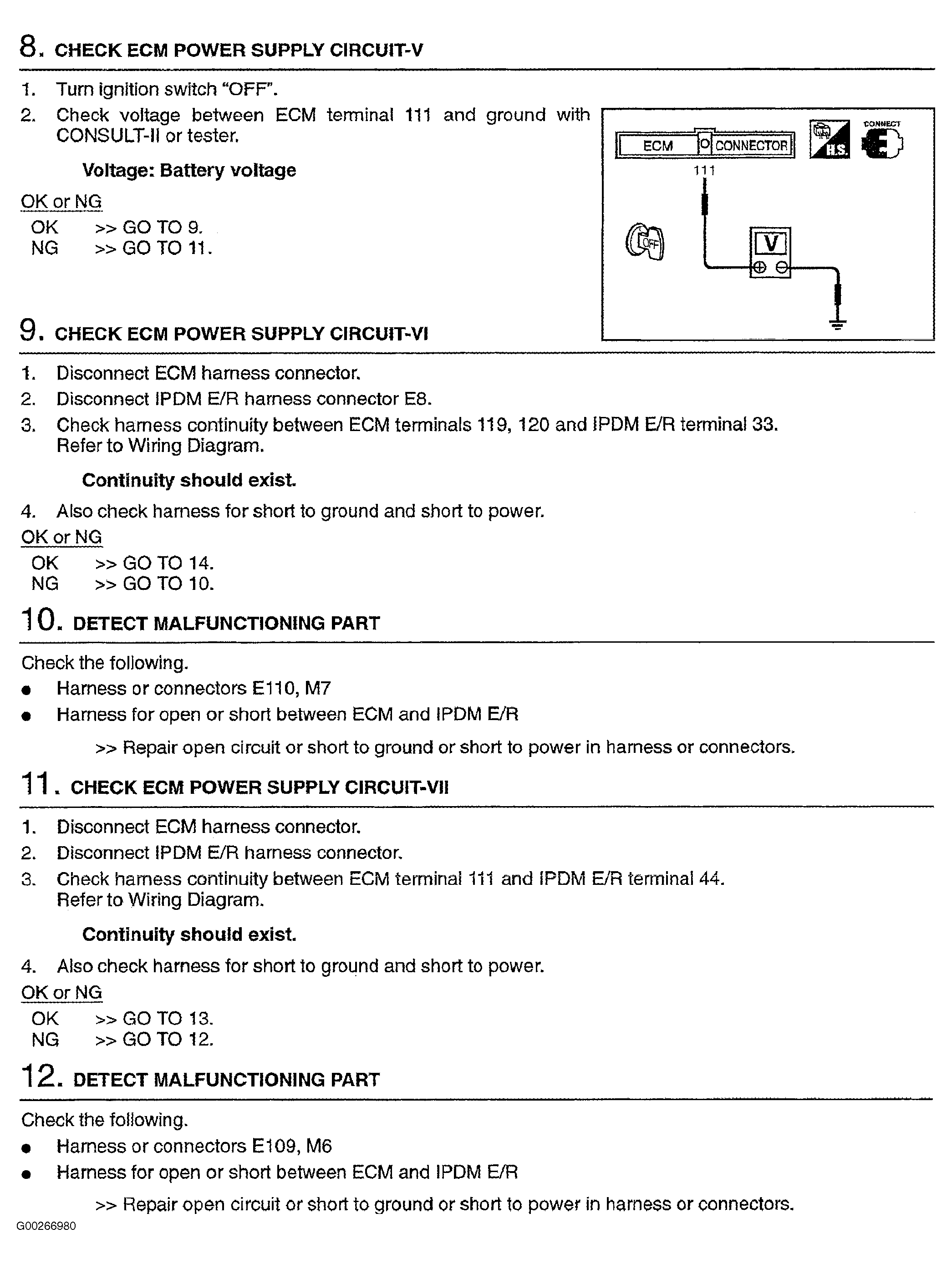

Fig 5: ECM Power Supply Circuit Diagnostic Procedure (Murano - 5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

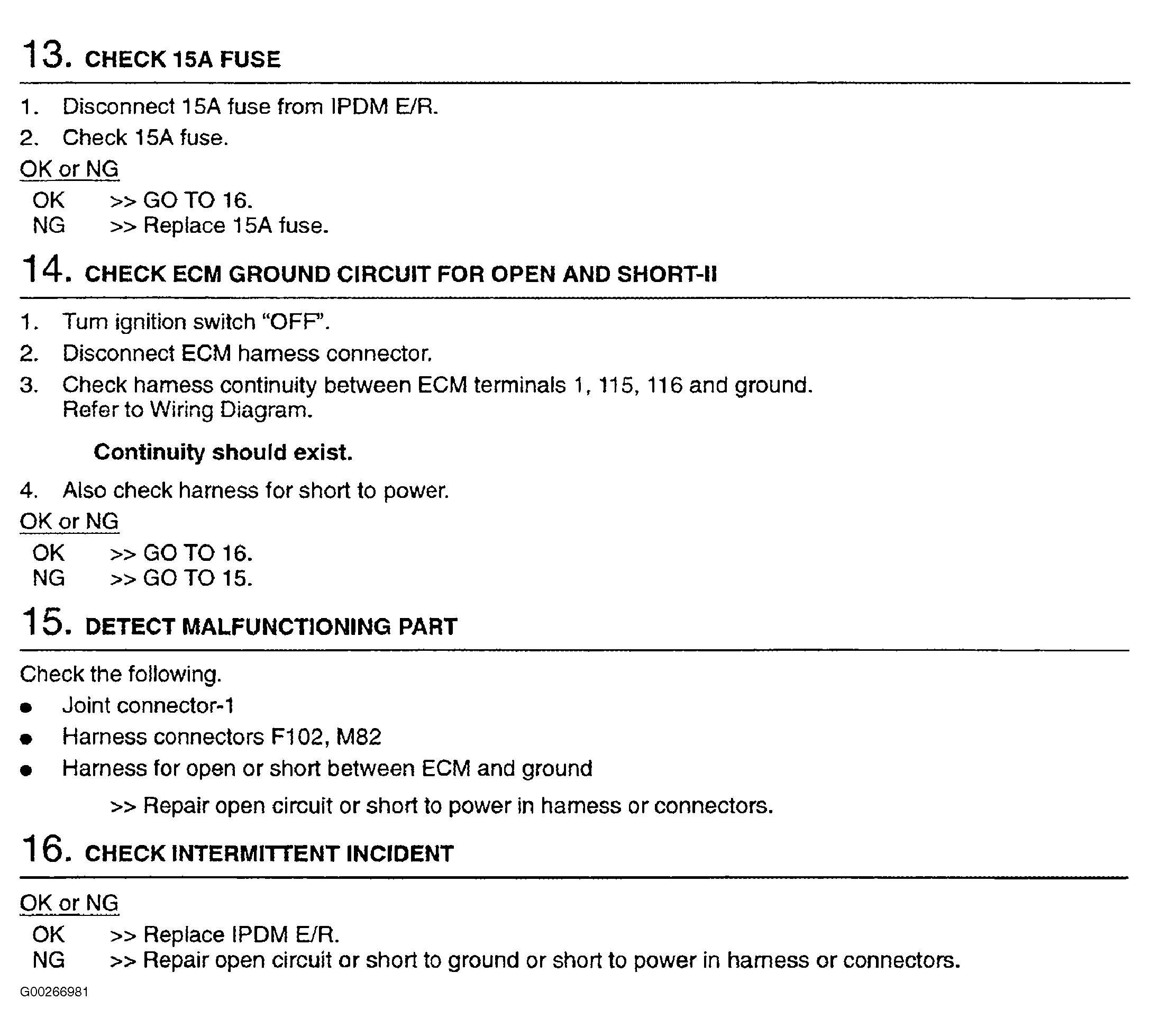

Fig 6: ECM Power Supply Circuit Diagnostic Procedure (Murano - 6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: ECM Power Supply Circuit Diagnostic Procedure (Murano - 7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
