Fuel Injector Circuits (Pathfinder)

For injector circuit test procedure, see Fig 1-Fig 5 . If no problem is indicated at this time, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

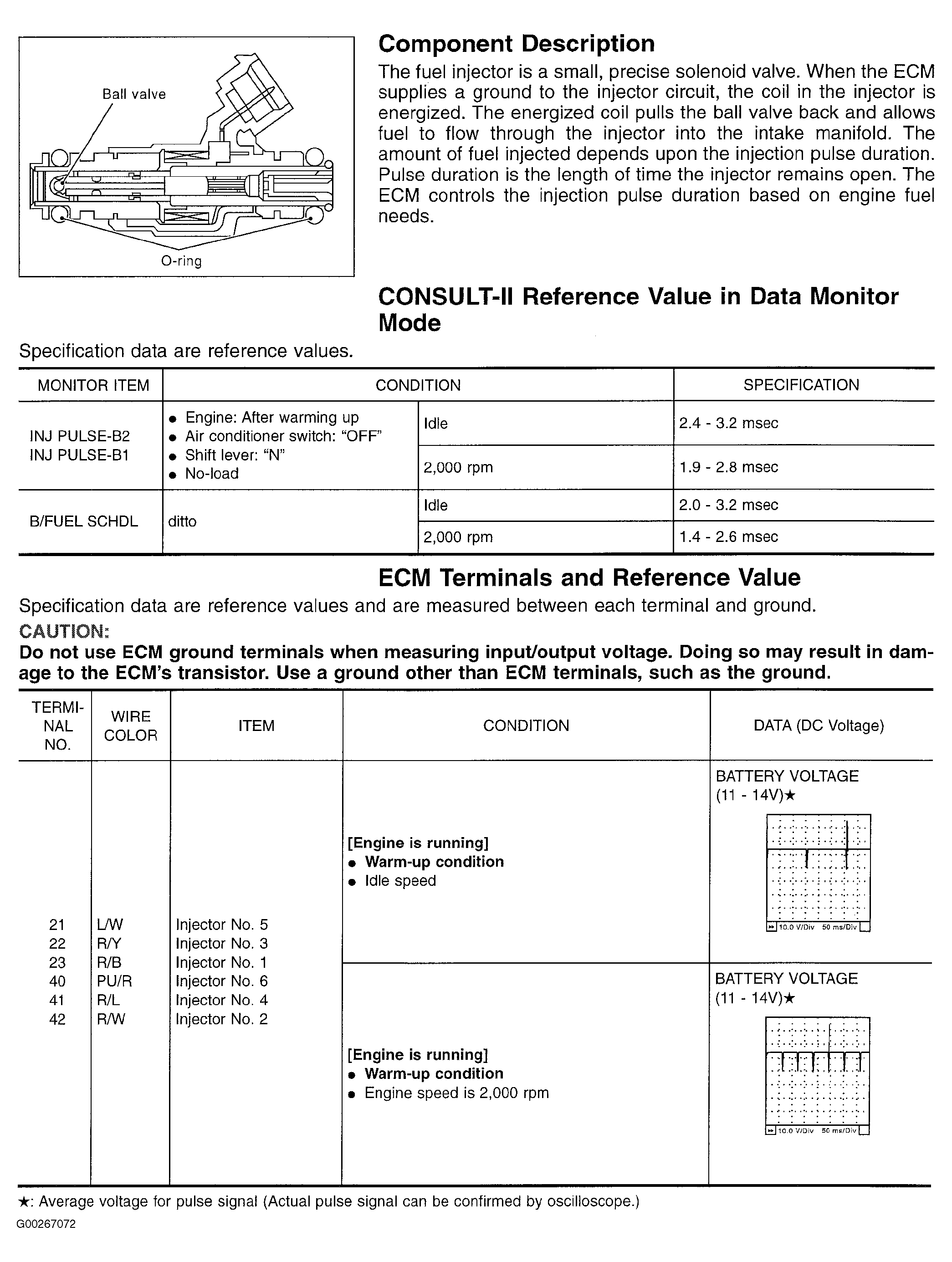

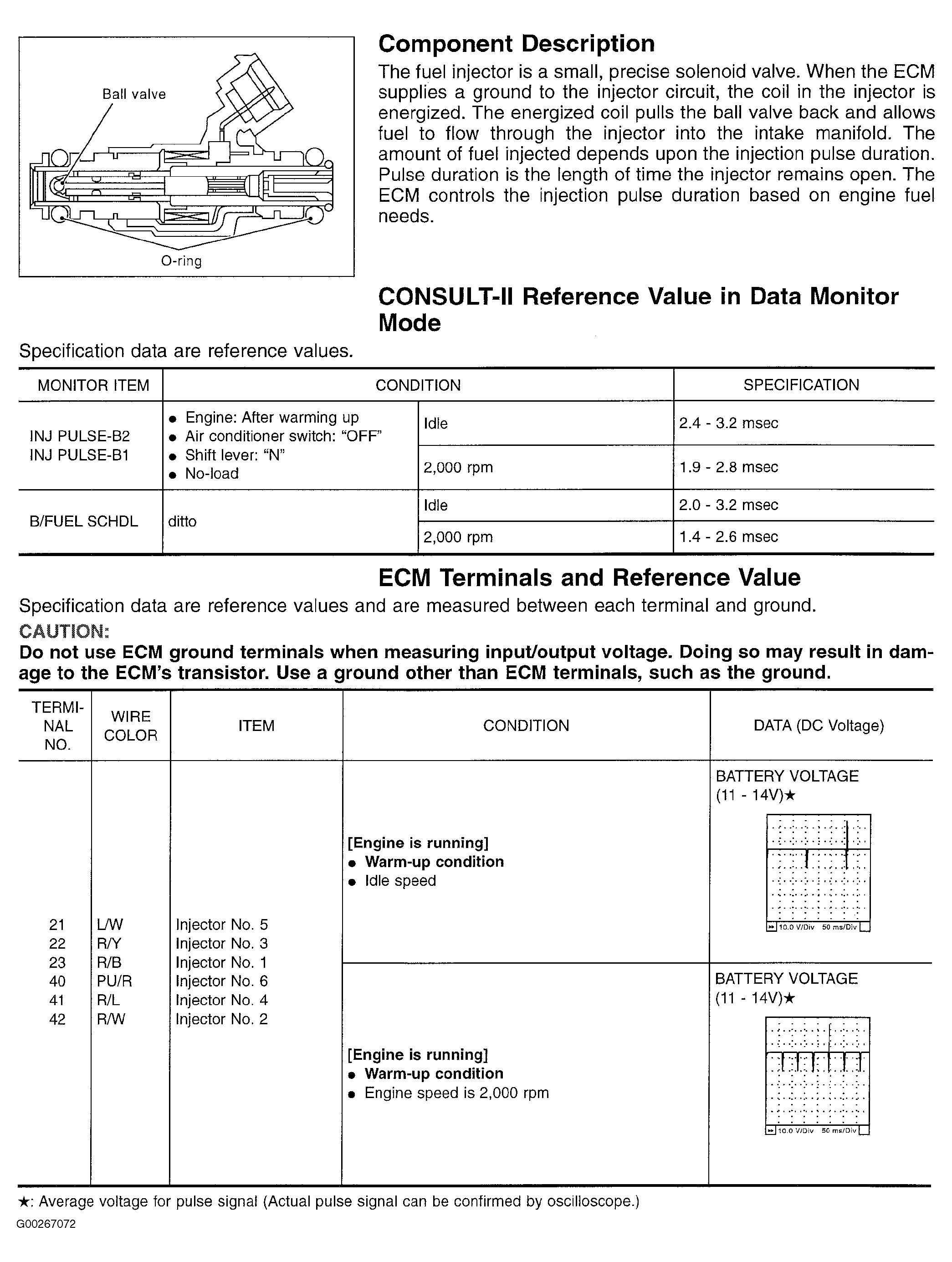

Fig 1: Fuel Injector Circuit System & Component Testing Procedure (Pathfinder - 1 Of 5)
G00267072Courtesy of NISSAN MOTOR CO., U.S.A.

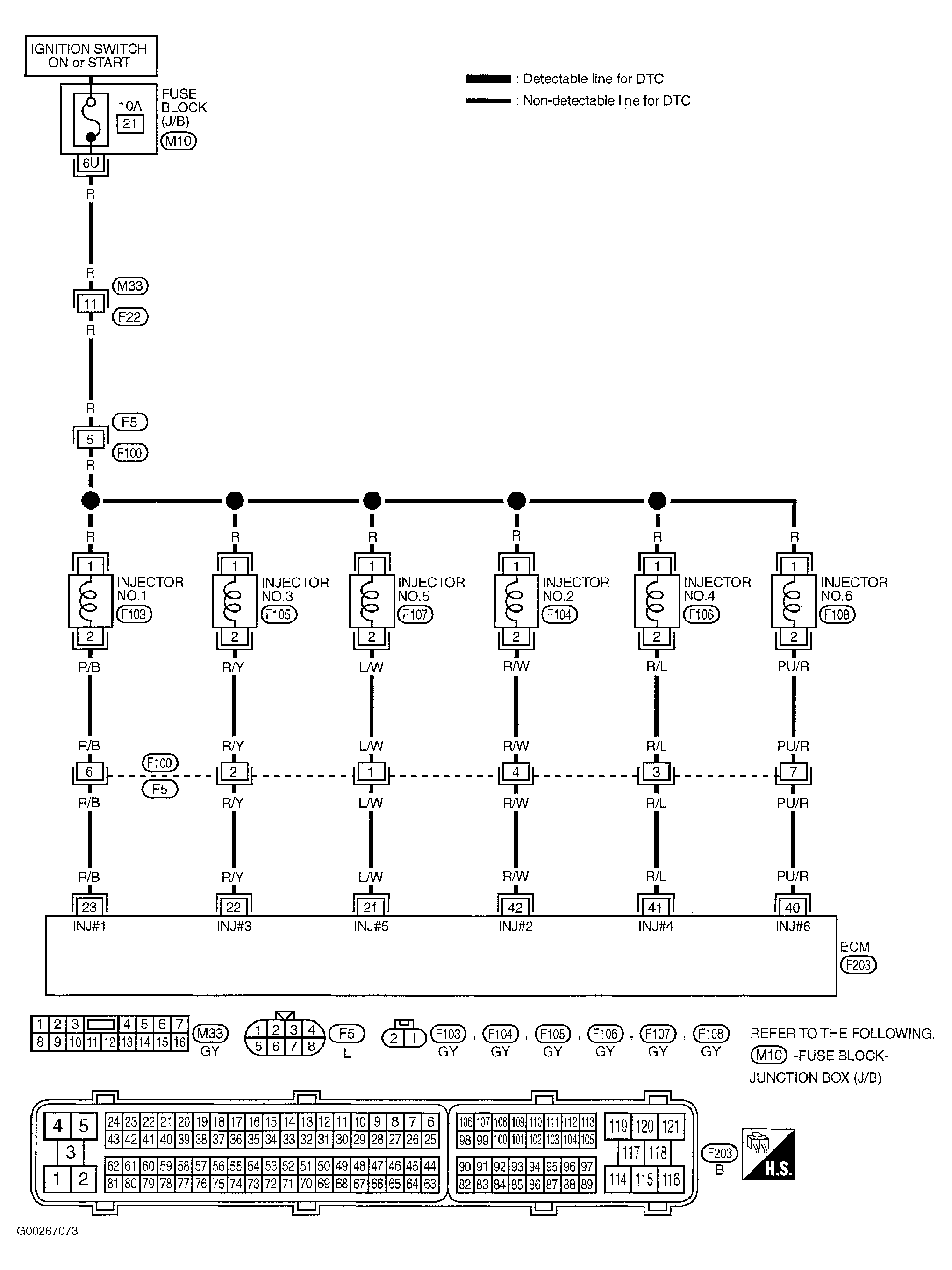

Fig 2: Fuel Injector Circuit System & Component Testing Procedure (Pathfinder - 2 Of 5)
G00267073Courtesy of NISSAN MOTOR CO., U.S.A.

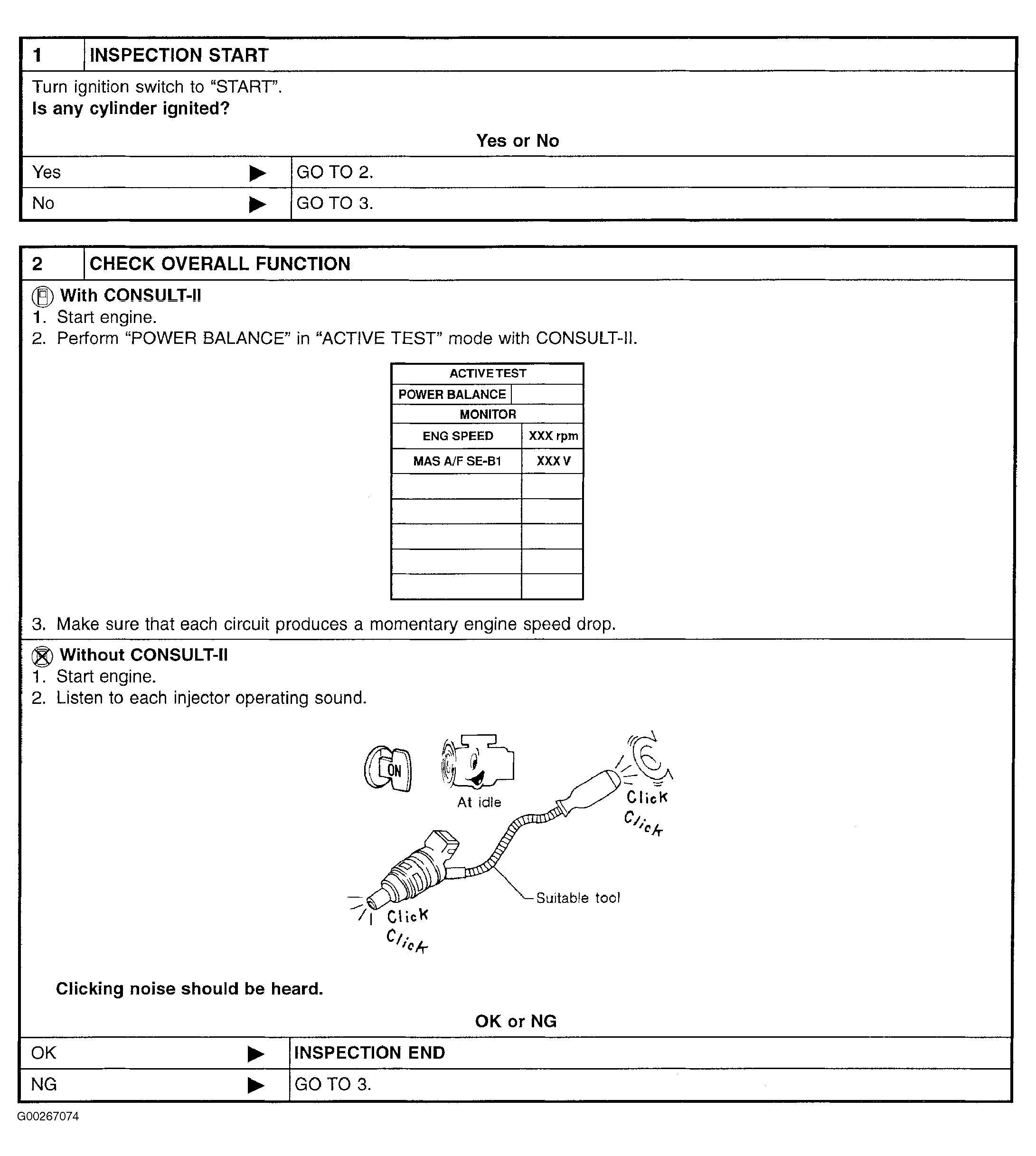

Fig 3: Fuel Injector Circuit System & Component Testing Procedure (Pathfinder - 3 Of 5)
G00267074Courtesy of NISSAN MOTOR CO., U.S.A.

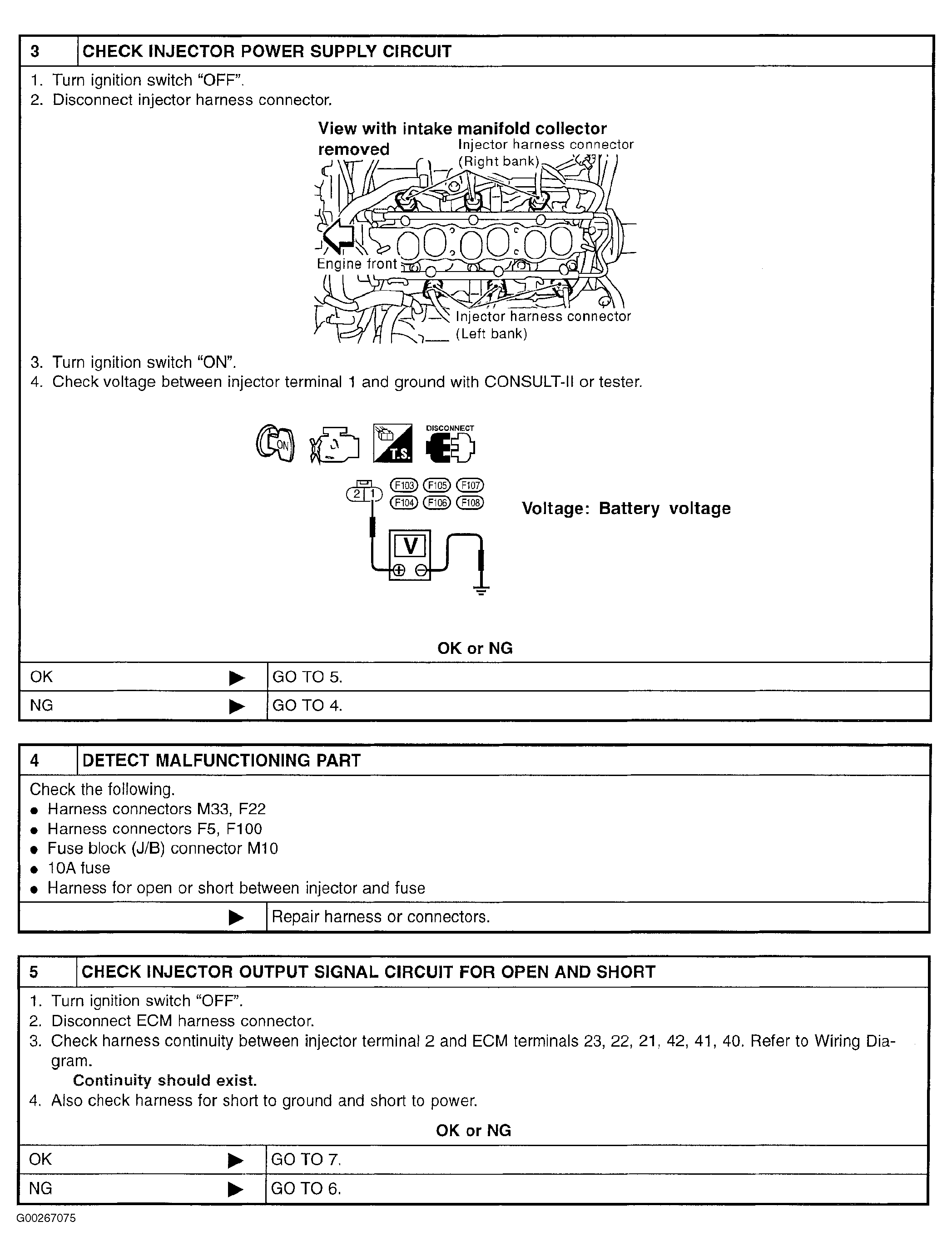

Fig 4: Fuel Injector Circuit System & Component Testing Procedure (Pathfinder - 4 Of 5)
G00267075Courtesy of NISSAN MOTOR CO., U.S.A.

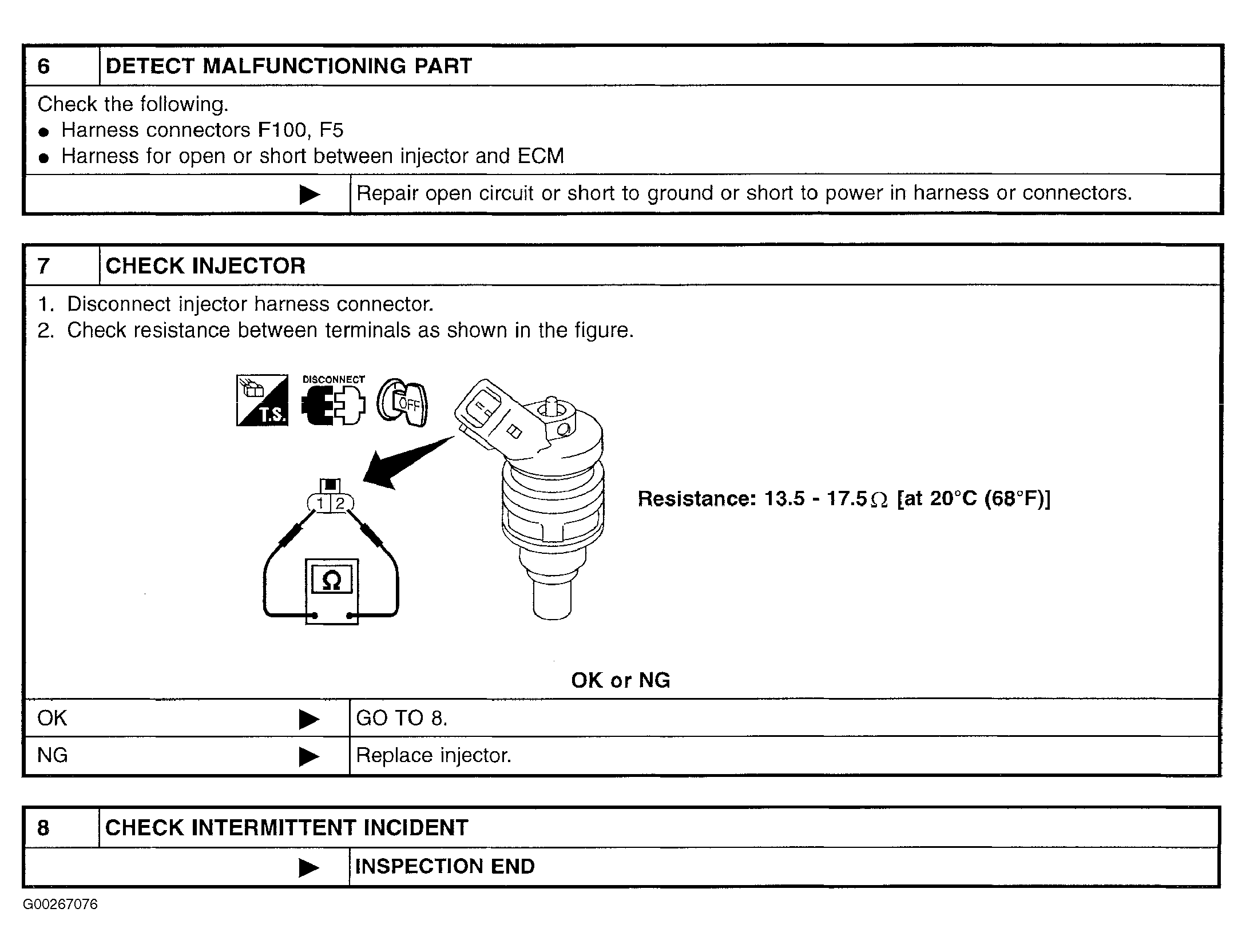

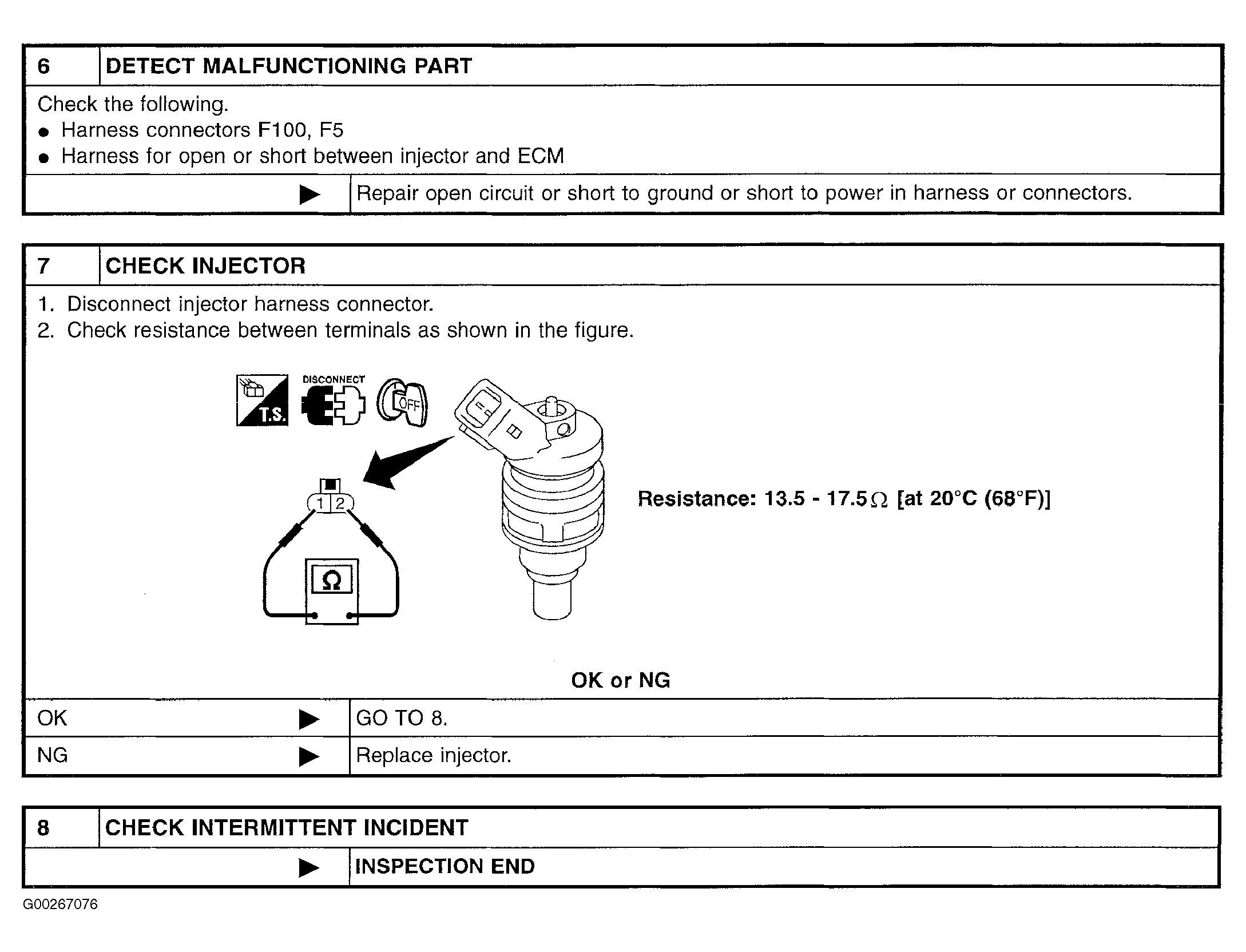

Fig 5: Fuel Injector Circuit System & Component Testing Procedure (Pathfinder - 5 Of 5)
G00267076Courtesy of NISSAN MOTOR CO., U.S.A.
