Electrical Load Signal: Maxima

For electrical load signal circuit diagnosis, see Fig 1-Fig 4 . For rear window defogger circuit check, see appropriate REAR WINDOW DEFOGGERS article in ACCESSORIES & EQUIPMENT. If problem is intermittent, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

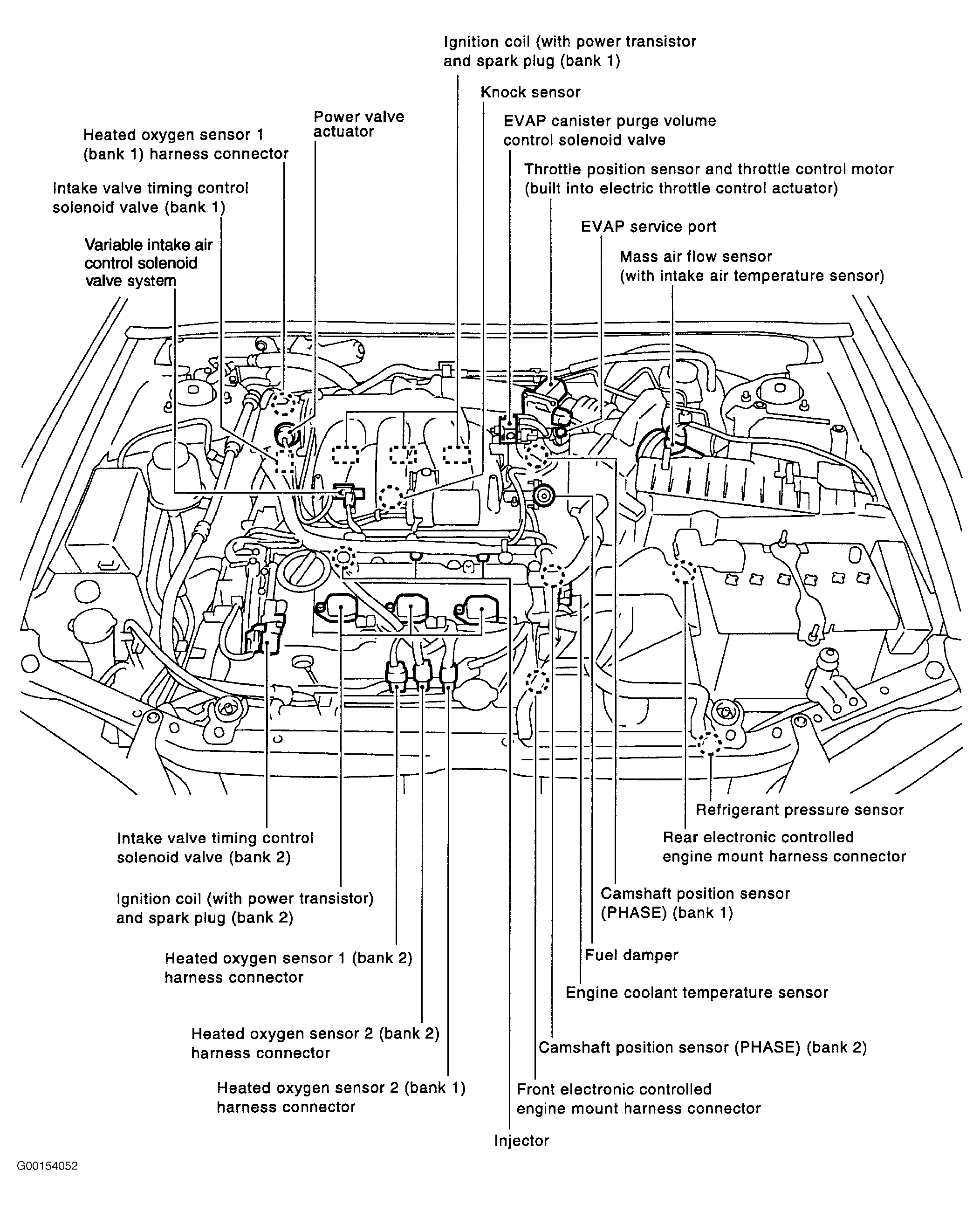

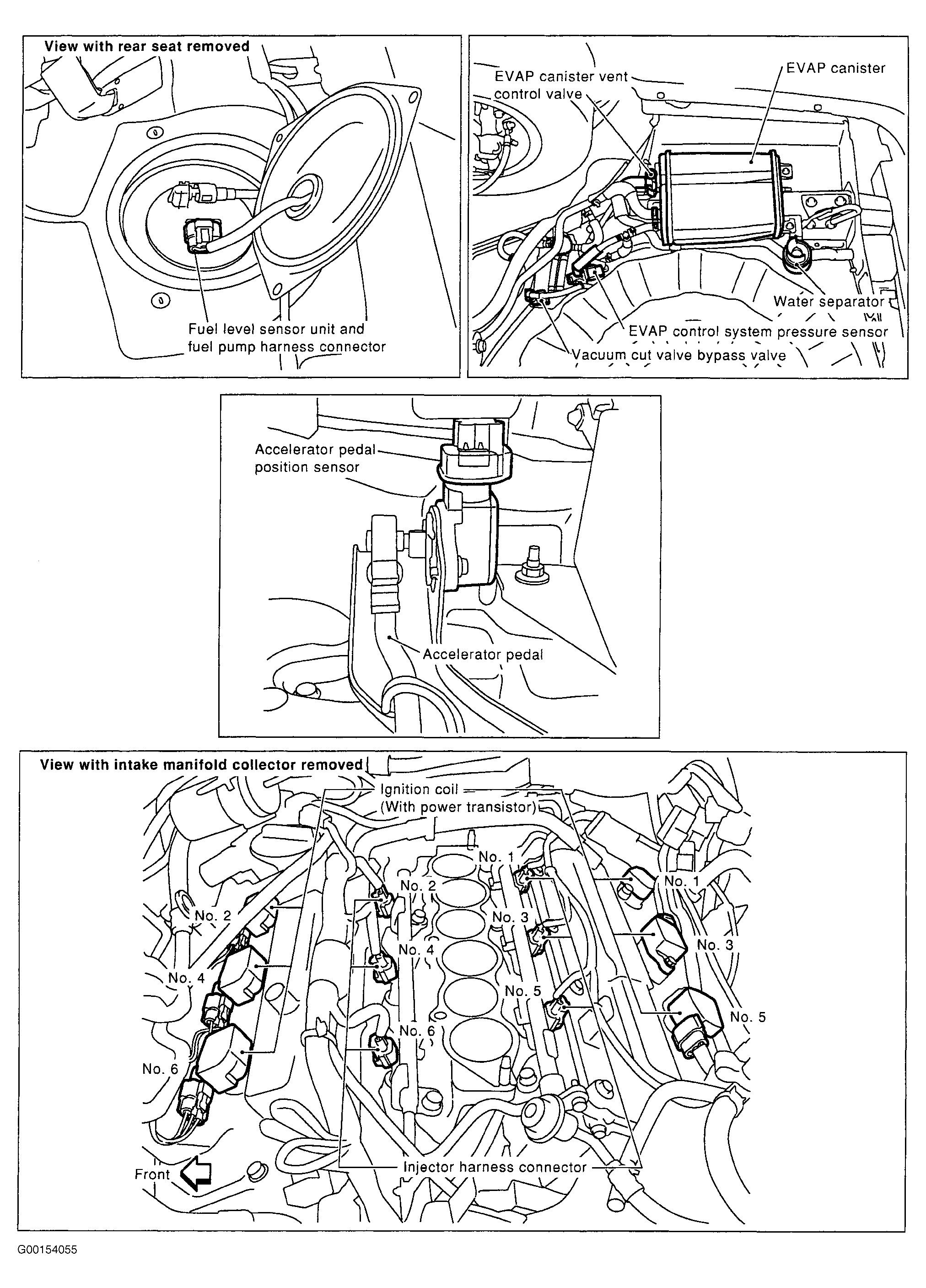

For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Figure. For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

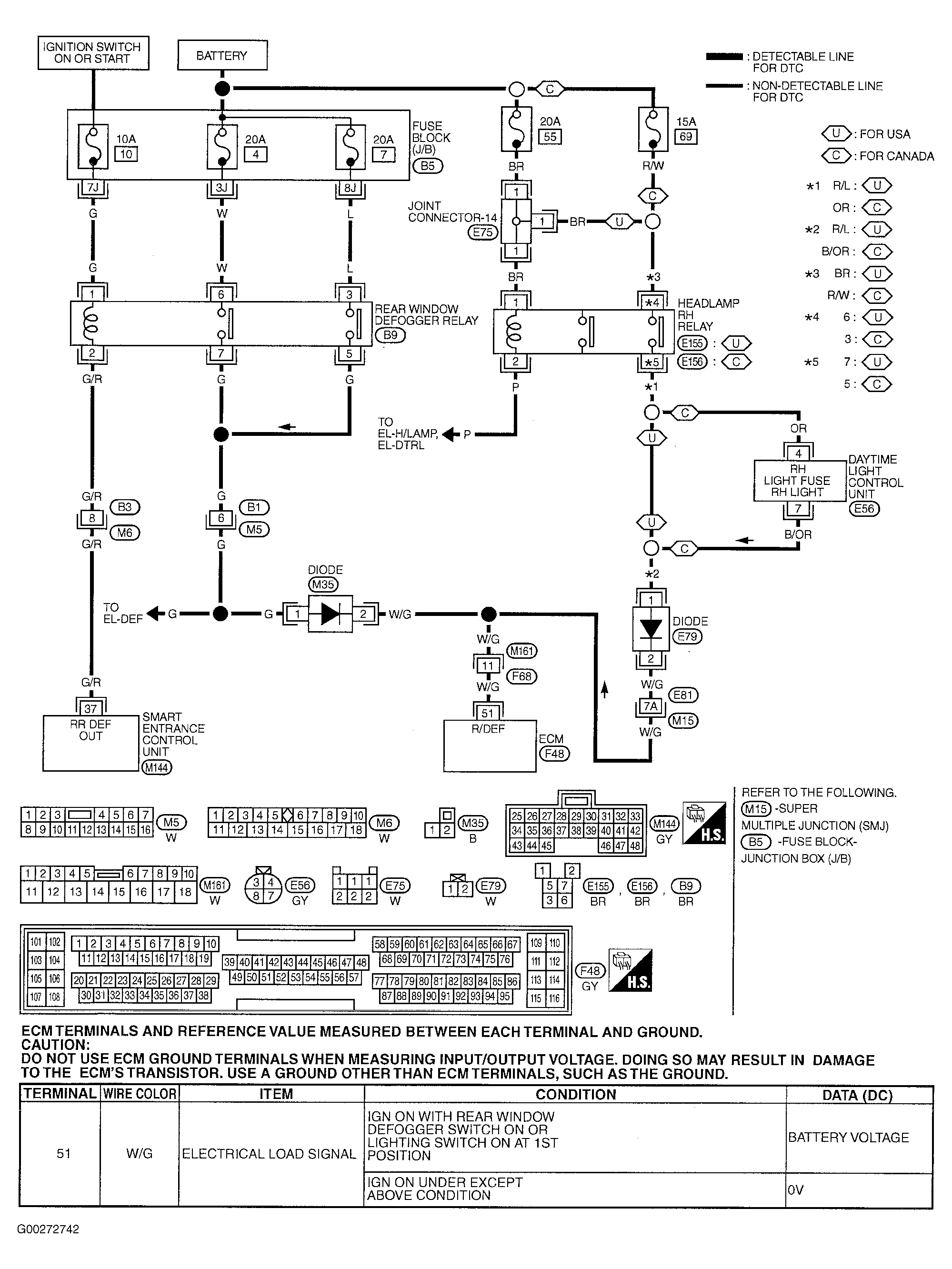

Fig 1: Electrical Load Signal Circuit System & Component Testing Procedure (Maxima - 1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

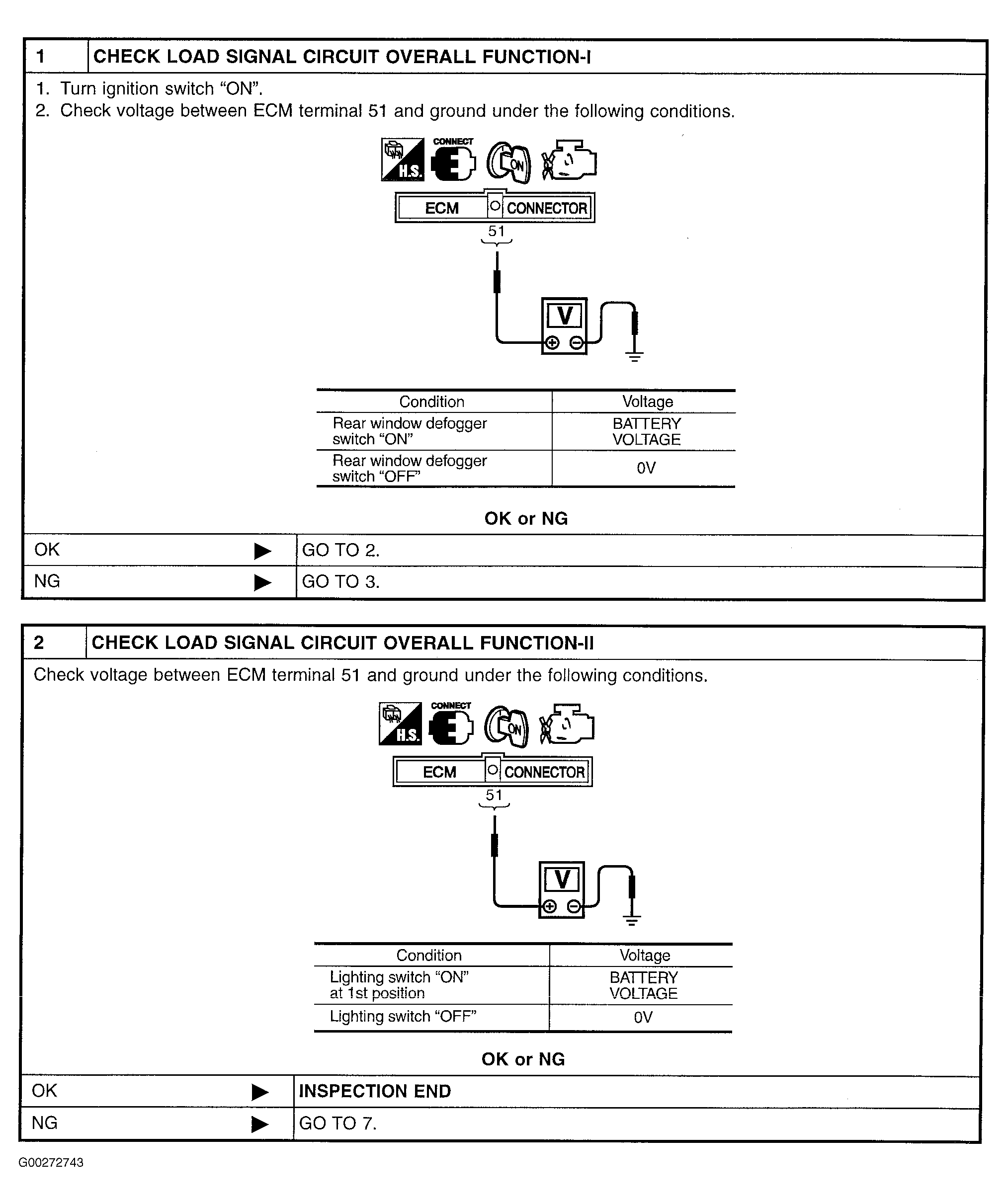

Fig 2: Electrical Load Signal Circuit System & Component Testing Procedure (Maxima - 2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

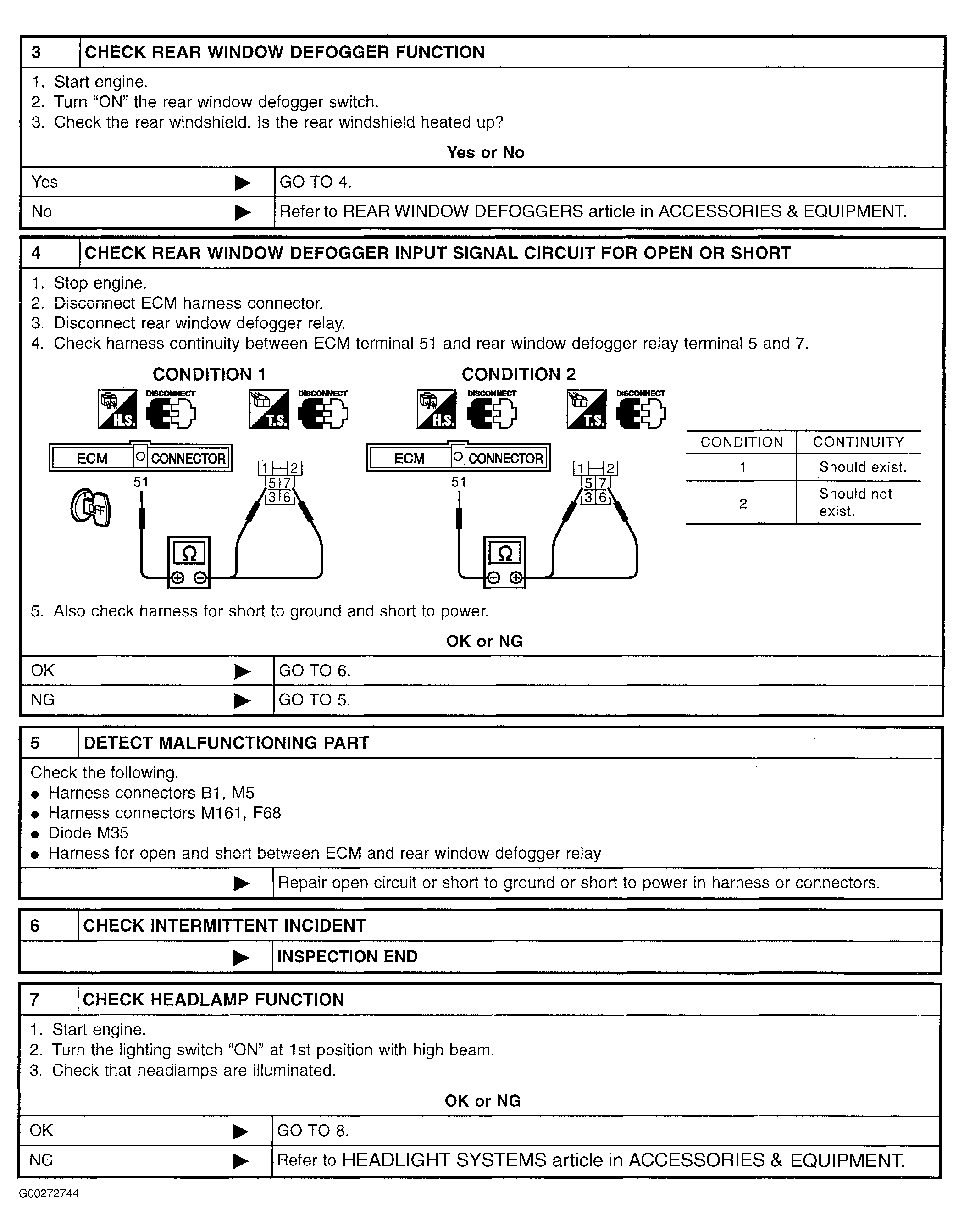

Fig 3: Electrical Load Signal Circuit System & Component Testing Procedure (Maxima - 3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

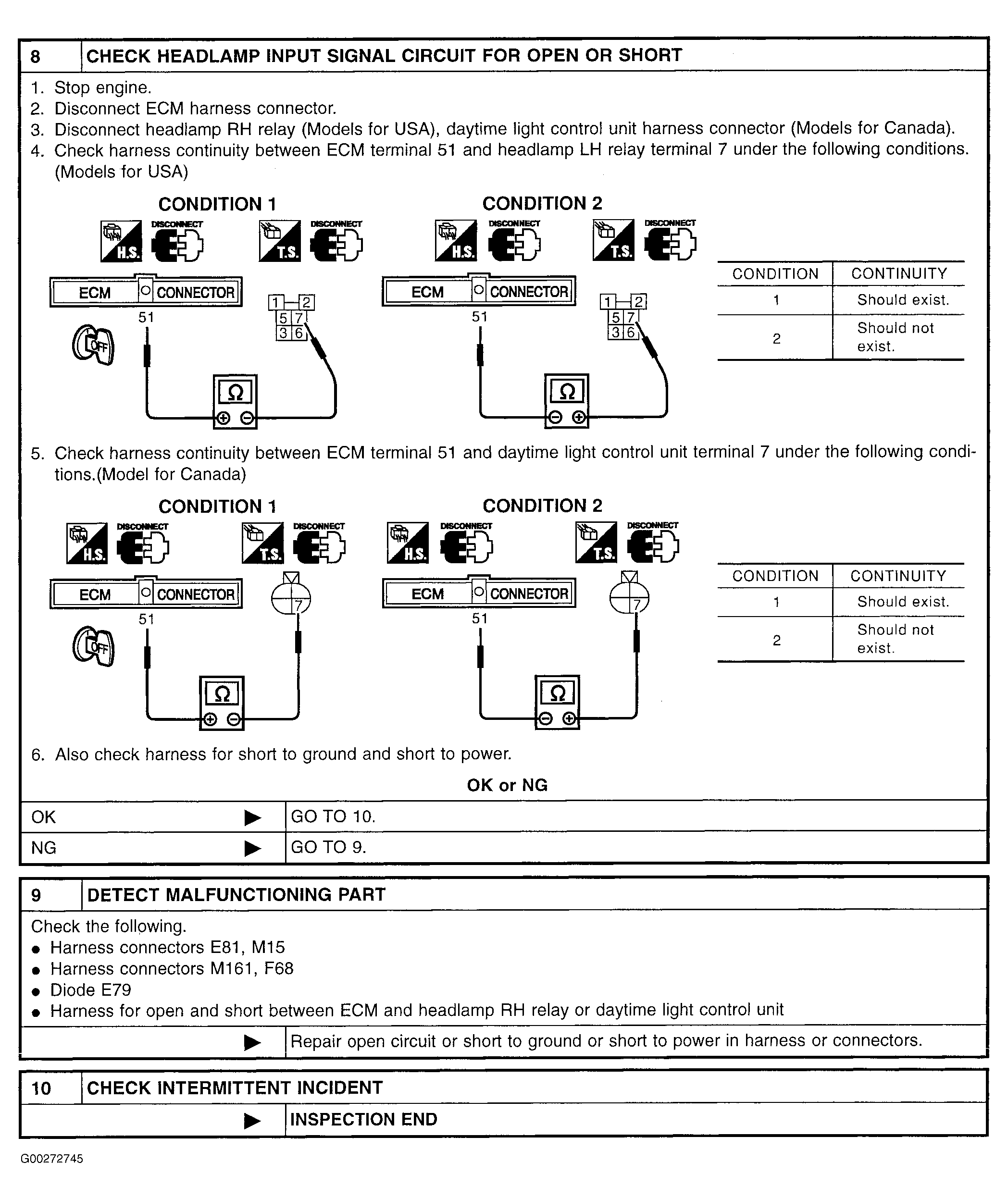

Fig 4: Electrical Load Signal Circuit System & Component Testing Procedure (Maxima - 4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
