Removal And Installation

Disconnect the accelerator pedal position sensor electrical connector.
1. Pull the connector lock back to unlock the connector from the accelerator pedal position sensor.
2. Pull up on the connector to disconnect it from the accelerator pedal position sensor.
Remove the upper and lower pedal assembly nuts.

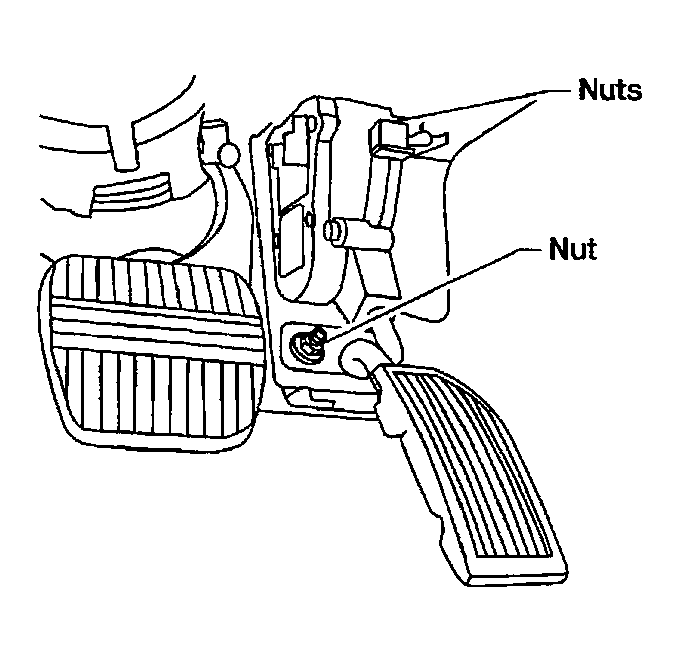

Fig 1: Disconnecting Connector From Accelerator Pedal Position Sensor

G00397932

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the pedal assembly.

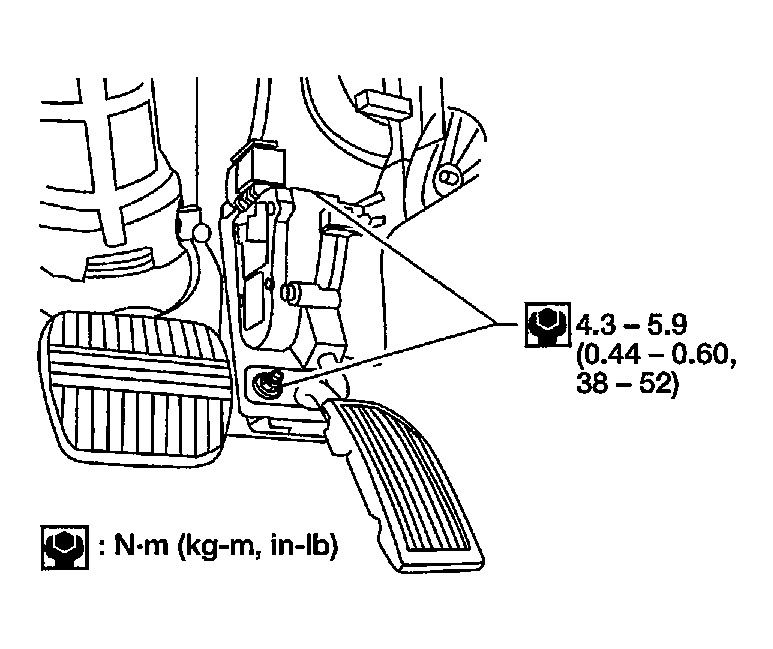

Fig 2: Removing & Installing Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.
- For electrical inspection of the accelerator pedal position sensor. Refer to :
  - DTC P2122 OR P2123 1.8L
  - DTC P2122: ACCELERATOR PEDAL POSITION (APP) SENSOR 1 CIRCUIT LOW INPUT & DTC P2123: ACCELERATOR PEDAL POSITION (APP) SENSOR 1 CIRCUIT HIGH INPUT 2.5L
CAUTION:
- Do not disassemble the pedal assembly. Do not remove the accelerator pedal position sensor from the pedal assembly.
- Avoid impact from dropping during handling.
- Keep the pedal assembly away from water.
Installation is in the reverse order of removal.

Fig 3: Accelerator Pedal Position Sensor & Electrical Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.
- Check that the accelerator pedal moves through the full specified distance of pedal travel.

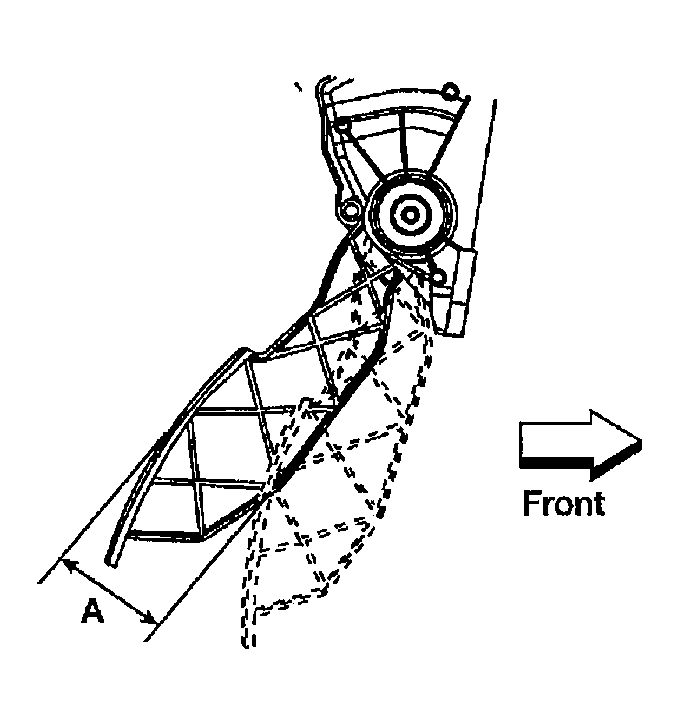

  Fig 4: Identifying Accelerator Pedal Travel
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Pedal Travel "A": 52.6 - 58.2 mm (2.07 - 2.29 in)
CAUTION: When the harness connector of the accelerator pedal position sensor is disconnected, perform the "Accelerator Pedal Released Position Learning". Refer to ACCELERATOR PEDAL RELEASED POSITION LEARNING
