Windshield And Windows: Installation

WARNING:
  • Keep heat and open flames away as primers and adhesive are flammable.
  • The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid contact with the skin and eyes.
  • Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.
  • Driving the vehicle before the urethane adhesive has completely cured may affect the performance of the windshield in case of an accident.
CAUTION:
  • Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.
  • Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
  • Do not leave primers or adhesive cartridge unattended with their caps open or off.
  • The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely cured. Curing time varies depending on temperature and humidities. The curing time will increase under higher temperatures and lower humidities.

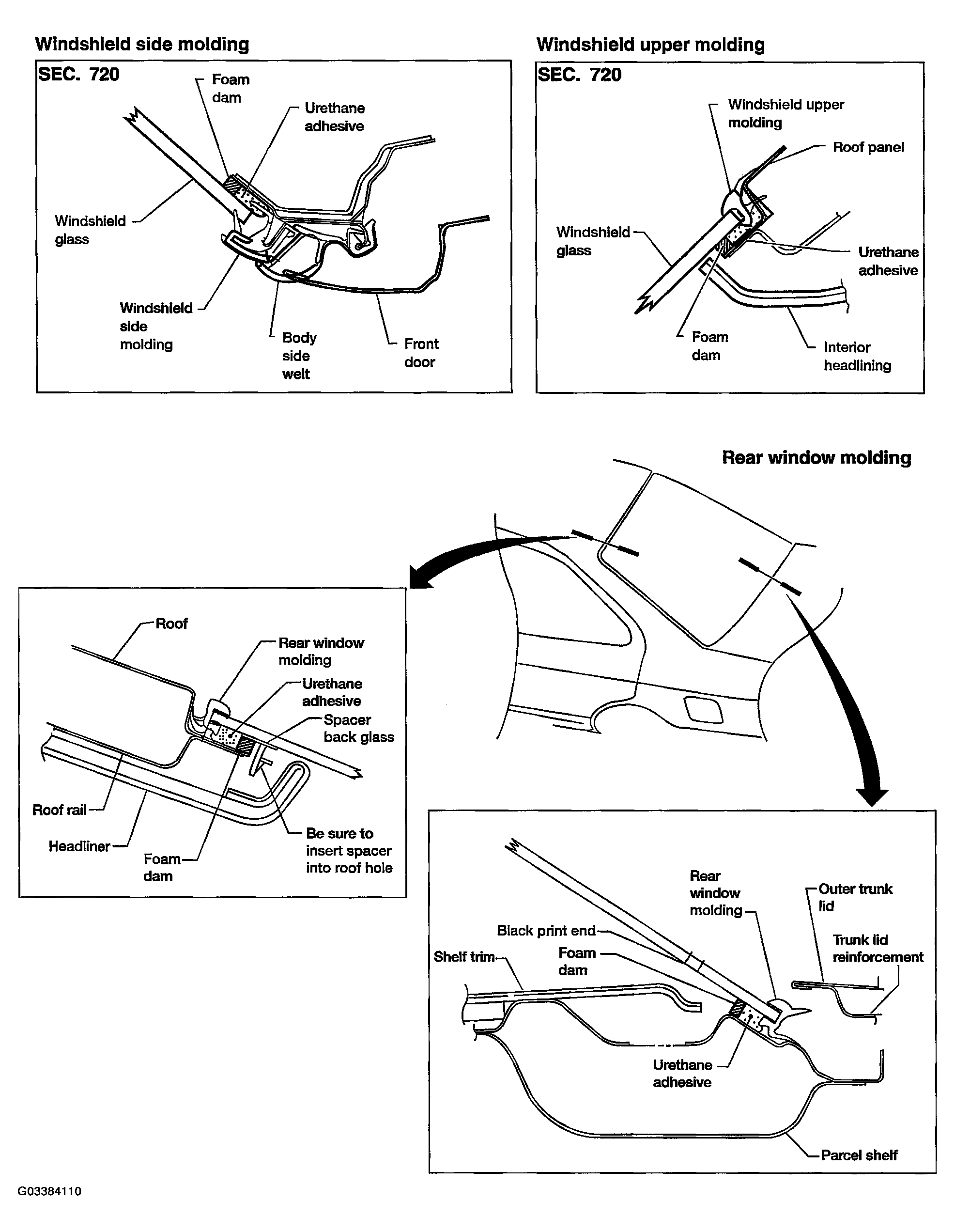

Fig 1: Identifying Windshield And Rear Window Components
G03384110Courtesy of NISSAN MOTOR CO., U.S.A.
