ECM Locations

NOTE: For ECM locations, refer to appropriate illustration. See Fig 1 -Fig 7 .

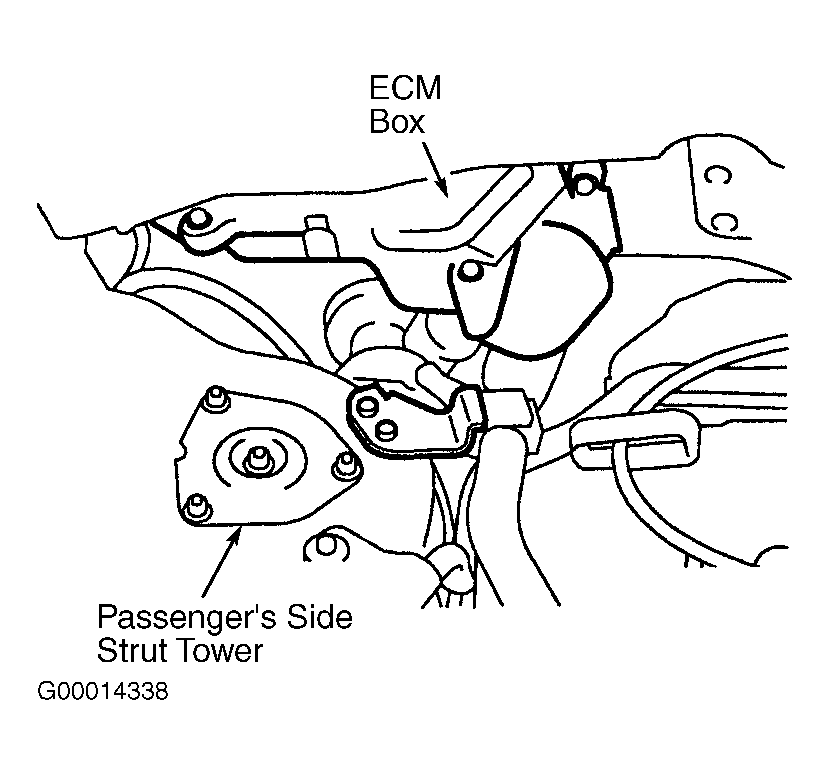

Fig 1: Locating ECM (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

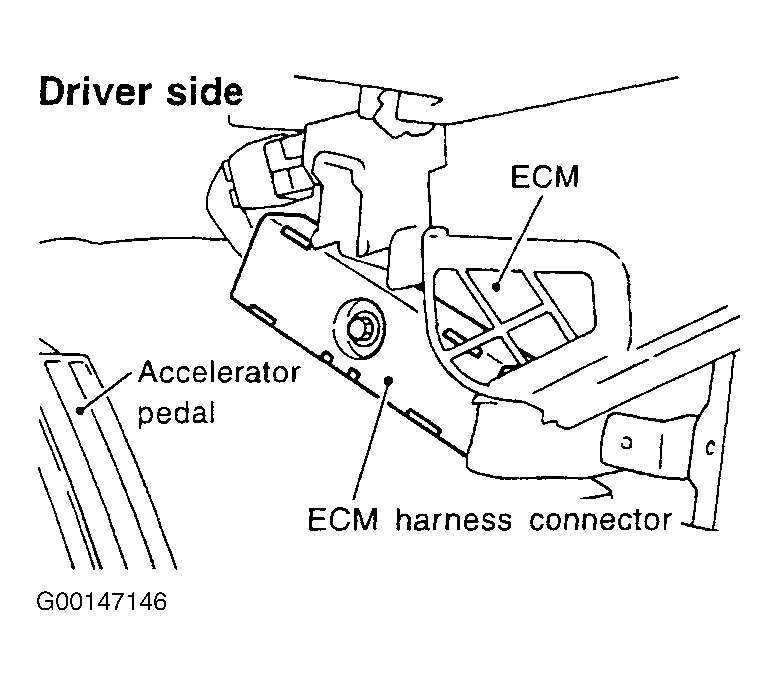

Fig 2: Locating ECM & ECM Relay (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

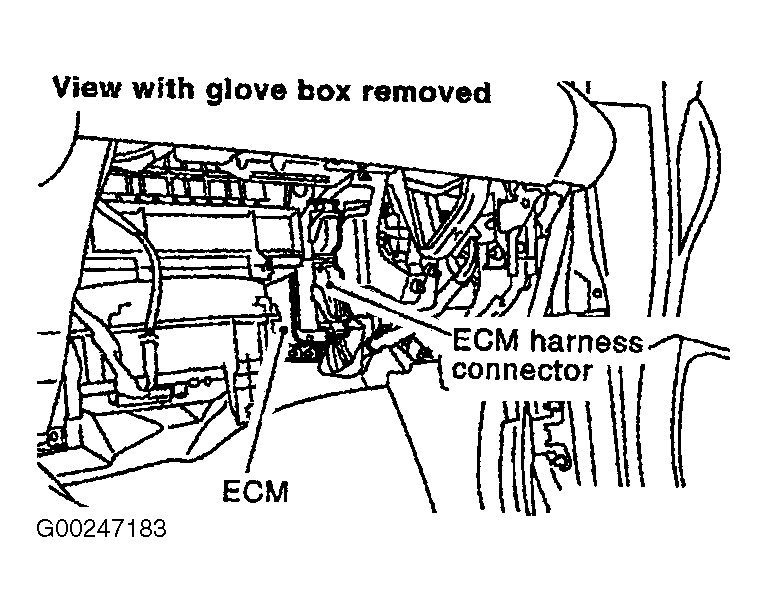

Fig 3: Locating ECM (Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

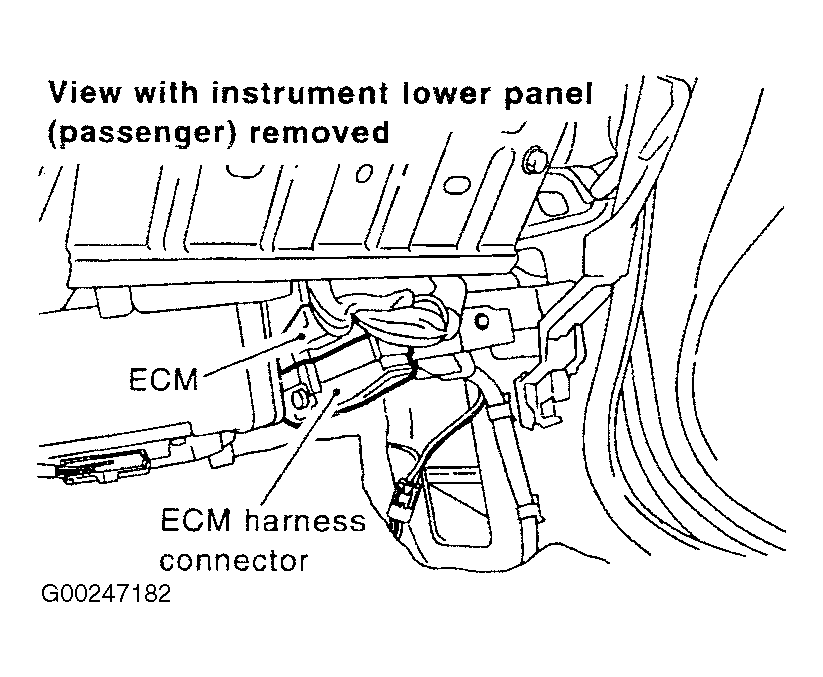

Fig 4: Locating ECM (Murano)

Courtesy of NISSAN MOTOR CO., U.S.A.

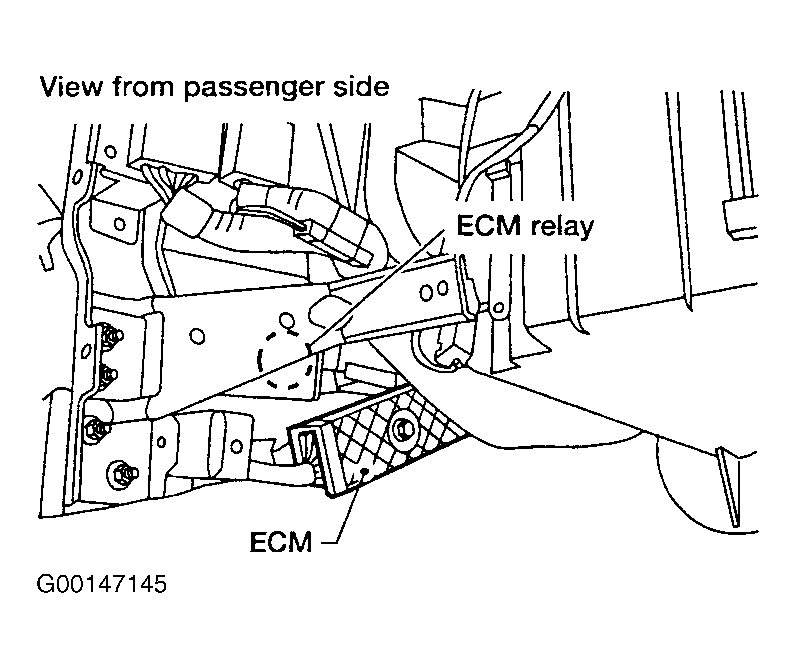

Fig 5: Locating ECM (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

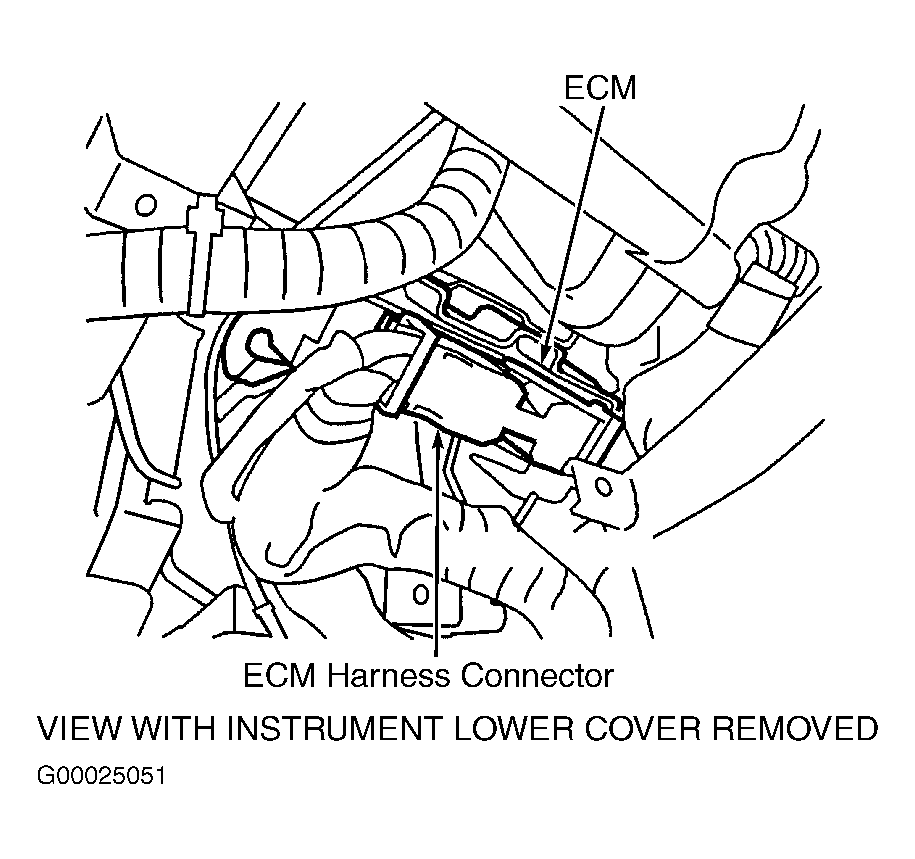

Fig 6: Locating ECM (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Locating ECM (Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Locating ECM (350Z)

Courtesy of NISSAN MOTOR CO., U.S.A.
