Engine Controls - Pin Voltage Charts: Introduction
Pin voltage charts are used for diagnosing intermittent symptoms and faults that are unable to be resolved during self-diagnostics. Pin voltage tests ensure the ECM is receiving and transmitting proper voltage and other signals. Before performing pin voltage tests, ensure engine mechanical condition has been thoroughly inspected and self-diagnostics has been attempted. Technical Service Bulletins (TSBs) may also be helpful in correcting a hard to diagnose problem.
NOTE:

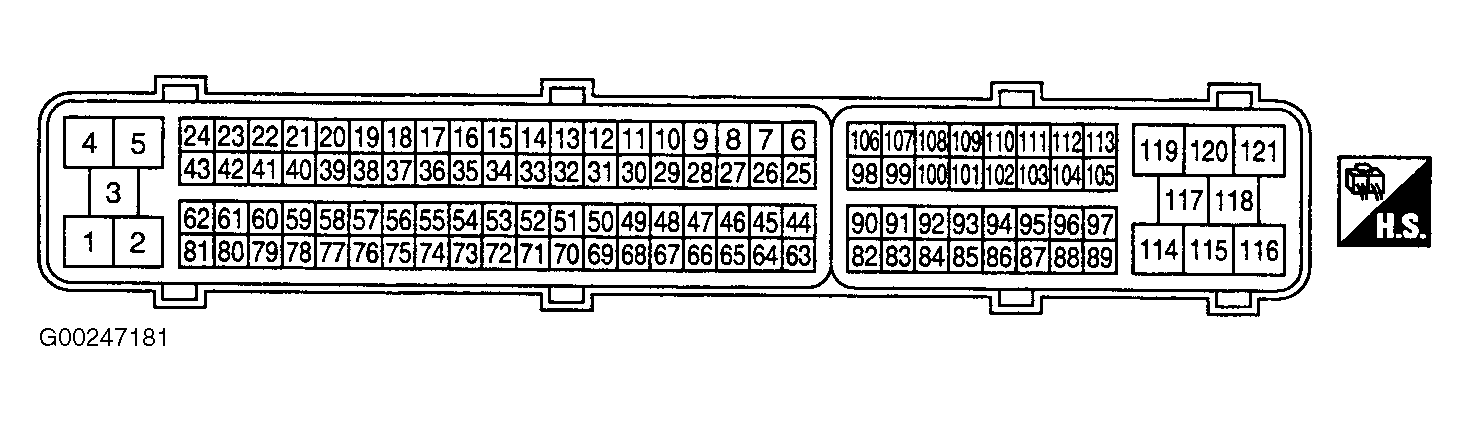

Harness connector should remain plugged in during testing procedures. Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Voltage readings may vary slightly due to battery condition or charging rate. When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. Harness side of connectors are shown in ECM harness connector illustrations. See Fig 1
, Fig 2
or Fig 3
.
