VIAS System & Component Testing (Murano)

For VIAS system diagnostic procedure, see Fig 1-Fig 4 .

For engine control system component locations, see Figure-Figure . For ECM location, connector and terminal view, see Fig 5. To identify circuits referenced in testing, see ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

For removal and installation of components, see appropriate REMOVAL & INSTALLATION article.

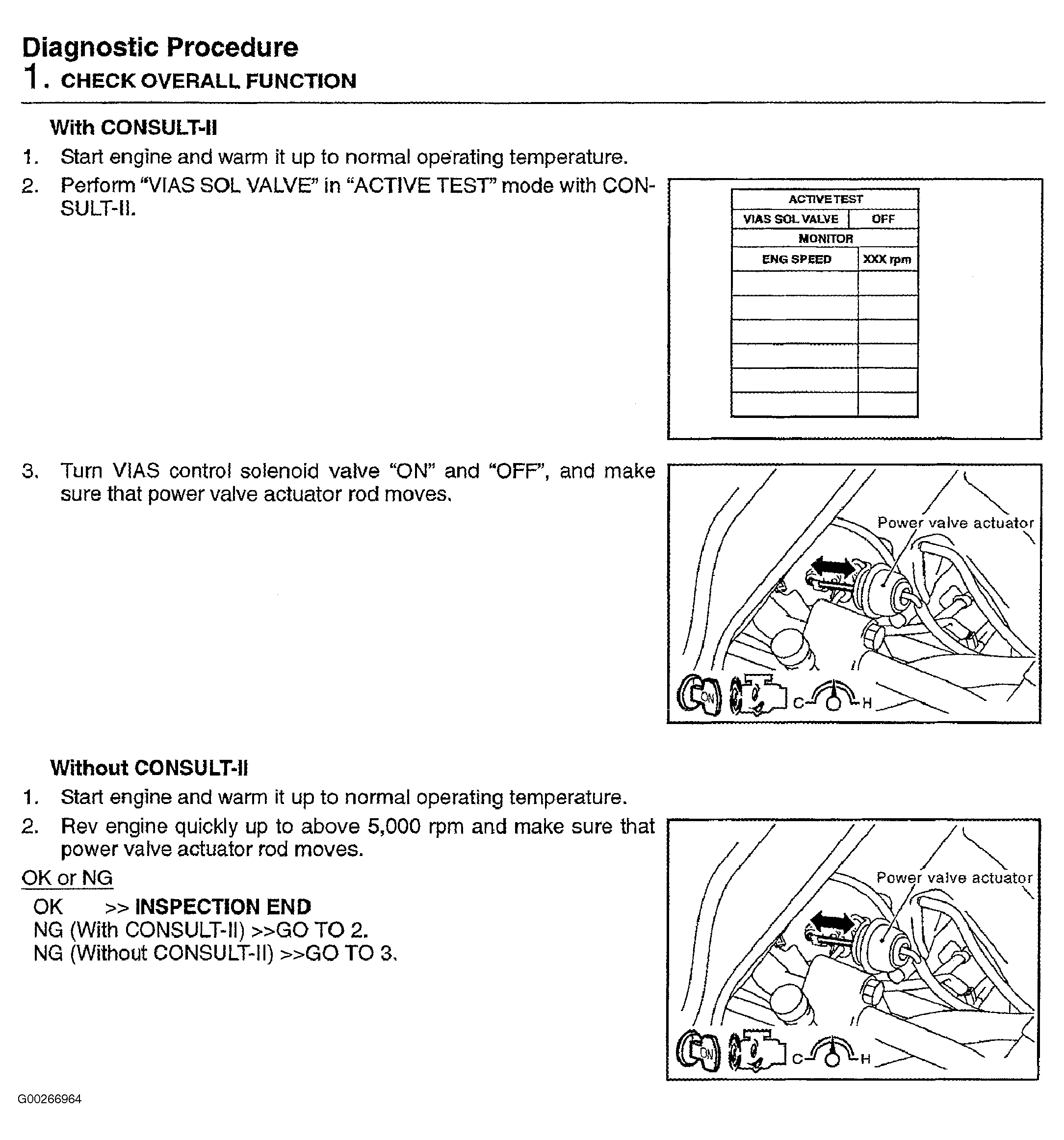

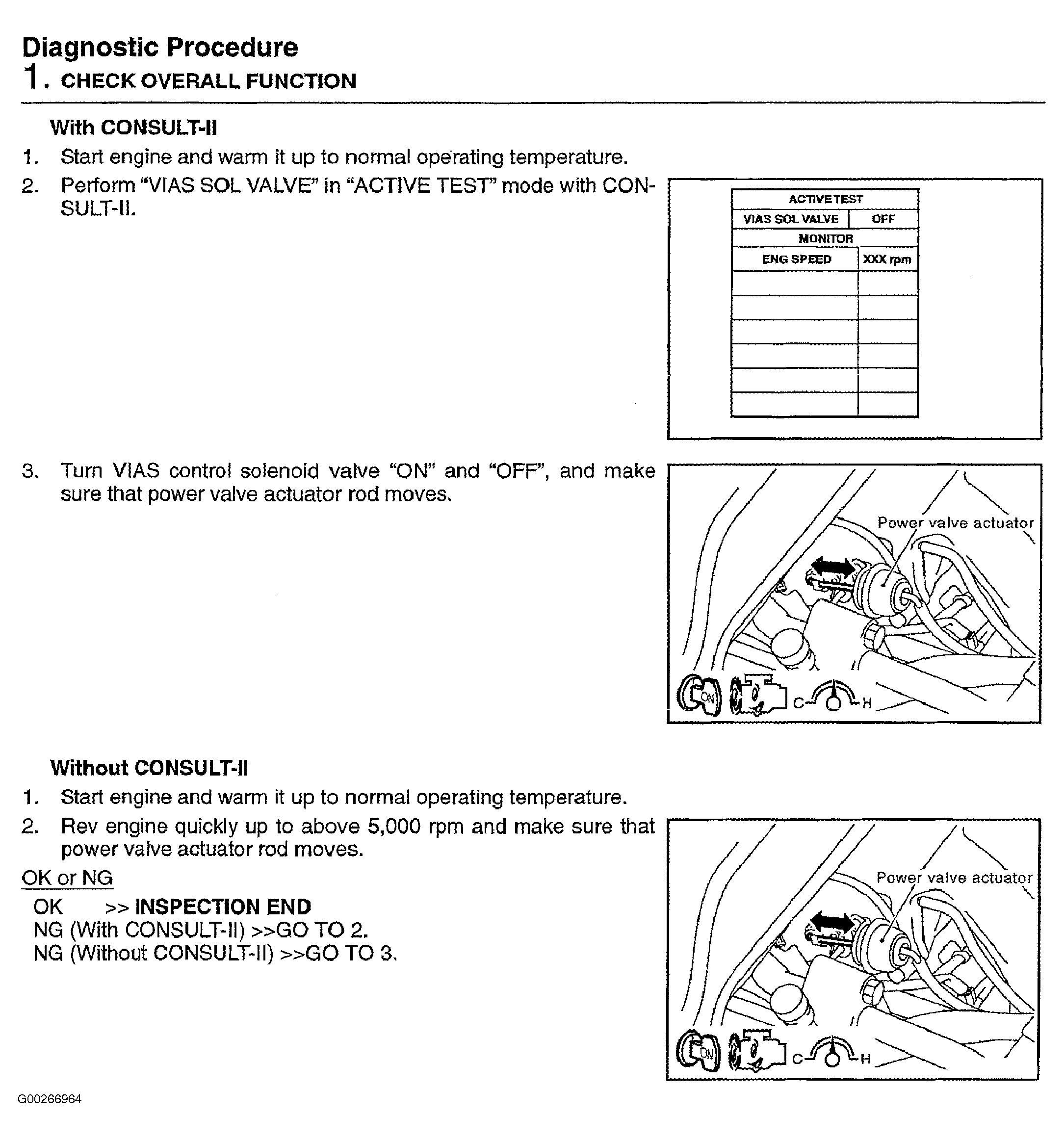

Fig 1: VIAS System & Component Testing Procedure (Murano - Step 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

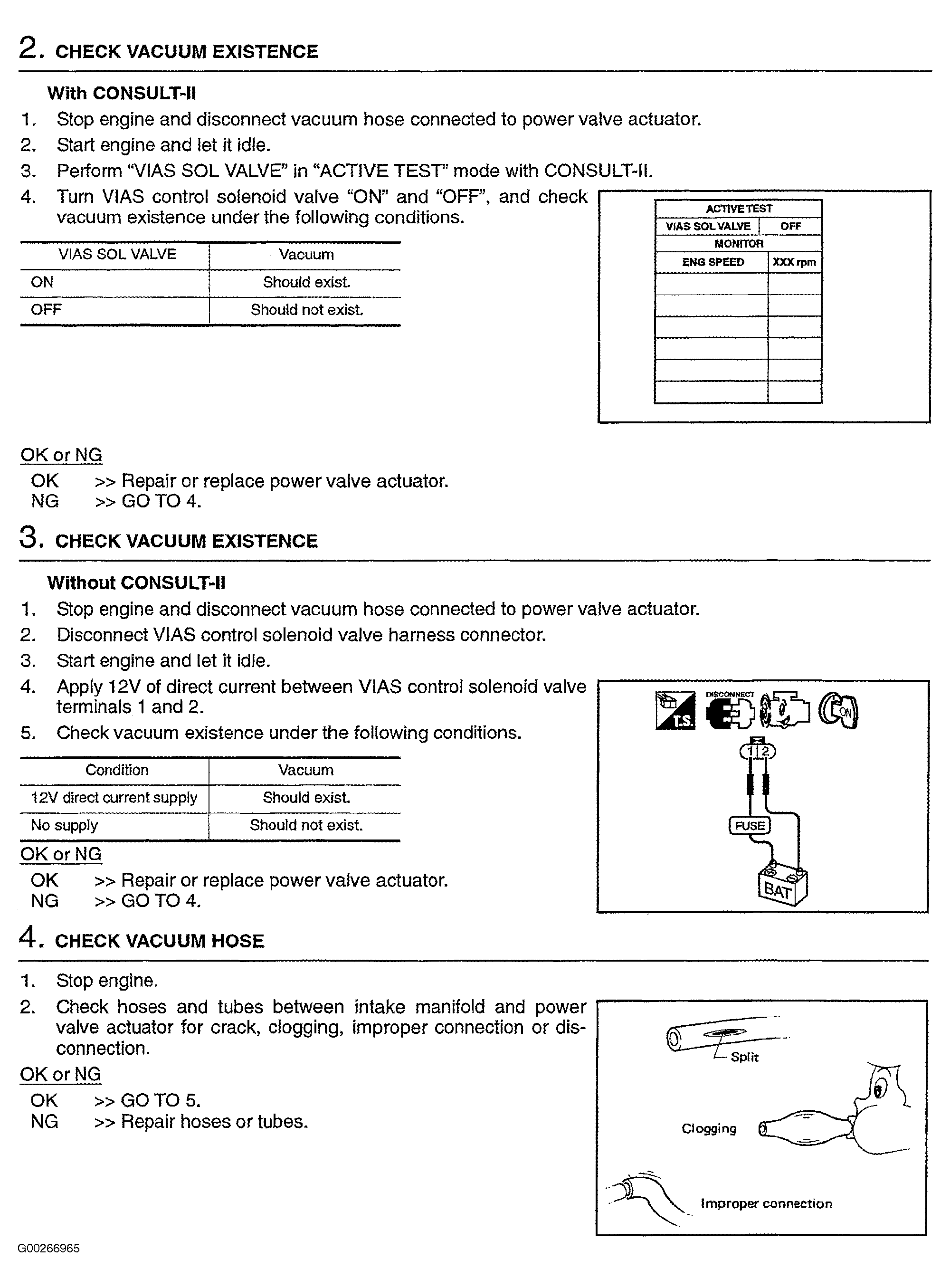

Fig 2: VIAS System & Component Testing Procedure (Murano - Steps 2-4)

Courtesy of NISSAN MOTOR CO., U.S.A.

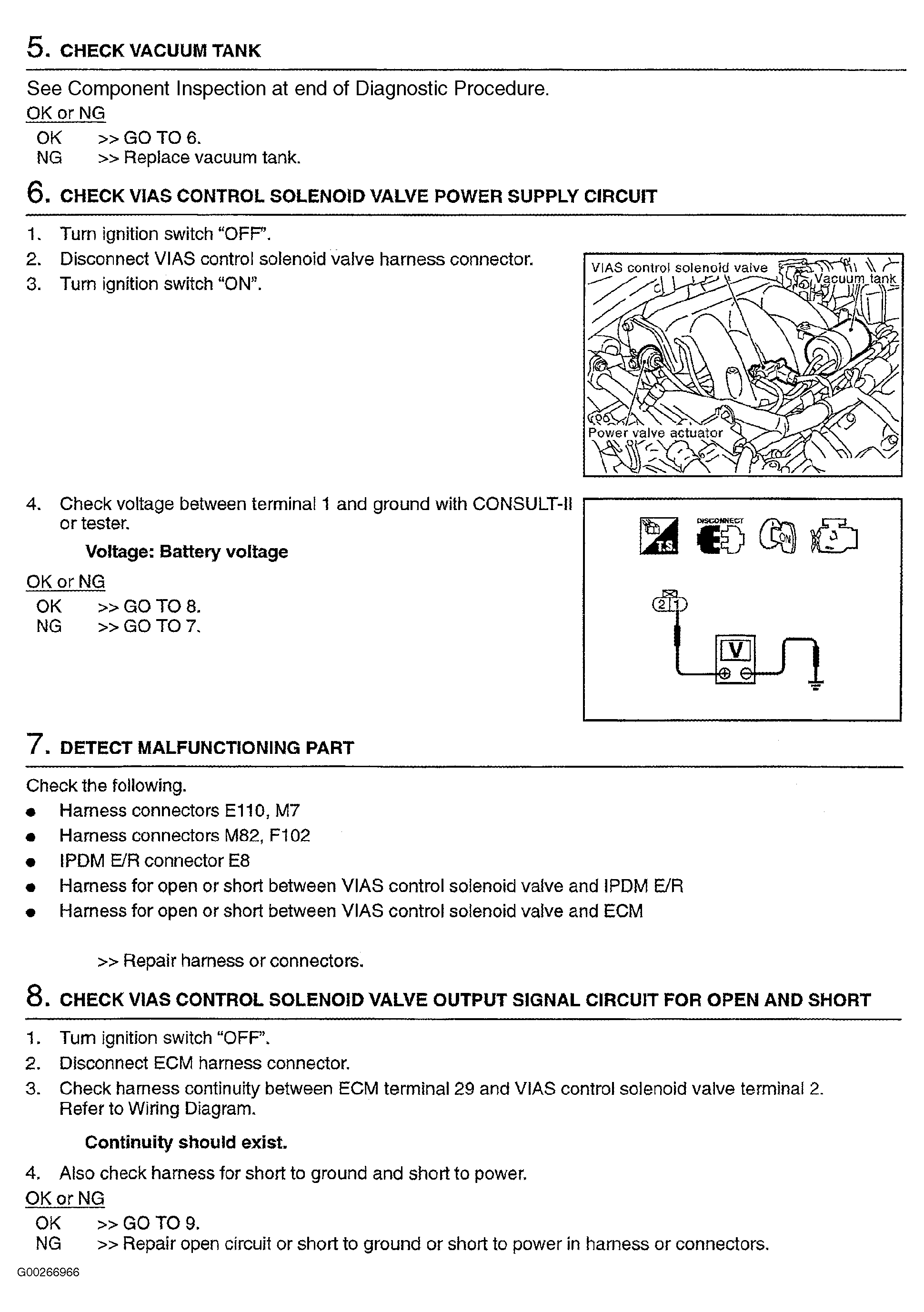

Fig 3: VIAS System & Component Testing Procedure (Murano - Steps 5-8)

Courtesy of NISSAN MOTOR CO., U.S.A.

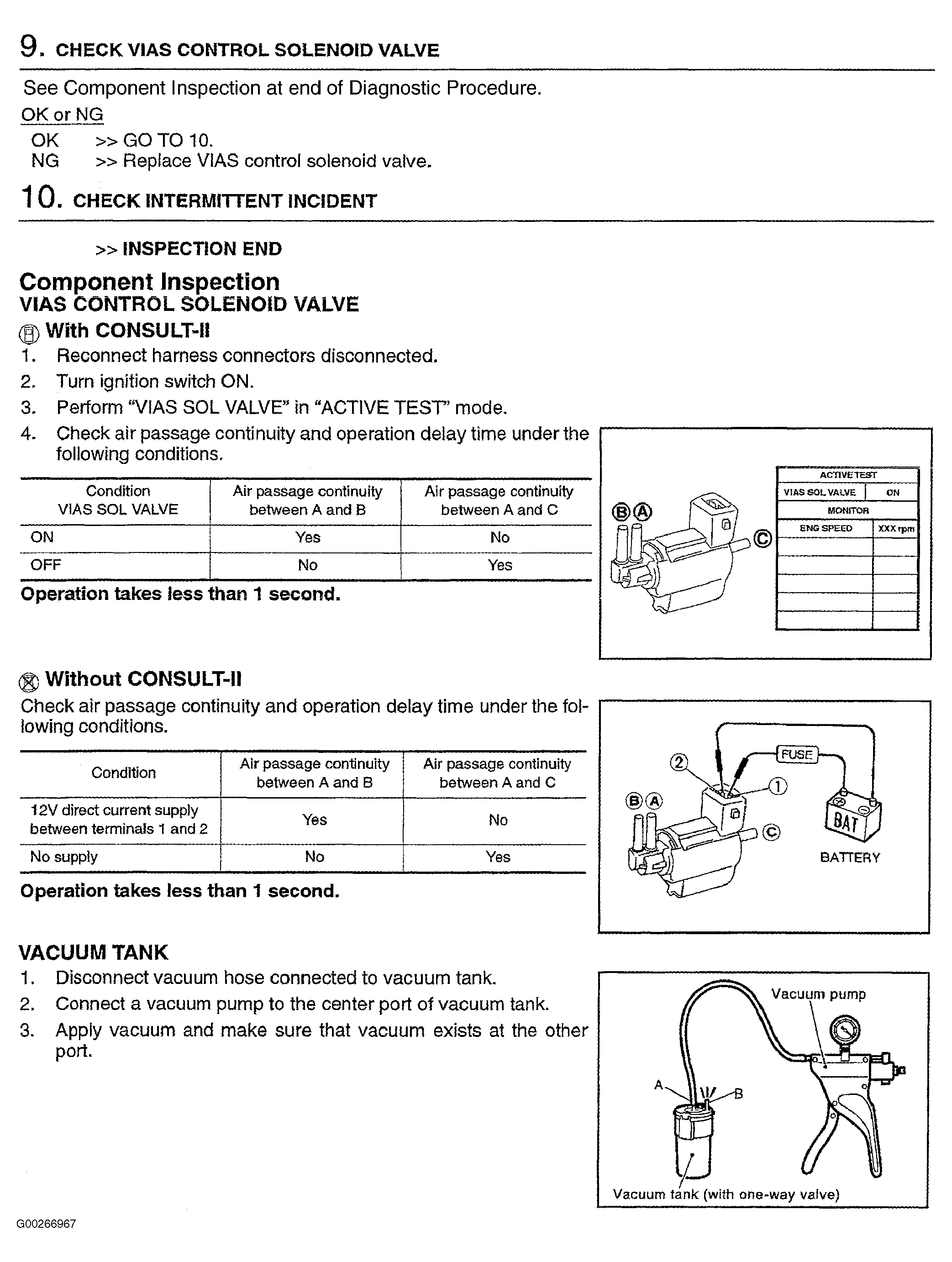

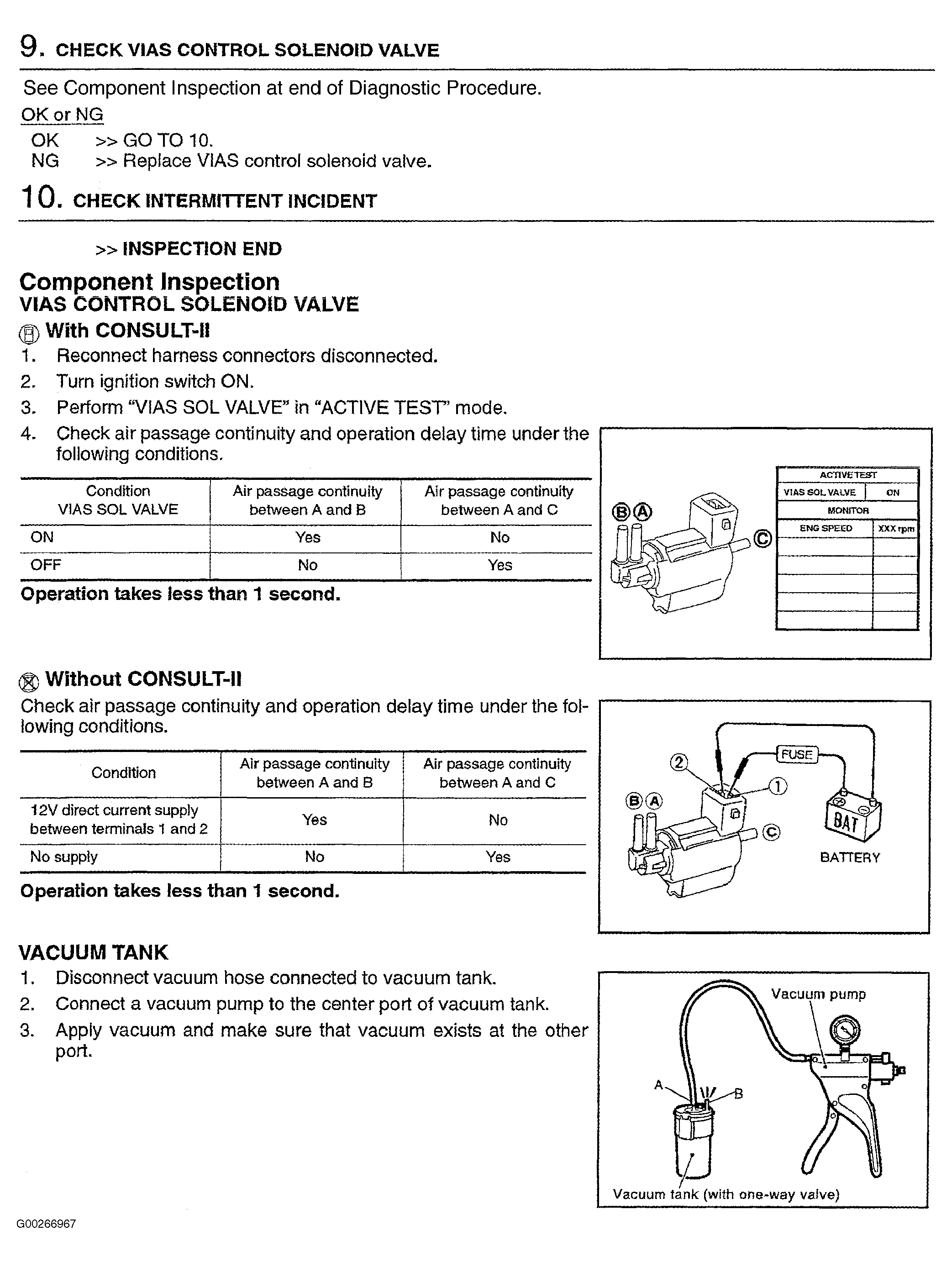

Fig 4: VIAS System & Component Testing Procedure (Murano - Steps 9-10 & Component Inspection)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating Engine Control Module & Connector Terminal Layout (Murano)

Courtesy of NISSAN MOTOR CO., U.S.A.
