Fuel Pump Control System (Sentra 1.8L)

For fuel pump control system diagnosis and testing procedure, see Fig 1-Fig 6 . To check fuel pump, see FUEL PUMP . For relay location, see ECM & FUEL PUMP RELAY LOCATIONS  table. If no problem is indicated at this time, problem may be intermittent. See INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. For component removal and installation procedures, see appropriate REMOVAL & INSTALLATION article.

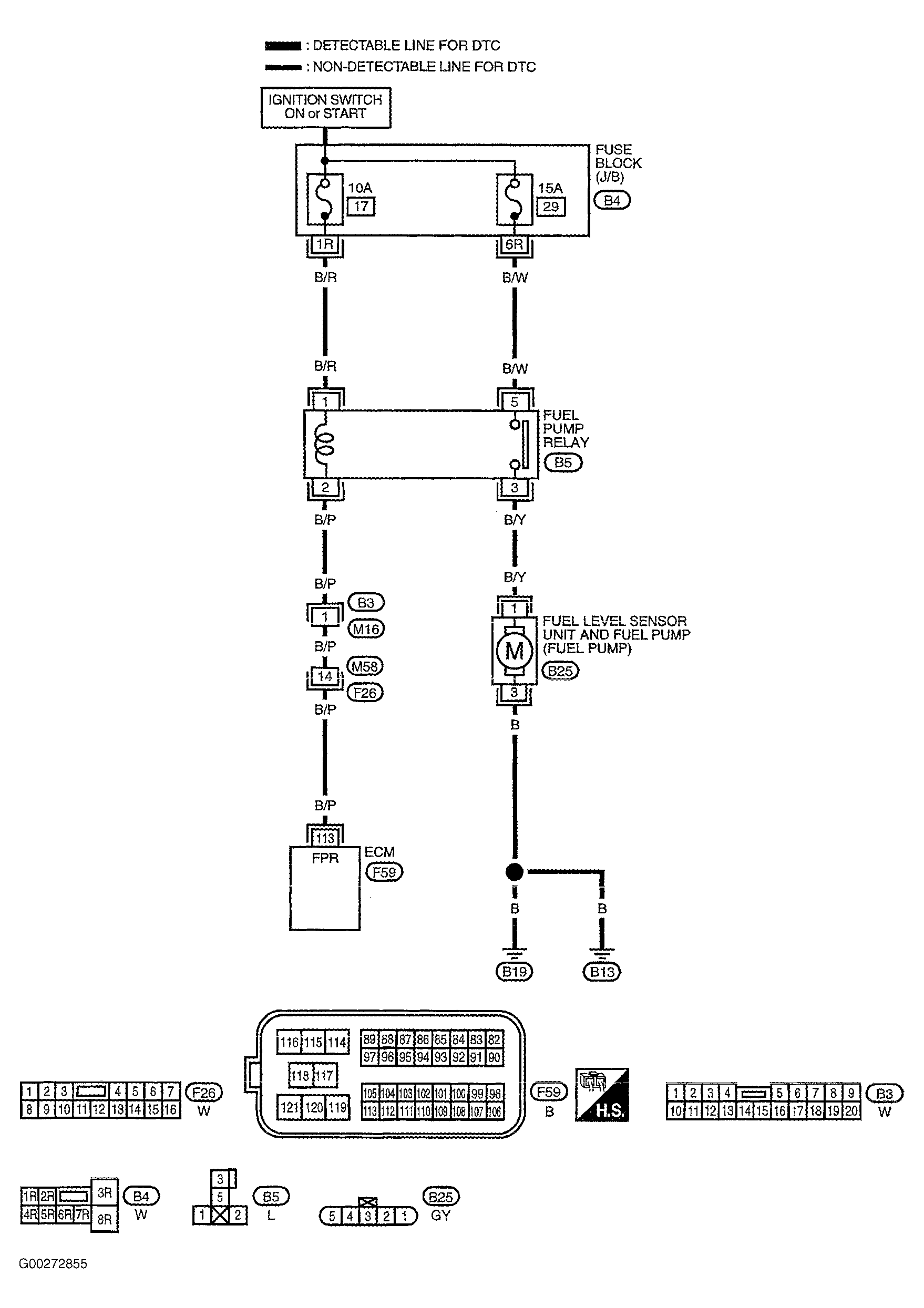

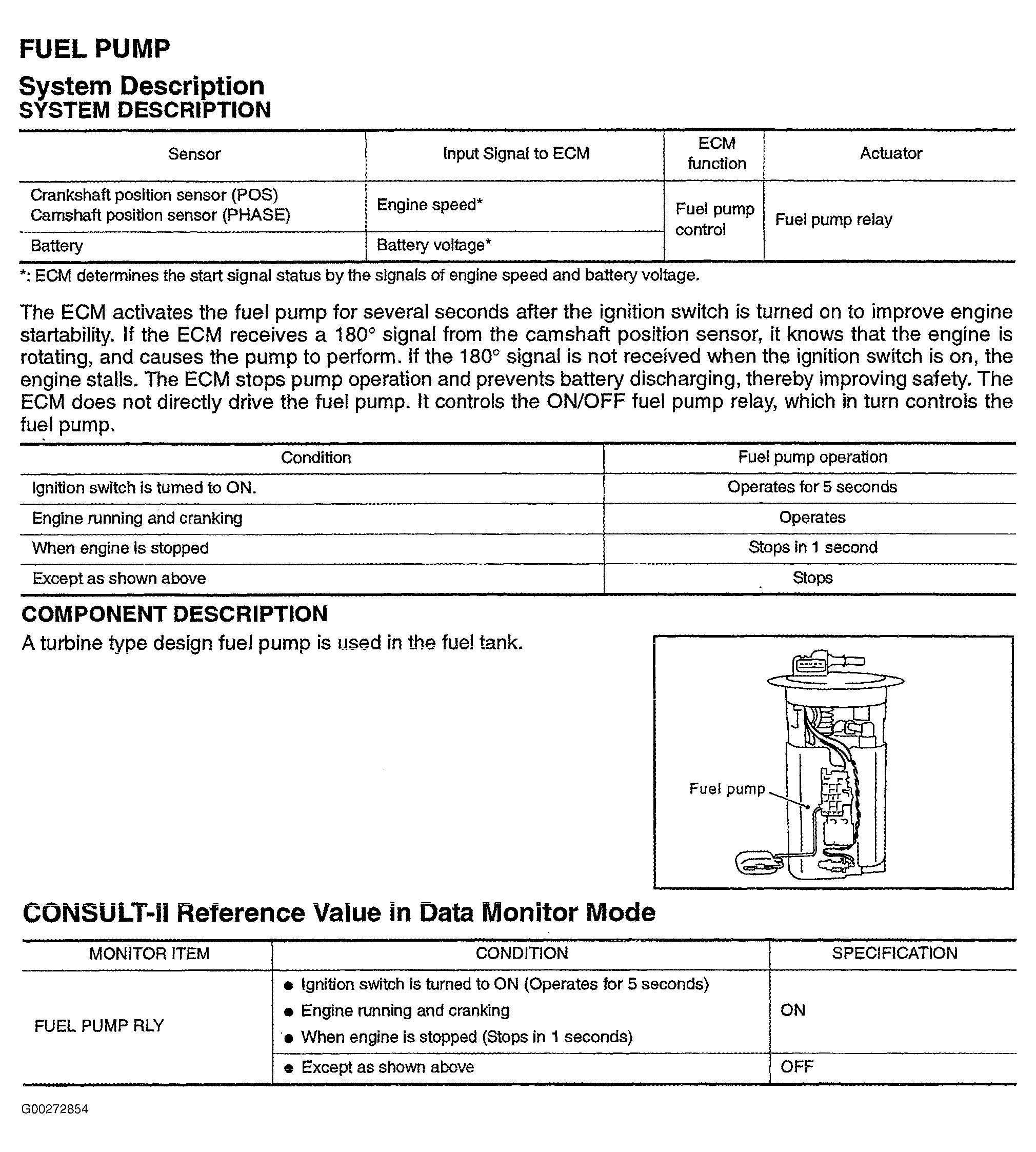

Fig 1: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

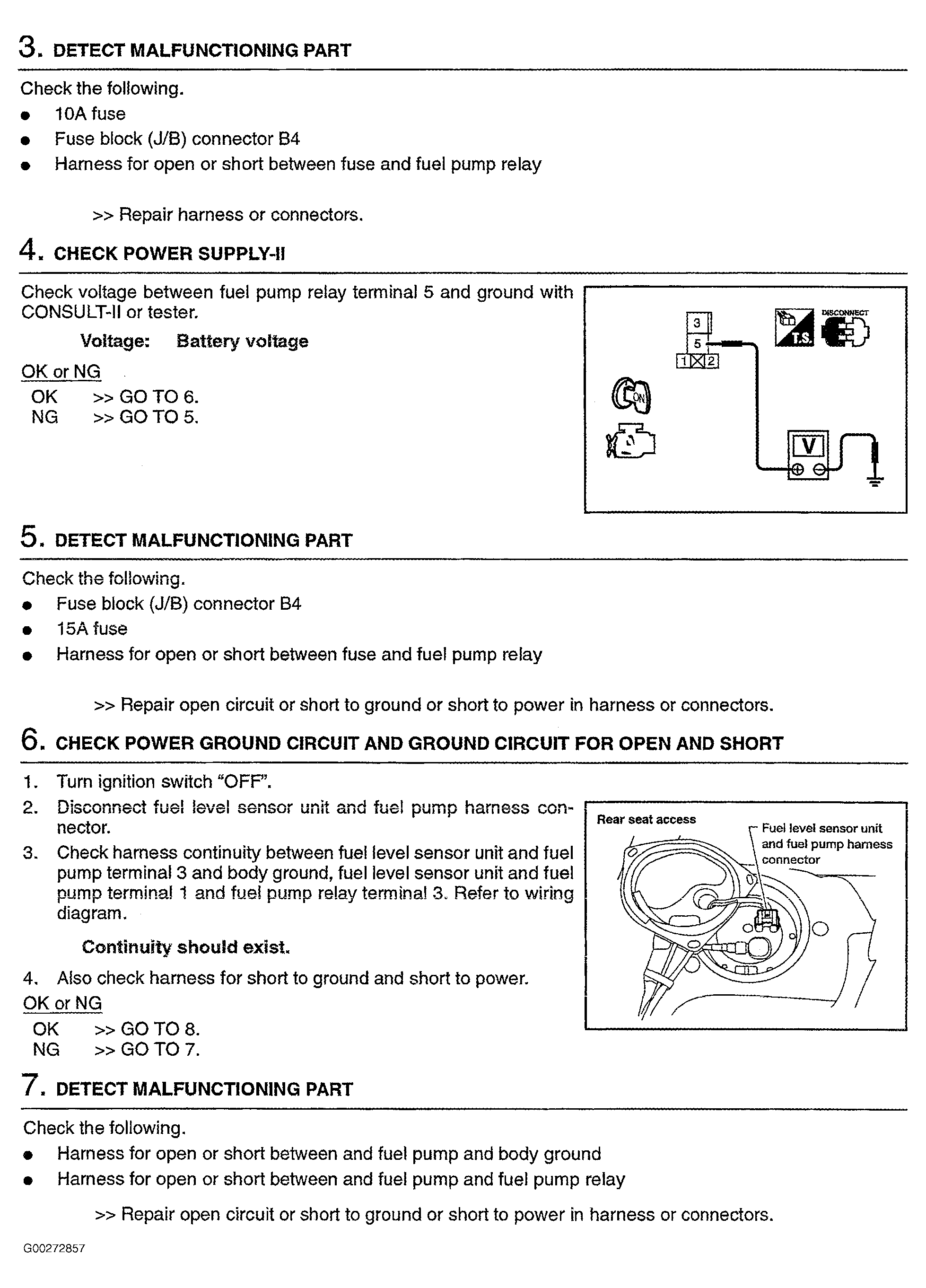

Fig 3: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

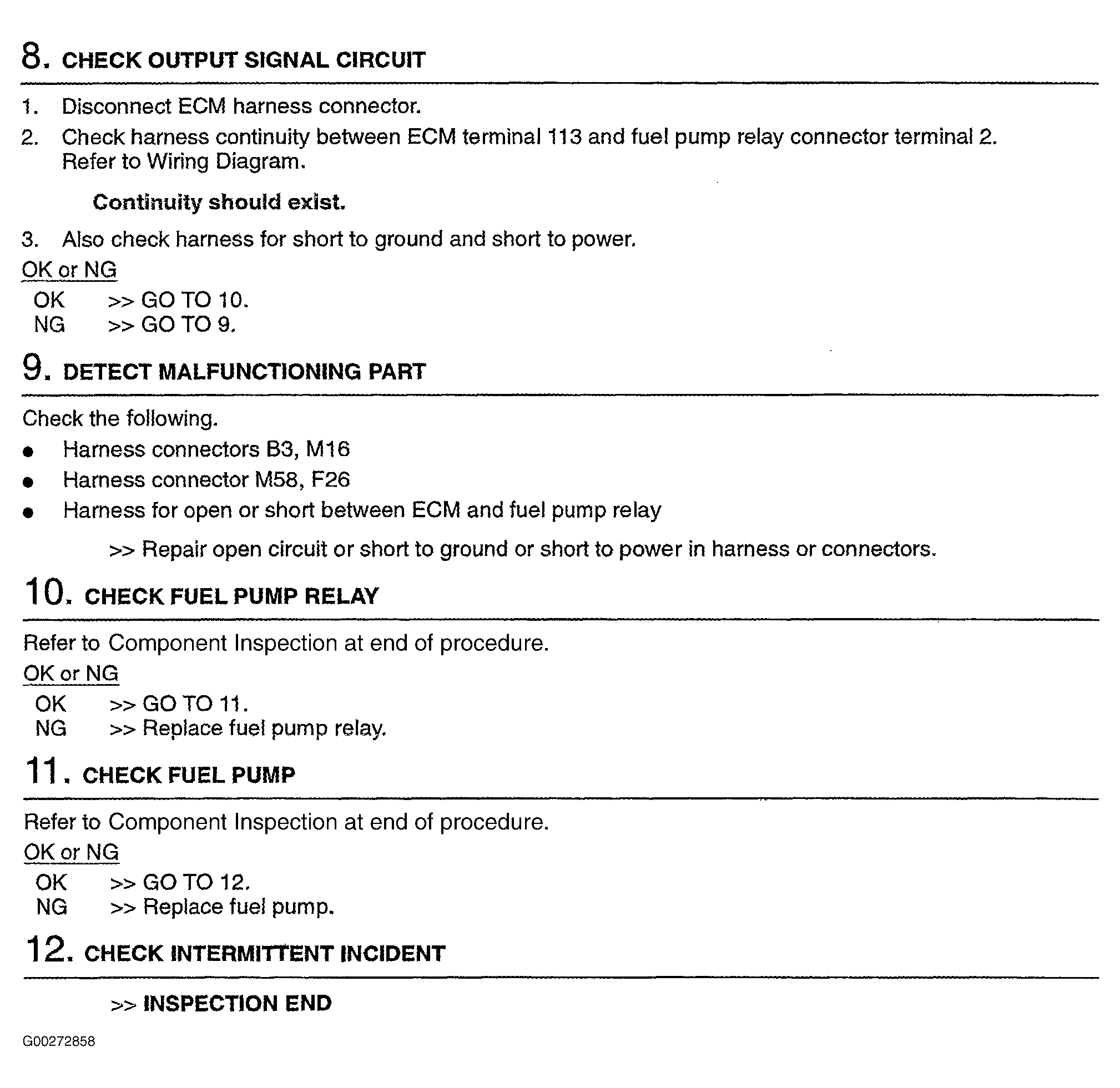

Fig 4: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

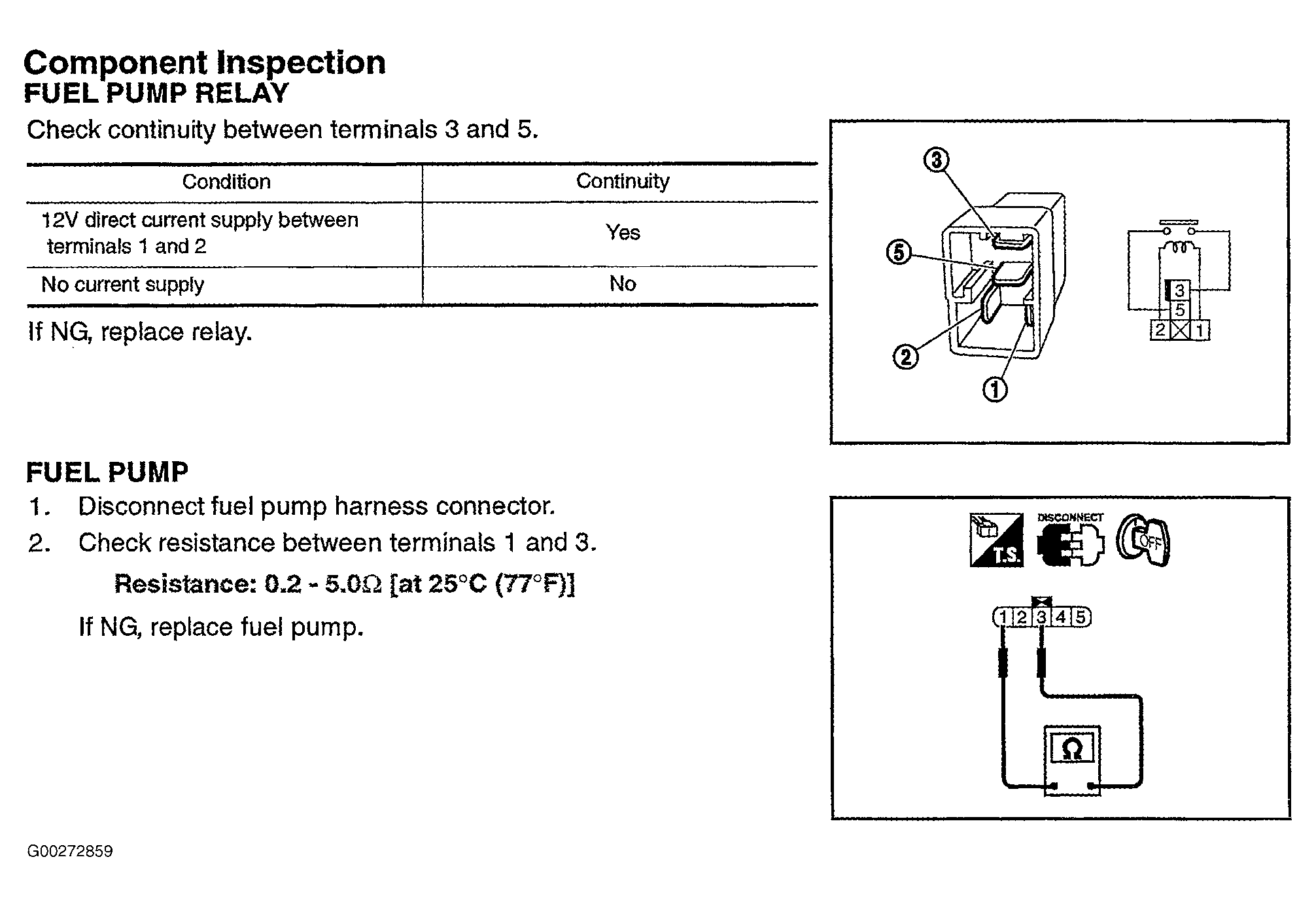

Fig 5: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Fuel Pump Control System & Component Testing Procedure (Sentra 1.8L - 6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
